2020 Extrusion Hinge for Voron Fridge Door mod

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

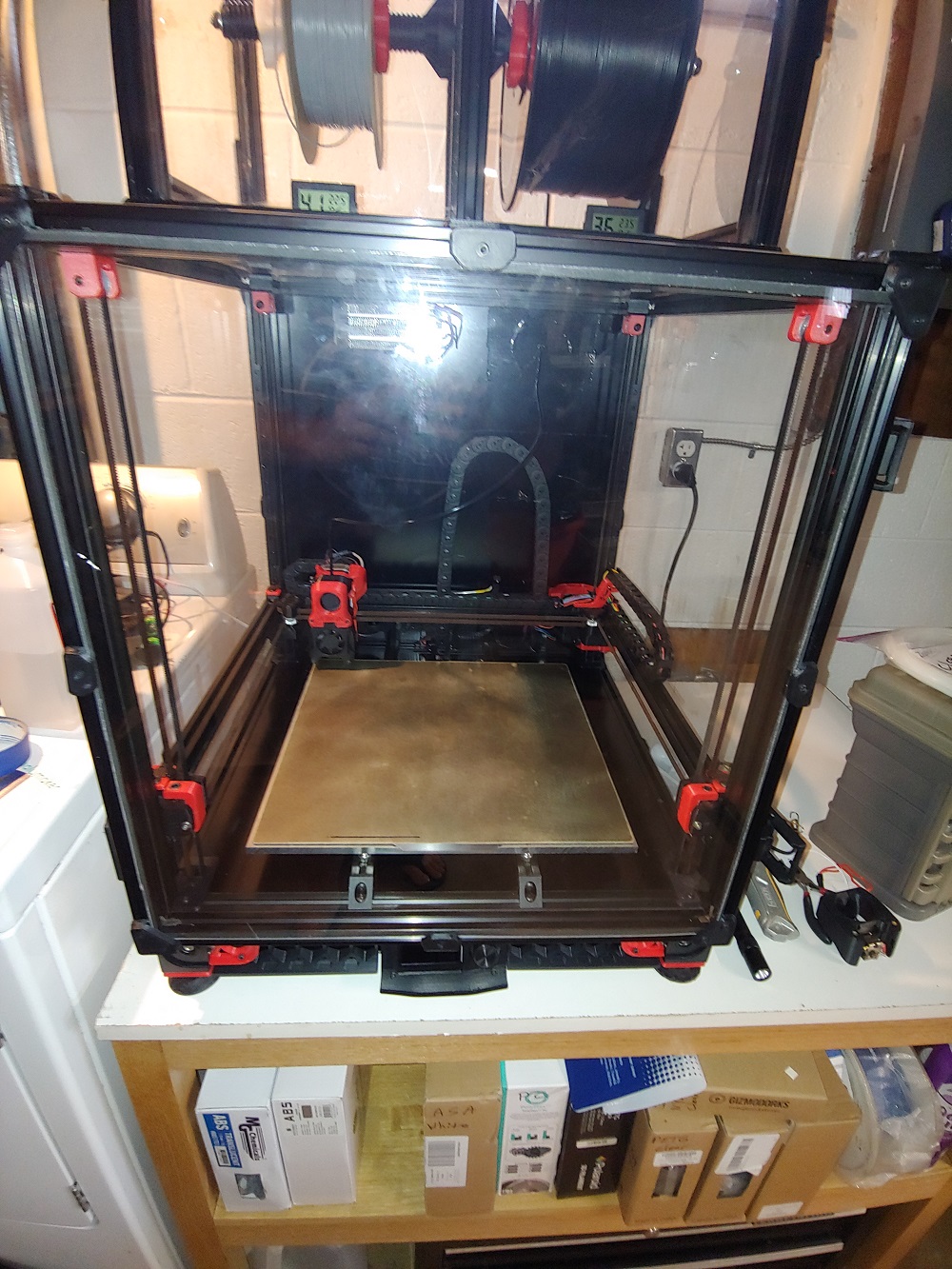

These hinges fit 2020 extrusion and the frame side is made to clear the side panels on a Voron V2 or Trident printer. I made them to use in the “Fridge Door” mod. Basically just duplicate the front of the Voron frame to make a front door for the printer. My printer has 1mm foam gasket and 3mm thick acrylic side panels. The parts may need reworked if your foam gasket or side panels are a different thickness. (the spec was changed to 3mm thick foam gasket after mine was built.) Make sure that the hinge is preventing the screw from being tightened against the acrylic side panel. The acrylic could crack if the screw is tightened against it. My printer has 1mm foam gasket on the front. If your printer has something else, you may need to adjust the location of the holes on the door side to account for a thicker gasket. I have included separate stl files with a blank door side hinge and holes so the holes can be placed where needed. The hinges use 5mm rod for the hinge pin. It is a very tight fit to prevent the door from sagging any. The pins need to be hammered in. The hinge may even need to be drilled out before hammering a pin in. I did not release this previously because I didn't think it was refined enough, but I have received a few requests so here it is As-Is/No Warranty; might not work for you.
