Air quality lamp

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~12 g

Print time

~0 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

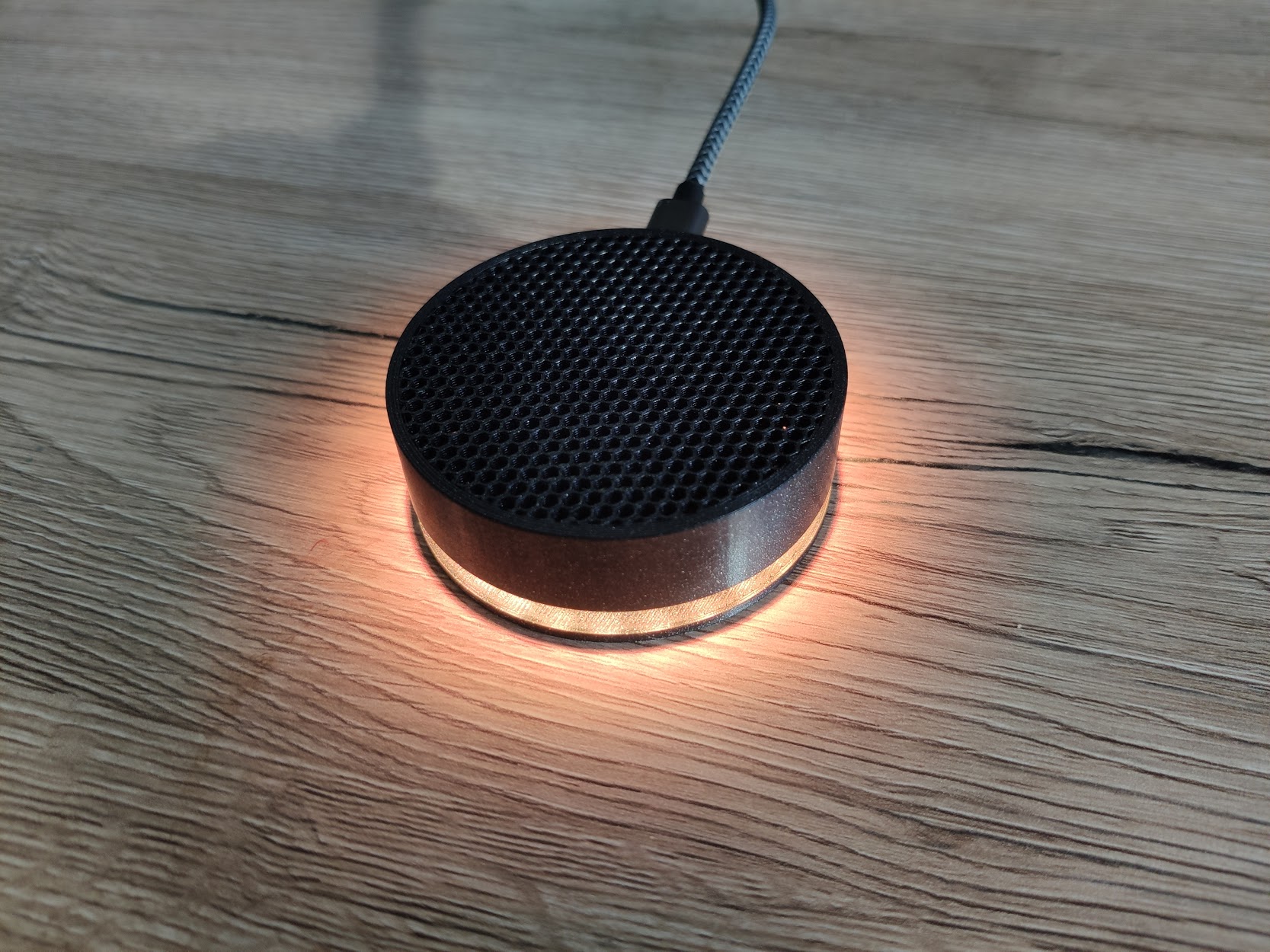

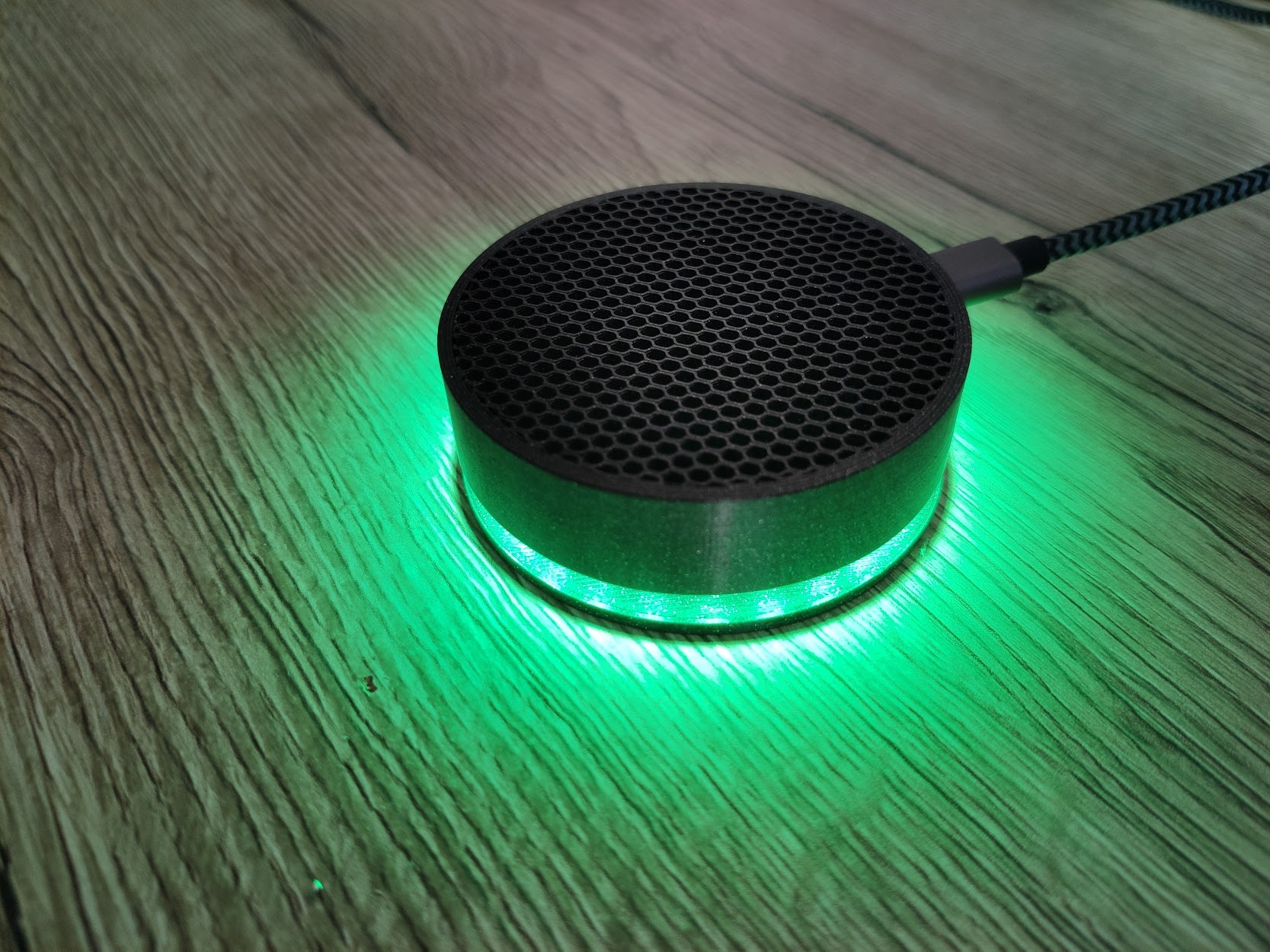

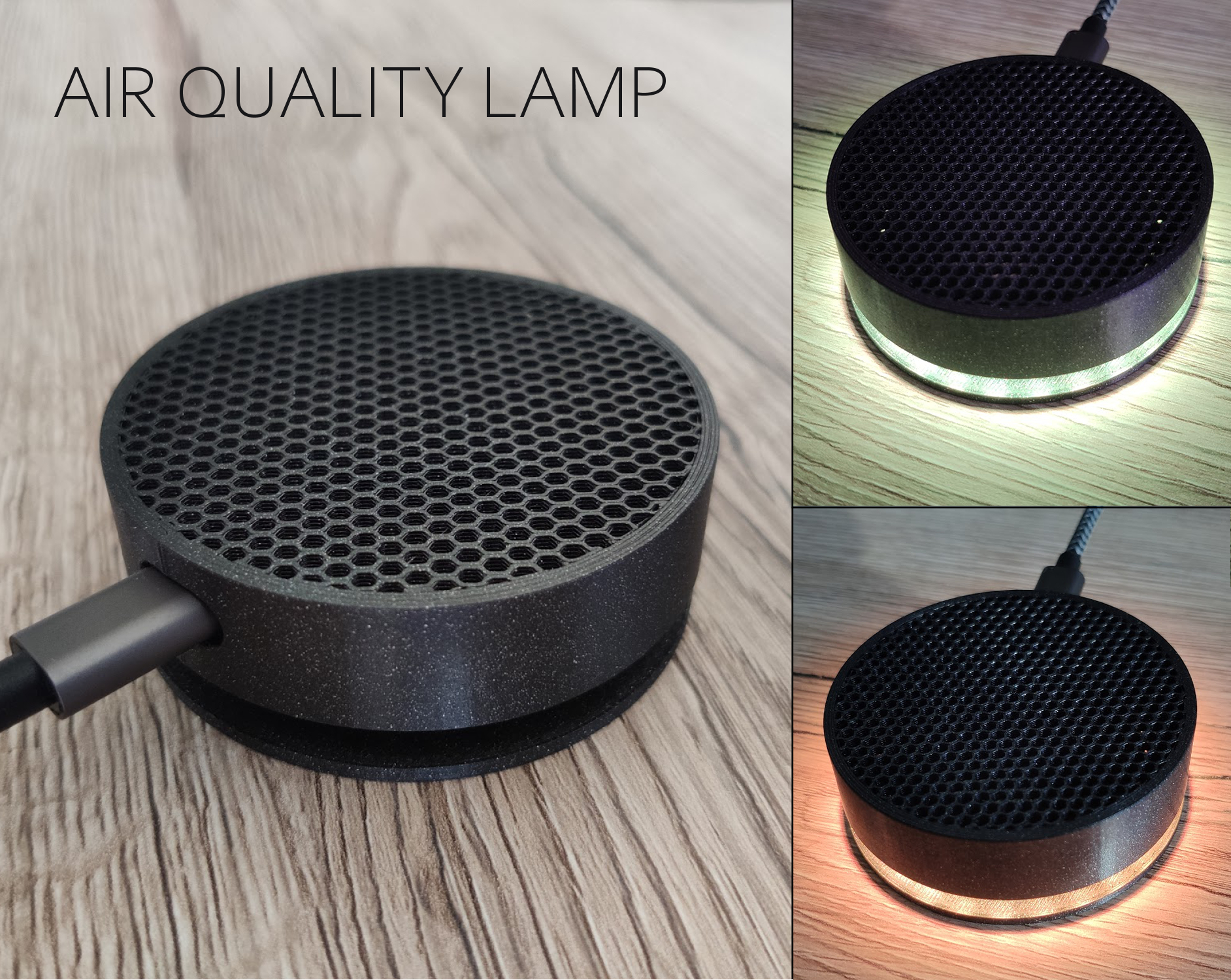

I designed this case to visualize the indoor air quality using a LED ring. The top part contains a thread to switch the stand to a cover. If you prefer in-directional light to the bottom, like in the first image, you can skip the air quality-cover and vise versa. Because of the thread on the top, you can design your individual lampshades. You can use the bolt in the attached blender file to create your own creations. Please add a comment with your design of a cover, shade, or stand so I can link it on the GitHub page as well. Parts: WeMos ESP LOLIN32 WS2812 LED ring with 24 LEDs BlueDot BME680 4 small screws to keep the ESP and the BME in place ~M1.7x5 3 screws for the top cover ~M3x8 I used the infill trick for the bottom part with a 30% honeycomb infill. As usual, you will find the blender files to adjust them to your needs. If you're interested in my projects, you can find them on GitHub. It's a single repository containing multiple ESP32 projects, and it's still under construction. https://github.com/Lillifee/espbs
