BTT HDMI 5 Display Voron Mount (Works with Clicky Clacky Door)

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

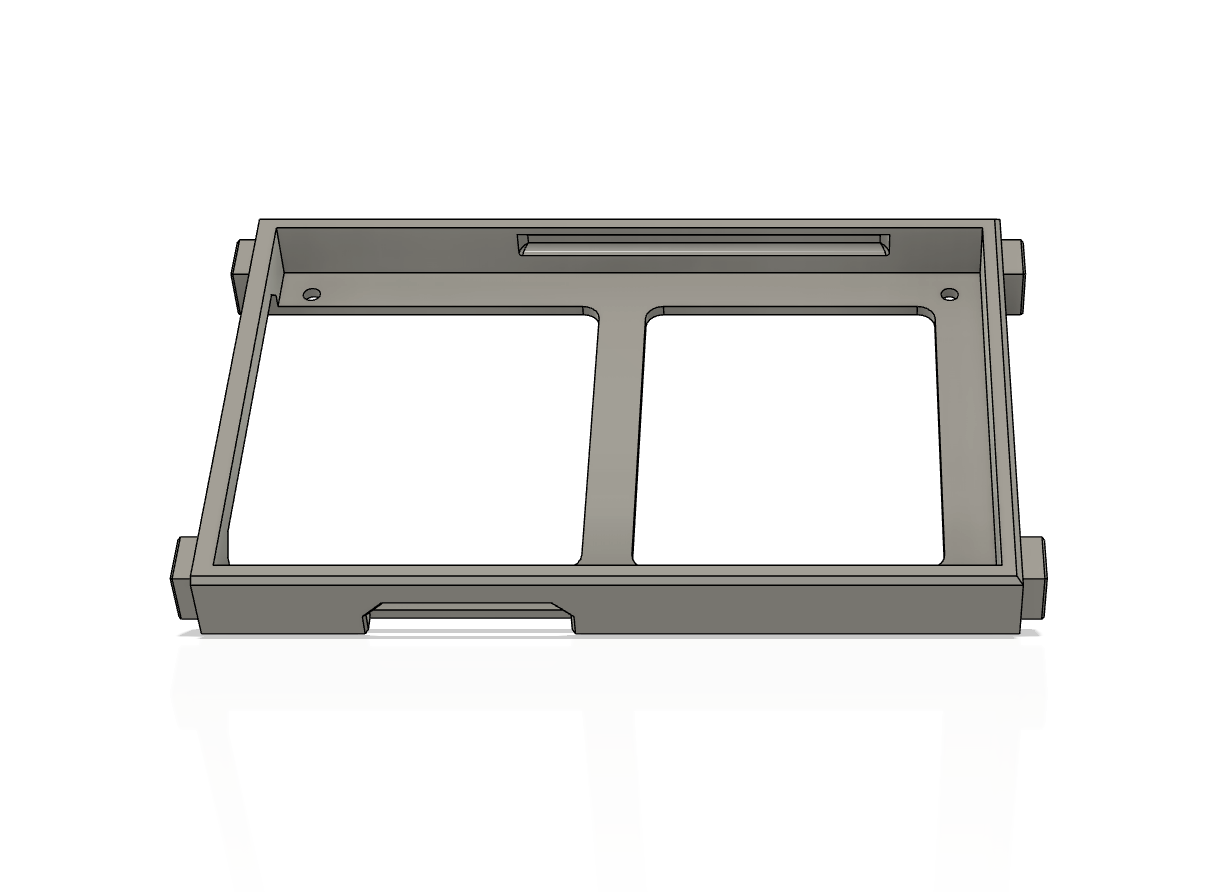

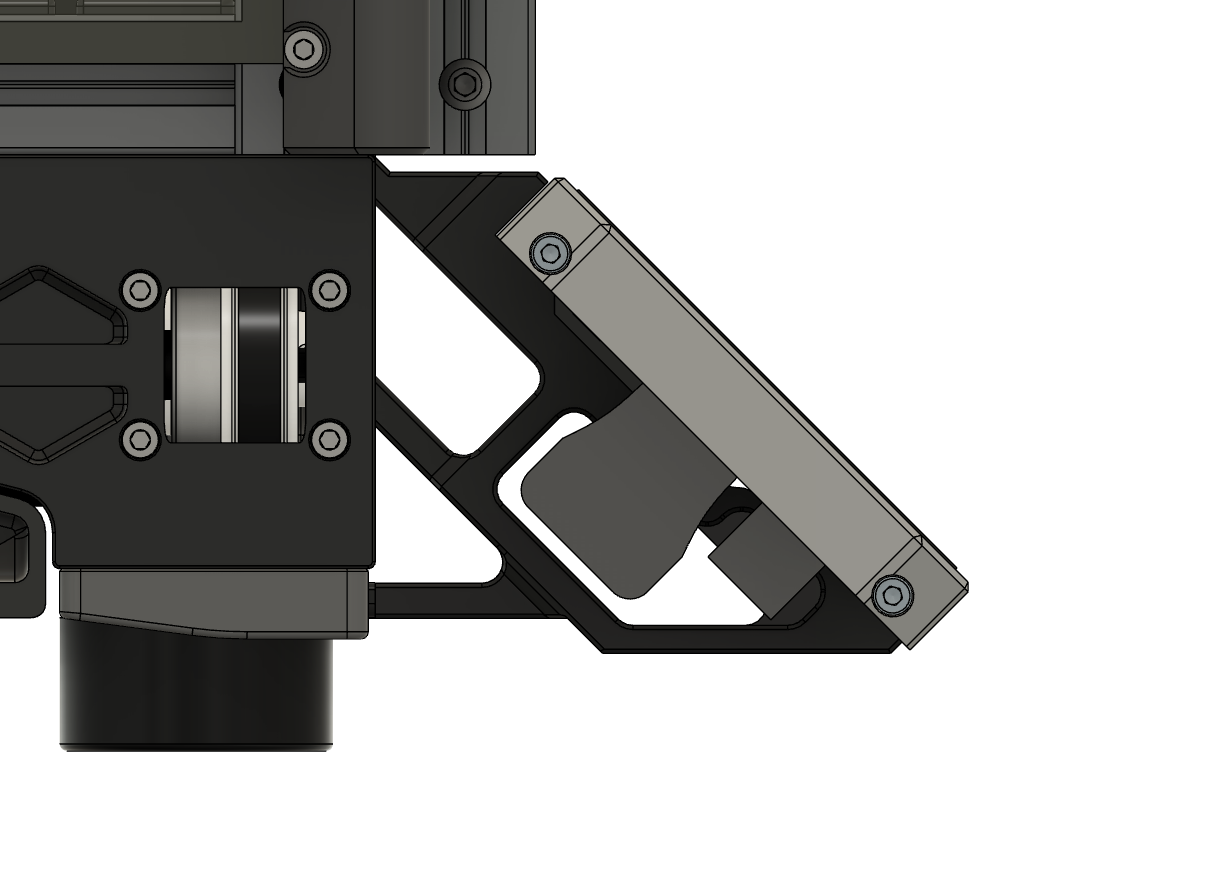

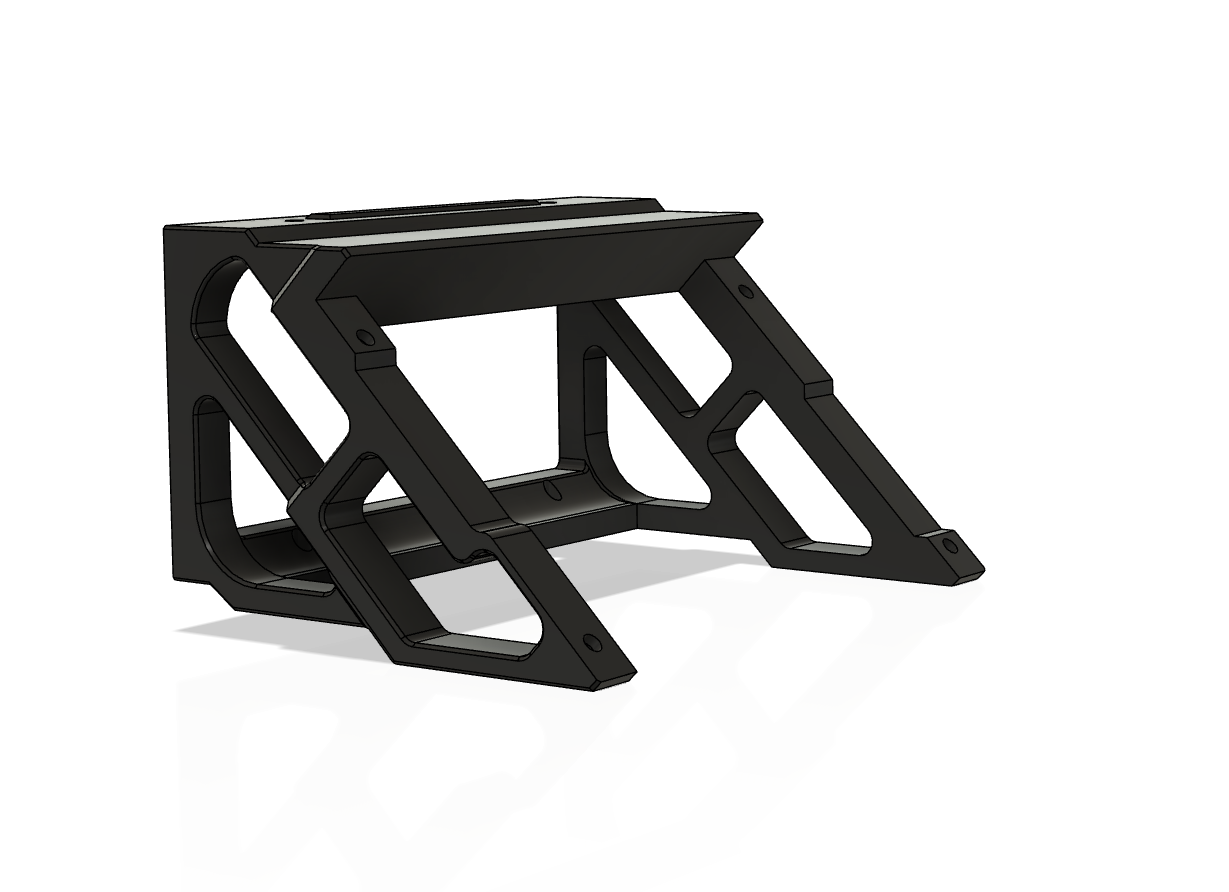

This is a remix of the BTT HDMI display mount Voron with all modified parts being compatible with the originals design. So you can Use the remixed mount bracket with the original asymmetrical display frameUse the original mount bracket with the remixed symmetrical display frameUse the original straight and 180° cable protectorsThe initial reason for remixing was to optimize it for a Clicky Clacky fridge style door. And I took the chance to make it symmetrical as well by just adding the required mount points to the right side. I use this model on a Voron 2.4 (R2) but if I am correct it should also fit the Trident (I am sure if you have one you will know ;-) ) And as it was requested by a user there is also a display cover included that protects the screen when the printer is not in use. DesignPrinting and AssemblyDownload the required original parts (you will at least need the cable protectors that go to the left and right side)Printing using standard Voron parts settings; make sure to place the parts in a useful orientation on your print bed and not as they were falling out of the CAD :-)Follow the original BOM (also for the compatible 180° adapters); for the second cable protector on the right side you will need additional2 x 3mm heatset inserts2 x M3x6 SHC (I had some trouble with M3x8 SHC, but made it work using Nylon washers. If you have it, use 6mm screws or be careful during assembly)For the display cover you can glue in the inlays if you like some accent color. You can also add support to the complete logo area (reduce the contact z distance to 0) and you will get the logo printed with a different “texture”. And here are just some photos of the assembly (I will post some pics with the Clicky Clacky door later when I have it installed): HardwareIf you are looking for the correct adapters, that's what I am using: HDMI Adapter Amazon.de LinkUSB-C Adapter Amazon.de Link AttributionIf you are using some unmodified parts, please download the files from the original creator so that he also gets the credits. I will upload the original files just as a backup to a dedicated folder in the files section so that the model is complete and usable even if there are changes made to the original project.
