Domino router jig

SKU 3DPW-pr-1633380

$200.00NZD

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Quantity

Ships from NZ

Secure Stripe checkout

14-day faulty refund

1-3 day lead time

Material: PLA (filament)
Colour: Grey
Weight: ~40 g
Print time: ~4.5 h
Shipping: $10 std · $20 express
Lead time: 1-3 d print + 1-4 d ship

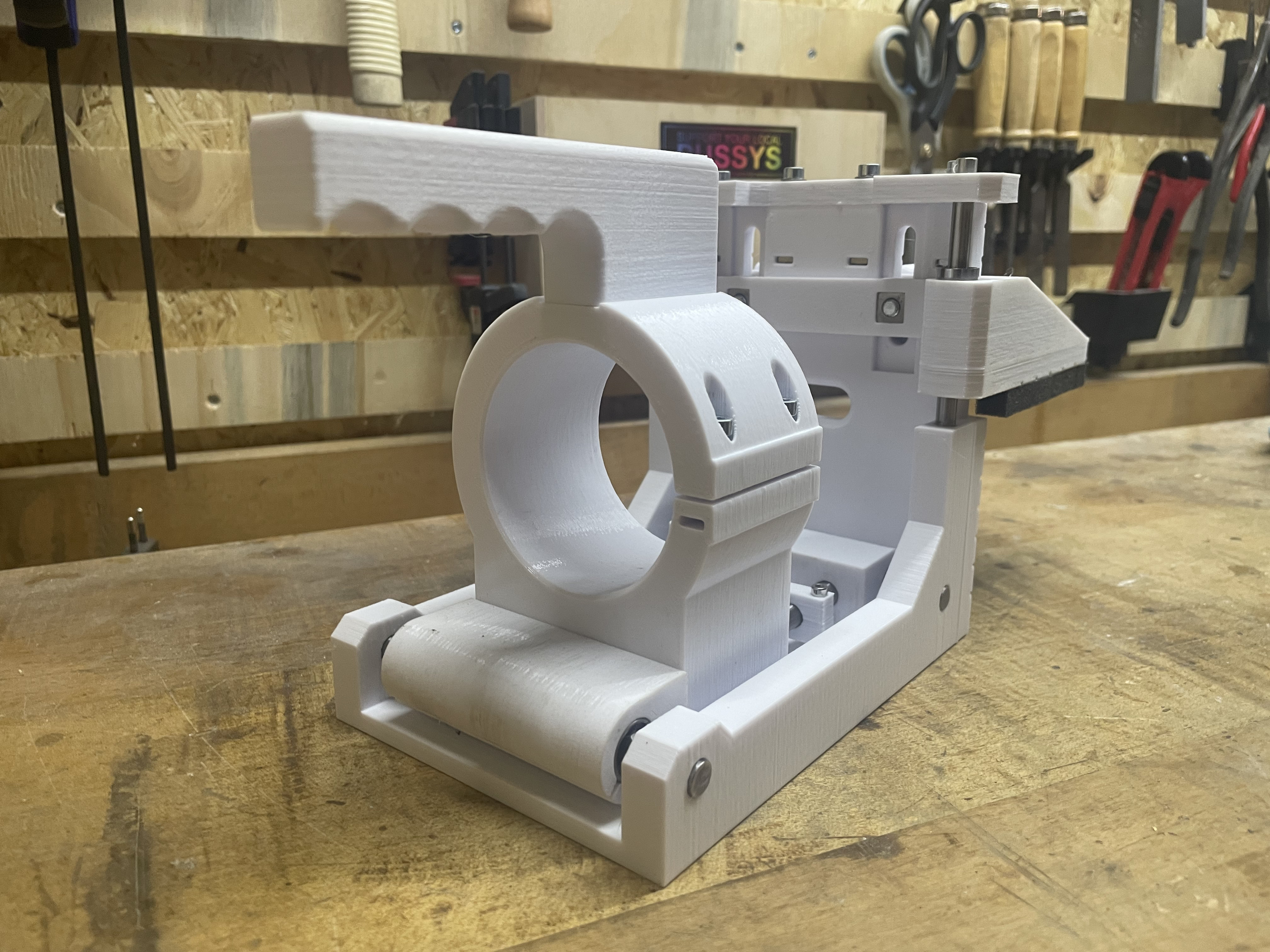

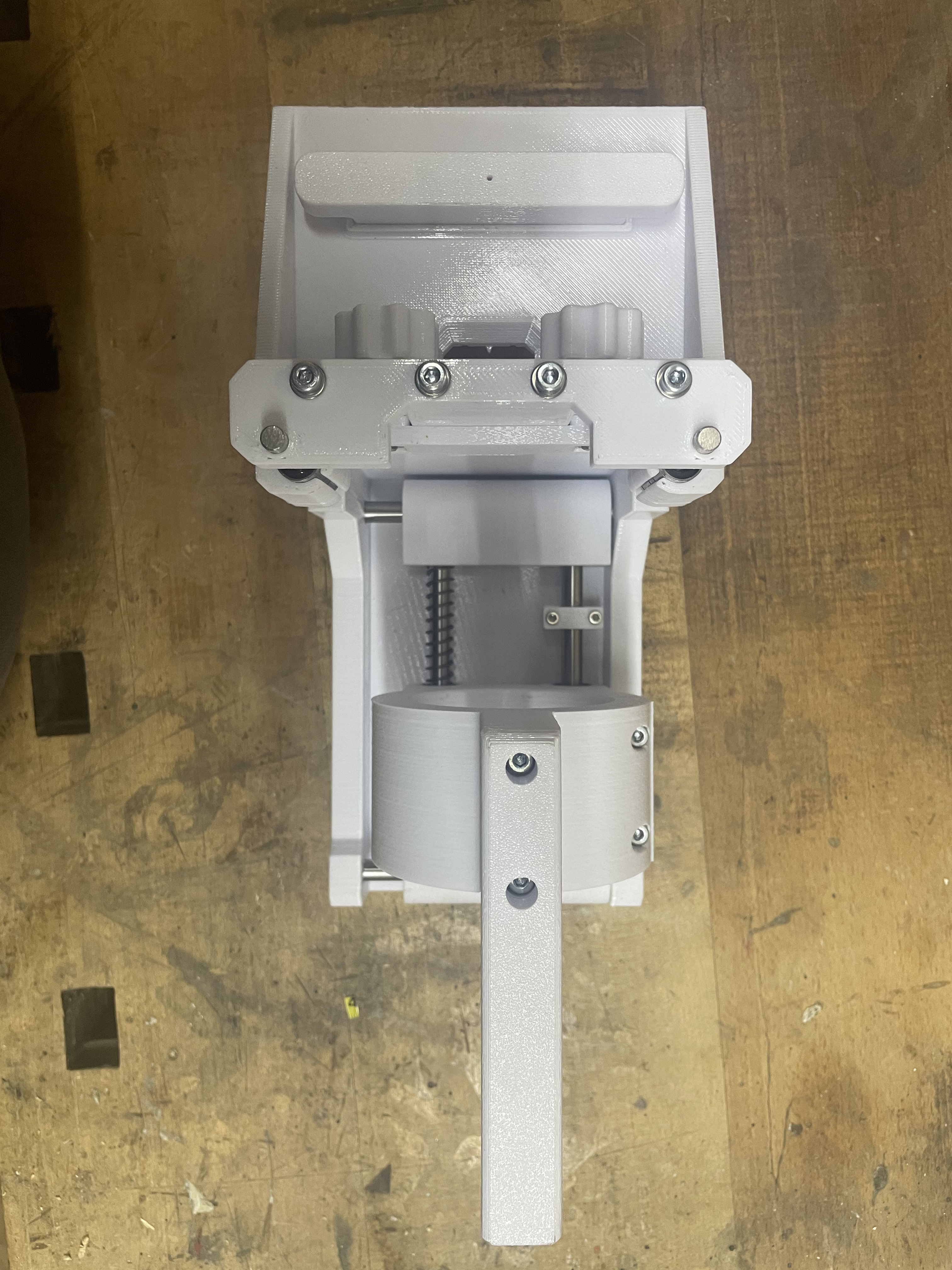

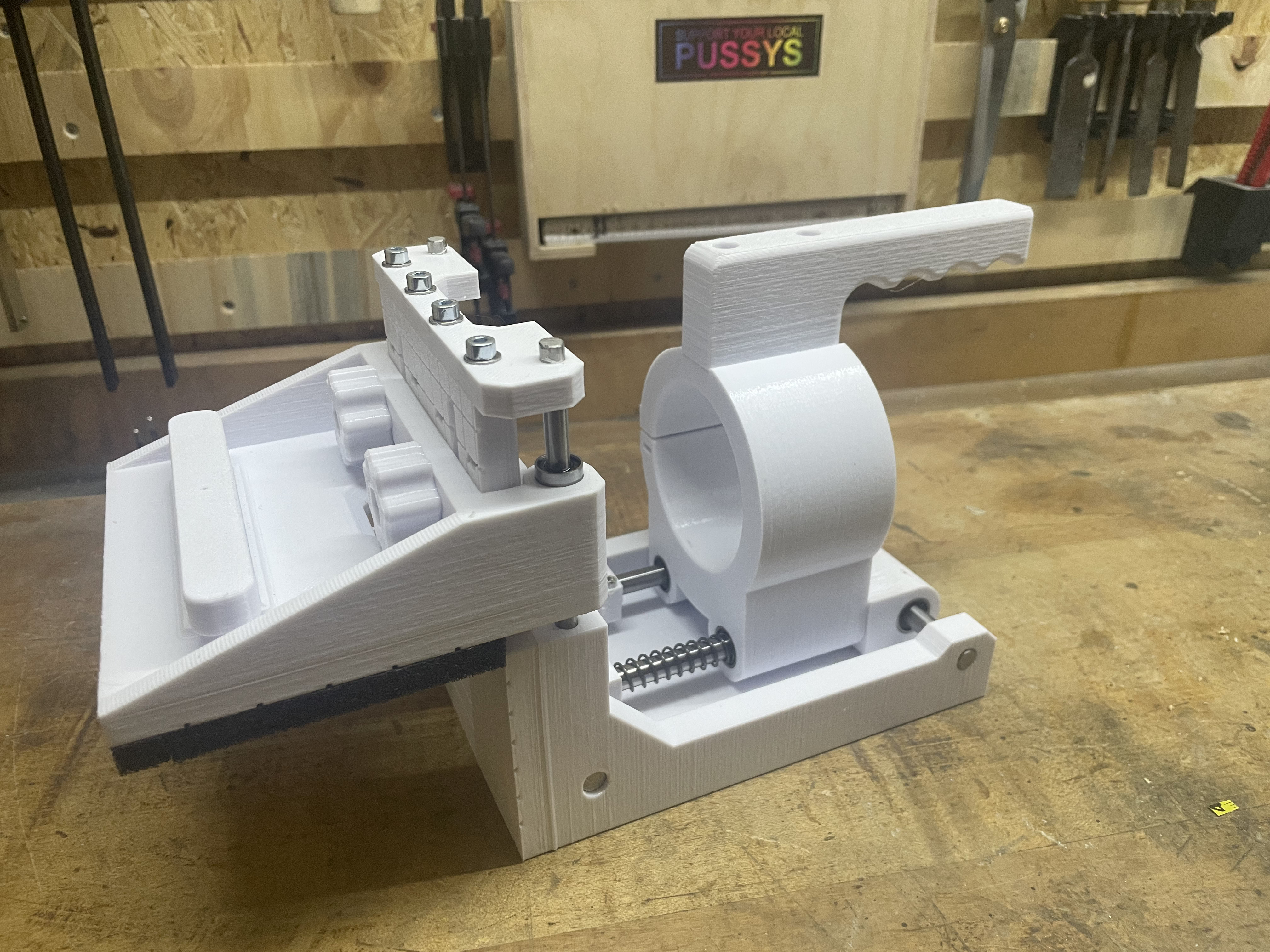

Inspired by the design of JSK-Studio (https://www.youtube.com/watch?v=NX5H3UaoFl0) I modeled a custom version from scratch with bearing on the Z Axis aswell. What you need aside from the prints: 2x 116mm 8mm Rod 2x 114mm 8mm Rod 2x 105mm 6mm Rod 4x LM6UU 8x LM8UU 1x Spring 11mm Diameter and 45mm Length 4x M4x35mm Screw 4x M4x25mm Screw 6x M4 Square Nut 2x M5 Heated Inserts 2x M6x30mm hexagon screw The little stop piece needs: 2x M3x15mm Screw 2x M3 Heated Inserts I used 1x10mm black Sealing band for a good Grip. The orignal Domino Machine has a X travel of 14mm, this model has 15mm. Printed with 0.6mm Nozzle and PETG, but PLA for the Base should be a better option. PETG tends to warped corners.

Tags: router, jig, domino, festool, fraese, dominofraese, resin print, nz made, made to order

Design credit: Original design by Hodi - licensed under CC-BY.
View original model + STL files on Printables ↗
