Dustbuster vacuum adapter

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

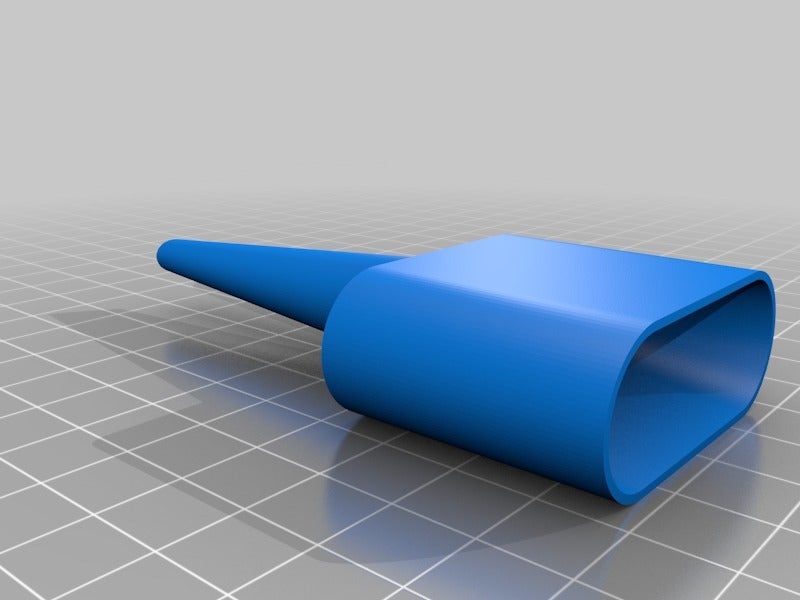

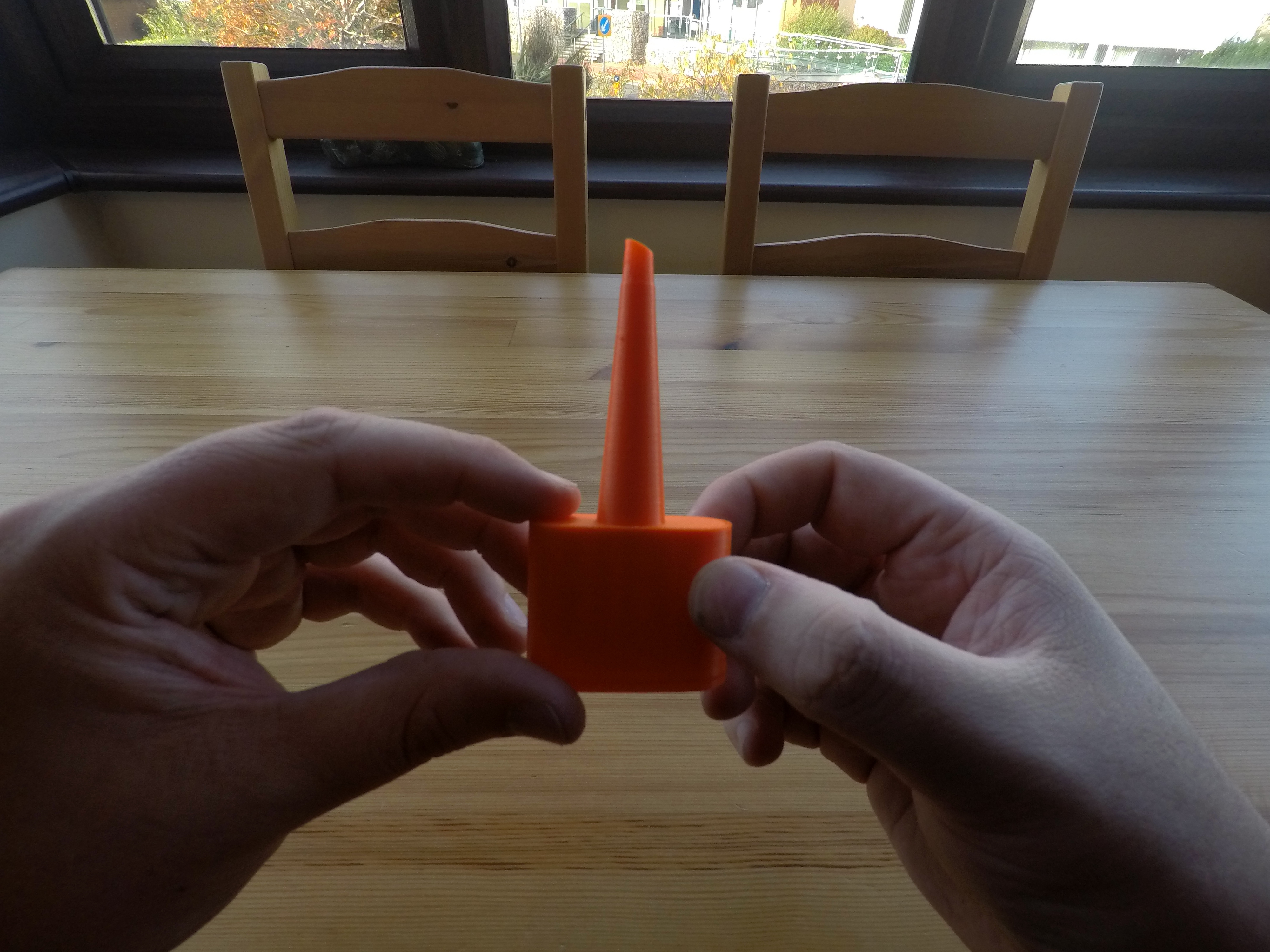

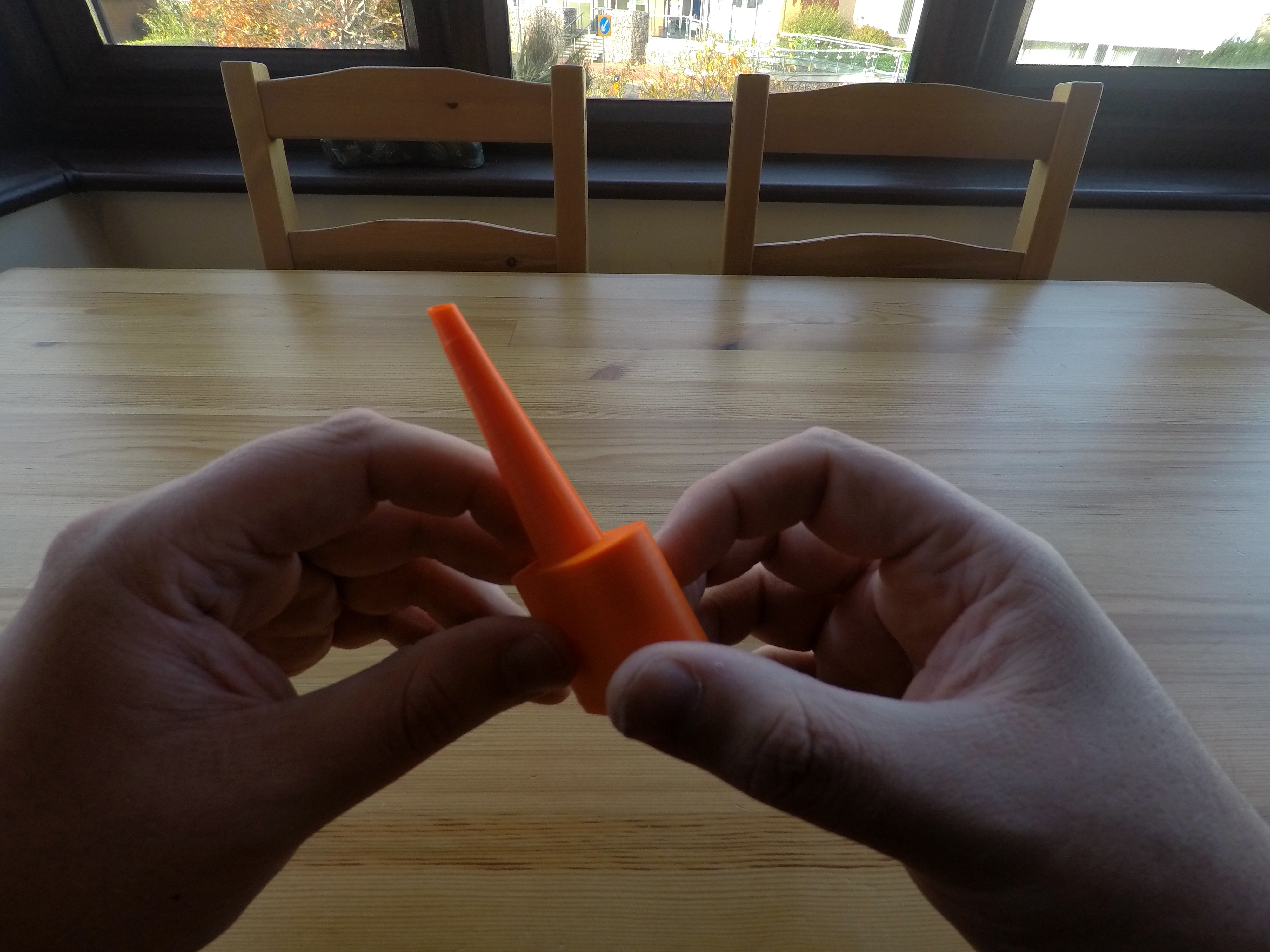

This is a vacuum adapter for a Black and Decker Dustbuster, model number NV7210N, I designed this to assist with removing the air from zip lock style bags. My usage case is currently for longer term storage of filament in the rigid.ink zip lock bags, I wanted to remove as much as I could to help the dehumidifier packets keep the moisture content low. This is just the first pass, and it works ok, at some point I will come out with a v2 with a longer tube perhaps with some taper to it. I will probably elongate the boss to further improve the usability. This object is pretty flimsy in it's current state, I will try to improve the usability in the future. Version 2 update I have created a version 2 that is significantly stronger and more usable. The version 1 files will be kept for reference. I have included some draft angles on the internals of the boss to improve rigidity and a draft angle on the spigot to improve its rigidity and usability. The spigot and boss are both longer to make it easier to use. I find it easiest to insert the spigot into the corner of the zip lock bag, rather than in the centre of the seam. Print instructionsCategory: Parts Print Settings Printer Brand: Prusa Printer: i3 MK3 Rafts: Doesn't Matter Supports: Yes Resolution: 0.15 Infill: N/A Filament: rigid.ink PLA Orange Notes: I just put some supports in to help with the underside of the model, model was printed with the tube pointing upwards.
