DustyBoi: Under Table Vacuum adapter for Delta 52-963 Bandsaw

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

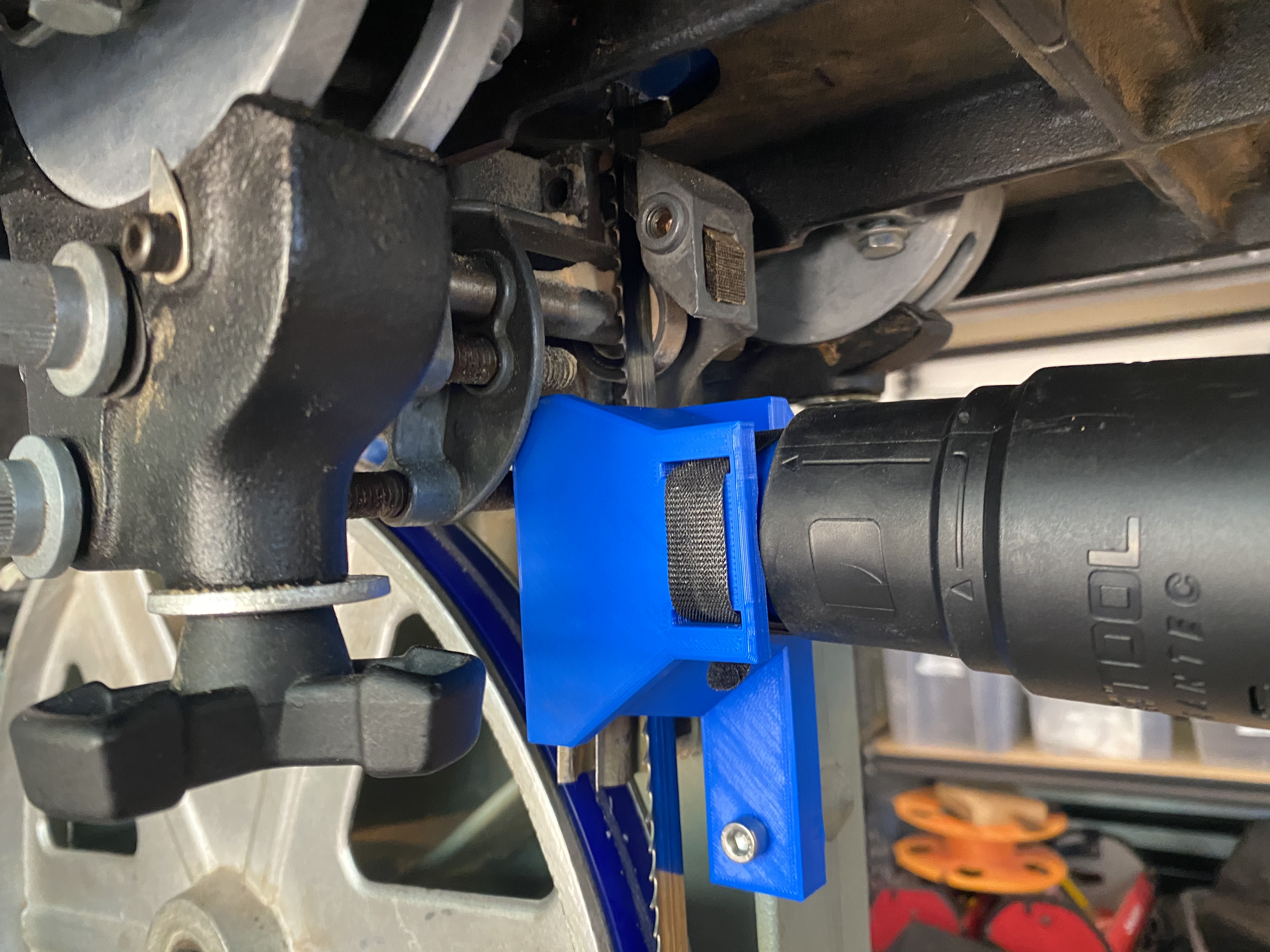

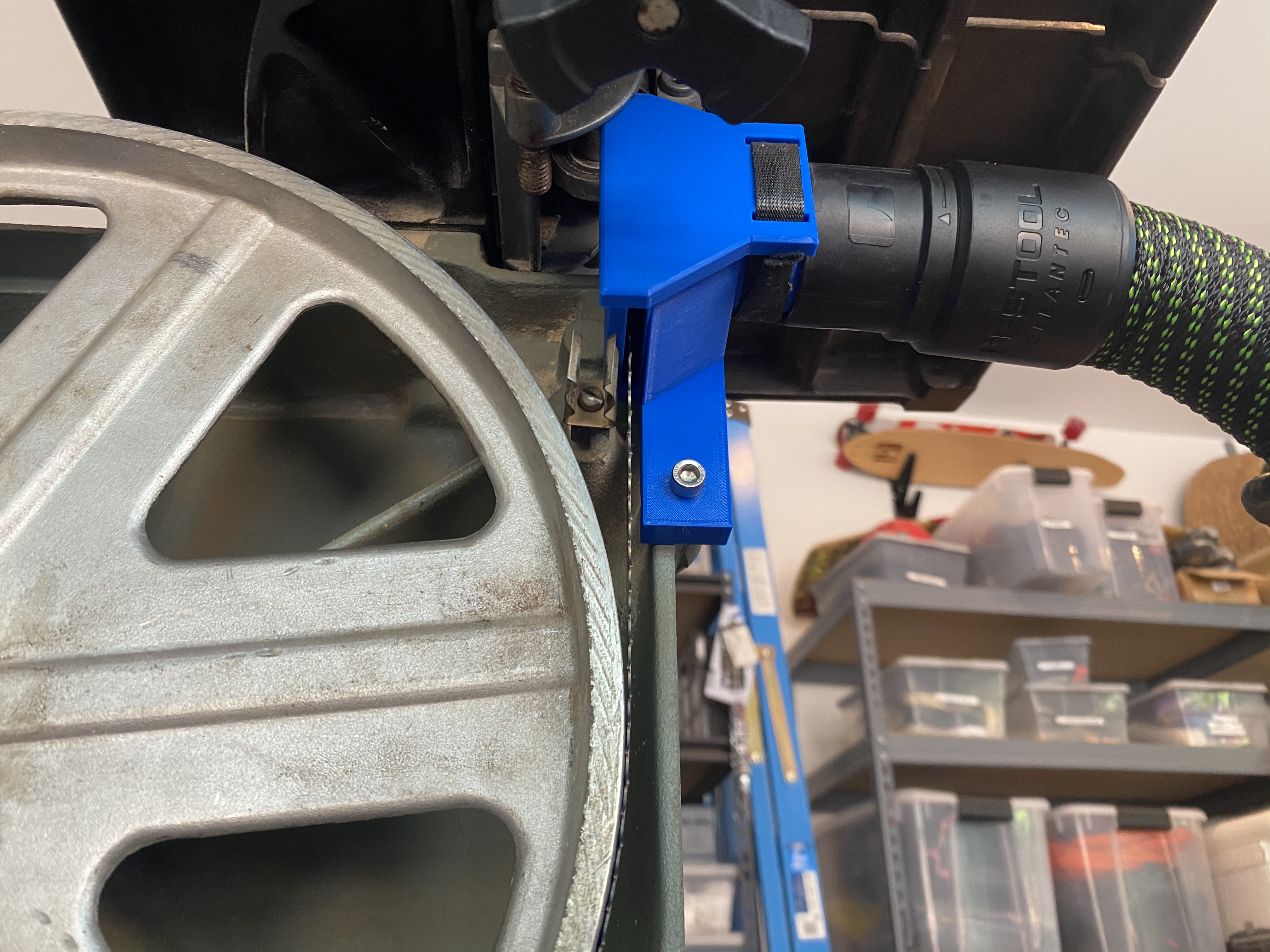

Here's a video in action: https://www.reddit.com/r/functionalprint/comments/myy667/i_used_to_have_a_dusty_bandsaw_now_i_have_dustyboi/ This attachment removes the dust from the bandsaw blade. The vac attachment is sized for a Festool D36 hose. I've included the F3D file so you could modify it for a different diameter (in the parameters). I don't know if this will fit other delta bandsaws, and I honestly don't even fit another 52-963 (i.e. I'm not sure how standard the holes are). To attach this to the saw I used: - 1/4-20 threaded screw at 5/8" length - 10-32 threaded screw at 1/2" length ## Printing Print DustyBoi in the orientation in the STL with supports. 0.2 layer height for best results 0.3 will get the job done quick. I used supports on the baseplate with these settings https://www.reddit.com/r/prusa3d/comments/m0fcvk/prusa_newbie_here_is_there_any_way_to_adjust_the/. Flip the lid upside down and it doesn't need supports.
