Ender Spool Holder Direct Drive Bracket (2020 Vslot)

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~23 g

Print time

~1.3 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

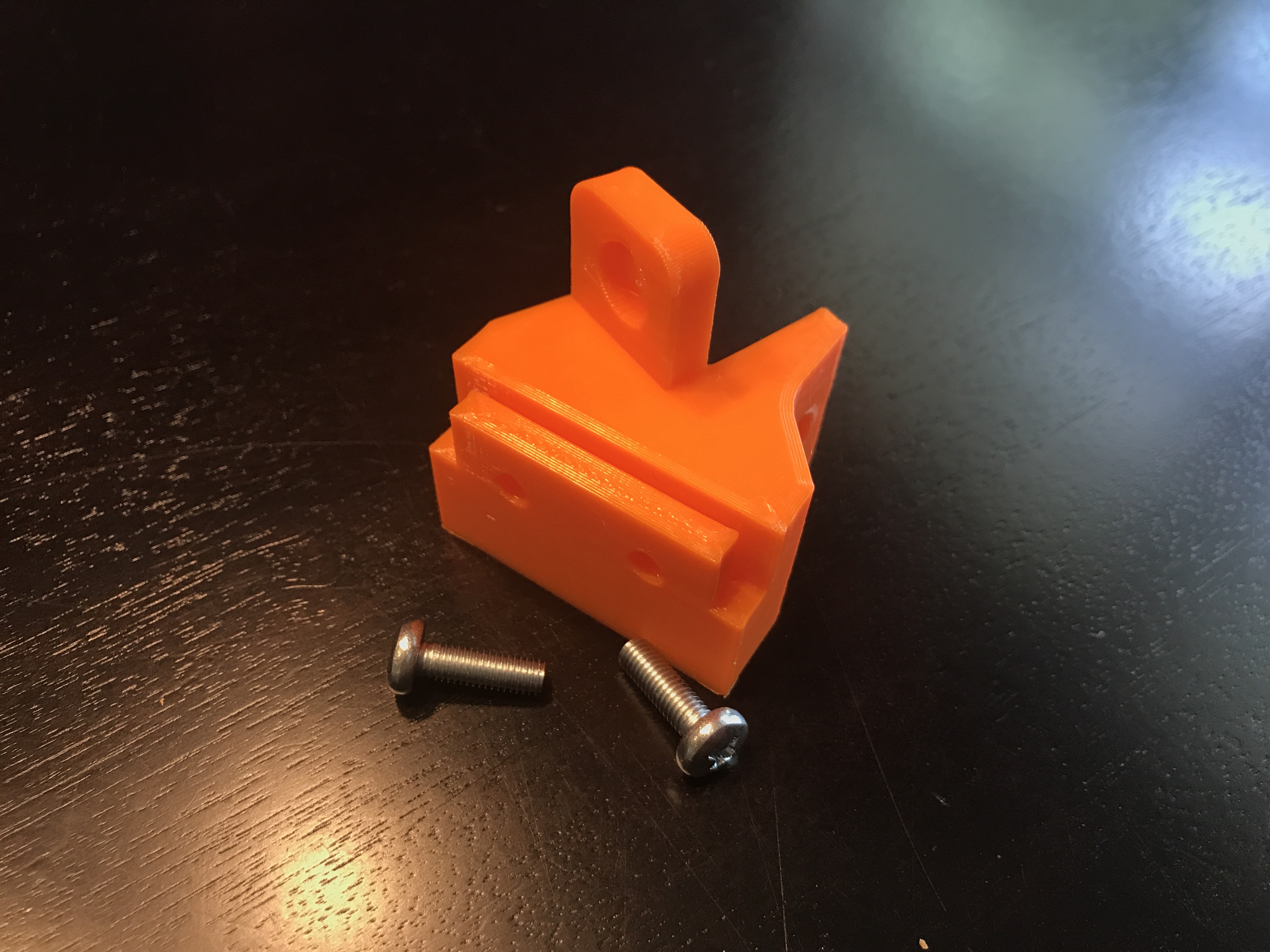

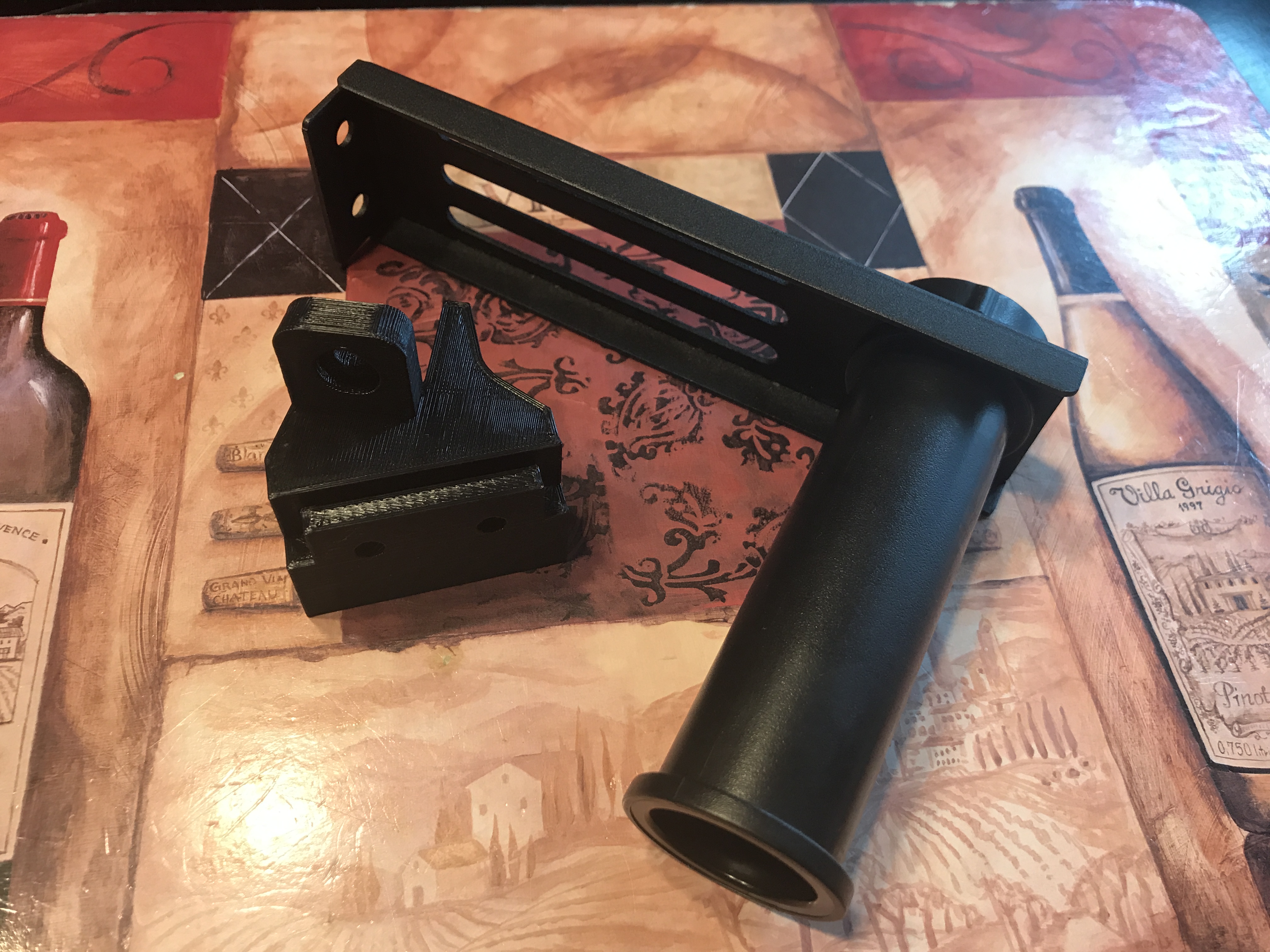

This bracket allows you to use the stock Creality spool holder vertically without getting in the way of the print head. Parts: Creality spool holder (bracket, plastic arm, retaining ring)1x M5 bolt (8mm)1x M5 T-nut2x M5 bolt (10mm-16mm) OR 2x M5 Pin (10mm-16mm) (permanent)Print Instructions: Print the part as loaded. There is text to show which side is down.At least 4 walls on all sides and 20% infill.Assembly: Insert the spool holders metal bracket into the slot of the adapter so that the bolt holes align. This may take some effort. You may gently hammer the bracket into the slot or use a clamp/vice to press the bracket into the slot.Screw 2x M5 bolts (10mm-16mm) into the two bolt holes at the top of the bracket. Or you can press/hammer two 5mm pins into the holes, but this is considered permanent.It is easier to screw in the two bolts with the spool holder plastic arm removed.Install the 5mm bolt (8mm) and M5 T-nut into your preferred mounting hole.Install the full assembly into your printer's 2020 vslot, then install the spool holder arm with retaining ring.
