Glowing Crystal Lamp

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~27 g

Print time

~1.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

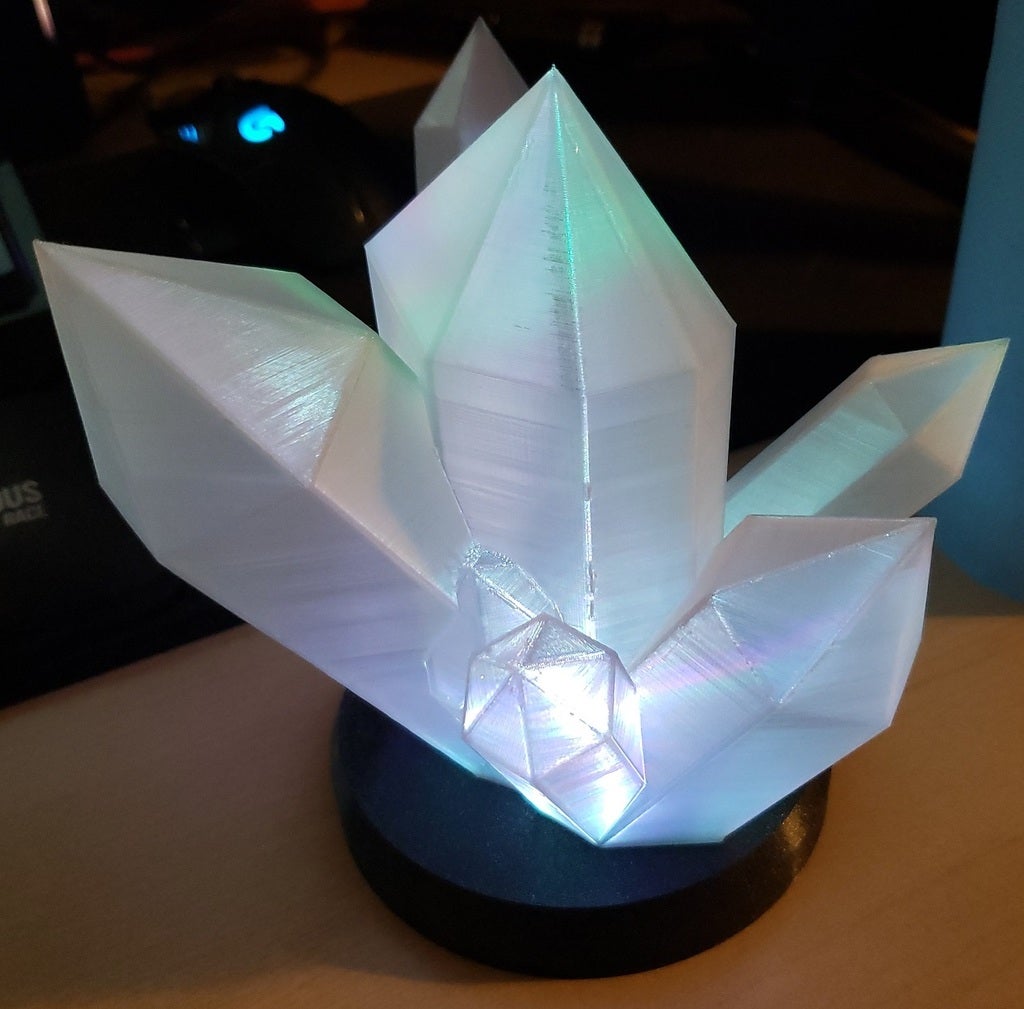

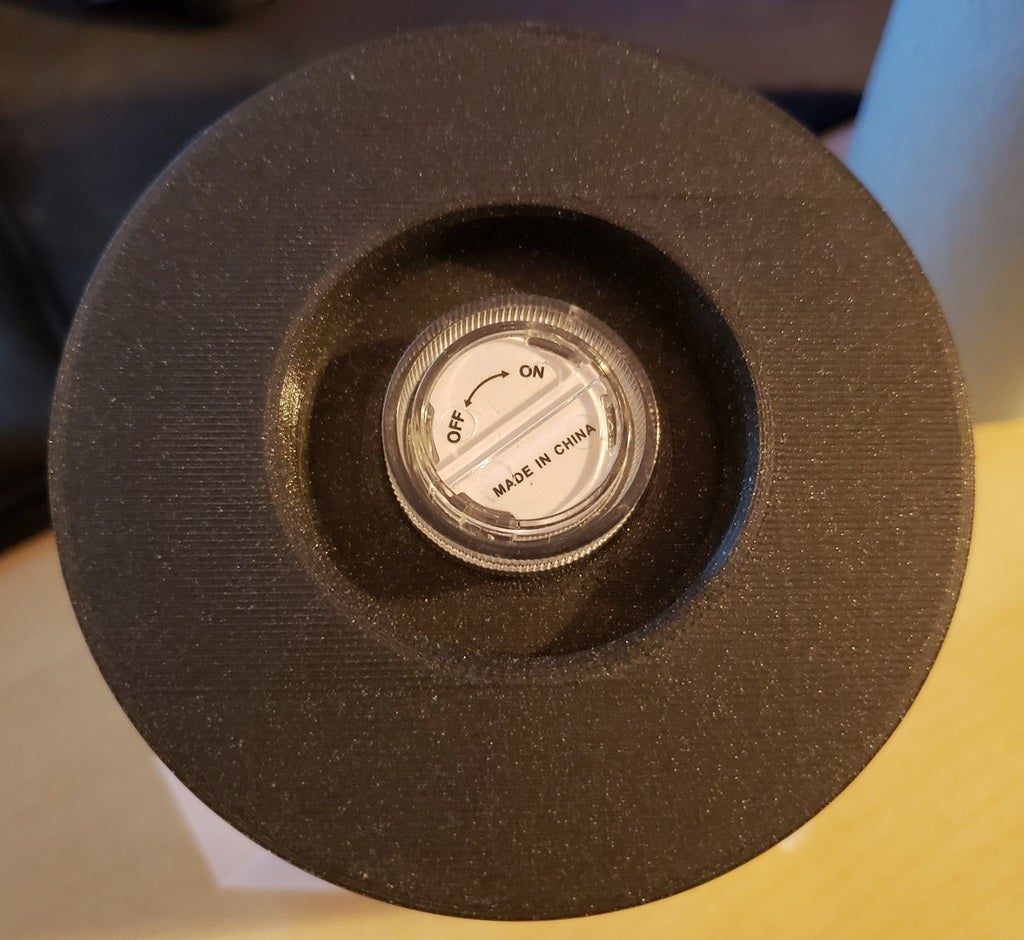

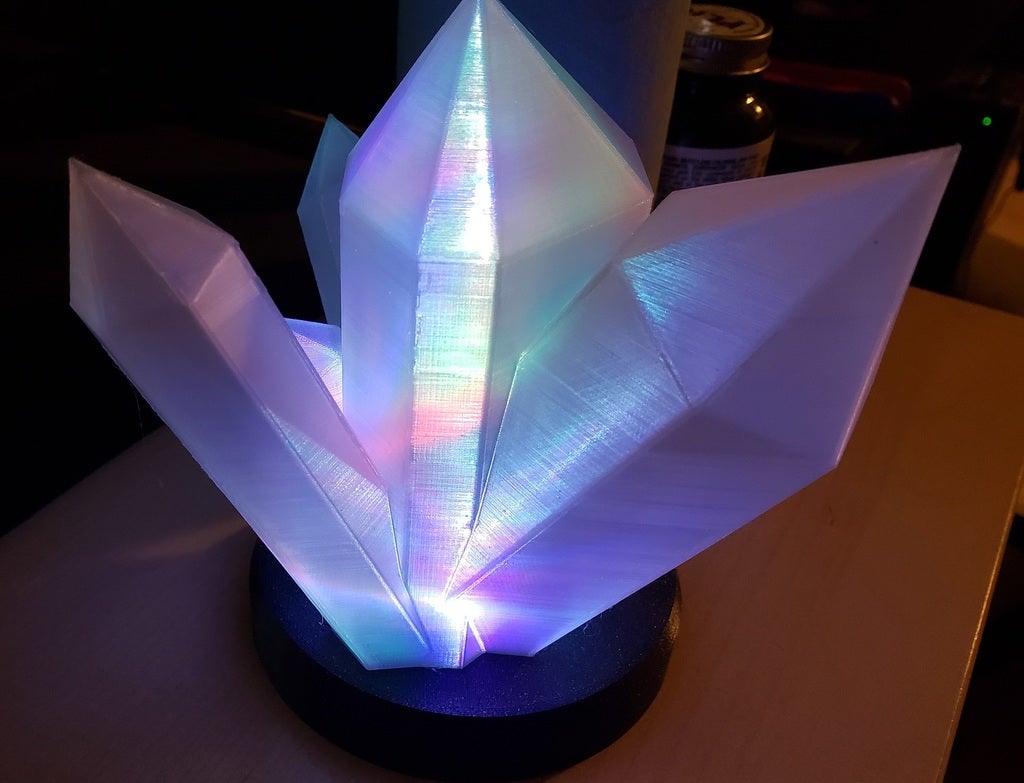

I was asked if I could make this: https://www.thingiverse.com/thing:1729963 as part of a gift but I wasn't sure where to get the LED module they used so I decided to remix the original model to fit some RGB LED Tealights I bought from Amazon a couple of years ago. They're no longer available at this time, but there appear to be some similar ones available LED Tea Lights for reference: https://www.amazon.com/gp/product/B00O1FUJ6U ========== I hollowed out the crystal, separated it from the base and discarded the base. I then made a new base to fit the tea light based on my measurements and added a gap to make it easy to turn on and off. The crystal piece and tealight can be glued into the base if you choose to do so (I did). I have included the Fusion 360 Archive and the STEP file Print instructionsI printed the crystal with 3 perimeters, auto generated supports from the buildplate only and the overhang threshold was set to 45° Crystal Temps: 220°C/65° First Layer, 215°/60°Other Layers The base was printed with no supports, bridging angle set to 180°, 4 perimeters and 20% infill to give it a little weight. Base Temps: 220°C/65° First Layer, 215°/60°Other Layers Both parts should be printable as oriented.
