Guitar (TRS) Patch Cable Pancake Connector Soldering Jig
SKU 3DPW-pr-742772
$15.50NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~24 g
- Print time
- ~0 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

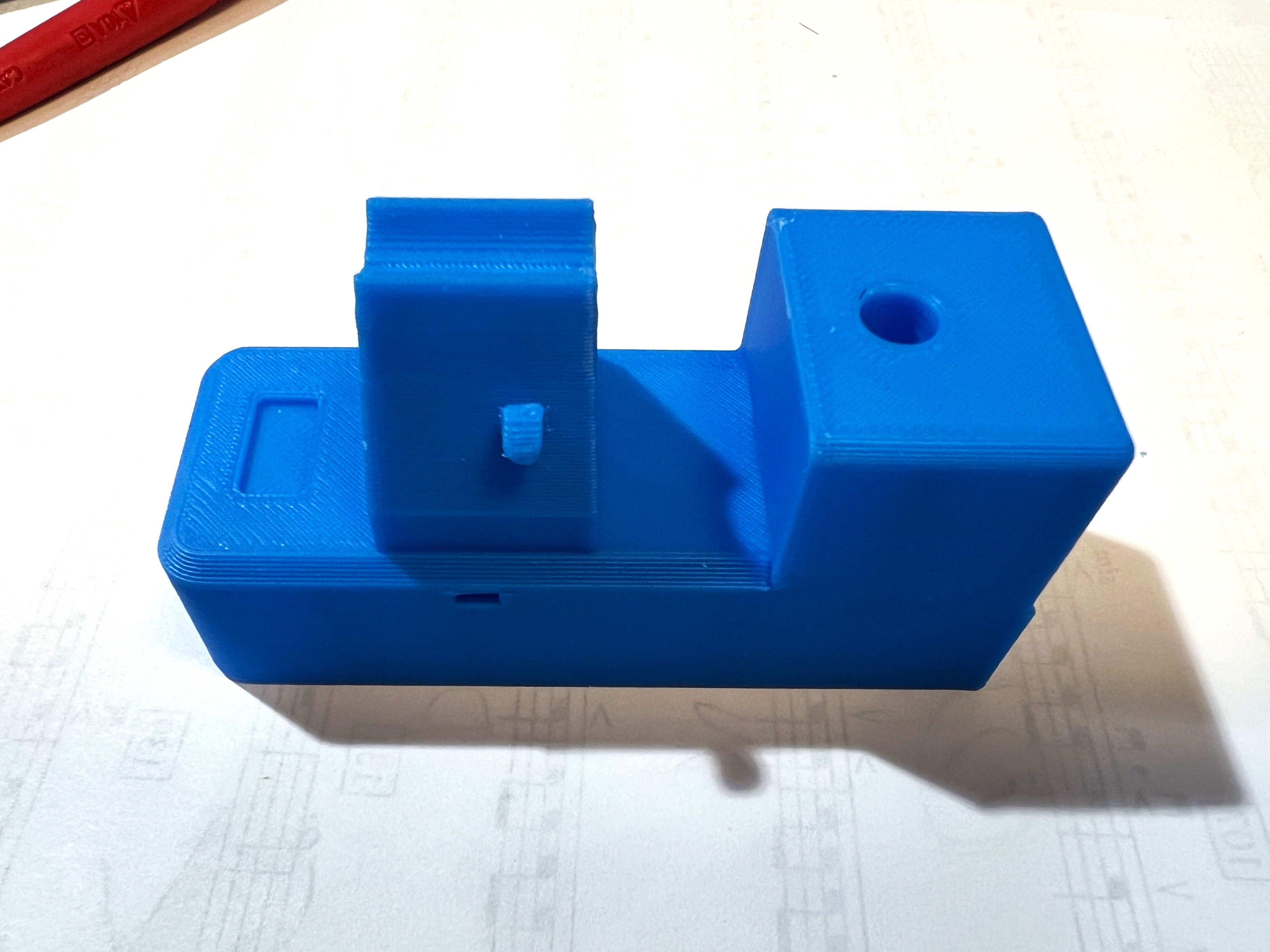

This is a soldering jig designed to hold a ¼ inch right angle flat pancake connector in place. These connectors are typically found on patch cables on guitar pedalboards. This jig holds the instrument cable at the correct height for easy connection, and has lots of mounting options to hold down the cable. A rubber band can be attached to the hooks on the side, a ziptie can be passed through the hole in the bottom, and a small binder clip even fits perfectly upside-down on the hooks and pinches the cable down. This is an easy print; the only supports you need are under the side hooks. Includes a screw holder tray to avoid losing screws while the connector is disassembled. Original Version has a 6.45mm hole, which fit perfectly printer on my MK3S. Larger version has a 6.85mm hole which should work for printers which need higher tolerances.
