Home Assistant Voice Preview Edition Enclosure

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

PLA (filament)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

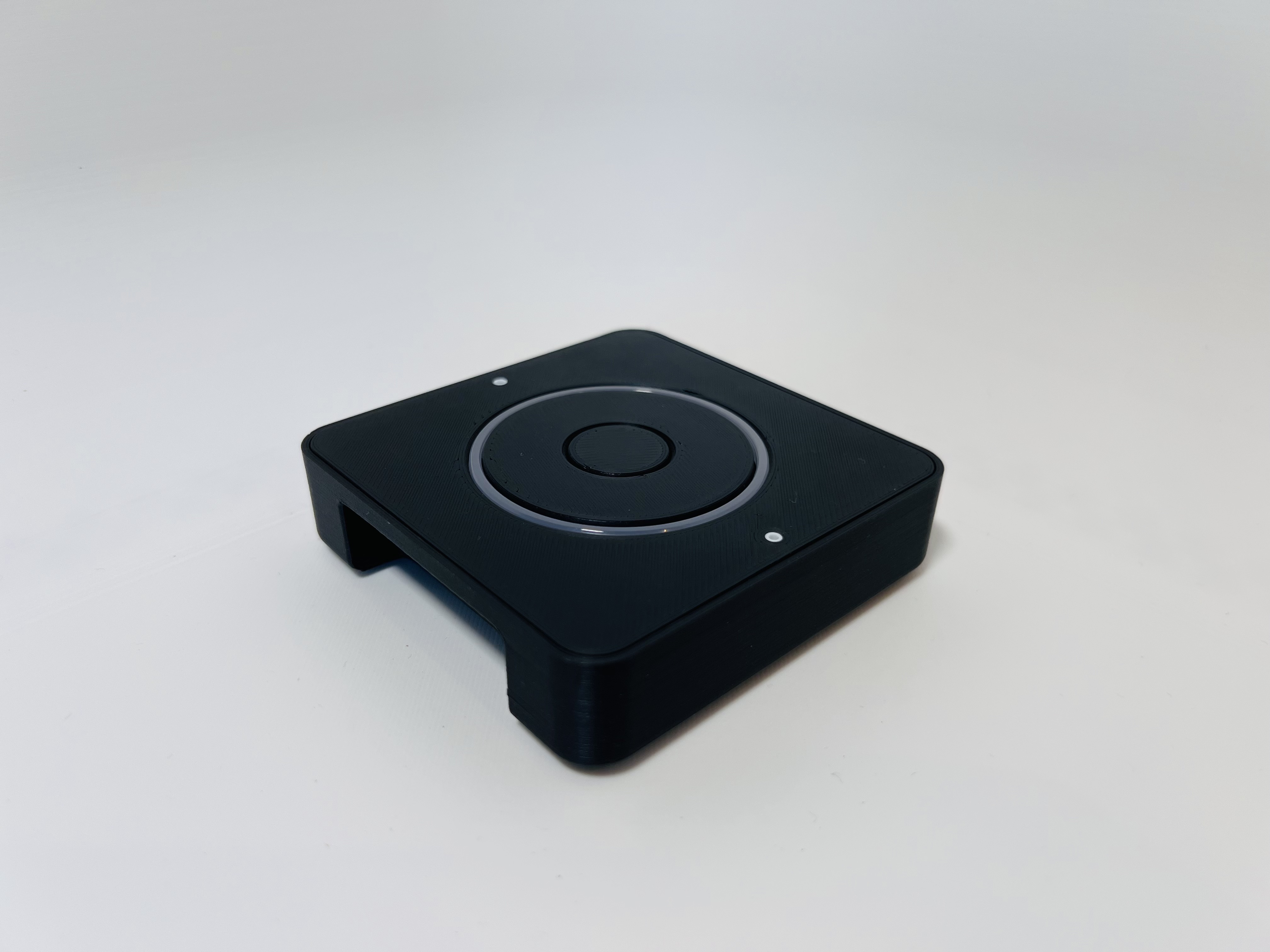

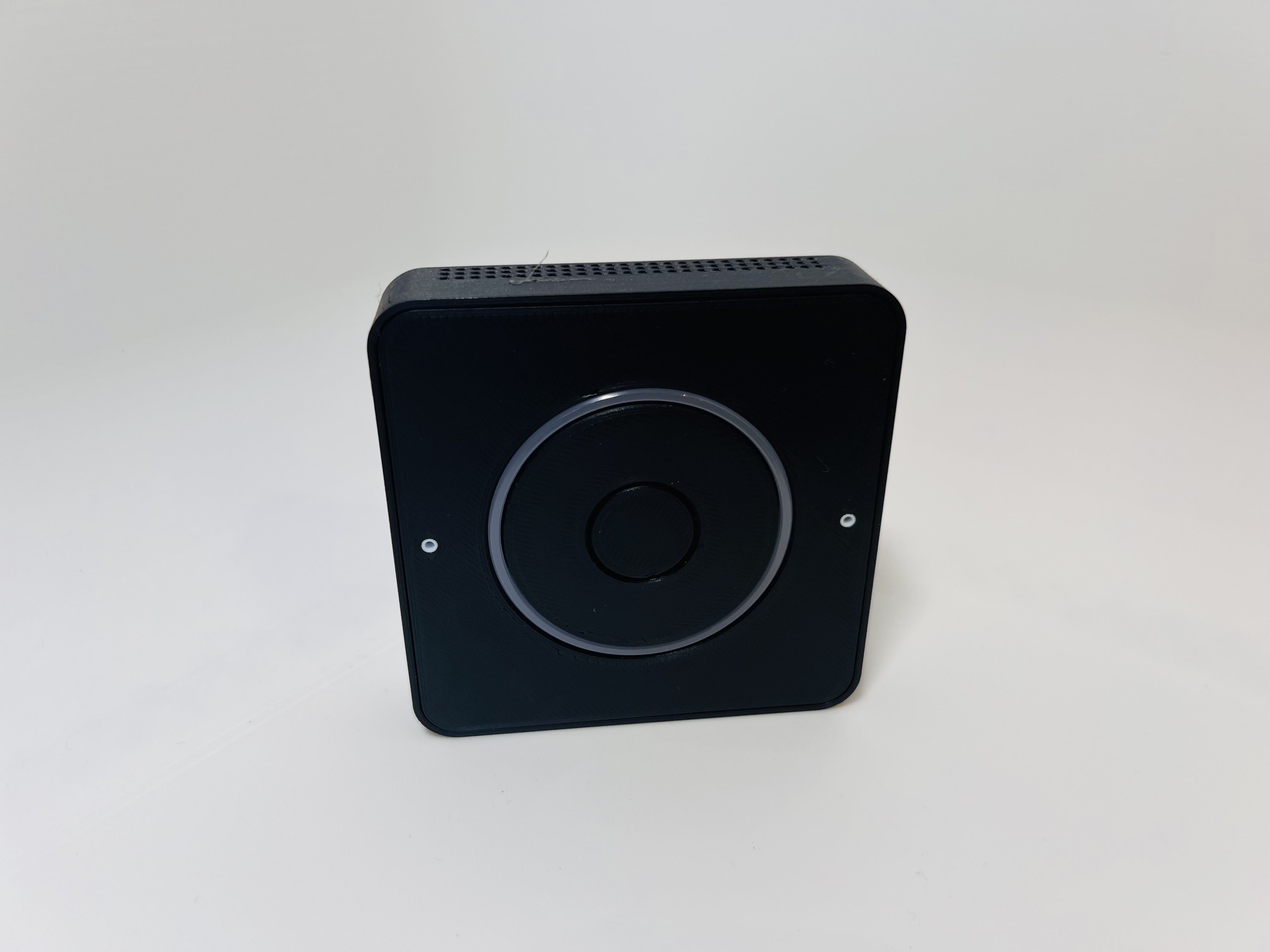

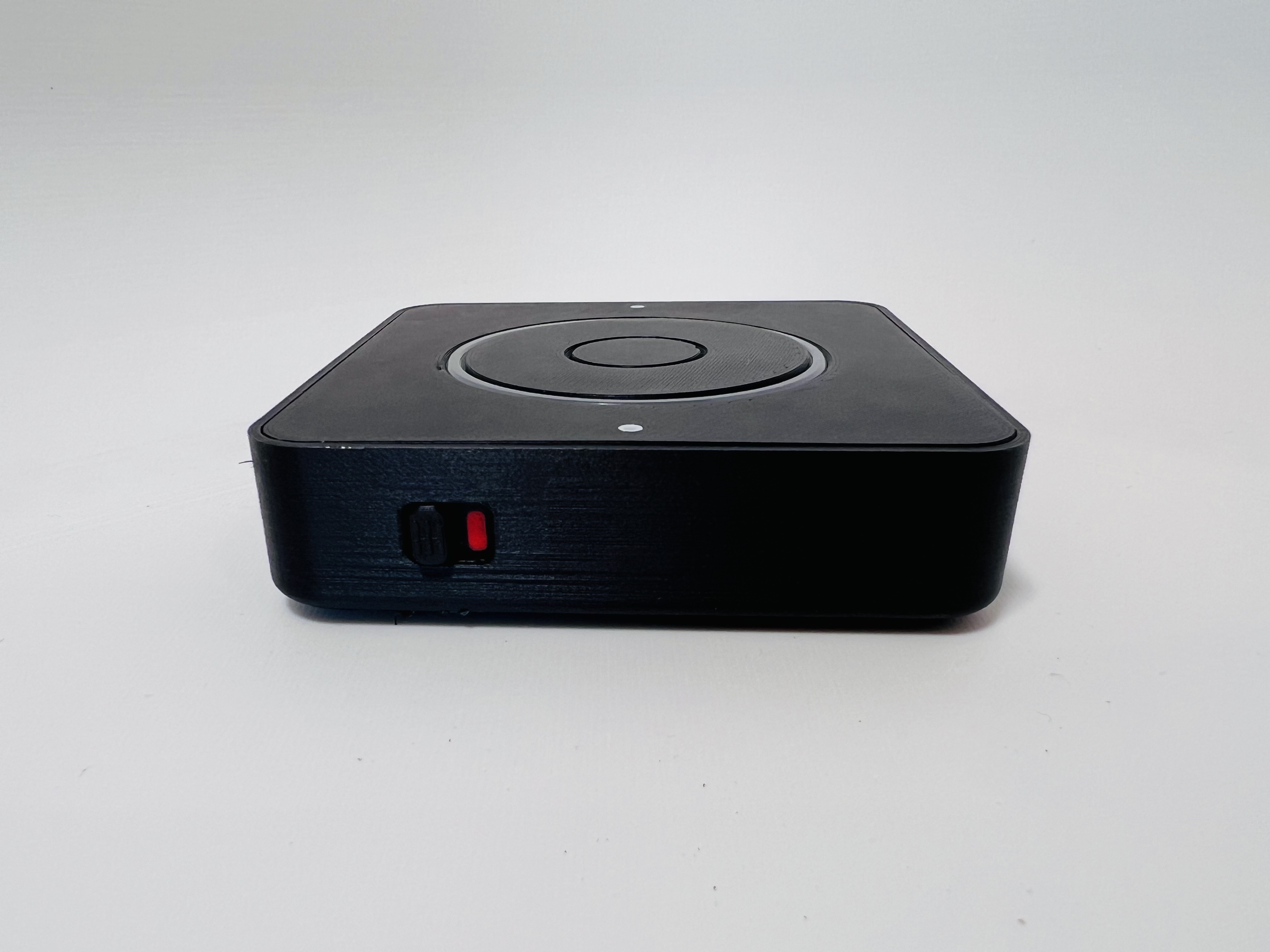

This model is the original enclosure for Home Assistant Voice Preview Edition optimized for 3D printing. It's based on the official injection-molded parts but with some adaptation to avoid many supports : Home Assistant logo on the bottom enclosure is removed3D screw threads instead of threaded inserts for the top enclosureFlat wheekFlat button Before printing it, read the assembling/reassembling procedure on Home Assistant documentation website to avoid breaking parts of your device :Disassembling the enclosure guideReassembling the enclosure guide You will also need to bring some parts from the original device : The PCBThe speakerAll the screwsThe rubber pads for the bottom enclosureThe rubber lug for the button You have multiple way to customize the device with different level of difficulties: Easy : replace only the top enclosure. You will not need to disassemble the PCB.Intermediate : replace the top enclosure, the bottom enclosure and the button.Hard : replace all the plastics part. You will need to full diassemble to device and unclip the wheel for the PCB Here's the recommended settings to print the parts: Top wheel: 0.12mm layer height, no supportTop button: 0.12mm layer height, no supportMic switch: 0.12mm layer height, no supportBottom enclosure: 0.20mm layout height, support enabledTop enclosure: 0.20 layout height, no support
