Ikea Bekant desk control buttons repair

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

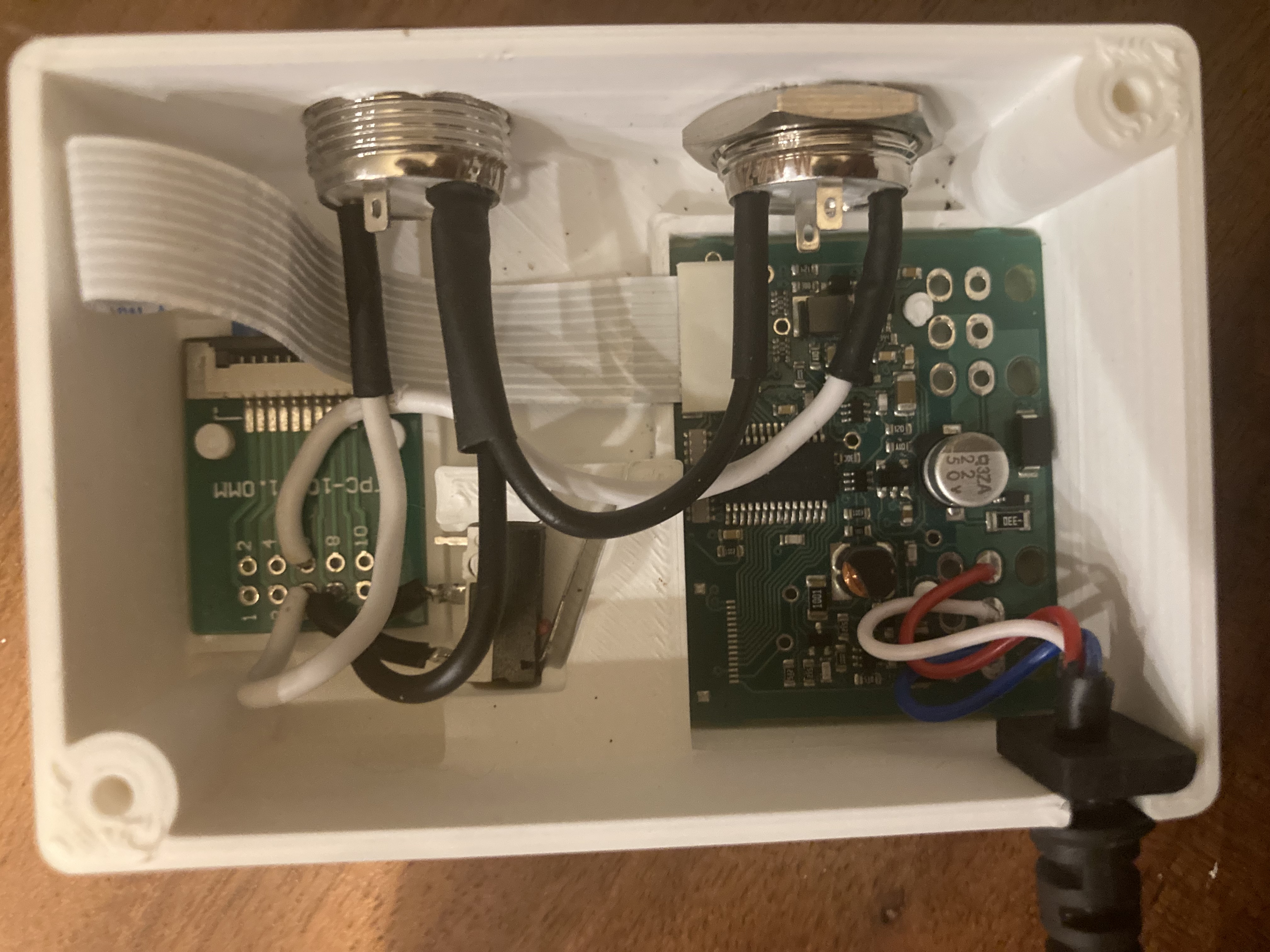

This project replaces the entire control panel under an Ikea Bekant desk. The buttons on my control panel started "sticking" first, then simply stopped working. Stuck in a position I can't really work in. So I disassembled the control panel and figured out the pinout, shorted the connections where the wires would have been and set it to an acceptable height. Then I ordered a ribbon cable, ribbon cable breakout board, 2 switches and a micro switch (optional). I designed this model to fit the original circuit board, and the breakout board. The original control panel had a hole where a pin goes, the desk can only move when it is inserted, a safety feature for small children I suppose. I preserved the feature by introducing the micro switch into the design. You can leave this out if you don't need it. NB: The original pin does not fit in the hole, it fits 5mm pin, I used a long bolt. BOM: 2x 16mm momentary normally open switchMicroswitch 12.8x6mm microswitch, such as Omron D2F-L3-A1, D2F-L3-D3, D2F-01L3-D3, or D2F-01L3-D. Important are the dimensions, the lever and the radius of the lever end. (OPTIONAL)FPC/FFC cable 10cm, 1mm pitch, 10Pin (eg. https://www.aliexpress.com/item/10000012558629.html )FPC/FFC breakout board 1mm to 2.54mm pitch (e.g. https://www.aliexpress.com/item/1005003044150117.html )Wiring:PinConnect to5NO on switch 16NO on switch 27NO on micro switchCOM micro switchCOM switch 1COM switch 1COM switch 2If you don't want to use the micro switch, connect 7 to COM on switch 1 directly. DisclaimerI will not take any responsibility for any type of damage caused following these instructions. That said, this fixed my desk, and I believe anyone should be able to repair their things so they don't have to buy a them new, especially for such a small defect, and especially if we want to keep living on this planet.
