Meanwell PSU Offset Bracket for Ender 3 Dual-Z
SKU 3DPW-pr-205226
$21.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~22 g
- Print time
- ~1.2 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

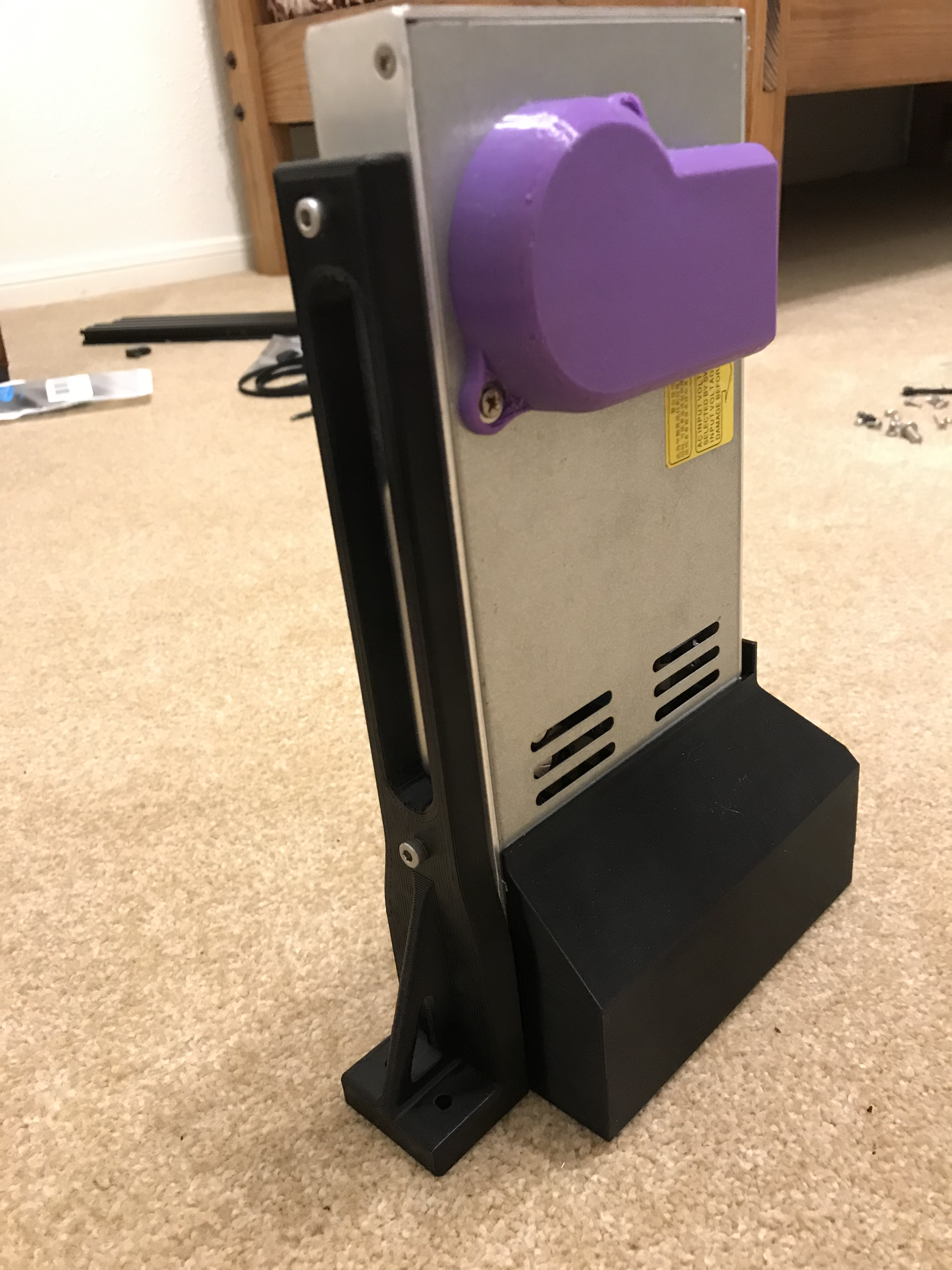

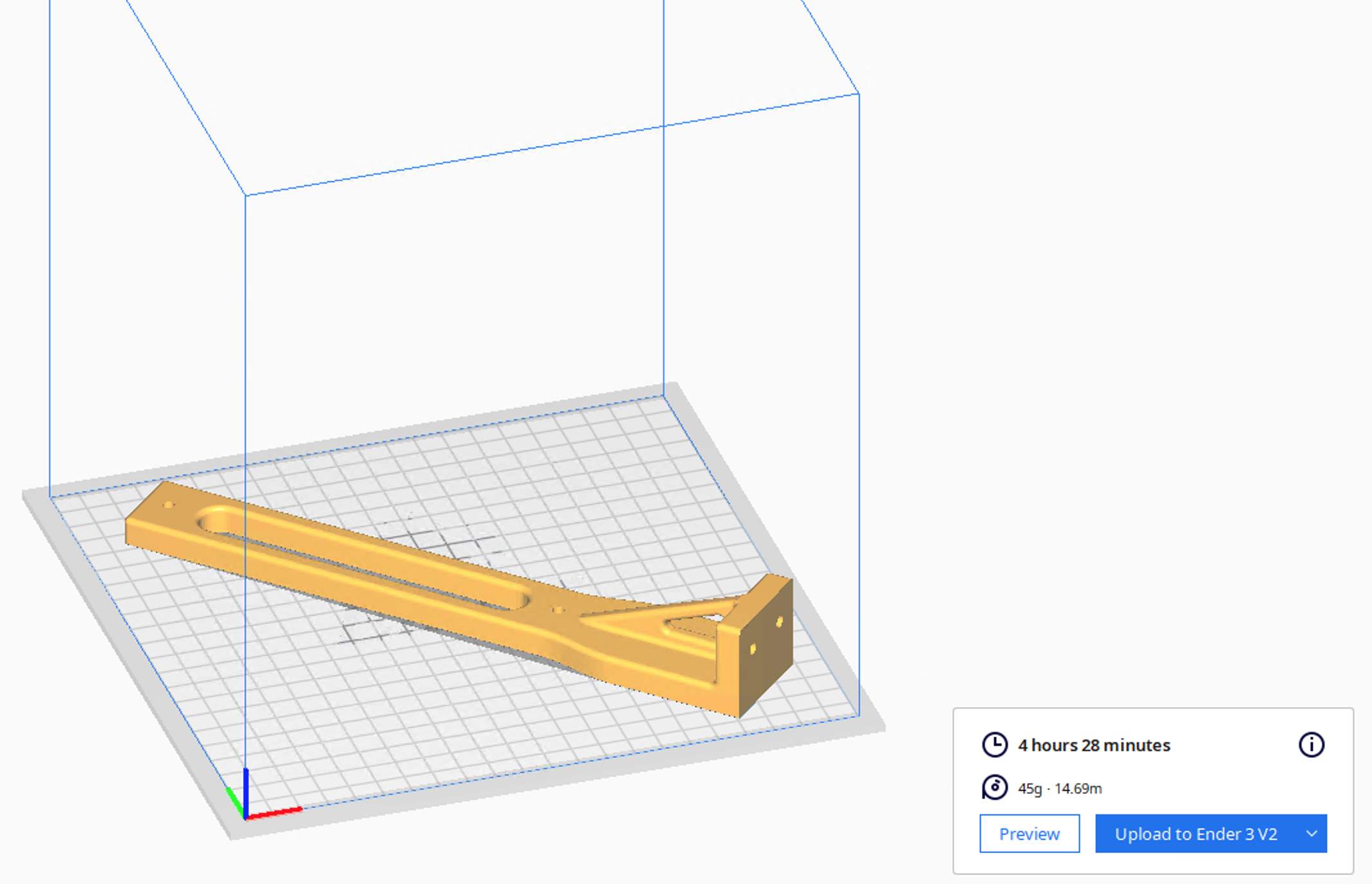

This is a simple bracket to offset the PSU off from the Z-axis upright, making way for a 2nd lead screw. It mounts to the 4040 extrusion using M4 screws and T-nuts. Print it with the side which faces the PSU facing down on the bed. No supports should be required. It will fit on the Ender 3 print bed: just rotate it 45 degrees and turn off any skirt, brim, raft, etc - see screenshot. Be sure to add a ground wire to somewhere appropriate on the frame - search this is if you are not sure. This isolates the PSU from the frame so the ground path needs to be recreated.
Tags: psu, dual, extrusion, mount, meanwell, supply, resin print, nz made, made to order
Design credit: Original design by odonnell944 - licensed under CC-BY.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
Meanwell PSU Offset Bracket for Ender 3 Dual-Z is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
