Modular Gravity Tool Holder – Adjustable, Reinforced & T-Nut Mountable (Remix)

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

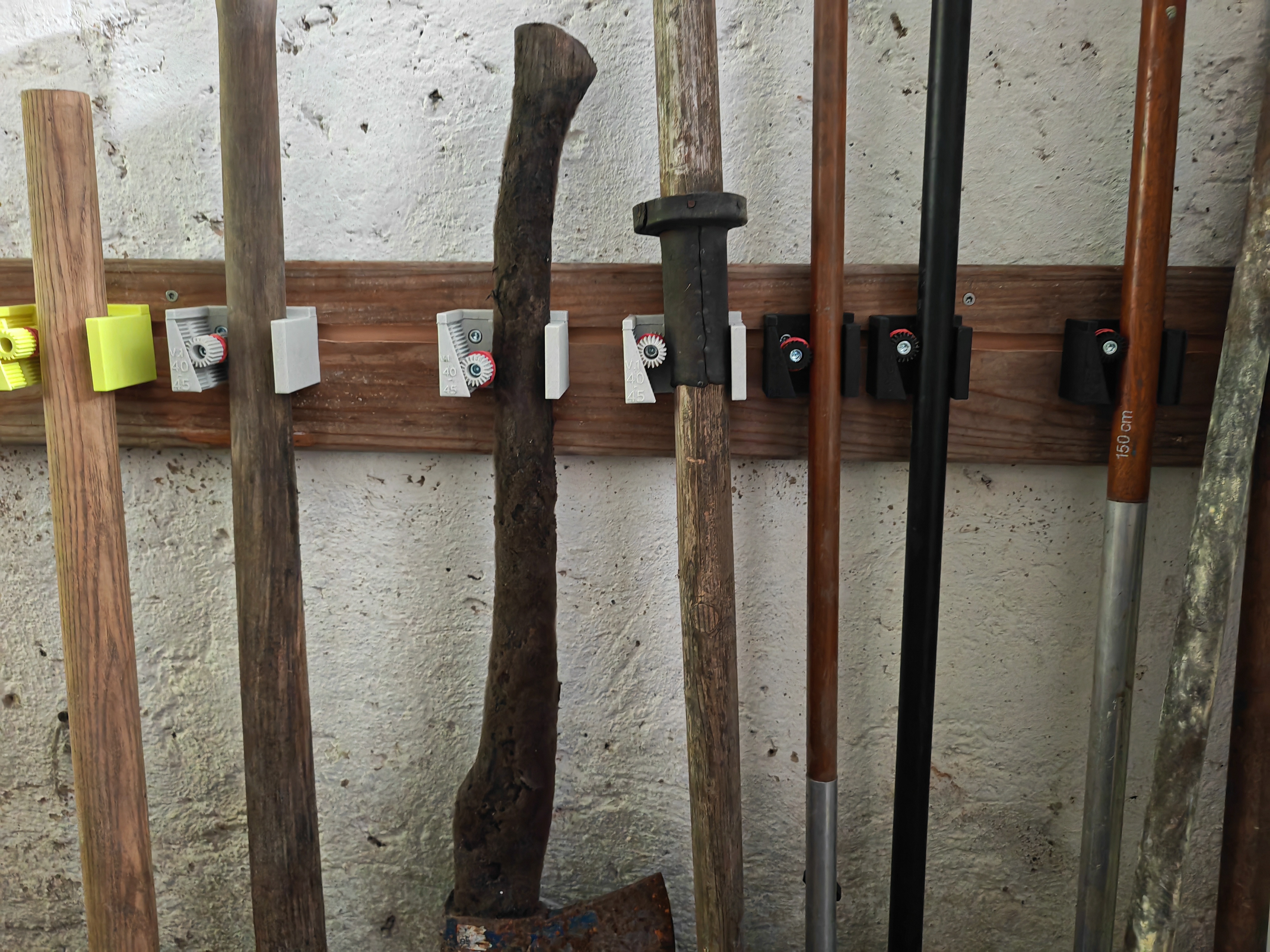

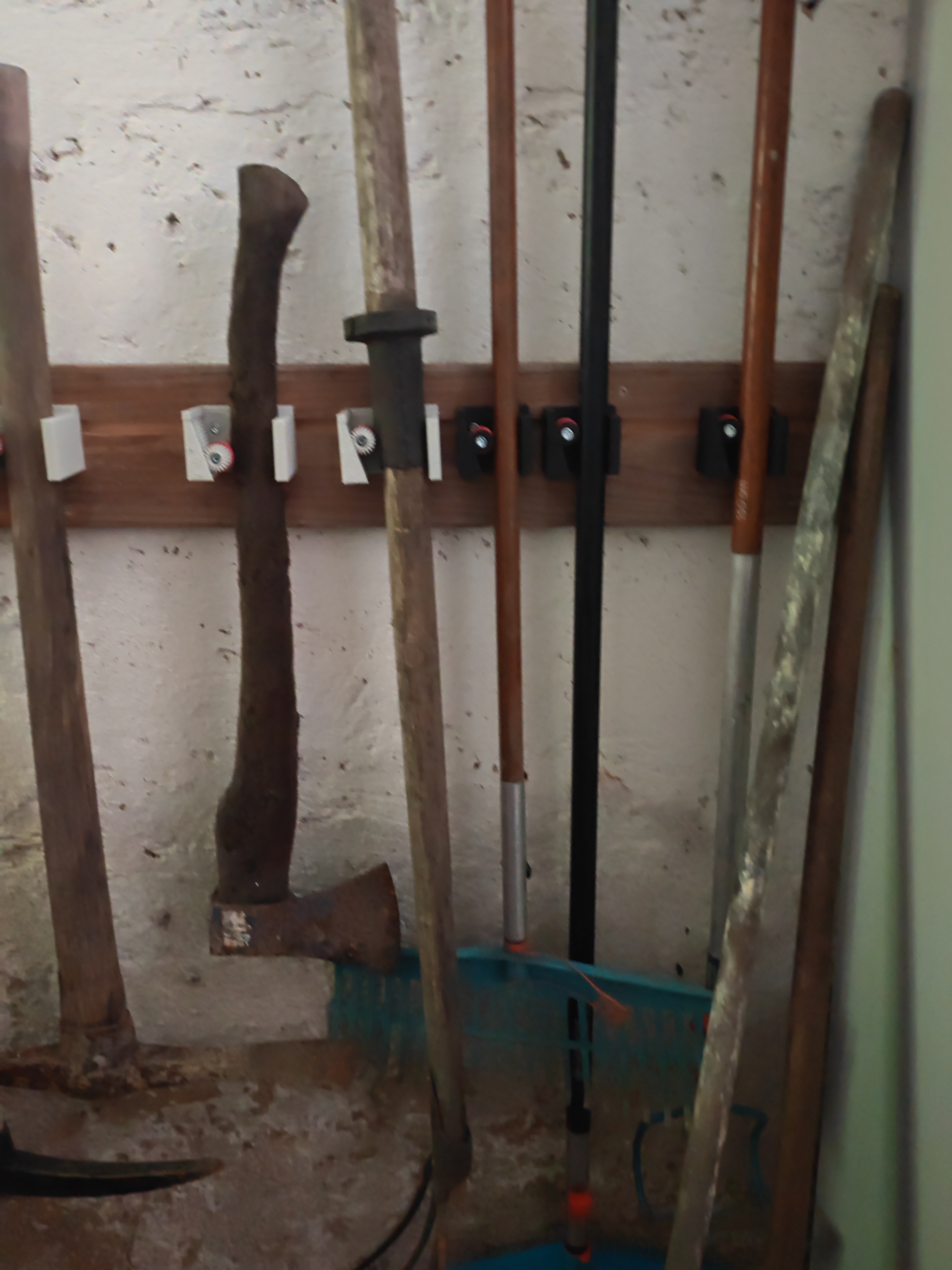

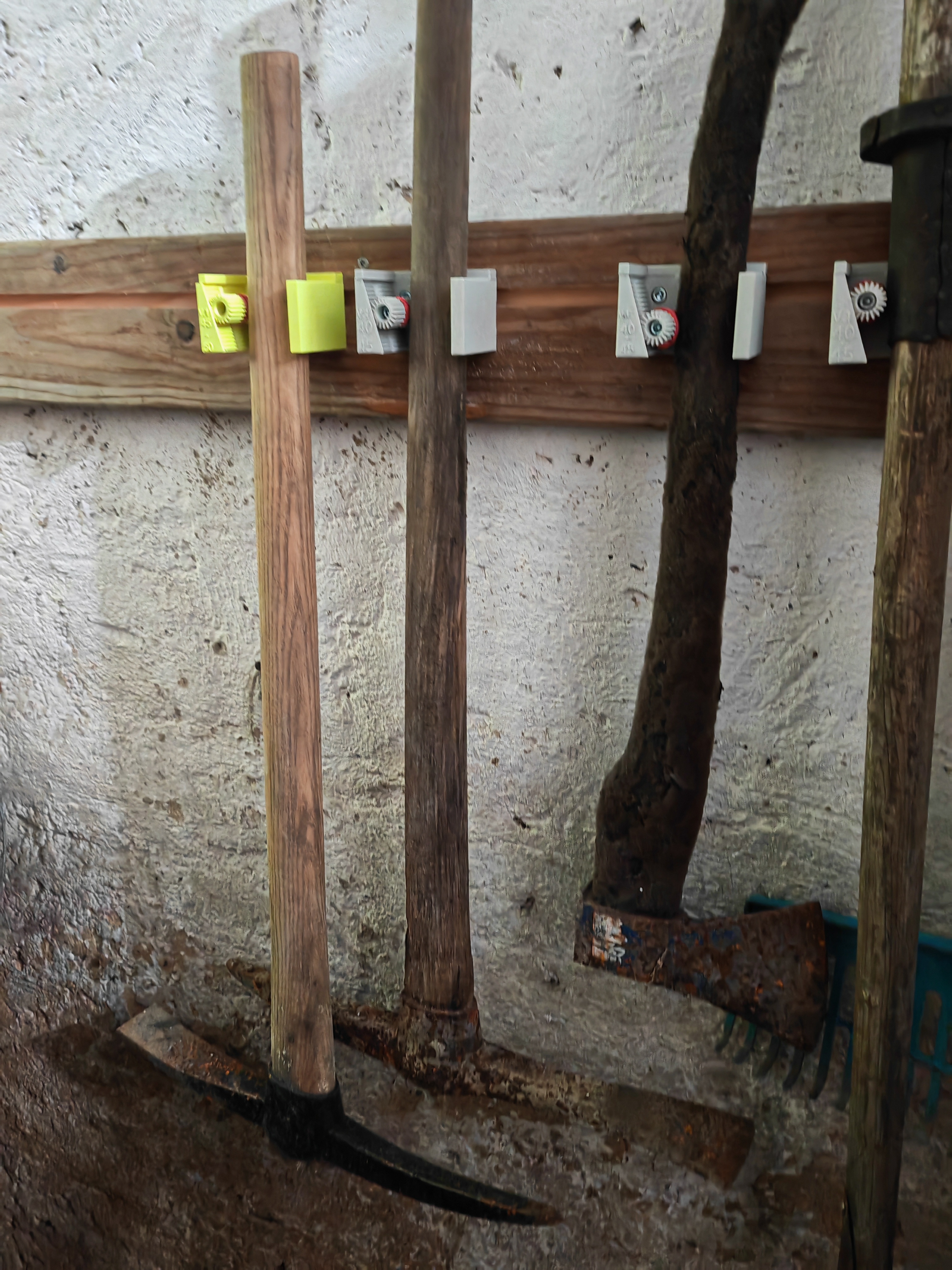

DescriptionThis is a remixed and upgraded version of the original Gravity Broom Holder, made for smart and secure storage of tools, broomsticks, or garden gear with round handles. The system allows you to organize various handle sizes – and shift mounts laterally thanks to its T-slot-based mounting system. Key Improvements in This RemixMultiple handle sizes: Available in 5 mm steps from 15 mm to 50 mm (more on request)Weighted gear: A screw can be inserted to ensure smooth, gravity-assisted lockingImproved clamp zone: Better grip and smoother actionT-Nut mounting: Includes bracket + M6-compatible T-slot nut (universal for all variants) → Works in standard aluminum profiles or milled wood groovesReinforced gear stopper: Now secured from above and front, gear won’t pop out – even with heavy toolsRefined tolerances: Smooth gear motion, strong hold Instruction3D Printing the Model XX-YY_End_PlateXX-YY_Main_Body or XX-YY_Main_Body_reinforcedXX-YY_Spur_GearPut the rubber bands on the spur_gearInsert the Spur_Gear (optionally add a screw M6x14 and M6 nut as weight)Insert the two M3-Nuts from the back into the Main_BodyMount the End_Plate with two M3x12 screws after gear insertionOptional: Mill a custom T-slot into wood for mounting (M12 router bit)Attach the holder using the T-slot nut and two M6x20 screw (or screw directly to a wall) Print instructionsRecommended Print SettingsInfill: 15 %Layer height: 0,20 mmSupports: NoOrientation: Print the main body on the backside for maximum strengthPrint TimeTogether: depends on sizeRequired hardware2× M3 x 12mm Zylinderschrauben DIN912 (Schraubenking.at - Link)2× M3 Vierkantmuttern niedrig DIN562 Stahl verzinkt FKL4 (Schraubenking.at - Link)1x M6 x 14 mm Zylinderschrauben DIN912 (Schraubenking.at - Link)2x M6 x 20 mm Zylinderschrauben DIN912 (Schraubenking.at - Link)3x M6 Vierkantmuttern niedrig DIN562 Stahl verzinkt FKL4 (Schraubenking.at - Link)Rubber bands 80 x 2 mm (Amazon-DE - https://amzn.to/4ojC5ej)Opt.: Wooden Board (at least thickness 20mm and height 60 mmToolsDrilling machine (Amazon DE - https://amzn.to/4n09Gcn)Router (Amazon DE - https://amzn.to/4lbtx6A)Opt.: M12 Router bit (Amazon-DE - https://amzn.to/4ollPcO)For M3 screws - bit HOP2 (Amazon DE - https://amzn.to/4ofMkAp)For M6 screws - bit TX 30 (Amazon DE - https://amzn.to/3JhIHJZ)Tested PrinterPrusa i3 MK3S+ DruckerTested FilamentPrusament PLA – Prusa Glaxay Black Polymaker PolyTerra PLA Sapphire BluePolymaker PolyTerra PLA Cotton WhiteExtrudr® PLA NX - Neon Gelb3DJAKE rPLA Schwarz3DJAKE rPLA Grünetc. Updates- If you have any questions or improvements/suggestions do not hesitate to contact me! If you like what you see, consider following me to support my work - more to come - AUGU5TO | PrusaPrinters Affiliate links: As an Amazon Associate I earn from qualifying purchases. By buying through any of the links above I will earn commission at no extra cost to you. Every product in the links, I bought and tested by myself.
