Nespresso Vertuo Pod Drawer Organizer (fully-parameterized, auto-splits into multiple parts)

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~114 g

Print time

~0 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

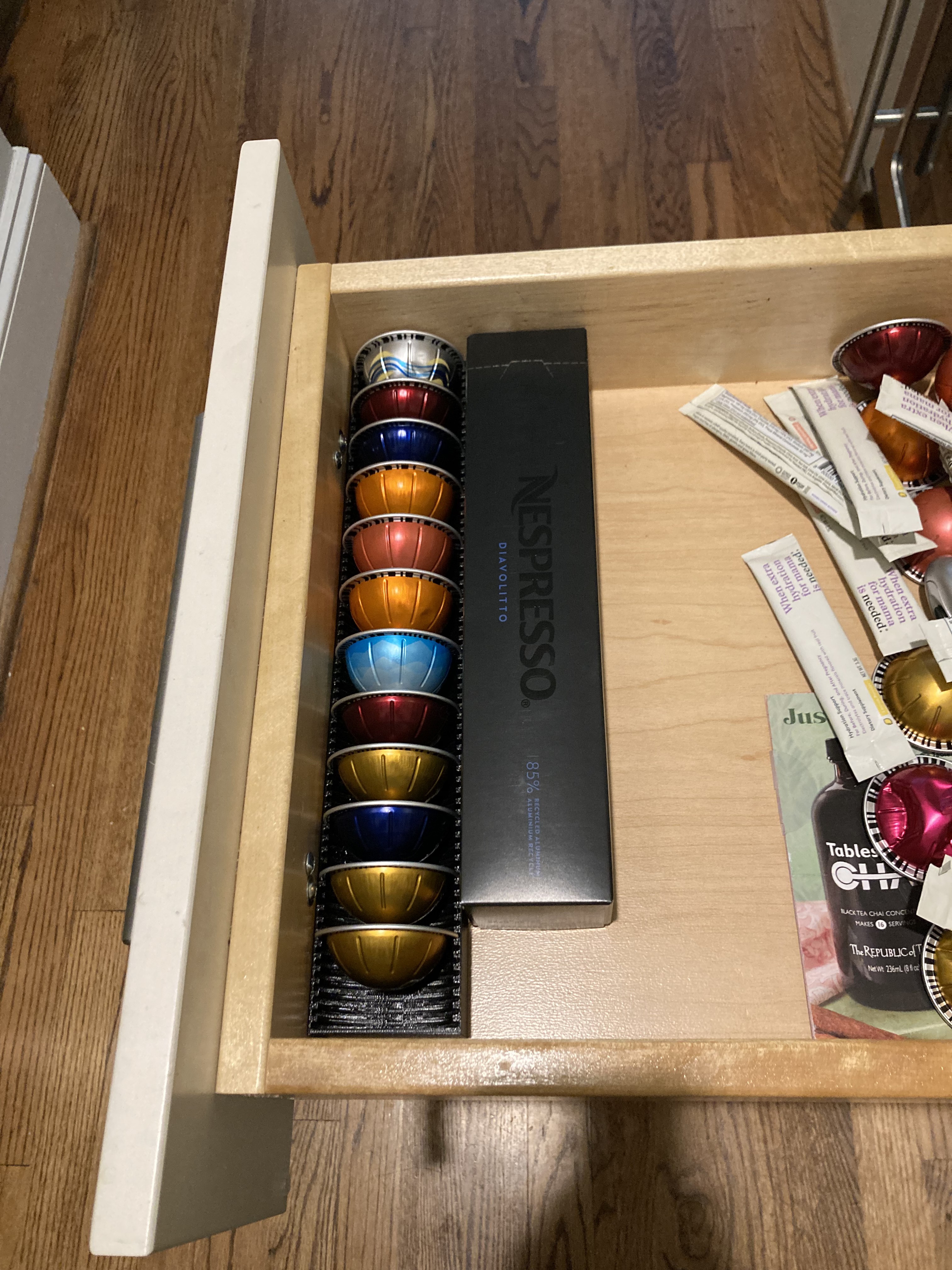

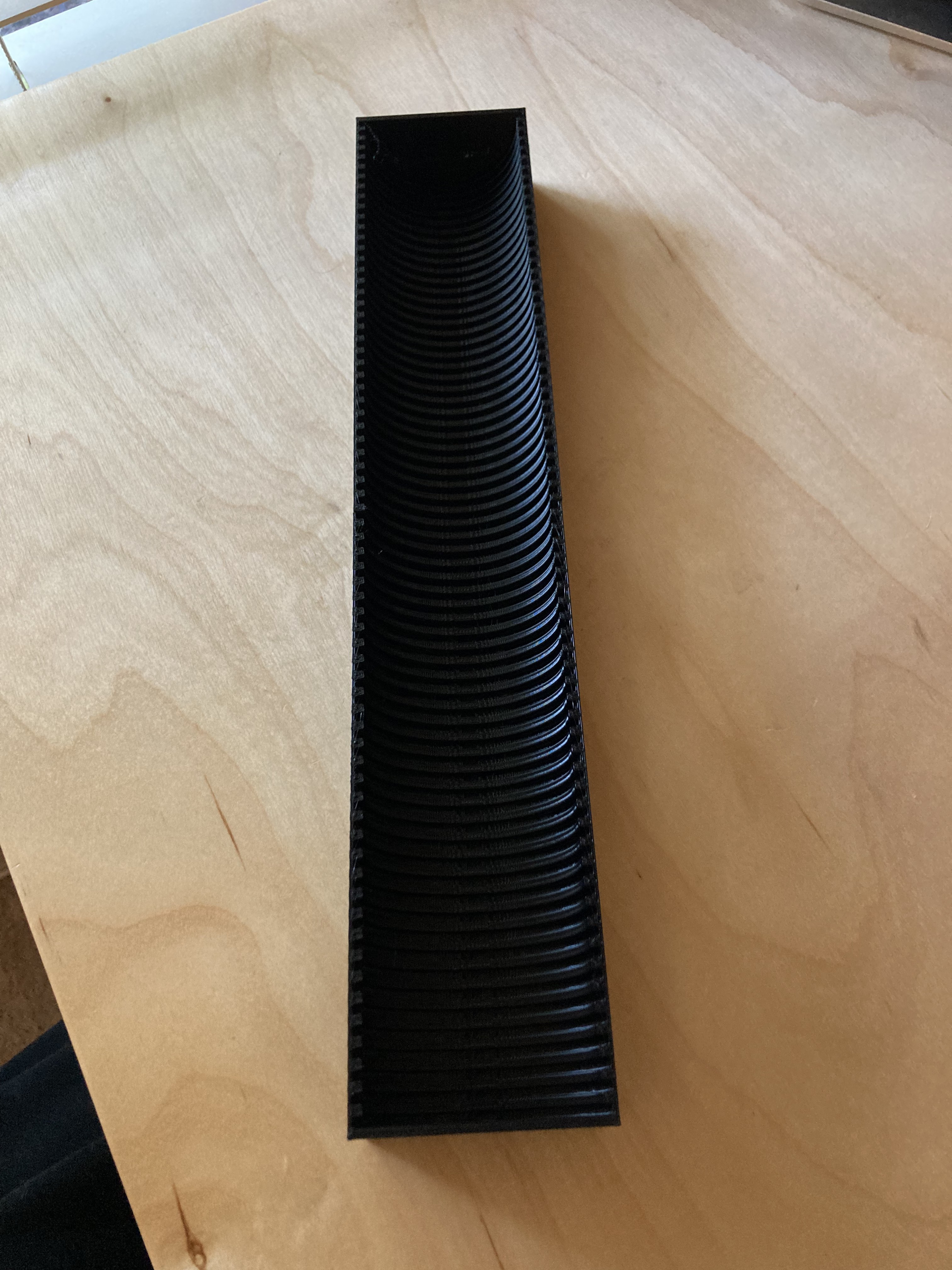

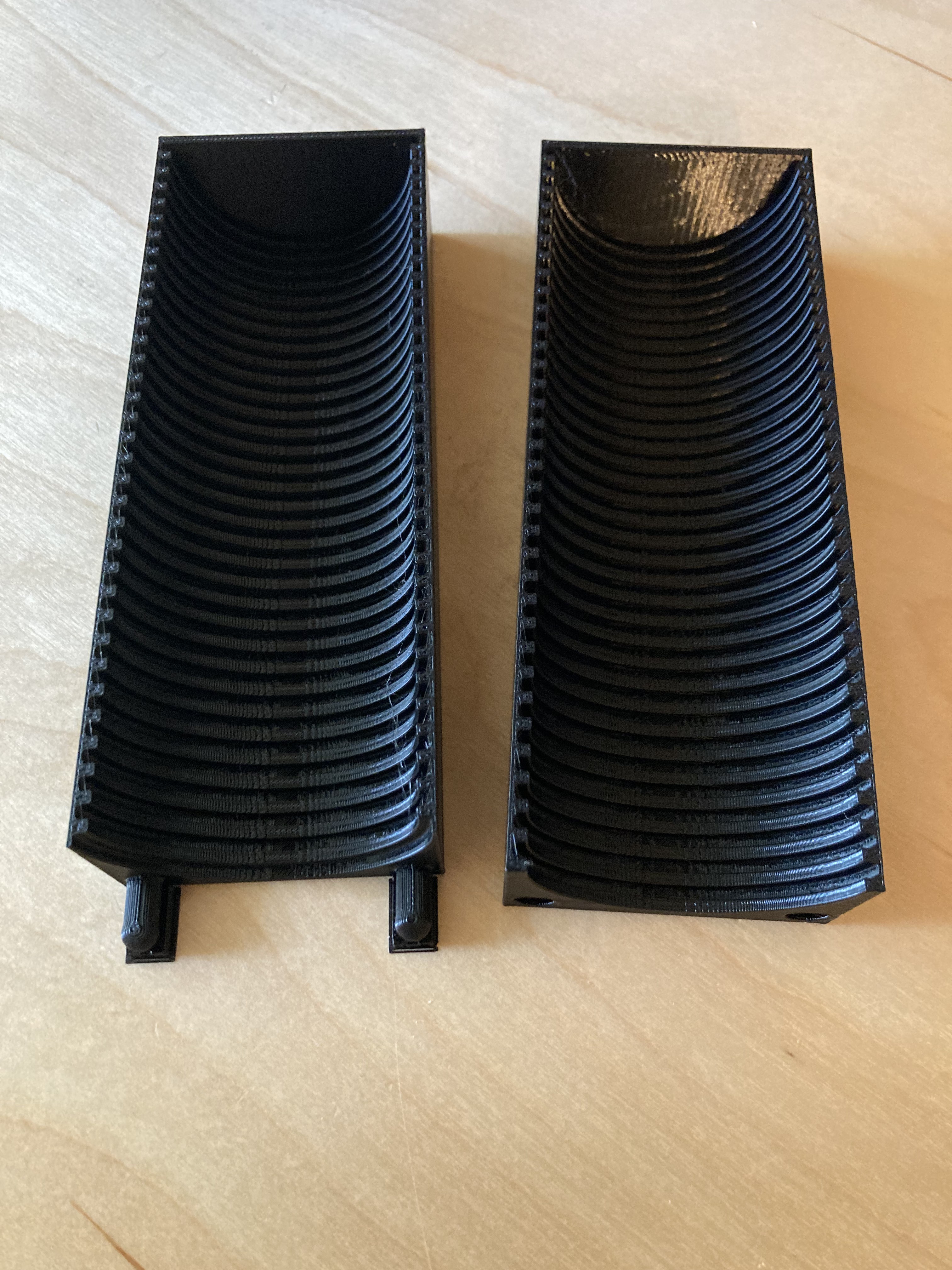

This is a drawer organizer for Nespresso Vertuo pods inspired by the $20 ones you can find on Amazon. However, unlike those, you can customize this to exactly fit your drawer: just update the code with your drawer dimensions and generate a new model. Parameters are named as if the organizer is going horizontally in the drawer, but you can just swap drawer width and depth if you want the organizer to go front-to-back. The OpenSCAD code will automatically break up the model into multiple parts if your print bed isn't large enough for the full organizer. Printed on a Prusa Mini+ with 0.25mm (DRAFT) layers (because I'm impatient), 1% infill (because I'm a coward), supports on base plate only (for the plugs). For my specific drawer, I also turned off the skirt (advanced) and turned down supports first layer expansion (expert) to zero so that I could squeeze my model in two pieces onto the build plate instead of needing three. You can see all of this in the provided 3mf project file. NB photos are the v0.9 version of the model. All that changed was me fixing some math mistakes and preparing the code for publication. The resulting model should be nearly identical. GitHub: https://github.com/michaelansel/3D-Models/tree/main/NespressoPodDrawerOrganizer
