Parametric Cable Organizer (Single Perimeter / Vase Mode)

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

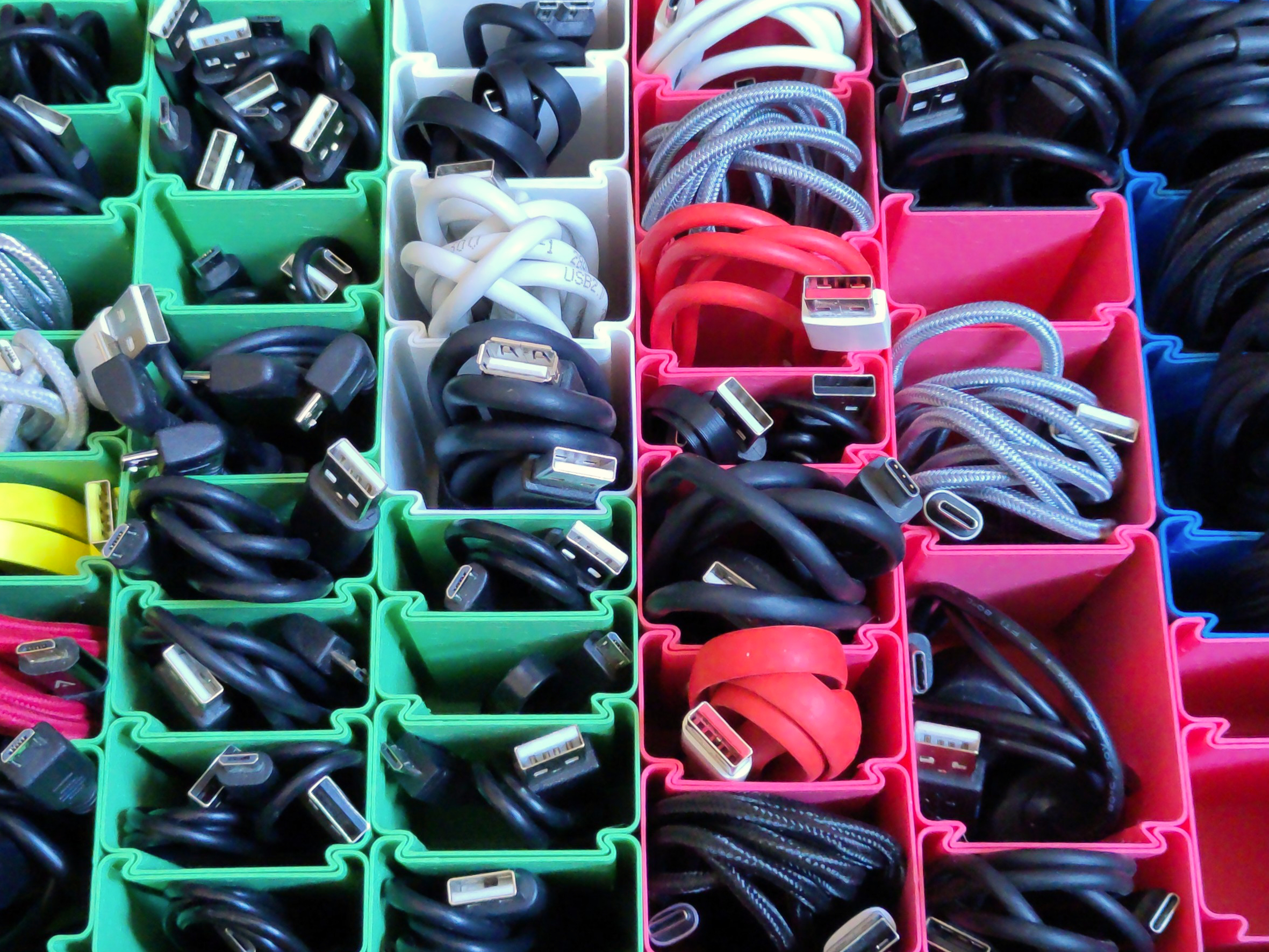

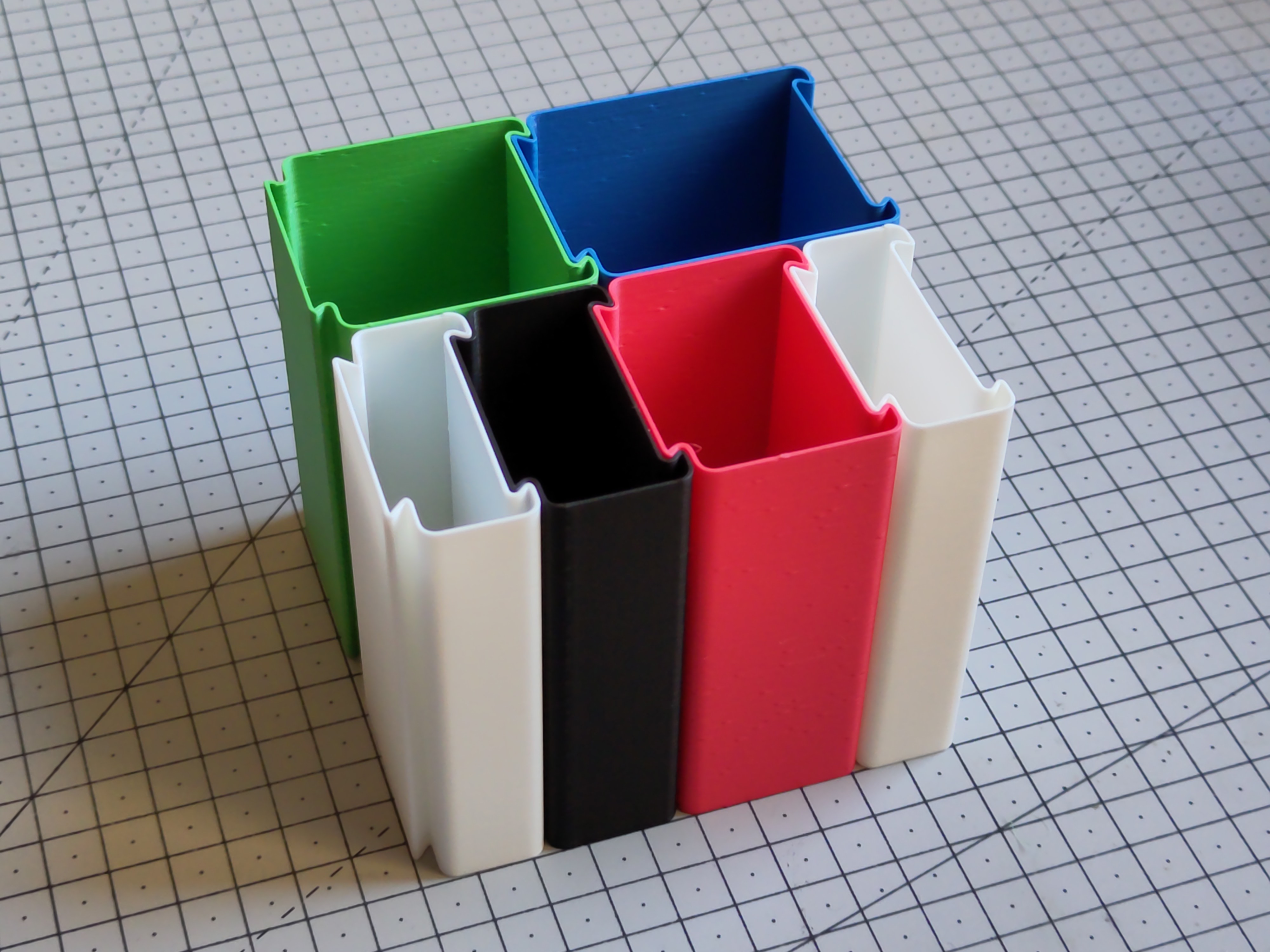

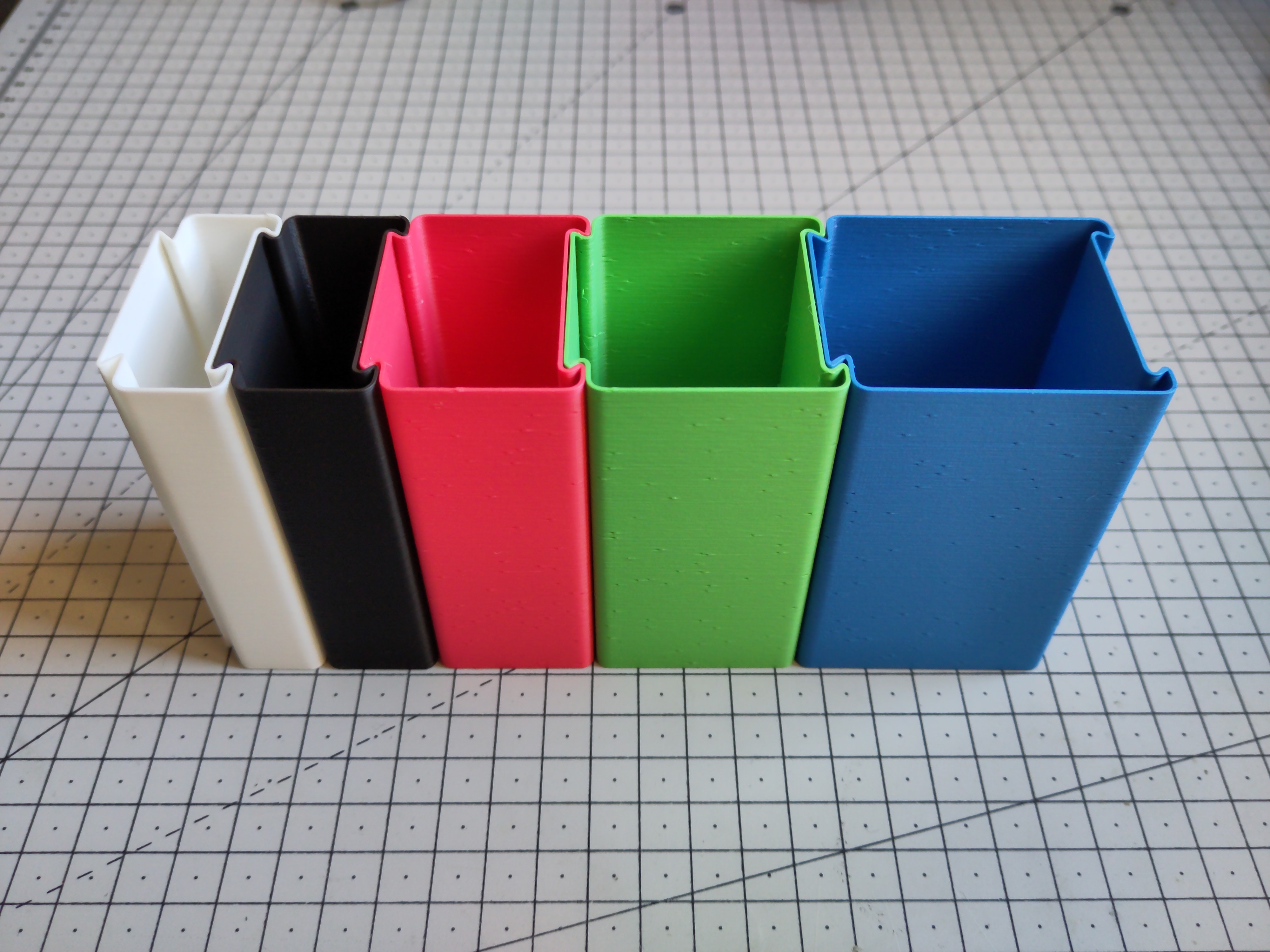

After seeing @i6o6 “Simplest cable organizer”, I feel in love with the idea of a dead simple cable organization system but ended up wondering if I could make a similar model that would be suitable to be printed extremely quickly using a single outer perimeter in vase mode. This is what came out of this idea, a simple yet effective way to store your cables that can be printed in less than 30 minutes on a Prusa i3 MK3. Available modelscable-15.stlModel size: 22.8 × 48 × 85 mm Inside volume: 15 x 48 x 85 mm Filament usage: 4.2 m (~ 12.5 g) Print time: ~ 25 min Use: small cables (< 0.50 m) or thinner wires (such as earbuds) cable-20.stlModel size: 27.8 × 48 × 85 mm Inside volume: 20 x 48 x 85 mm Filament usage: 4.4 m (~ 13 g) Print time: ~ 26 min Use: standard cables (~ 1 m / 3 feet) such as USB or Lightning cables cable-30.stlModel size: 37.8 × 48 × 85 mm Inside volume: 30 x 48 x 85 mm Filament usage: 5.0 m (~ 15 g) Print time: ~ 29 min Use: long or heavily shielded cables (1 to 2 m) such as 100W USB PD cables cable-40.stlModel size: 47.8 × 48 × 85 mm Inside volume: 40 x 48 x 85 mm Filament usage: 5.6 m (~ 17 g) Print time: ~ 33 min Use: long (up to 3m / 10 feet) and/or heavily shielded cables such as HDMI cables or USB 3 extension cords cable-50.stlModel size: 57.8 × 48 × 85 mm Inside volume: 40 x 48 x 85 mm Filament usage: 6.3 m (~ 19 g) Print time: ~ 36 min Use: larges cables such Display Port cables Need more ? All the exported models available in this project have been generated using the included Fusion 360 parametric project file (available as cable-organizer.f3d in the download section). If you need any other sizes or the current height or width of the model does not fit your specific need you can generate any combination of module. Make sure to use the same DovetailWidth parameter and Width across all your export if you want them to slot together properly. Here is the list of the different parameters and their value used when exporting the previously listed models: PrintingRecommended settingsThis project was originally intended to be printed in Vase mode (and can still be) though I would recommend against it if you want to be able to print multiple instances of the same model at the same time. Layer height: 0.30mmExtrusion width (using an 0.4mm nozzle):External perimeters: 0.8mmFirst layer: 0.6mmSolid infill: 0.6mmPerimeters: 1Solid layers:Top: 0Bottom: 2Seam position: RandomInfill: 0%Brim / Raft / Supports: noSpiral vase: yes (if printing one model at a time, no otherwise)As you can see, this print relies heavily on using a high extrusion width value which can be achieved using a 0.4mm nozzle (0.8mm external perimeter extrusion width ended up yielding a 0.72mm wall thickness on my Prusa i3 MK3 with a 0.4mm nozzle for example). Using a larger nozzle would tremendously help with both speed and wall thickness. Speeding up the printIn order to make this model print as quickly as possible, I would also suggest tweaking some of the printing speed / cooling parameters. Most of the gain in speed comes from the already tweak extrusion width but, by changing some of the printing speed, I was able to achieve relatively good result with a print time less than 30 minutes per models using the following settings: Speed:External perimeter: 40 to 45mm/sCooling:Remove all cooling thresholds in your Filament Settings (set to 0 for Enable fan if layer print time is below and Slow down if layer print time is below). This is the main culprit for a slow print on top of the low external perimeter printing speed.I have joined a 3mf file for Prusa Slicer, containing the 3 models sliced and configured to be printed using PLA on a Prusa i3 MK3/S/+ with all the print settings and tweak recommended here already applied. ChangelogV1.0 (2022-08-24): Initial releaseV1.1 (2022-09-12): Added 2 more sizes case-40.stl and case-50.stlV1.2 (2022-09-27): Updated description, pictures, exported GCode & Fusion 360 source fileV1.3 (2022-08-29): Added the Tolerance parameter to the Fusion 360 source file
