planetary gear fidget thing with three-teeth-planets

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

PLA (filament)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

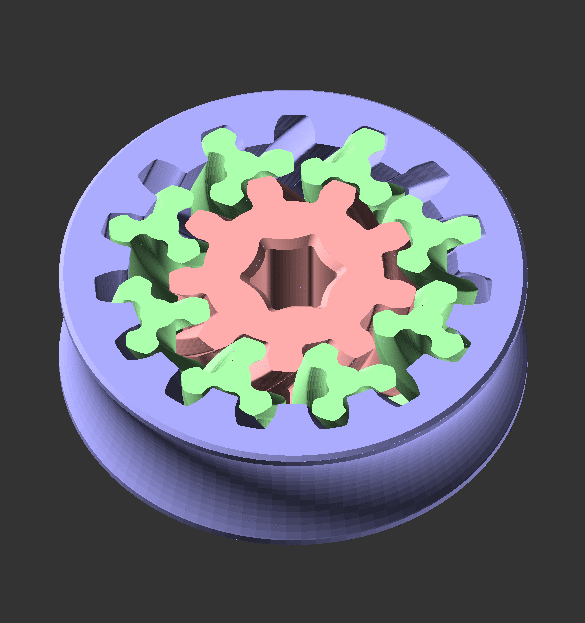

Who hasn't seen a print-in-place herringbone planetary gear… probably a version from Emmett. However I recently developed a different method for those gears which allows planet gears with only 3 teeth (actually also with 2 teeth, but they don't turn that smoothly), which I found quite nice, and so I thought I'd share it. The hole in the center should fit a typical screw driver bit, which can, in combination with a power drill, help breaking in the gear to run more smoothly, especially if it's quite tight in the beginning. I uploaded 3 versions with slightly different tolerances/clearance. I suggest trying tol20 first; if you find it to loose or wobbly, try the smaller one. If you can't break the gears loose, even individually with a bit of force, try a bigger one. Also try the little hand crank (or two) for a bit more fun → Printing: A well tuned printer (regarding tolerances) helps. Otherwise nothing special (0.4mm nozzle, 0.2mm layer height).
