Replacement Furniture Cam Lock
SKU 3DPW-pr-715705
$13.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~2 g
- Print time
- ~0 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

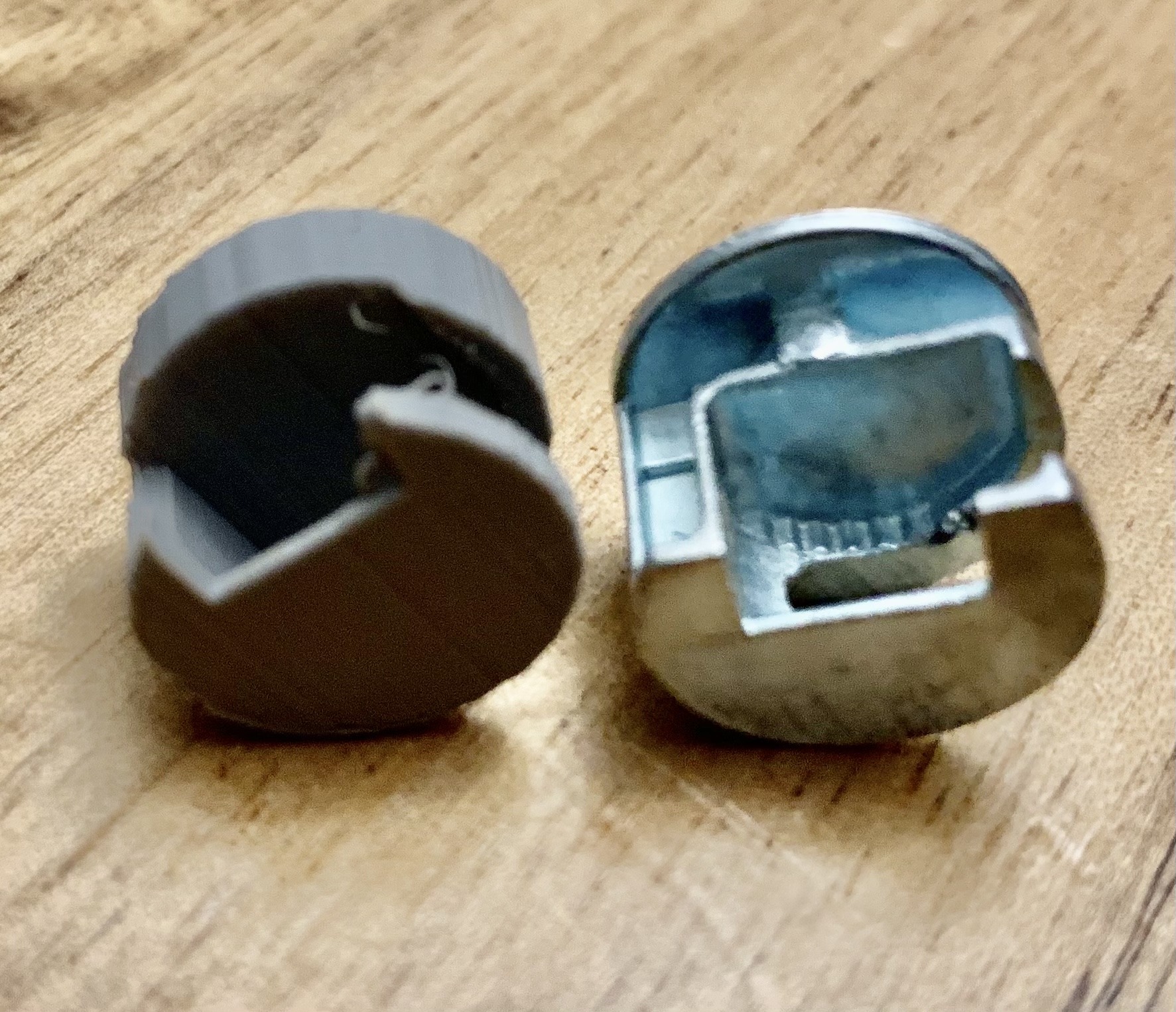

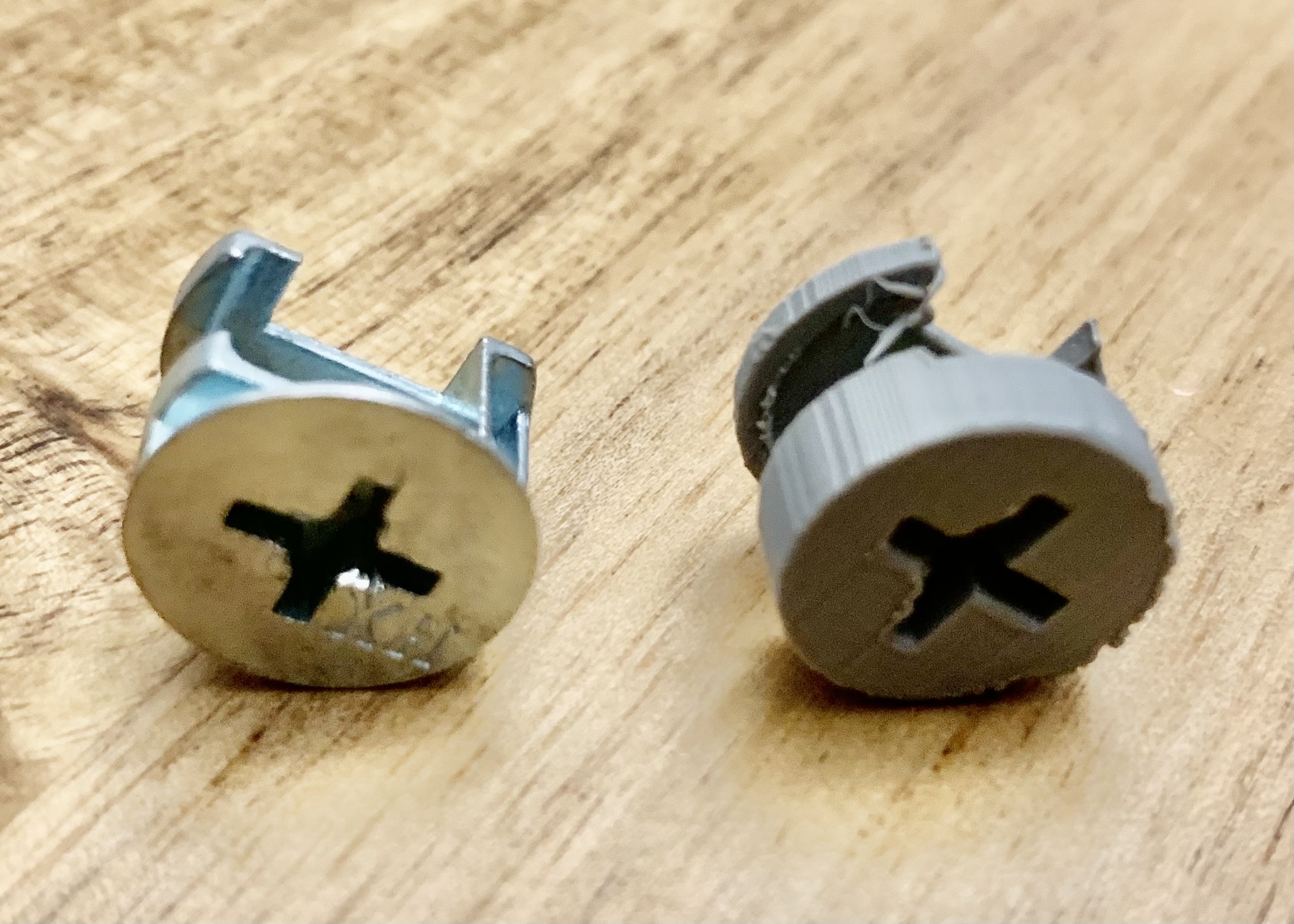

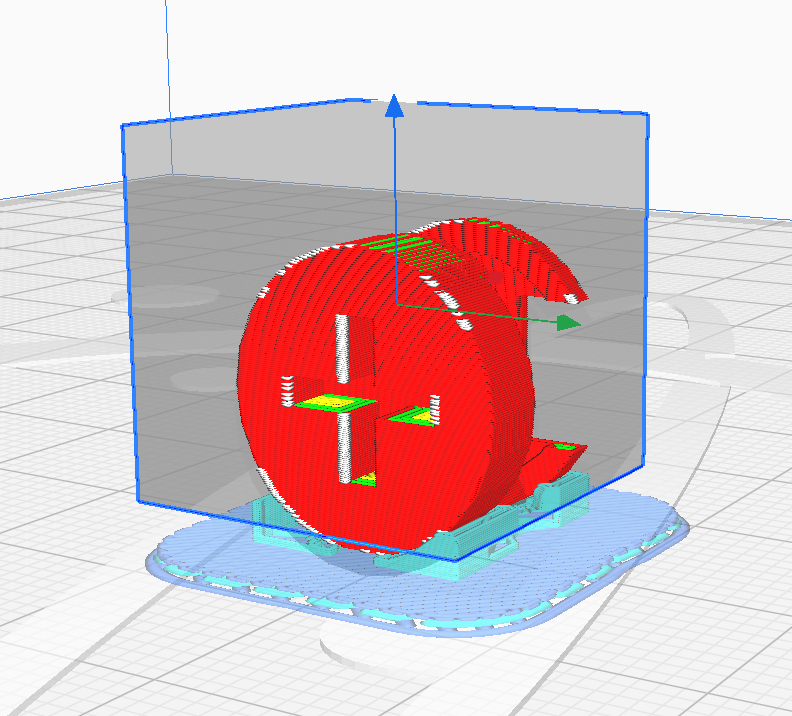

I designed this to fix my TV stand. I bought it second hand so I don't know the brand but this piece looks like any other I've come accross. The diameter is 14.65mm and the depth is 11mm. I used calipers to measure the existing one I had and it's not a perfect replica, but it's fairly close. I was able to tighten it with no problem. I sliced it in Cura on .1mm layer height on engineering settings. I used a support blocker to so that just the bottom was supported, but nothing else. I found that without any support it rocked back and forth while printing and messed up. I've had trouble with supports this small though so I didn't want to add too much. I attached a photo showing the support blocker.
Tags: ikea, furniture, replacement, lock, cam, camlock, resin print, nz made, made to order
Design credit: Original design by Caleb Galvas - licensed under CC-BY.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
Replacement Furniture Cam Lock is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
