Replacement parts drawer

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~64 g

Print time

~3.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

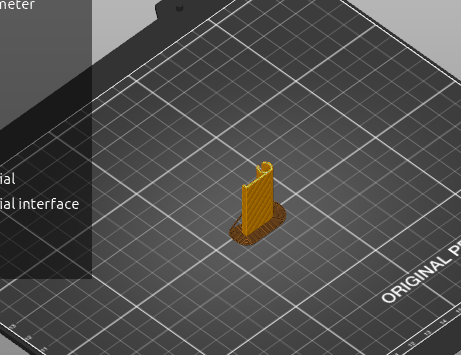

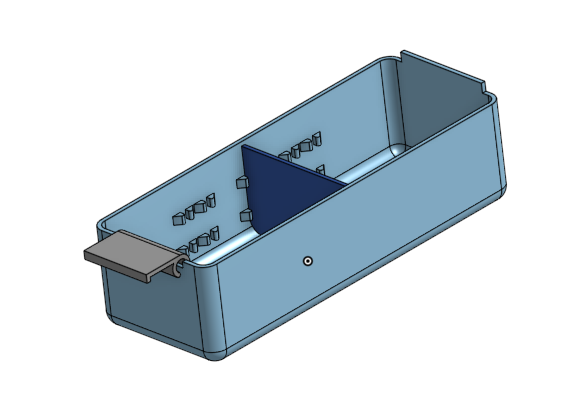

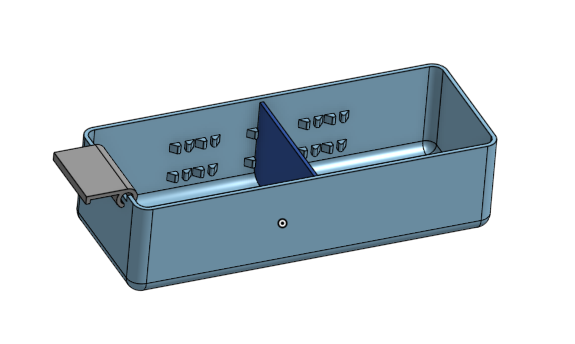

Replacement plastic drawer for Akro type multi-drawer parts cabinets. This design includes: divider supports for 1/4 and 1/3 drawer segmentsdivider piecethree part design with handle, drawer, and dividerThe following drawers sizes are provided (this is the size of the drawer not including the handle or retaining tab). The handle and divider are sized for each drawer size. Drawer Size Length Width Height ======= ====== ===== ====== Small 4.5 in 2 in. 1.4 in. 114 mm 51 mm 36 mm Medium 5.5 in. 2.1 in. 1.45 in. 140 mm 53 mm 37 mm Large 5.86 in. 2.22 in. 1.25 in. 149 mm 56 mm 32 mm In addition to size, each drawer comes in two styles. One version has a small retaining tab at the back, the other style has a plain back. Created in OnShape. The OnShape CAD model is parameter driven so creation of additional sizes is very easy. The CAD model is available at the link below. https://cad.onshape.com/documents/8a0c5e63be9e9c3ef4ce1a5e/w/cbc304e1b2a744b4b70d9fb1/e/50b36e09b71102a97941800d?renderMode=0&uiState=64b714d563279d254c1d2c8d Print instructionsPrint the handle "on end" with a brim (essential for this tall part), and perimeter set to 5. Print the drawer with perimeter set to 5.
