Sovol SV06 LED Mounting Bracket

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~27 g

Print time

~0 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

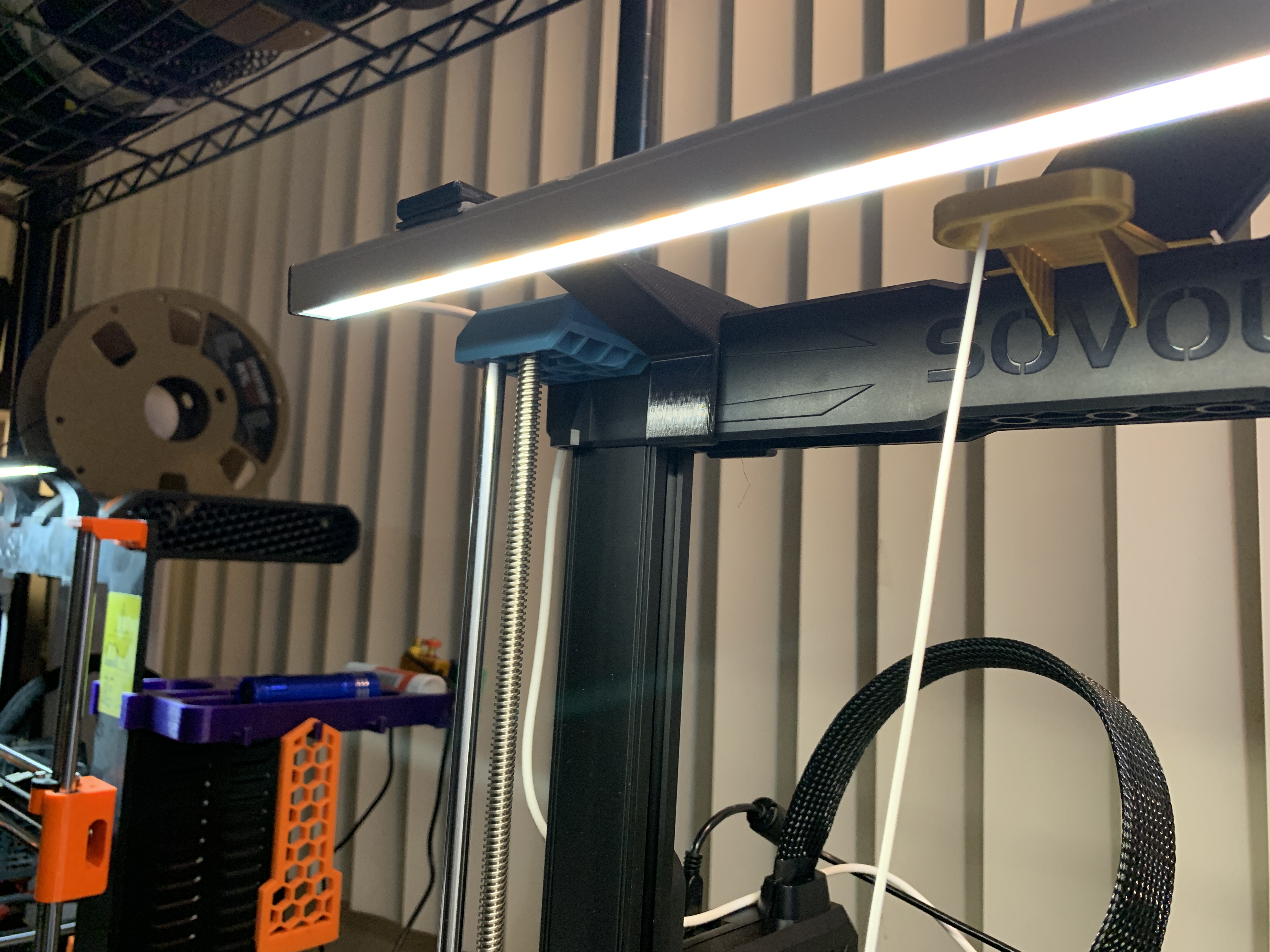

Upgrade options were limited for this new printer model and I needed an excuse to practice 3D design using Shapr for the IPad. This bracket will fit most LED light bars because it’s designed for use with 3M’s VHB double sided tape. I chose the $19 Asoko 7w, 14 inch usb powered light bar I found on Amazon. They make a cheaper 12” model that will fit this bracket as well. It was also designed to fit 1” wide VHB tape. The light bar comes with double sided sticky tape that also works well if you don’t have your own VHB. I printed this with a .6mm nozzle and .2mm layer height 30% infill, using Petg. I’m fairly certain pla and other nozzles will work just fine. Obviously, print 2 on their SIDE for strength and no supports, brim optional. I designed an 8 degree inward tilt at the attachment point so the light doesn’t shine in my eyes as it sits at eye level in my living room. Send me a note if you want no tilt or more tilt. Update: I’ve updated the end that grasps the top bar to grasp much better and have labeled it v2.1.1, caution, it will be harder to remove If you make sure the back clicks in first. The Picture is still v2, you’ll see the changes in the model file.
