StarLink gen3 Dishy RV Bracket

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~35 g

Print time

~1.9 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

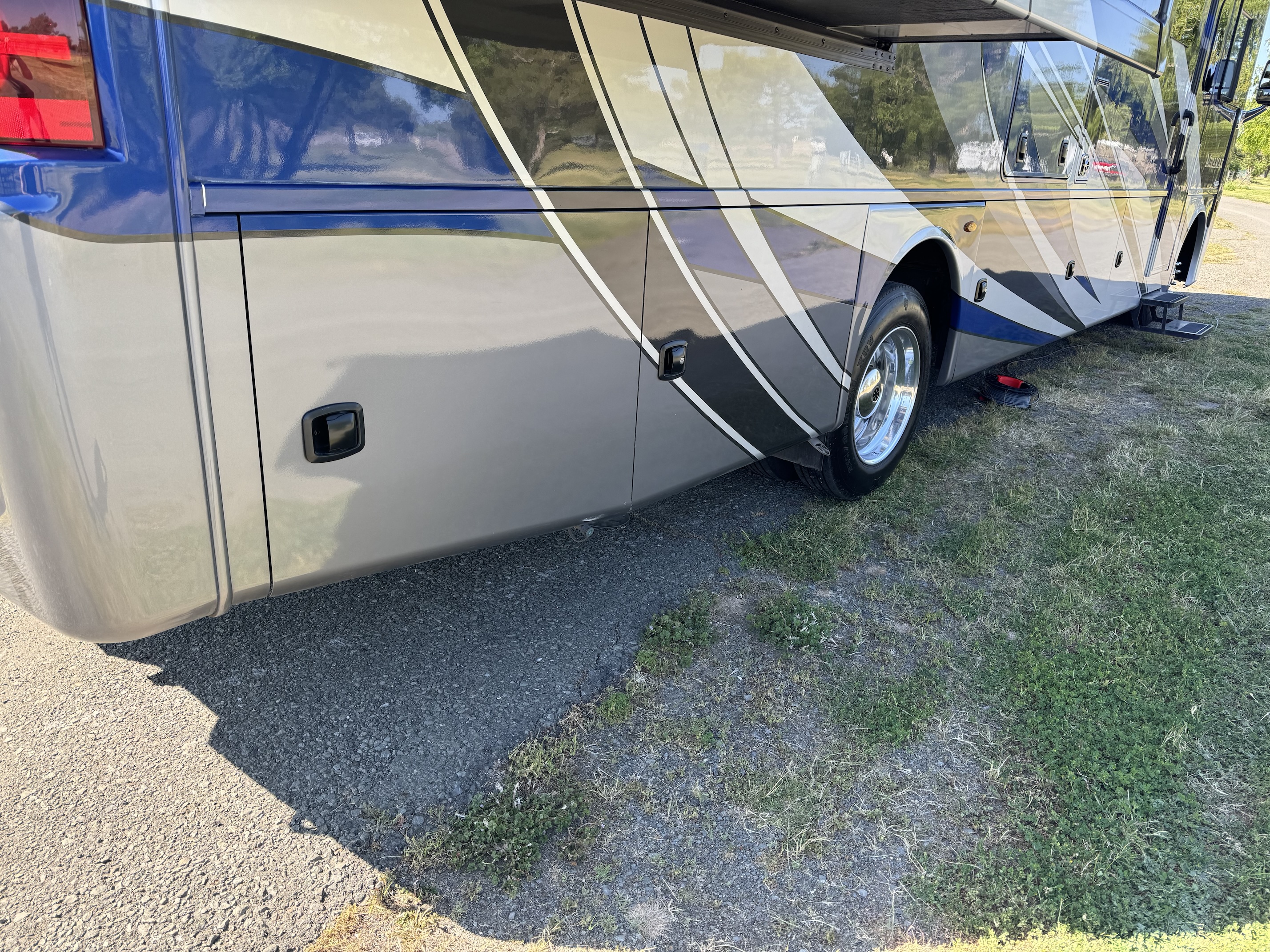

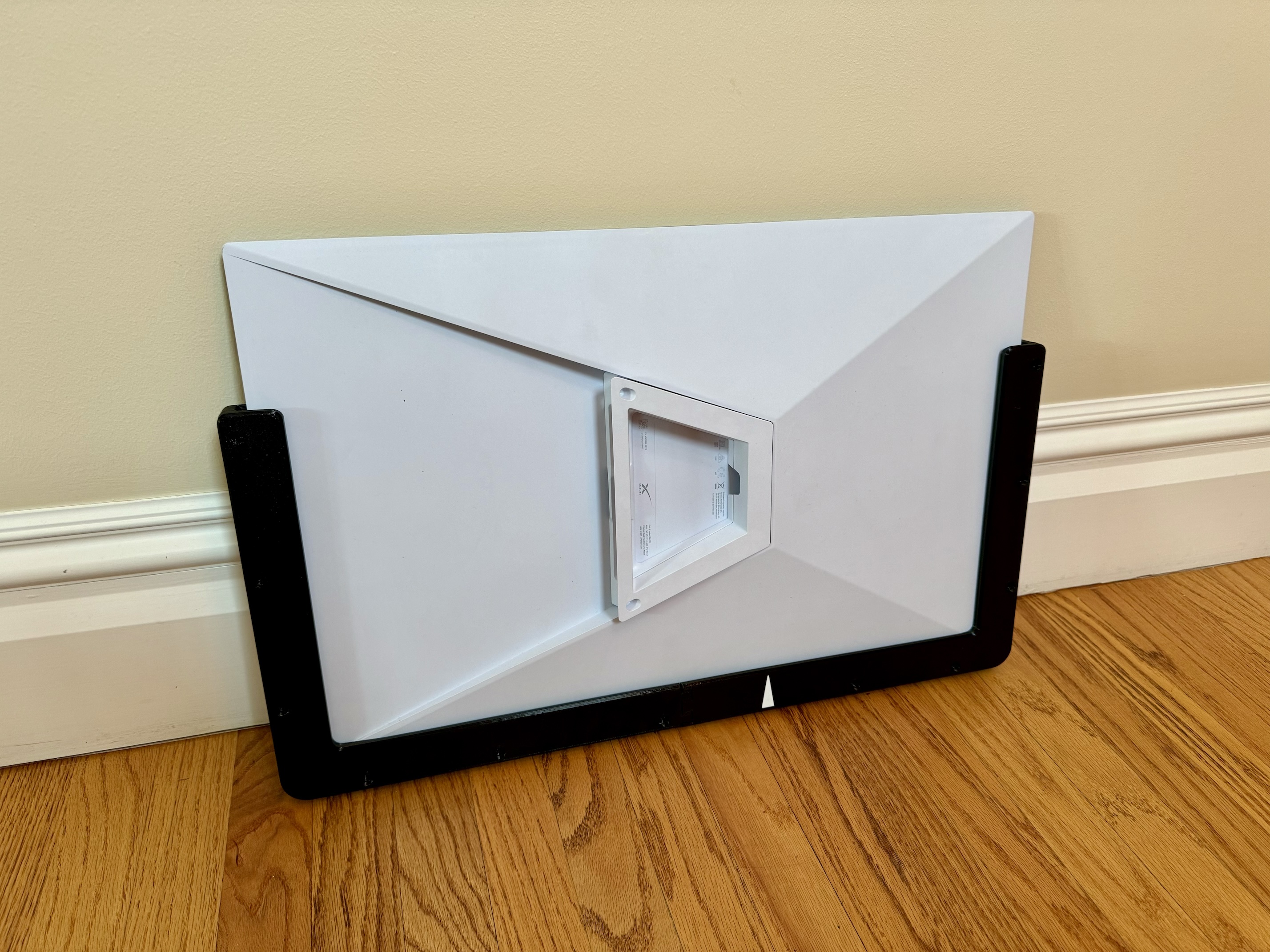

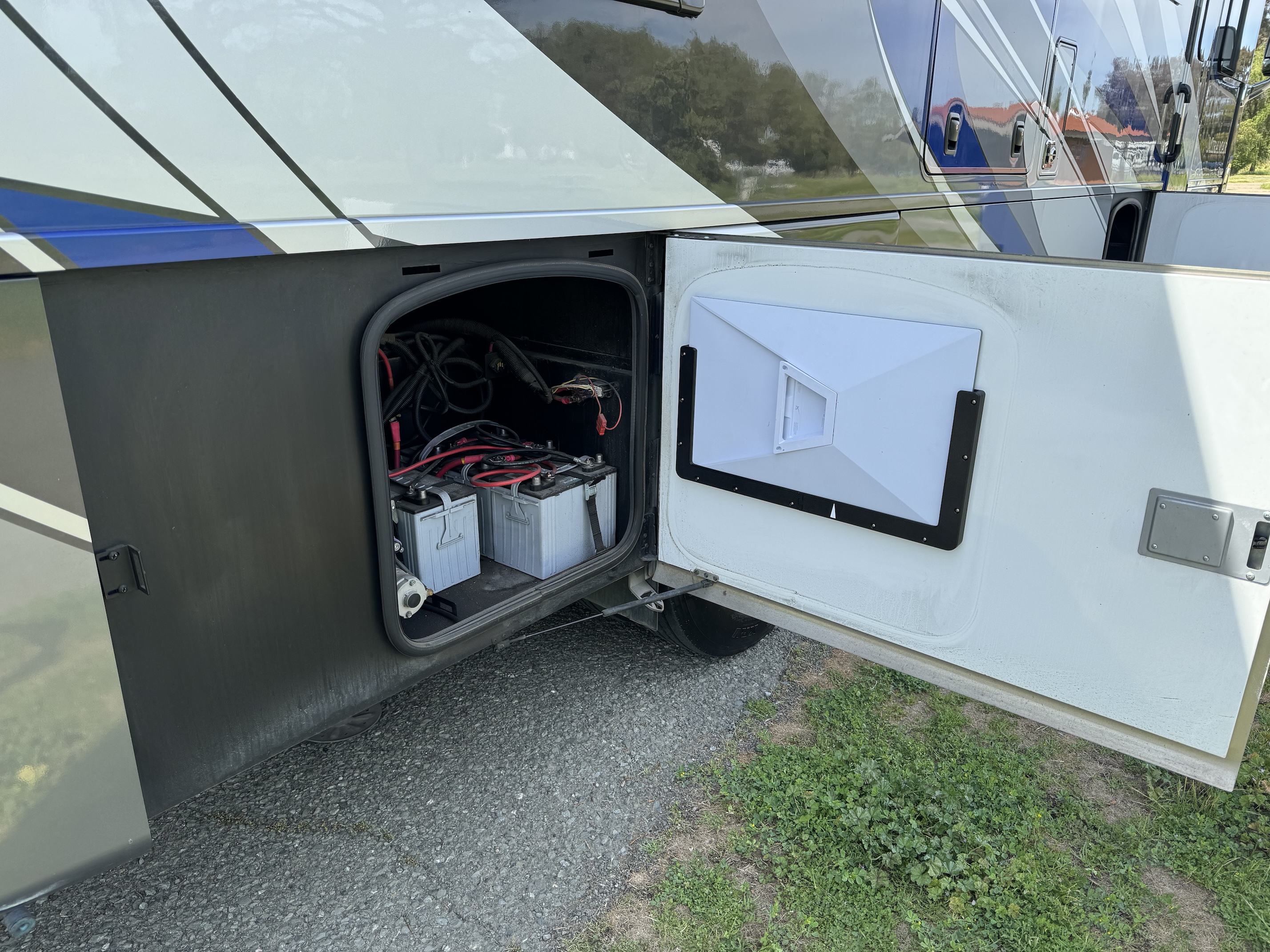

We recently added StarLink to our RV. This is a set of models for mounting the gen3 “standard” flat panel to the back of a storage bay door. The bracket is printed in 4 parts which fit together. The “Right Upper” piece has an “Arrow” sub-piece which I printed in a second color. This is used to mark the orientation of the panel when it's slid into place (the panel is asymmetric on the back). I printed the pieces on my XL in PETG on a textured sheet. Sheet metal screws (check with length of your screws carefully before drilling!) were used for installation. I put double sided tape on the back of the bracket, slipped the panel into place, then pressed to the inside of the storage bay door. After carefully sliding the panel out I drilled the holes and installed the screws. Fits neatly into the opening in the storage bay, keeps the dish out of trouble when were moving.
