Turntable Hinge for AT-LP120

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~14 g

Print time

~0.8 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

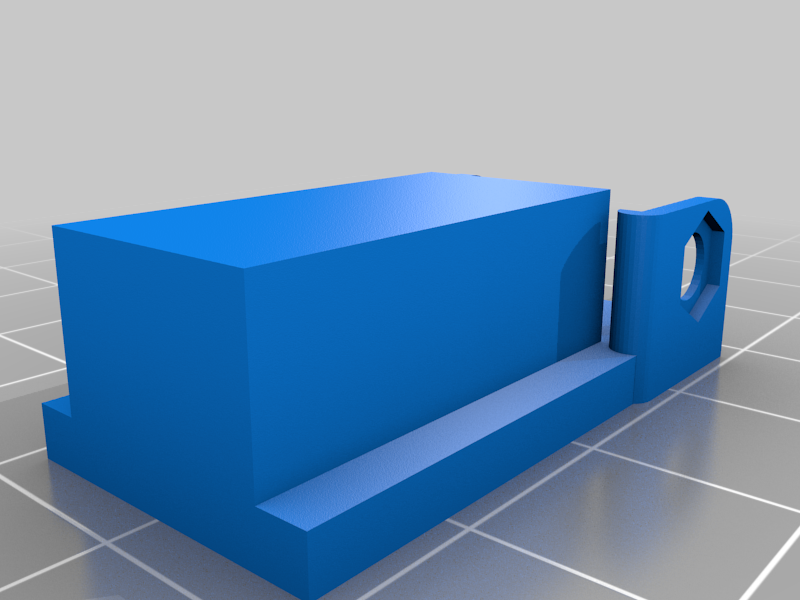

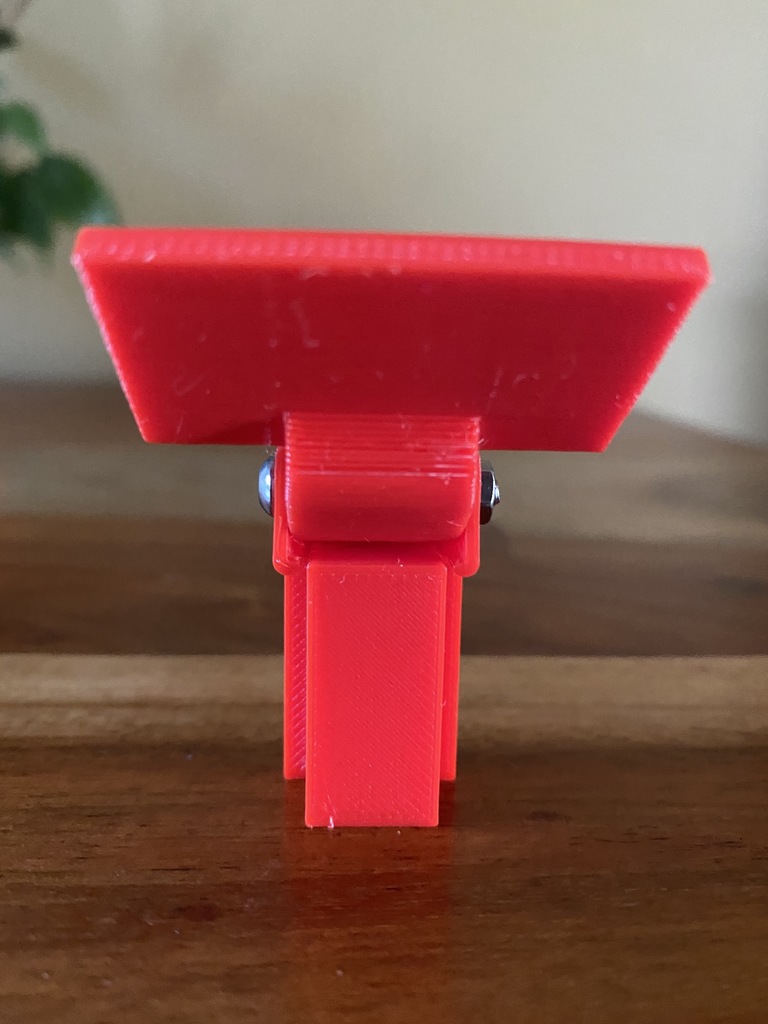

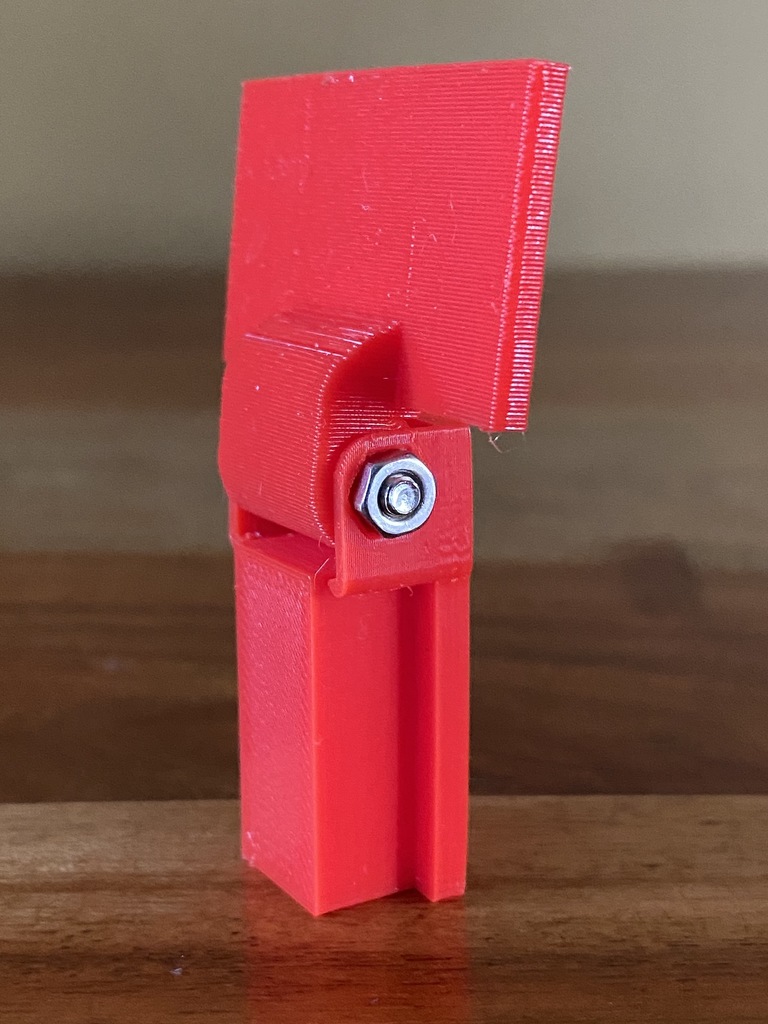

I accidentally threw away the hinges for my turntable's dust cover so I made these replacements. It was a bit expensive to buy 2 hinges online so I designed and printed these. I have at the AT-LP120 USB, but it should fit these models: AT-LP120-USBAT-LP120BK-USBAT-PL120Please let me know if you use this model! Some printing notes: For the top part of the hinge I just printed with 0.3mm and base-plate-only supports. I used a brim and printed it standing up with the hinge hole up top.For the bottom part I printed 0.15mm and no supports.you probably have to rotate the STL fileSome assembly notes: Just needs one M3x20 screw and one M3 nutmake sure to orient the top part of the hinge like you see in the pictures - the hinge will screw together the other way but the lid won't fit rightCategory: Music/Electronics
