Ubiquiti Unifi G4 Instant Articulating Camera Mount

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~18 g

Print time

~1 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

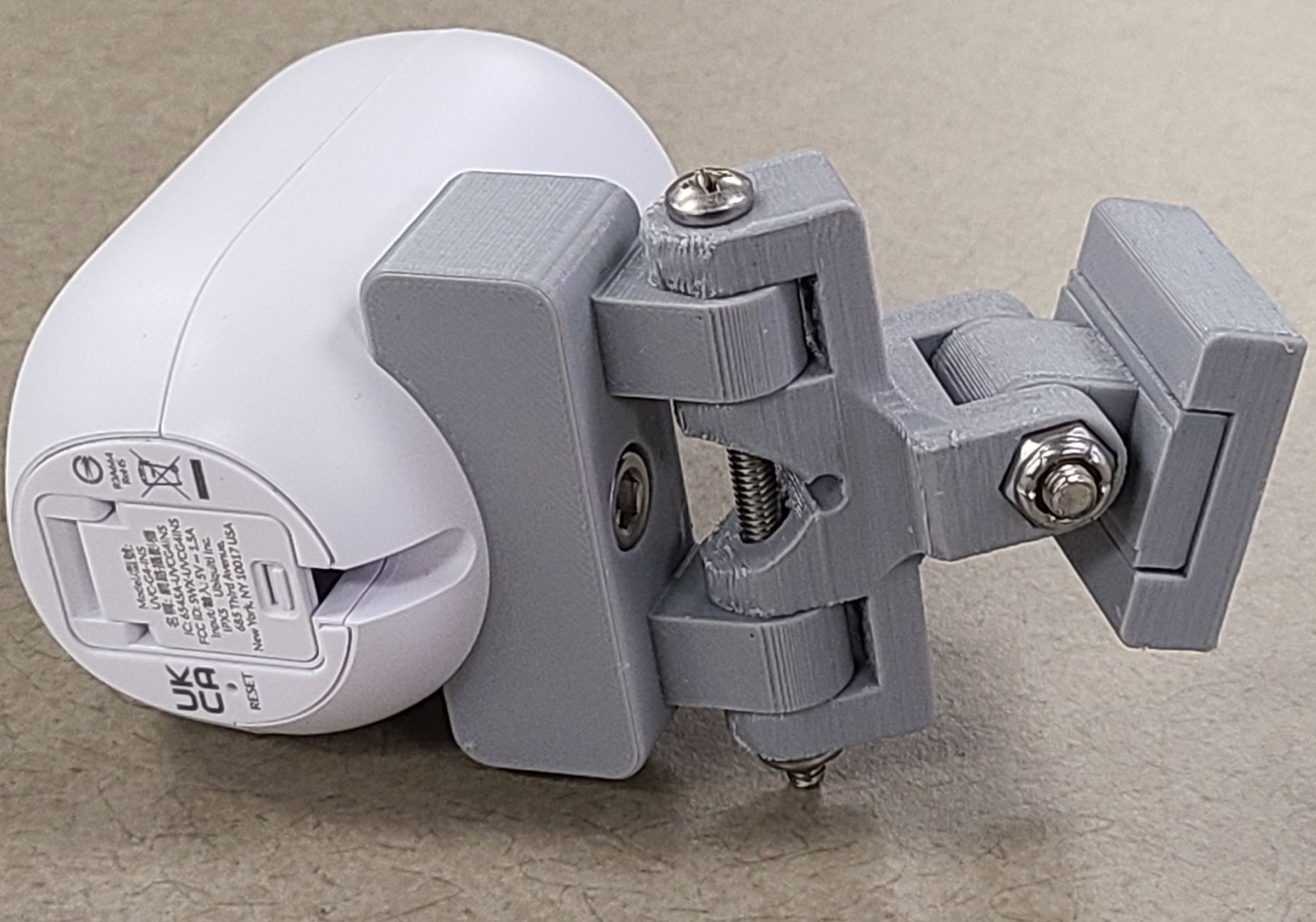

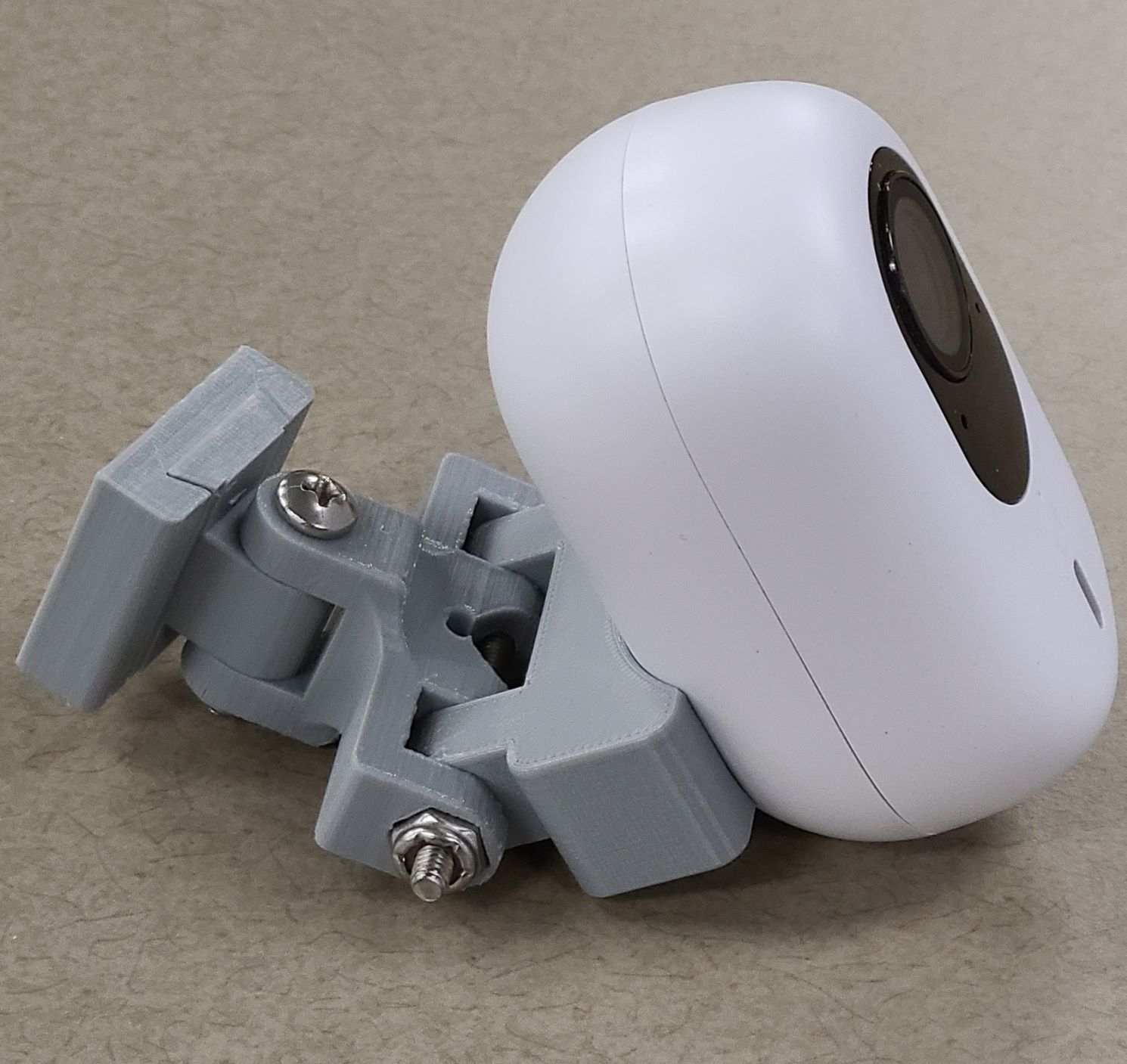

This is a mounting system for the Unifi G4 Instant Security camera based on an excellent design for the G3 Instant. This design uses a corner bracket or flat mount with a dovetail socket, a 2 piece hinge that slots into the dovetail, and a hinge piece molded to the backside of the camera itself. I have printed it successfully in PLA and PETG with supports and a higher infill (40%). You will need the following additional hardware for the camera mount and hinges. #10 x 2 ½" machine screw with nylock nut (hinge)#10 x 1 ¼" machine screw with nylock nut (hinge)¼"-20 x ½" hex socket head cap screw (camera)2 x #6 flathead wood screws (mount attachment)Full credit goes to the original author for his excellent design. Unifi G3 Mini Camera Mount by abakedapplepie March 19, 2021 https://www.thingiverse.com/thing:4799966
