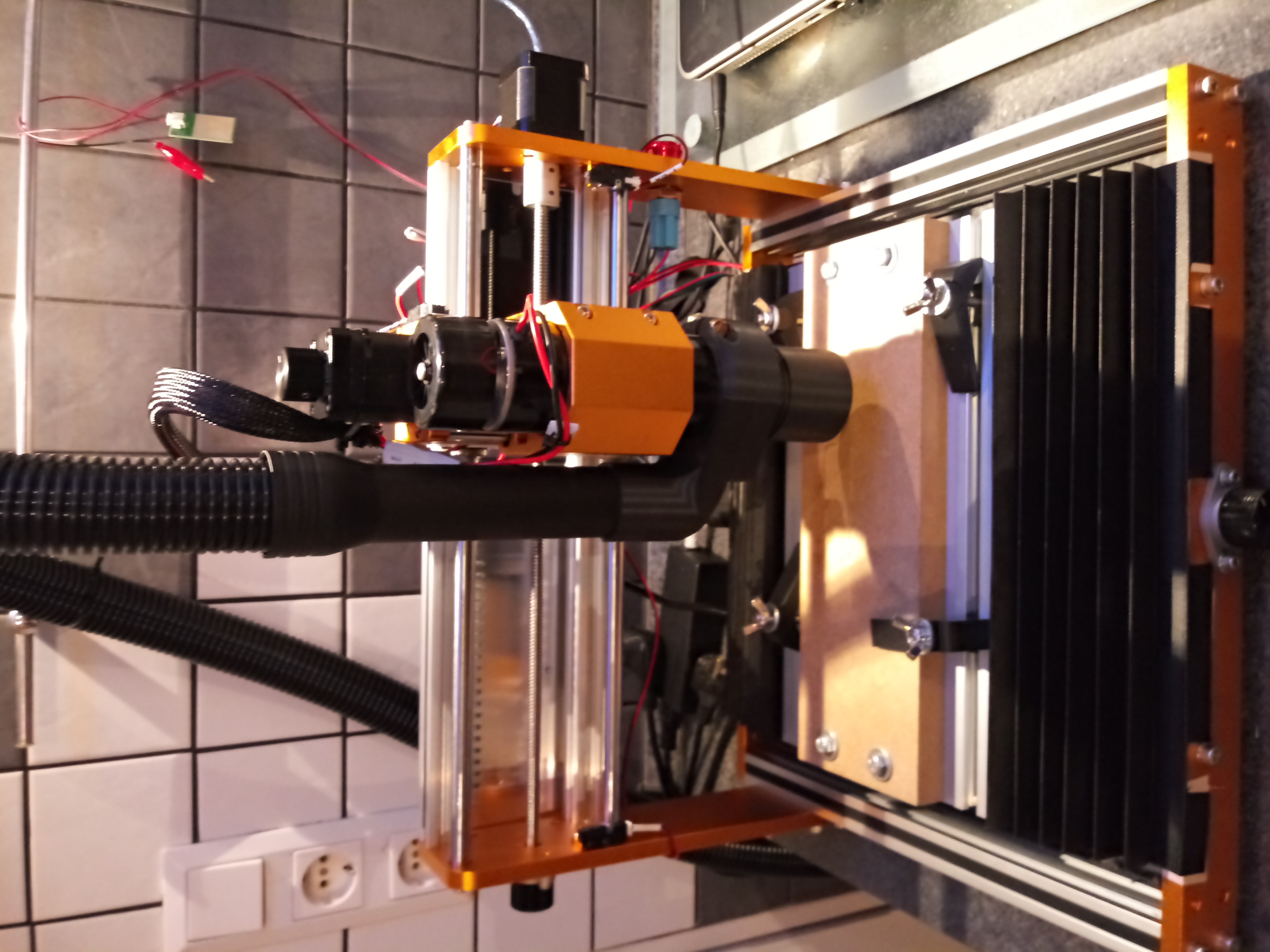

Vacuum adapter for 3018 (500W spindle) milling machine with adjustable height and magnetic cover
SKU 3DPW-pr-1586462
$200.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- PLA (filament)
- Colour
- Grey
- Weight
- ~40 g
- Print time
- ~4.5 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

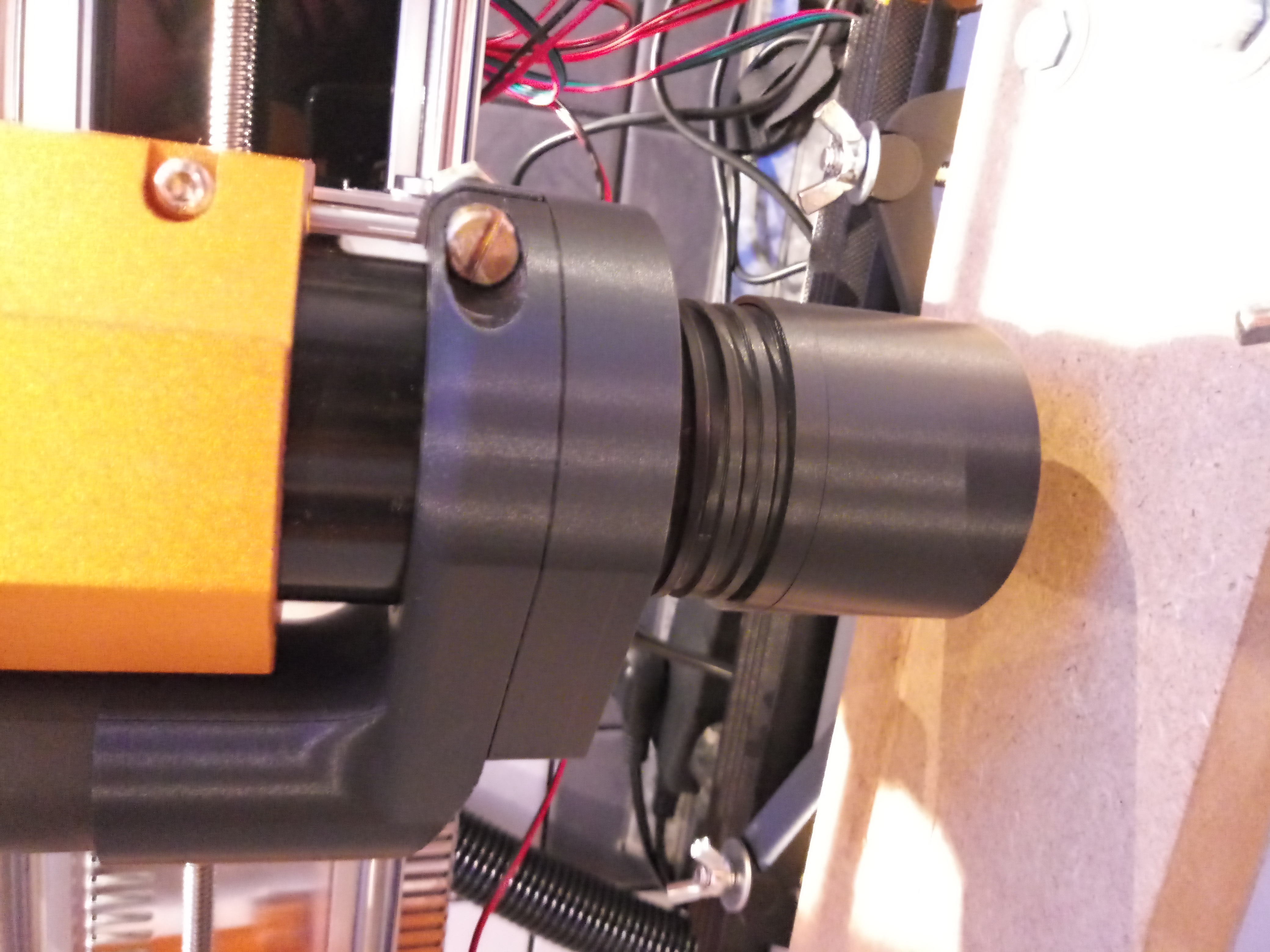

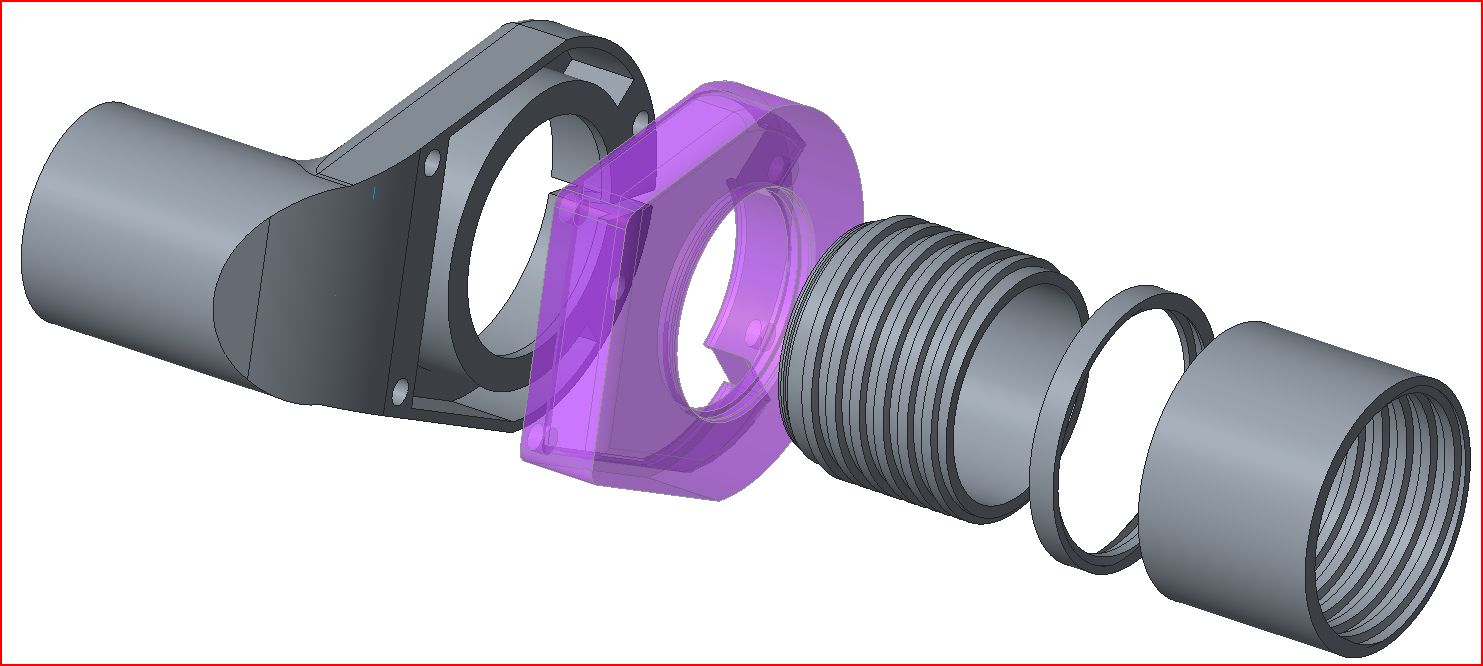

Part: Spindle Mount: Mandatory part for connecting the vacuum cleaner to the 500W spindle. Can be used standalone. My printer setup: PLA 0.2mm layers organic supports (30°) 25% infill (grid) Parts: Bottom Cover / Top Pipe / Bottom Pipe (35mm or 70mm) / Fixing Nut: Easy fix with magnets to get closer to your workpiece. My printer setup: PLA 0.15mm layers no supports 25% infill (gyroid) Part: TPU Ring Optional brush-like part. Can be mounted like a zip-tie. TPU 0.2mm layers no supports 50% infill Additional parts needed: 8 x Mini magnets 5x3mm (round) 1 x M6x18 cylinder head screw Assembly: Press in the magnets in the slots The top pipe is just "clicked in" the cover. The bottom pipe and the fixing nut are screwed on the trapezoidal thread of the top pipe The height can be adjusted with the thread The pipe is fixed with the nut It can be mounted the standard (35mm) bottom pipe or the long 70mm variant for longer tools
Tags: magnetic, spindle, vacuum, milling, 3018, dustshoe, resin print, nz made, made to order
Design credit: Original design by Alex_P - licensed under CC-BY.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
