Bar Clamp Holder for Parallel Clamps or Pipe Clamps

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

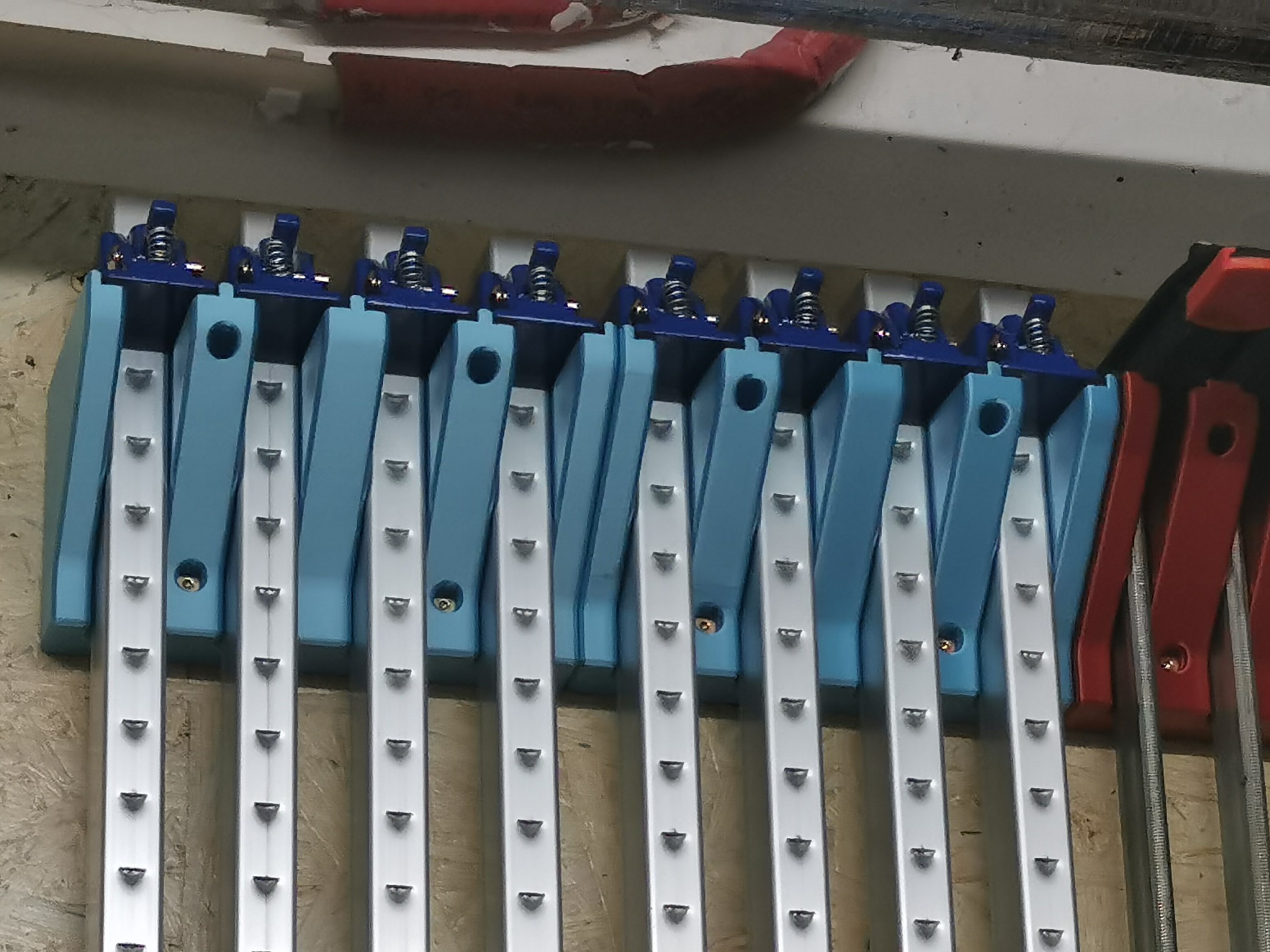

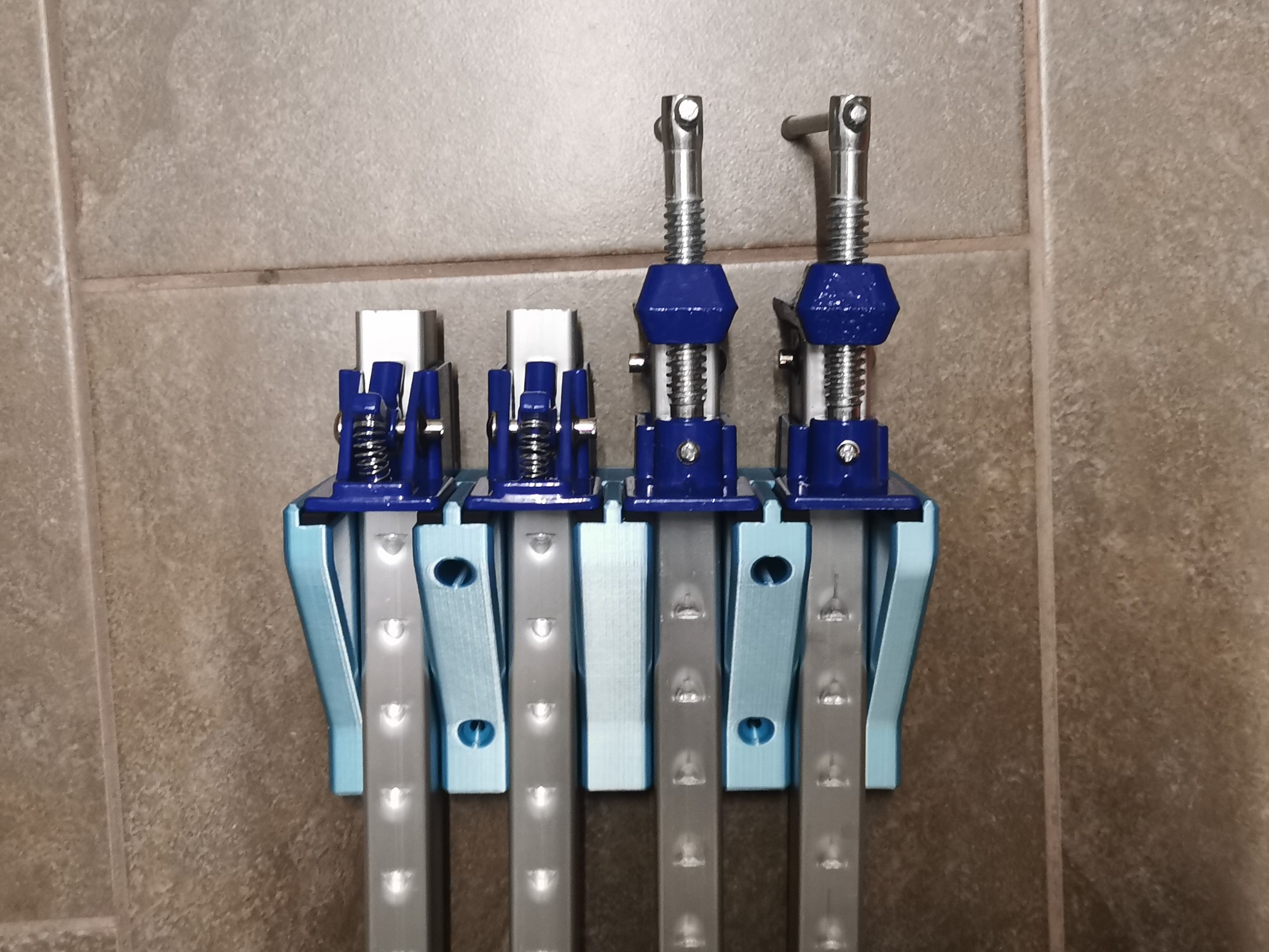

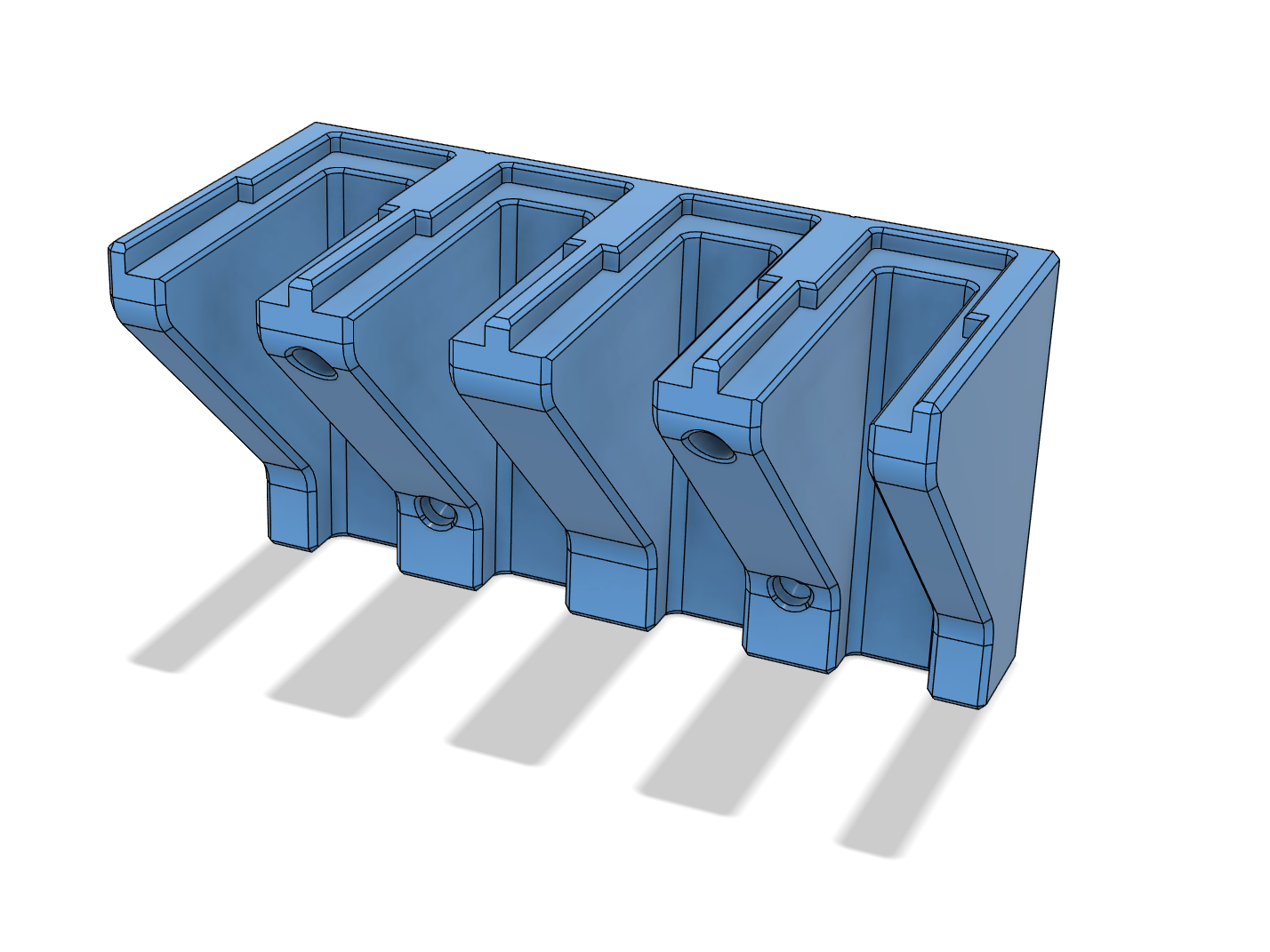

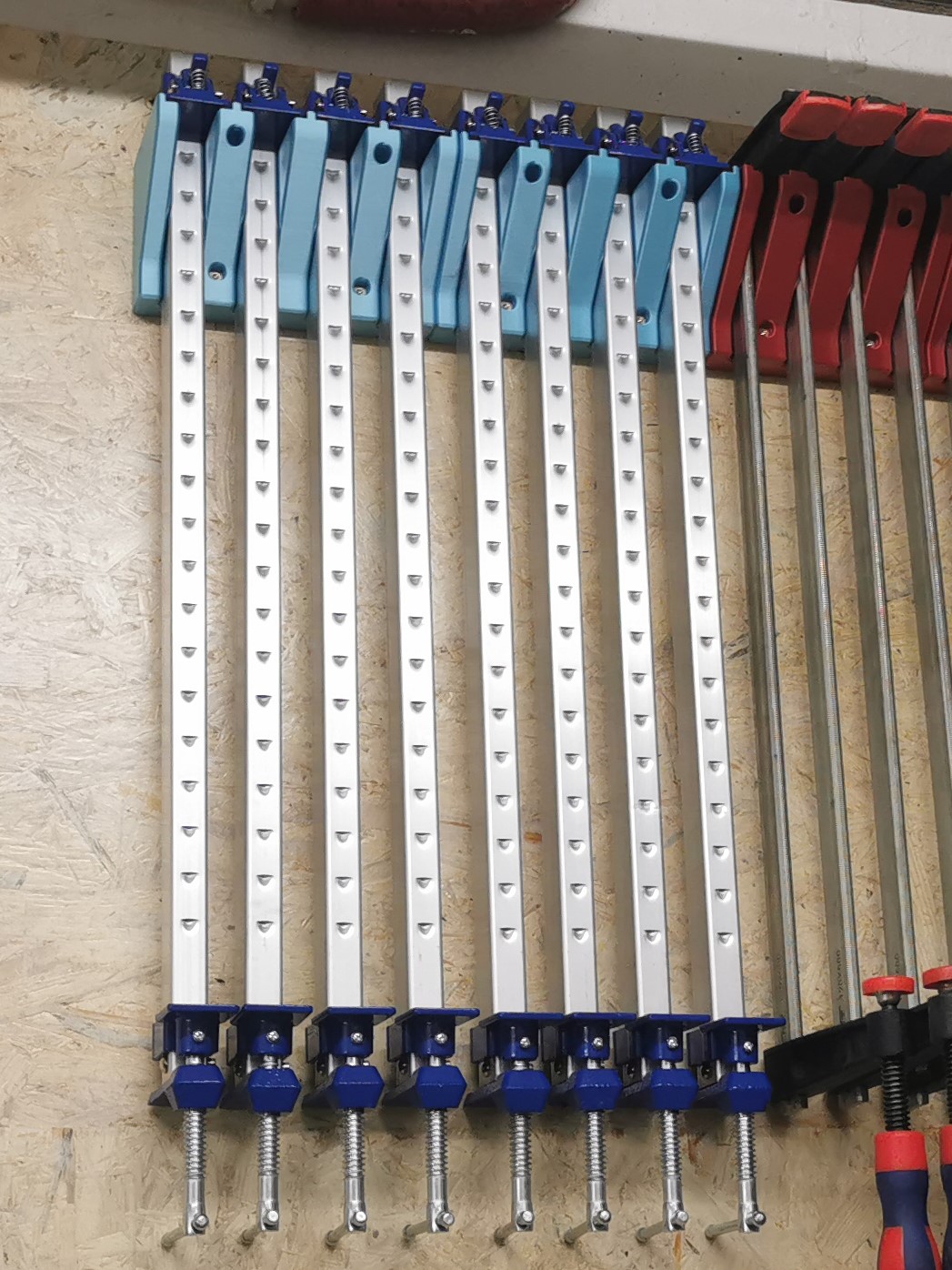

This is a modified version of the LR2219 Compact F-Clamp Holder for Regular and Small Clamps by Lucky Resitor to allow them to be used with parallel bar clamps you find in various variants from certain vendors: 600 mm on Amazon900 mm on Amazon1200 mm on Amazon(affiliate Links)What changed?Based on f3d-file ive changed the geometry to accept the stepped bar pads, also the geometry is changed to a square-ish profile. since parallel bar clamps without load are not parallel but inclined, i've also added an incline of about 1,2° to the holder and recessed it a bit more to accept an anti slip pad, so the rather lightweight aluminium clamps dont slide of due to vibration or anything like that lasercut templates for 3 mm foam pads are included - if you have cork or foam directly on the clamps, then you don't need this it is designed so the clamps can be hanged both ways (fixed pad up or moveable pad up) How to print / edit etcSee the instructions over at the original Model. i've printed mine with 3 perimeters and 20 % infill - since those clamps are very lightweight, this is probably overkill :) Original variants by Lucky ResistorLR2218 Solid and Compact F-Clamp Holder for Long and Heavy ClampsLR2219 Compact F-Clamp Holder for Regular and Small Clamps
