CNC Clamp 2mm to 18mm

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

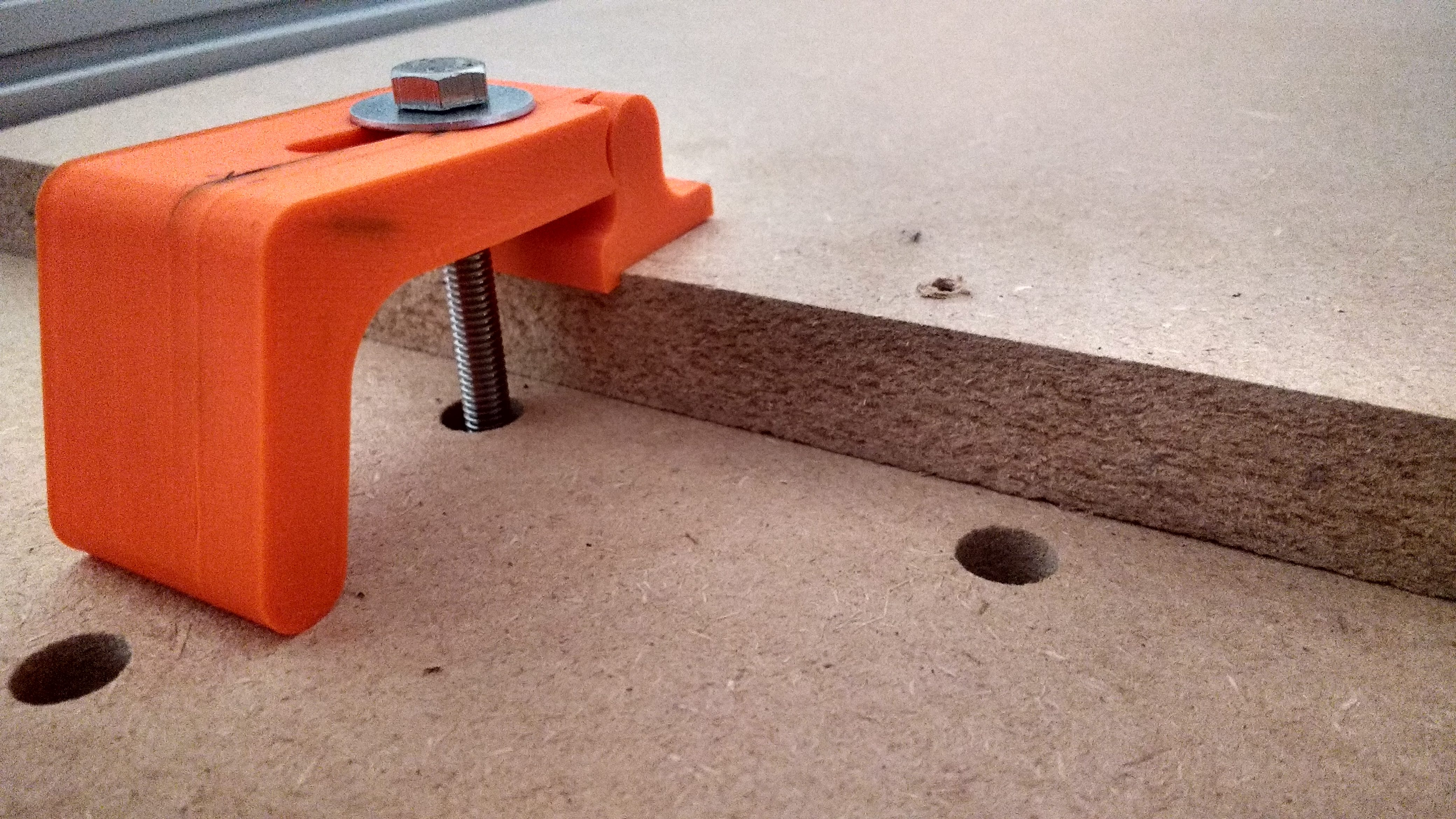

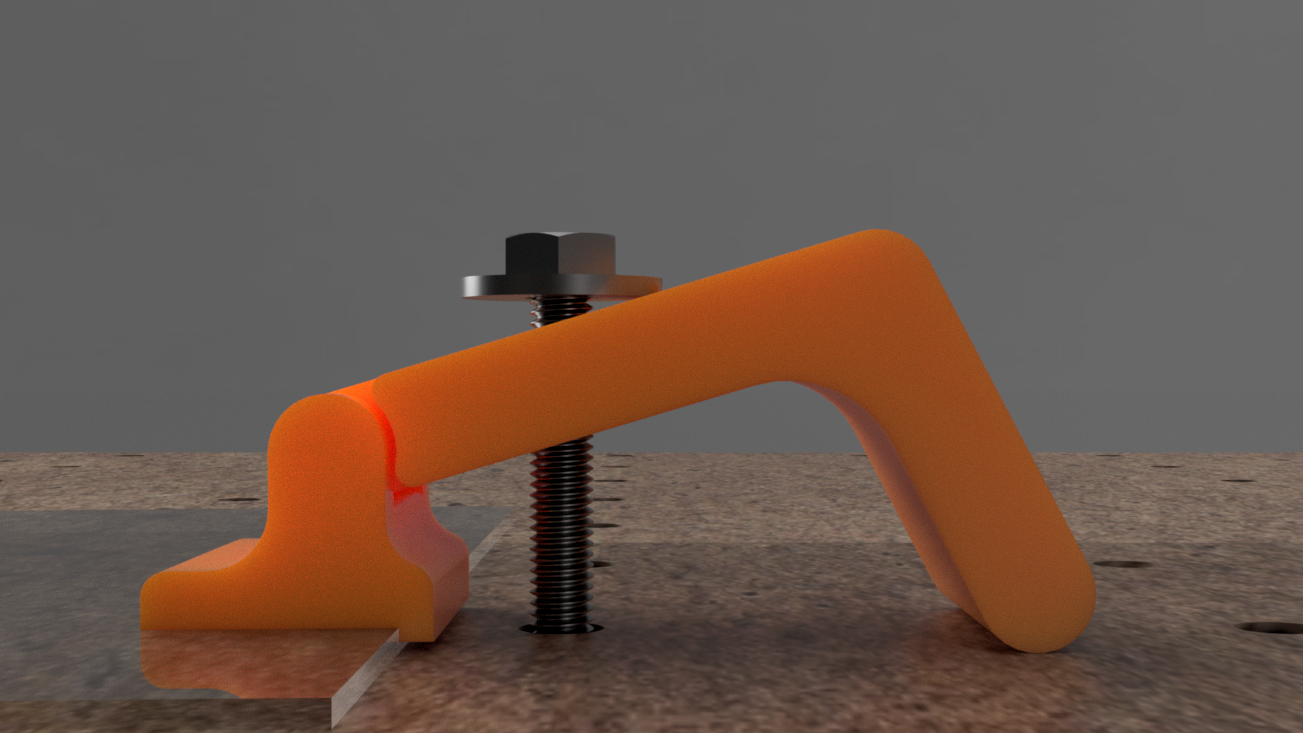

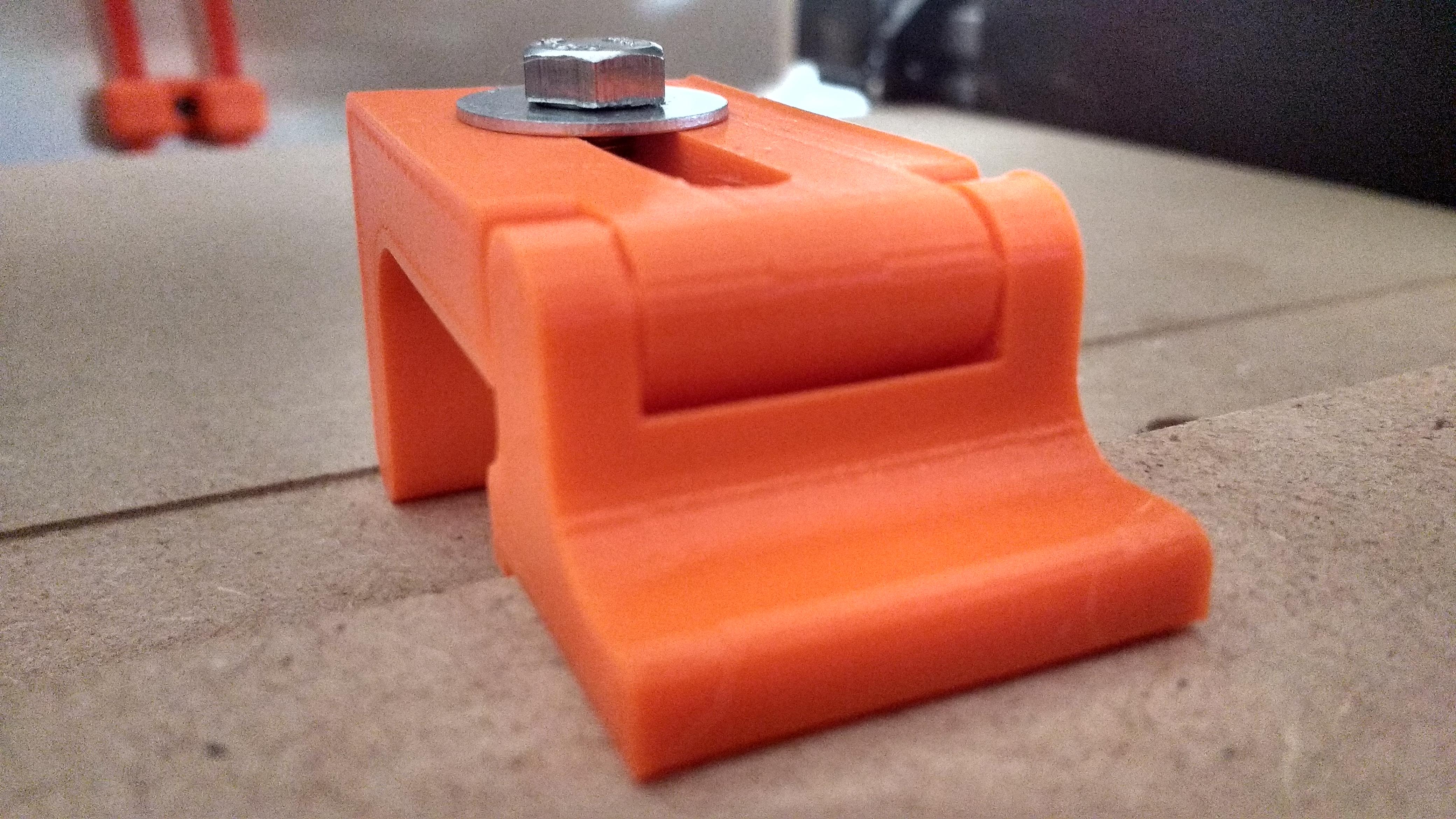

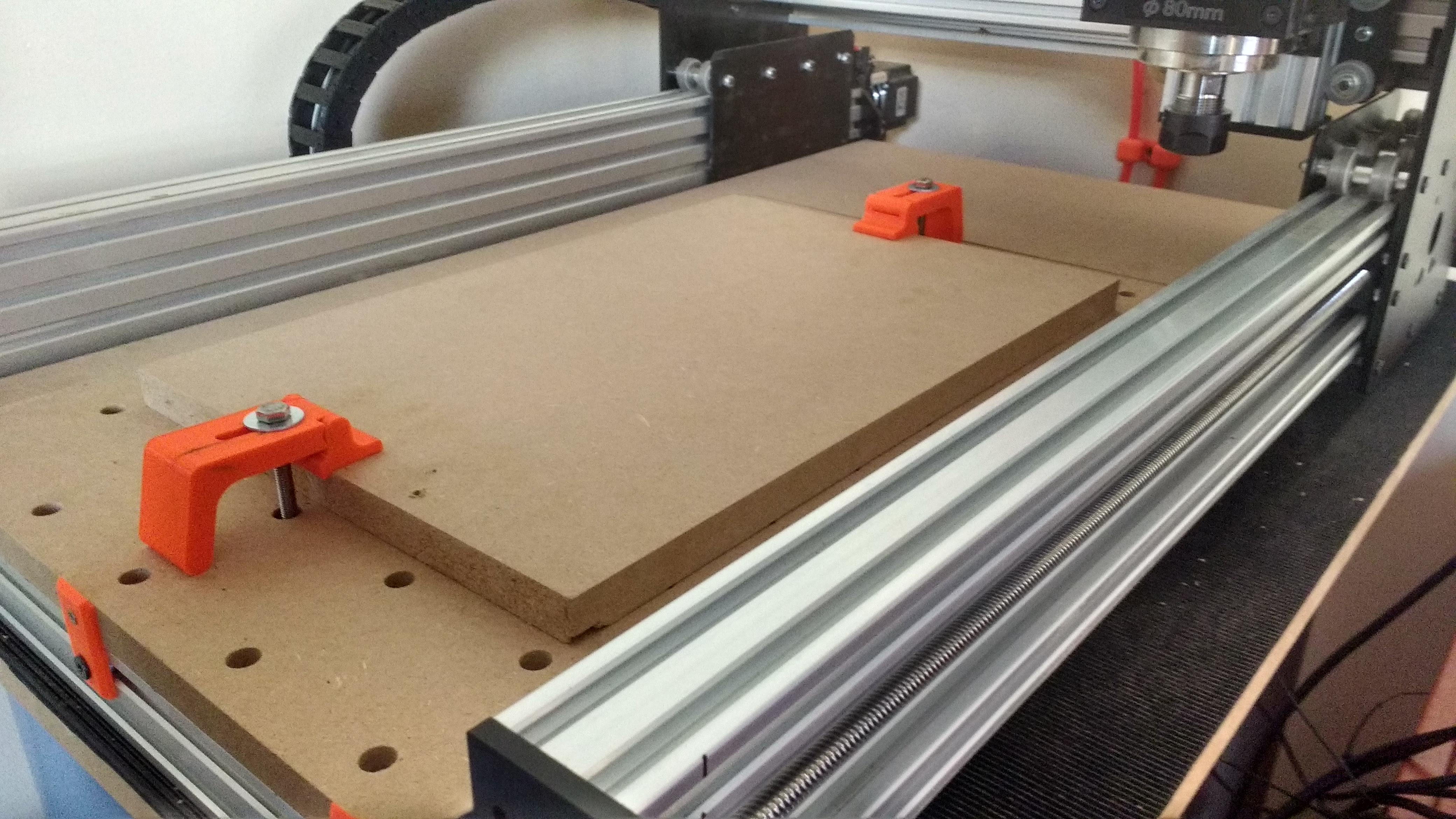

Clamps for holding down your workpiece on a cnc router. The clamps are designed for holding down materials with a thickness of 2mm to 18 mm. There are 3 different sizes for the bolt that goes through, M5, M6 and ¼ inch. Best is to use a washer on top. The actual foot to hold your workpiece can rotate to adjust to the thickness of your material. This clamp can be used on a wasteboard like this: https://www.youtube.com/watch?v=yhVW6Q9o-34 or on v-slots with an added drop in t-nut. Supplies: 1 bolt per clamp M5 or M6 also the lenght is depending on your wasteboard. 1 washer per clamp 1 drop in t-nut per clamp In case of v-slots Print instructionsPrint the clamp on its side. Do not use support !! Print with PETG Use 0.15mm resolution. Use 4 Perimeters for strenght. Make sure your printer is setup well. The foot of the clamp can rotate and there is not much clearence between the parts. The embedded gcode file is with 2 clamps on the printbed. https://www.buymeacoffee.com/paho
