Compact Chisel Sharpening Jig

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

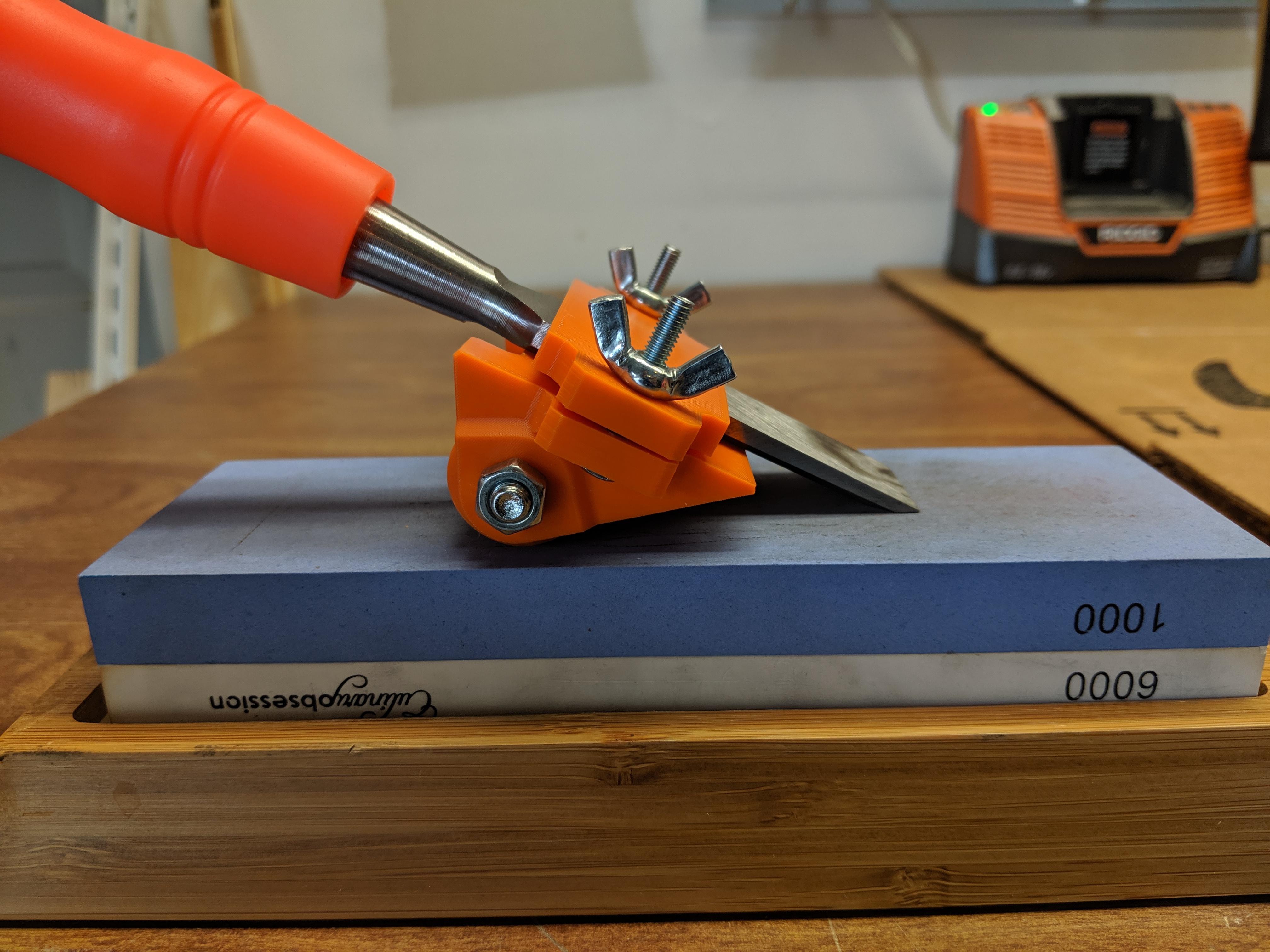

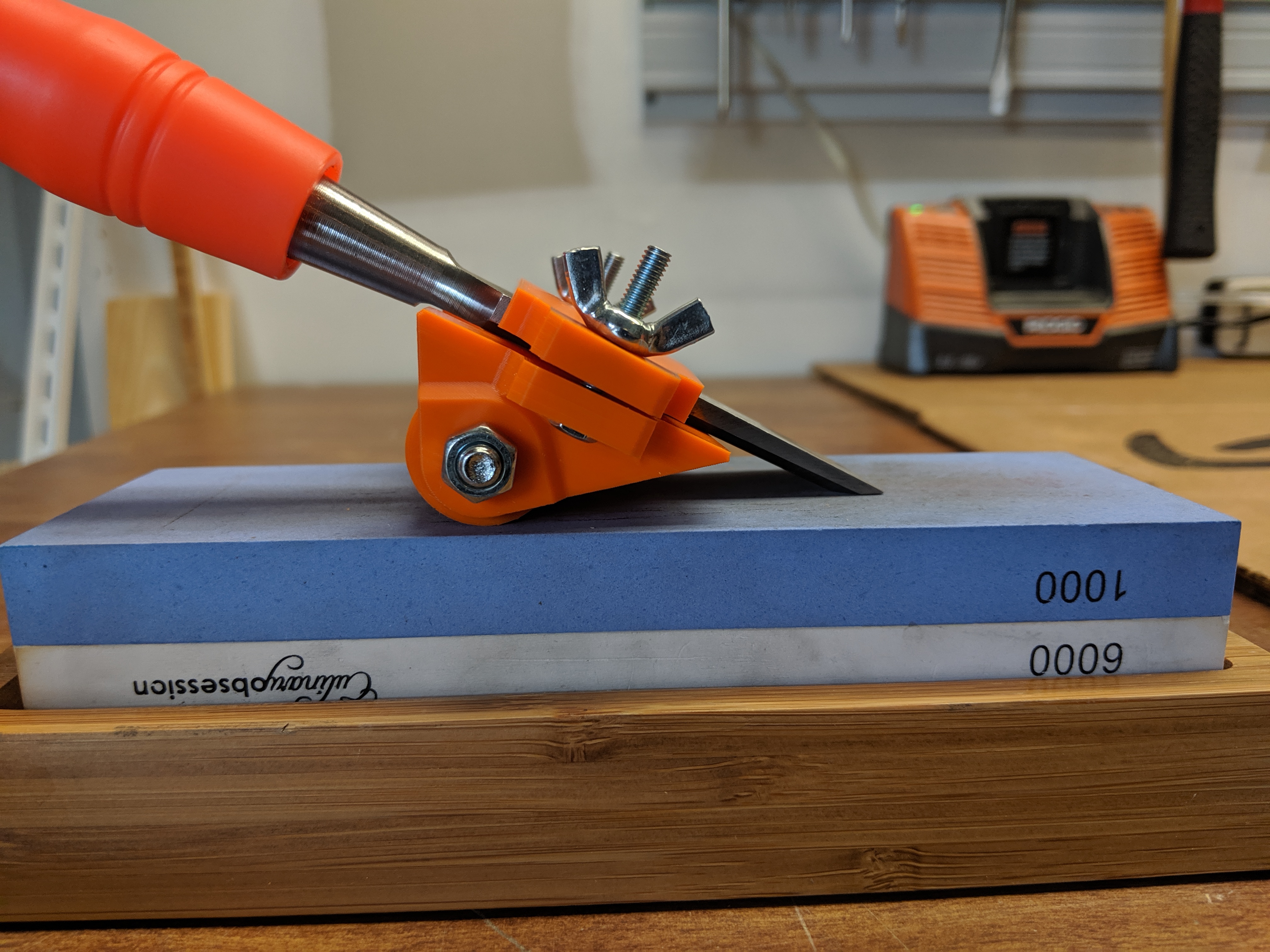

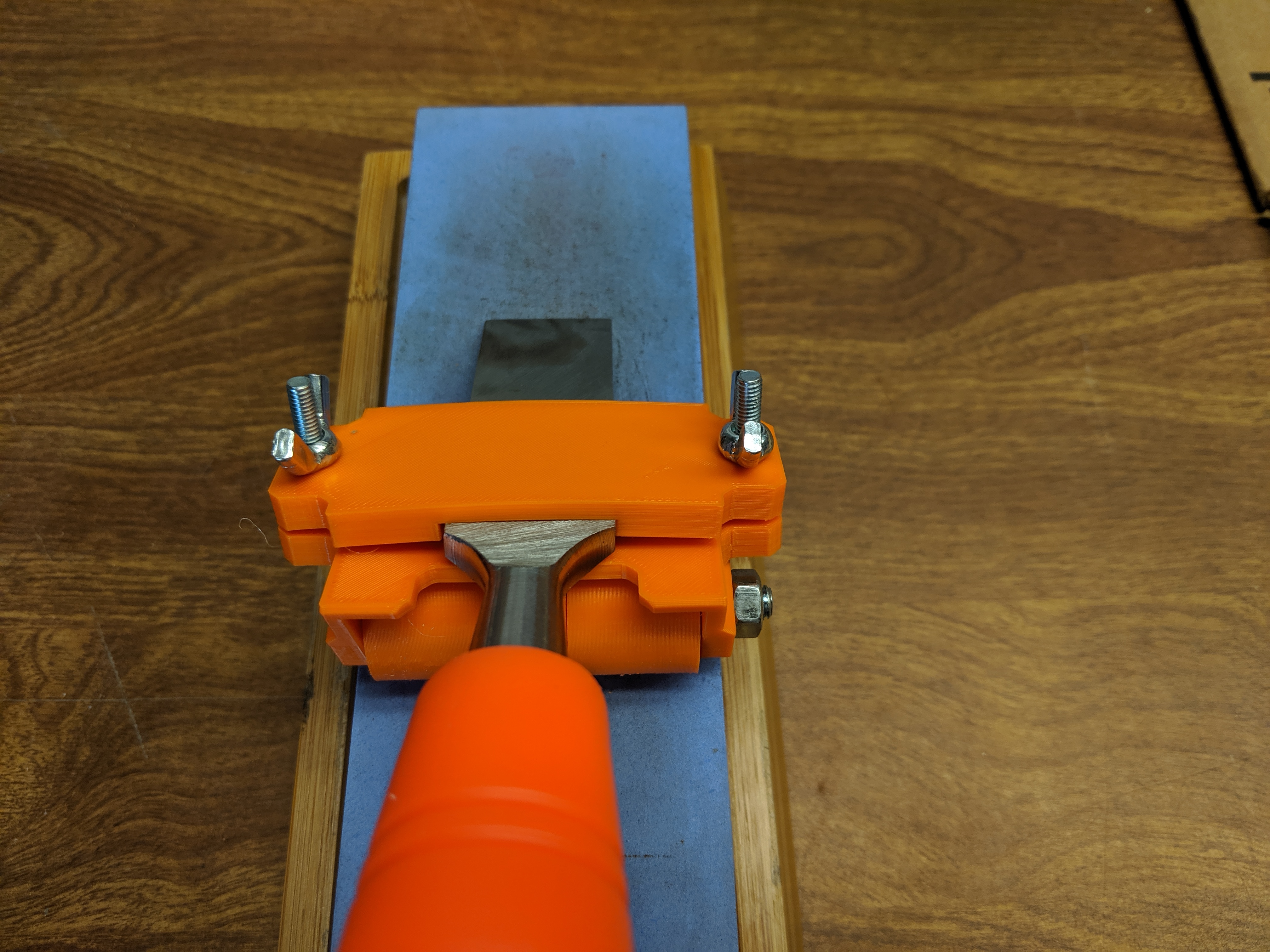

UPDATE: I created a new, simpler chisel sharpening jig: https://www.printables.com/model/520488-better-chisel-sharpening-jig ORIGINAL POST: My chisel set was pretty dull when I bought them, and they needed sharpening after a couple of projects. I designed this compact chisel sharpening jig to get a consistent angle when I sharpen them. To find the right angle, push the chisel into the clamp until its face is resting flat on your whetstone. I used the sharpie trick to find the perfect distance (https://www.youtube.com/watch?v=8kzGvtX-h8g). This design will accommodate chisels or hand plane blades up to 2in wide. I included clamps for 1in, 0.75in, and 0.5in chisels. If you need other profiles, make your own using the Blank Clamp .step file. The M4 x 25mm bolts can hold up to 3 clamps for storage as shown in the picture. Components: 1x - Body 1x - Right Roller 1x - Left Roller Print as many clamps as you need. 1x - Hex Head M6 x 65mm bolt 1x - M6 nut 2x - Hex Head M4 x 25mm bolt 2x - M4 wing nut 2x - 606ZZ bearing (https://amzn.to/31kttc8) Print instructionsCategory: 3D Printing Print SettingsPrinter Brand: Prusa Printer: I3 MK3S Rafts: Doesn't Matter Supports: No Resolution: 0.2 Infill: 20 Filament: AmazonBasics PETG orange Notes: I printed the clamps with 40% infill, plus 100% infill around the wing nut areas for additional strength. You shouldn't need to tighten the wingnuts too far, just enough to hold the chisel in place.
