DJI Mini 3 RC / DJI Mini 4 RC2 "Bike Adapter"

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

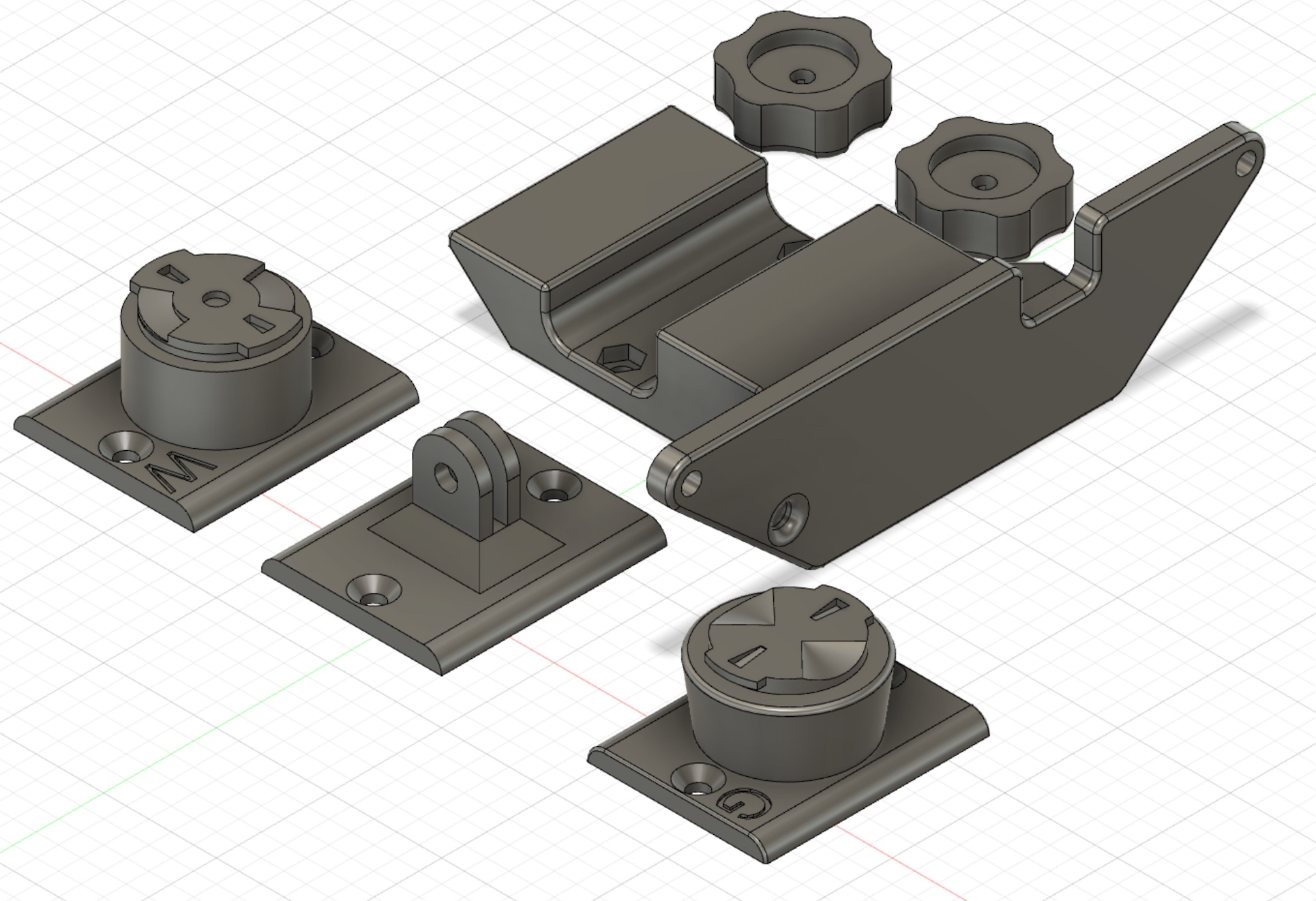

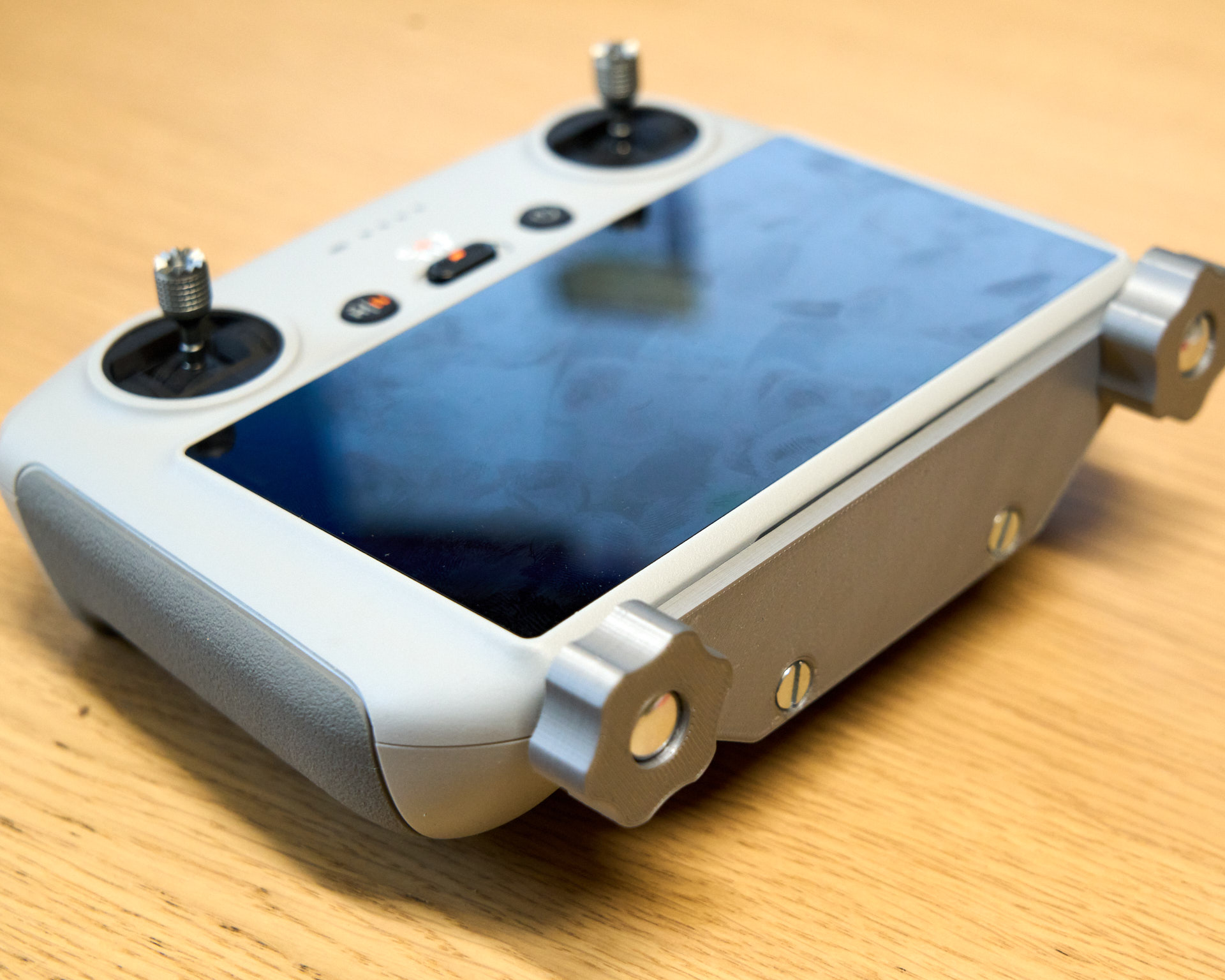

Adapts the **RC controller** of the **Mavic Mini 3 Pro** to a bicycle.Adapts the **RC2 controller** of the **Mavic Mini 4 Pro** to a bicycle.https://youtu.be/xML8R-AFlYg Use at your own risk! I assume no liability for damages. The idea is to use an existing adapter on your bike to adapt this bracket to. e.g. if you own a Garmin Bike computer, you can use the adapter that came with your Garmin computer and adapt this DJI RC bracket to it. In case you haven't got anything, just buy a GoPro Bike bracket online or find one to 3D-print. As for now, those adapters are supported: GoProGarmin orWahooSmartphone holder (separate Download, not included in "allparts"-stl File)Make sure, the adapter is properly mounted on the bike, e.g. Garmin adapters come with rubber O-rings that are good enough to hold a bike computer, but may be not the RC (it's up to you to decide). I own a Wahoo bike computer and use this adapter, it's quick and easy to mount and remove. There is a hole in the frontplate, you may use it to secure it in addition with a cord to prevent the RC from falling to the ground, in case anyhing breaks (I don't think it is necessary). For damping, I added a short strip of window insulation tape as shown in pictures. Addional parts- 4x M4 hex nuts - 2x M4x10 or M4x12 countersunk screws - 2x M4x18 cup square screws (I bought 30mm ones from OBI and shortened them, see attached pictures) - two short straps of window insulation tape PrintingGoPro, Garmin and Wahoo Adapters must be printed with PETG and 100% infill.Other parts should also be printed with PETG.I used a Prusa MK3S+ printer and sliced it with standard infill settings (15% fill density)RC2 adapter may look a bit better when printed with supports, I for myself printed it without supports (it need just a little bit of cleaning-up)
