Drill Template Cabinet Door Hinge

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

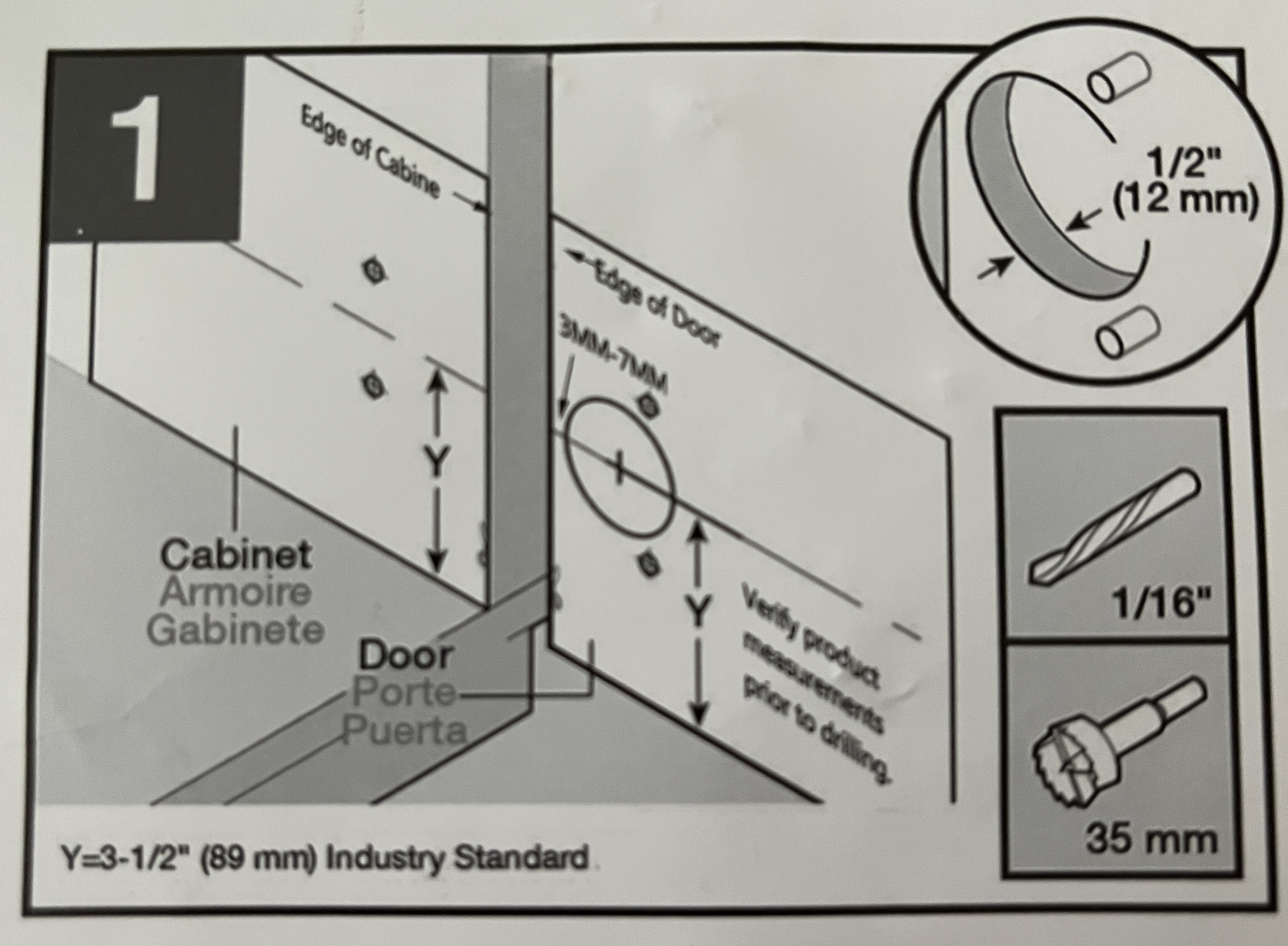

Drill Template for Cabinet Door Hinge installation. This has the top and bottom templates. Template for a half inch reveal as the hinges are bought for that specific dimension. Drill holes ½" (12mm) deep, 1 3/8" (35 mm) diameter. Look at images for a diagram. The hinge installs 2 inches from the top or bottom edge of the door giving you enough room to attach other side of hinge to the door cabinet. I added a Fusion file with parameters so these dimensions can be easily adapted to your hinges. Note: I hold the template on the corner by hand and use a centering bit to drill the two small holes. I then screw the templates down with the two screws supplied for the hinge. I drill the large hole on the drill press. I have found this way it’s much easier to not drill into the template as much and it lasts much longer before you have to print a new one.
