Lenovo Thinkpad T570 Power Button Replacement Part
SKU 3DPW-pr-602392
$13.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~1 g
- Print time
- ~0 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

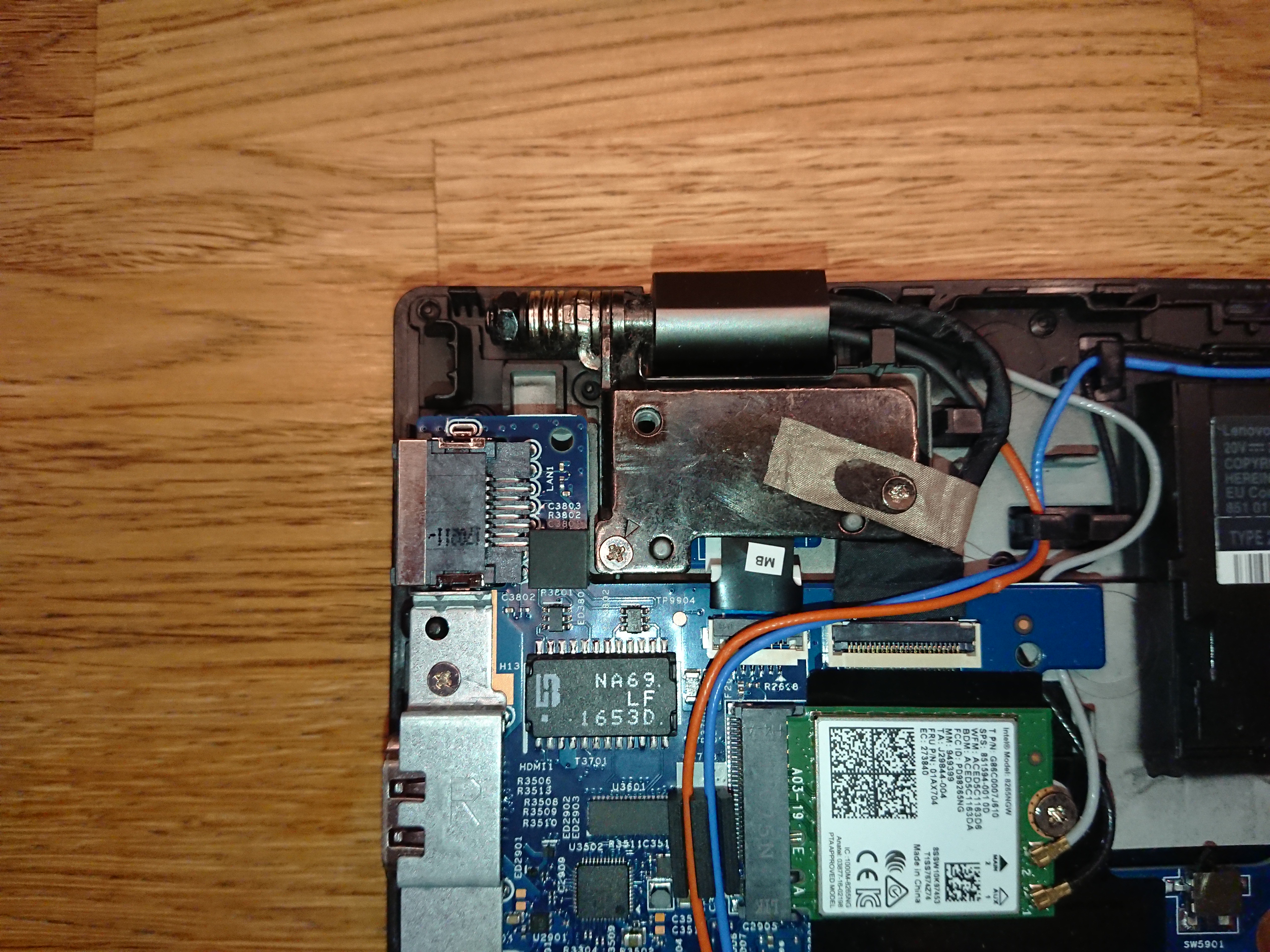

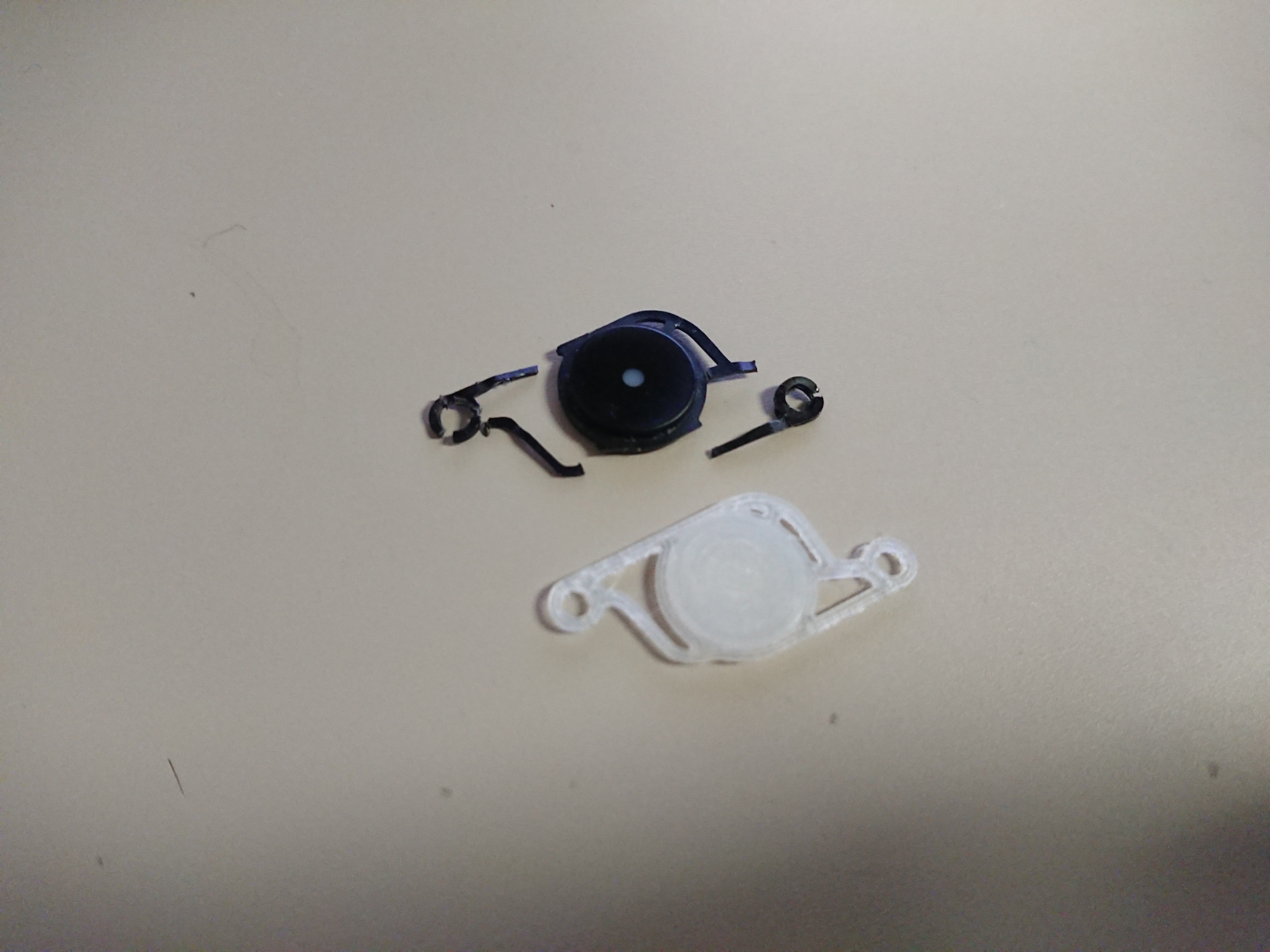

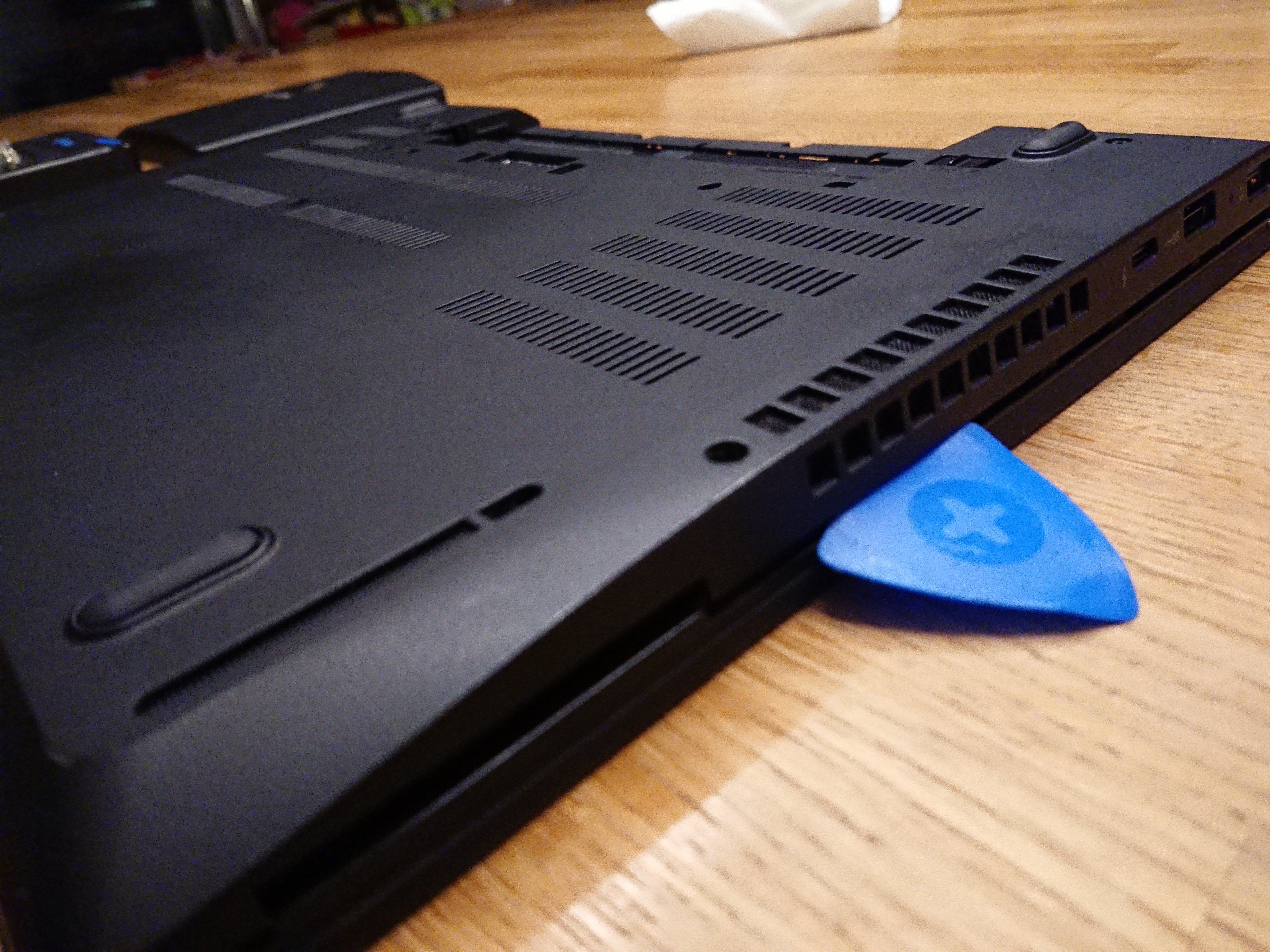

The Power Button of my wife's Lenovo Thinkpad T570 was broken and get's stuck in the case. So i decided to make a replacement. I printed the button from Nylon. To Repair the Button you have to do following steps. Remove the batteryUnscrew all screws on the backUnplug any USB Stick's from notebookPry the housing open with a guitar pick or opening toolRemove the two screws from the hinge where the power button is locatedUnplug the flex cable from the motherboardUnscrew the power button PCB and remove itRemove the broken button with some sidecutters and a flathead screwdriverInstall replacement (the holes are a pressfit so you have nothing to glue)Follow Steps 1 - 7 in reverse direction to assemble the notebook again
Tags: replacement, lenovo, thinkpad, replacementpart, powerbutton, t570, resin print, nz made, made to order
Design credit: Original design by darthvader85 - licensed under CC-BY.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
Lenovo Thinkpad T570 Power Button Replacement Part is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
