Makita/Festool Track Saw Suction Clamp

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~40 g

Print time

~4.5 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

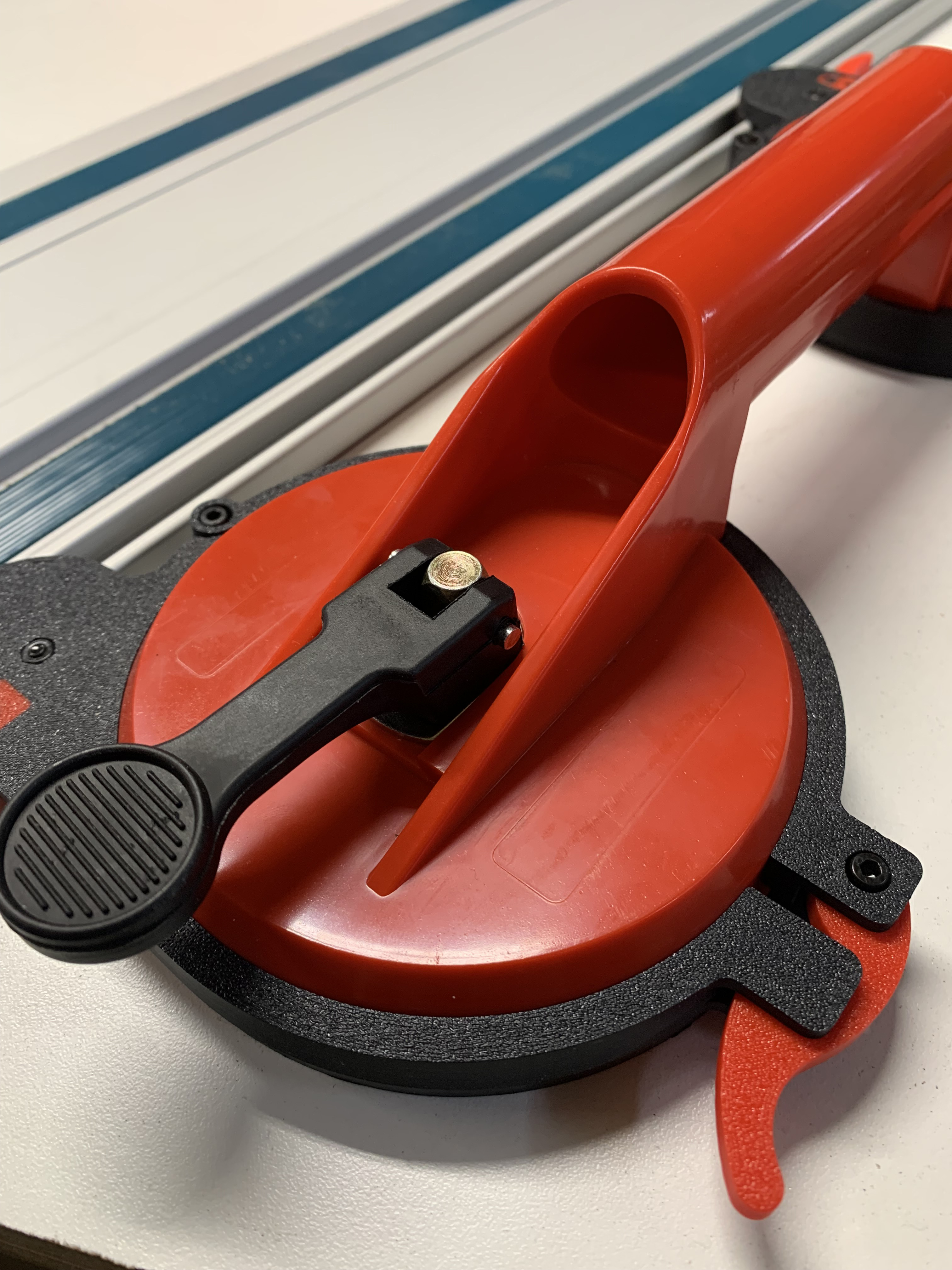

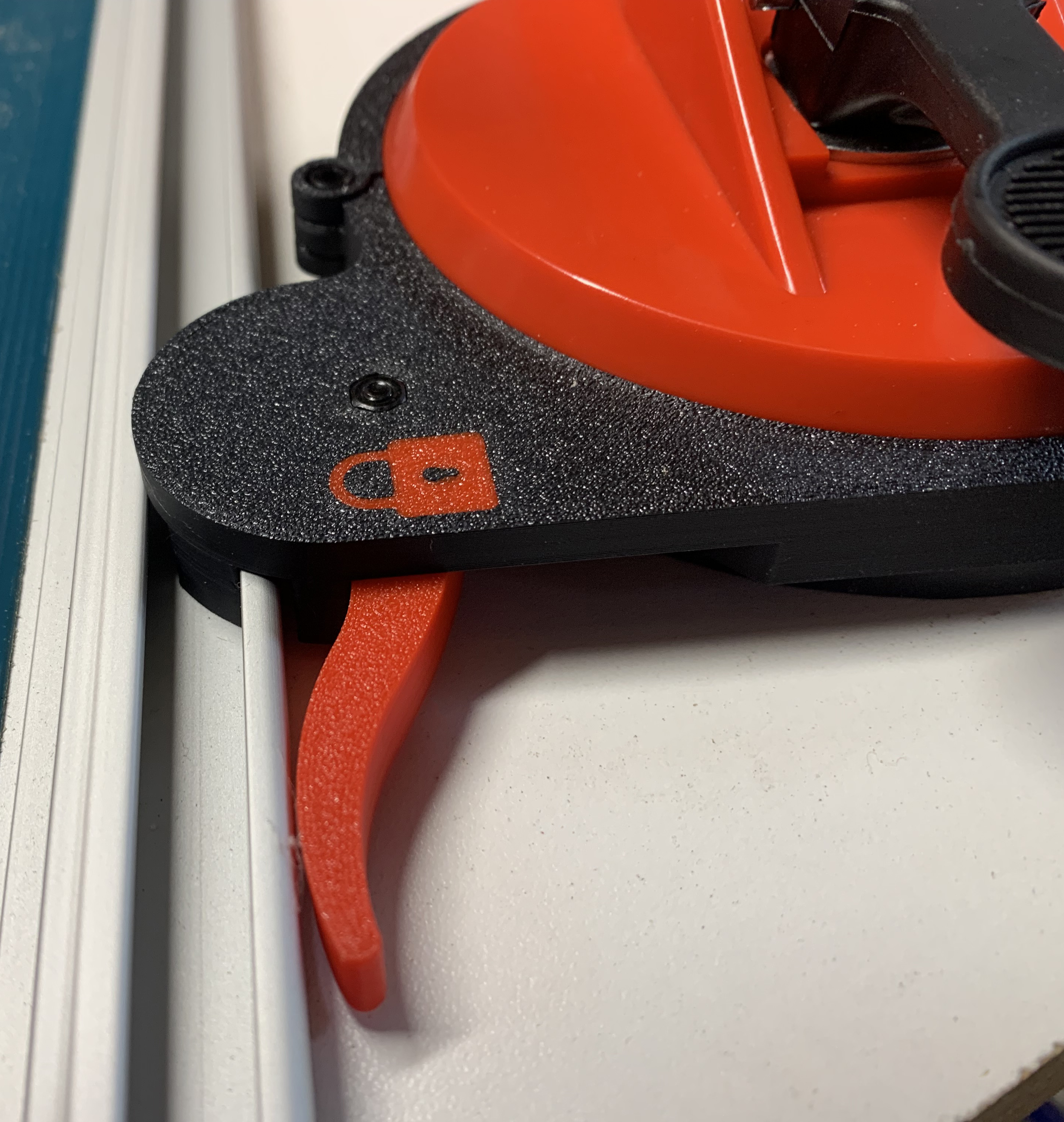

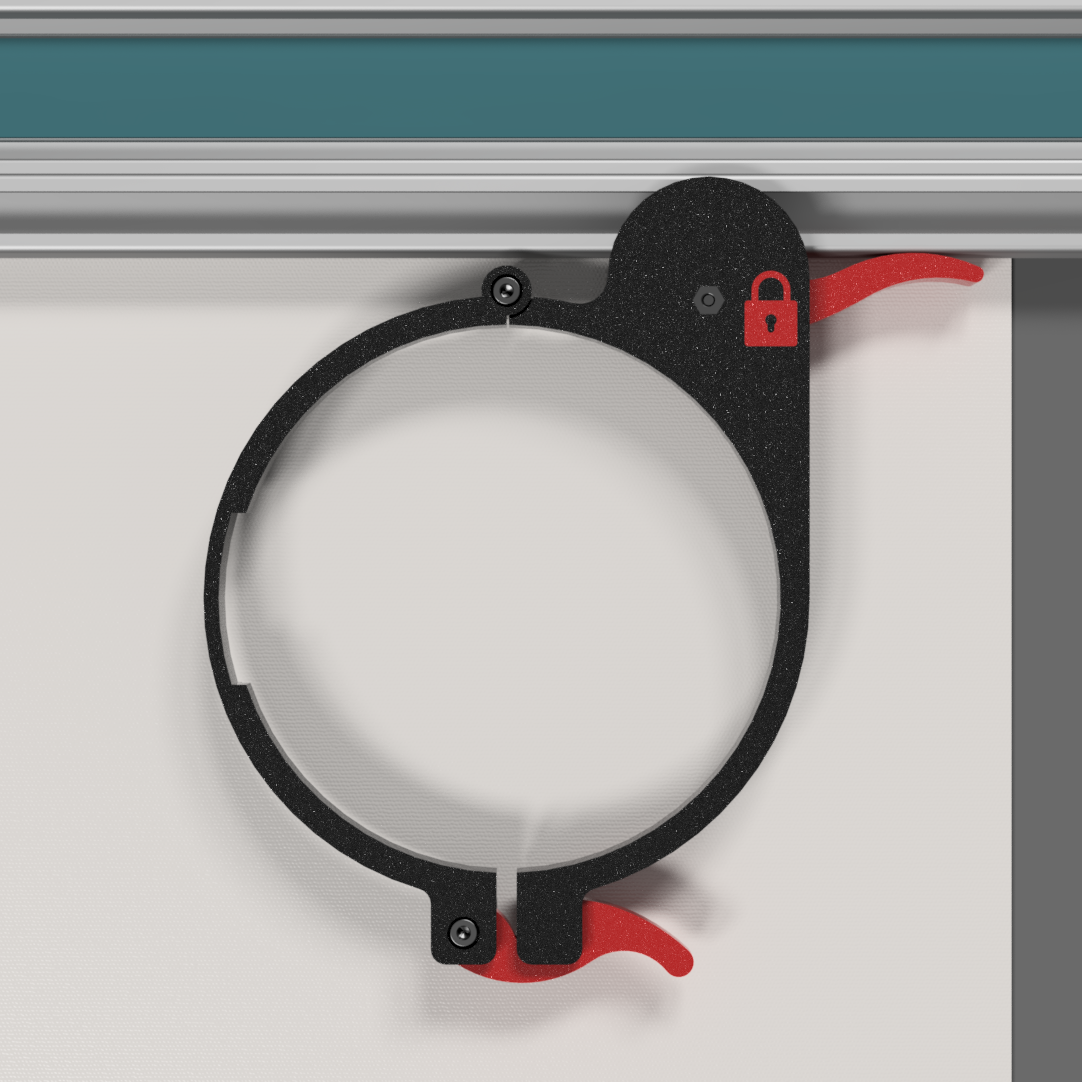

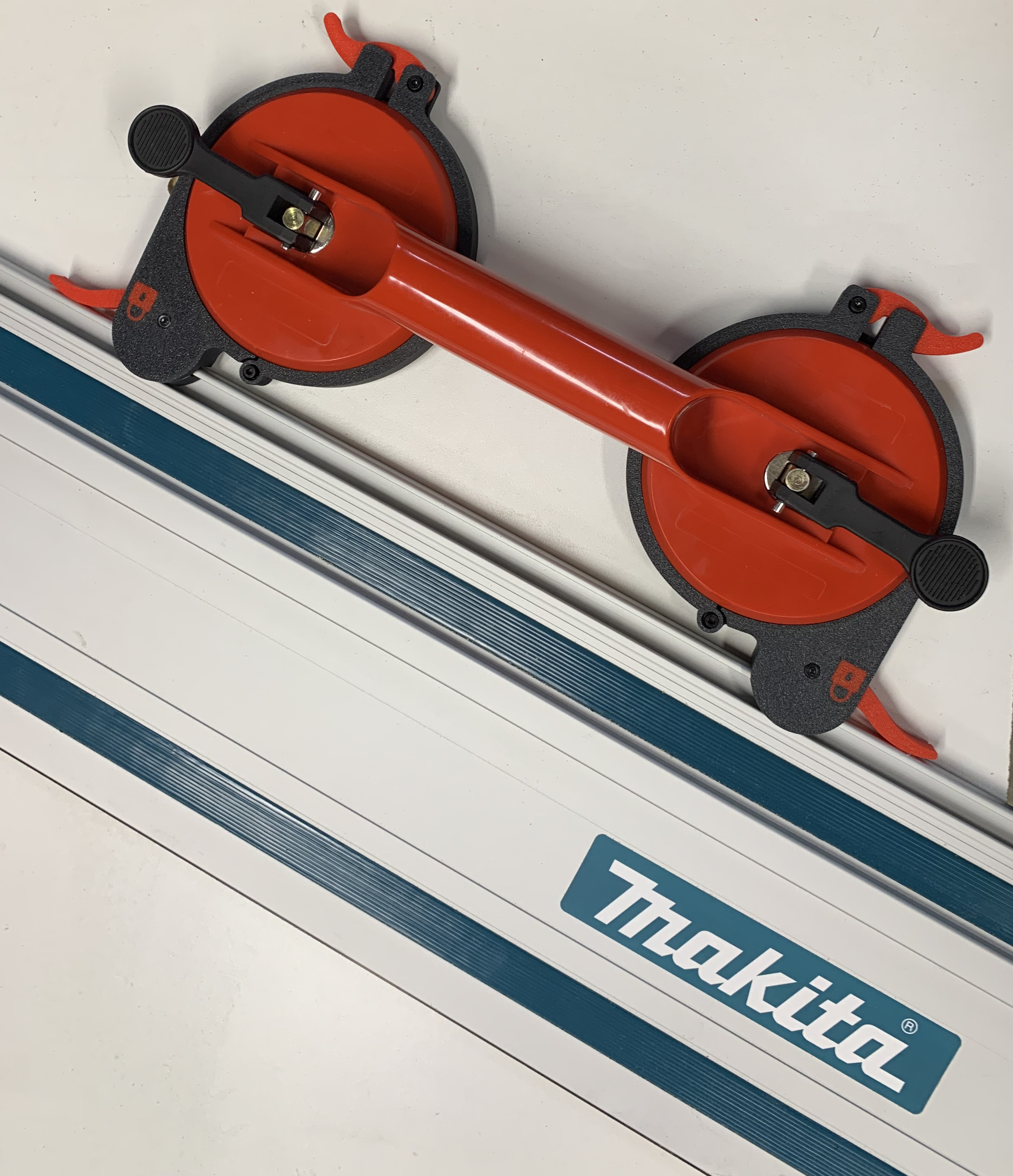

This suction clamp adapter is made to fit Makita/Festool-style track saw guides. It may fit others, but I don't have “multiple track saw system” money. I only included one side of the set. You'll need to mirror all the files to get the other side in your slicer. I did it in Fusion 360 and it just became a confusing mess of step files. What you'll need:This is a common (and inexpensive) dual suction cup lifter. I've seen them under different names but they all look the same. I got mine at Harbor Freight. 4-2/3 in., 125 lb. Dual Suction Cup Lifter (harborfreight.com) for $9. Amazon also has them under various names. Metric will come out around 118mm. Four M3x8 head cap screws for the clamp and clamp locksTwo M3x12 head cap screws for the cam.Two M3 nuts for the cam.I'm really happy with how this came out, and it holds the track very still.
