Parametric, Hermaphroditic, Snap-together Hinge

In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75

Material

High-Detail Resin (8K)

Colour

Grey

Weight

~11 g

Print time

~0.6 h

Shipping

$10 std · $20 express

Lead time

1-3 d print + 1-4 d ship

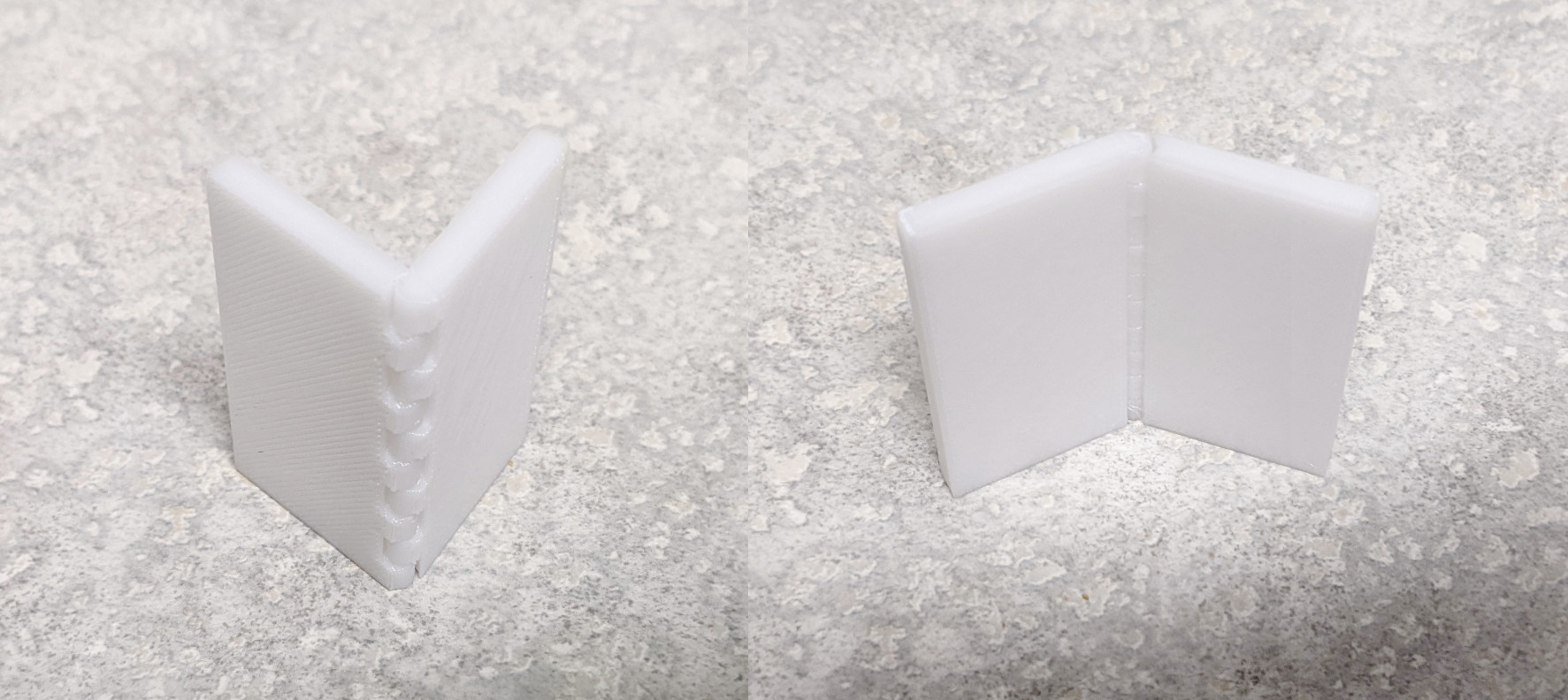

A parametric, hermaphroditic, snap-together hinge. Two identical parts will snap together to form a complete hinge. Can be used as an actual hinge, or for assembling polyhedrons from a set of individual faces. tabs: number of tabs (and gaps) in one hinge piece thickness: height of hinge (the diameter of the pivot is derived from thickness) length: length along the hinge pivot leafWidth: width of the hinge leaf (excluding the pivot) clearance: distance between two connecting surfaces (reduce for structural stability, increase for freedom of motion) swingLimitTop: limiting angle of the hinge when swinging closed (0-90 degrees) swingLimitBottom: limiting angle of the hinge when swinging open (0-90 degrees) bumpHeight: height of pivot bump (depth of pivot indentation)
