ZimaBoard Dual HDD Stand
SKU 3DPW-pr-224057
$18.00NZD
In stock · Made-to-order resin · Ships from Auckland · Free shipping over $75
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~54 g
- Print time
- ~0 h
- Shipping
- $10 std · $20 express
- Lead time
- 1-3 d print + 1-4 d ship

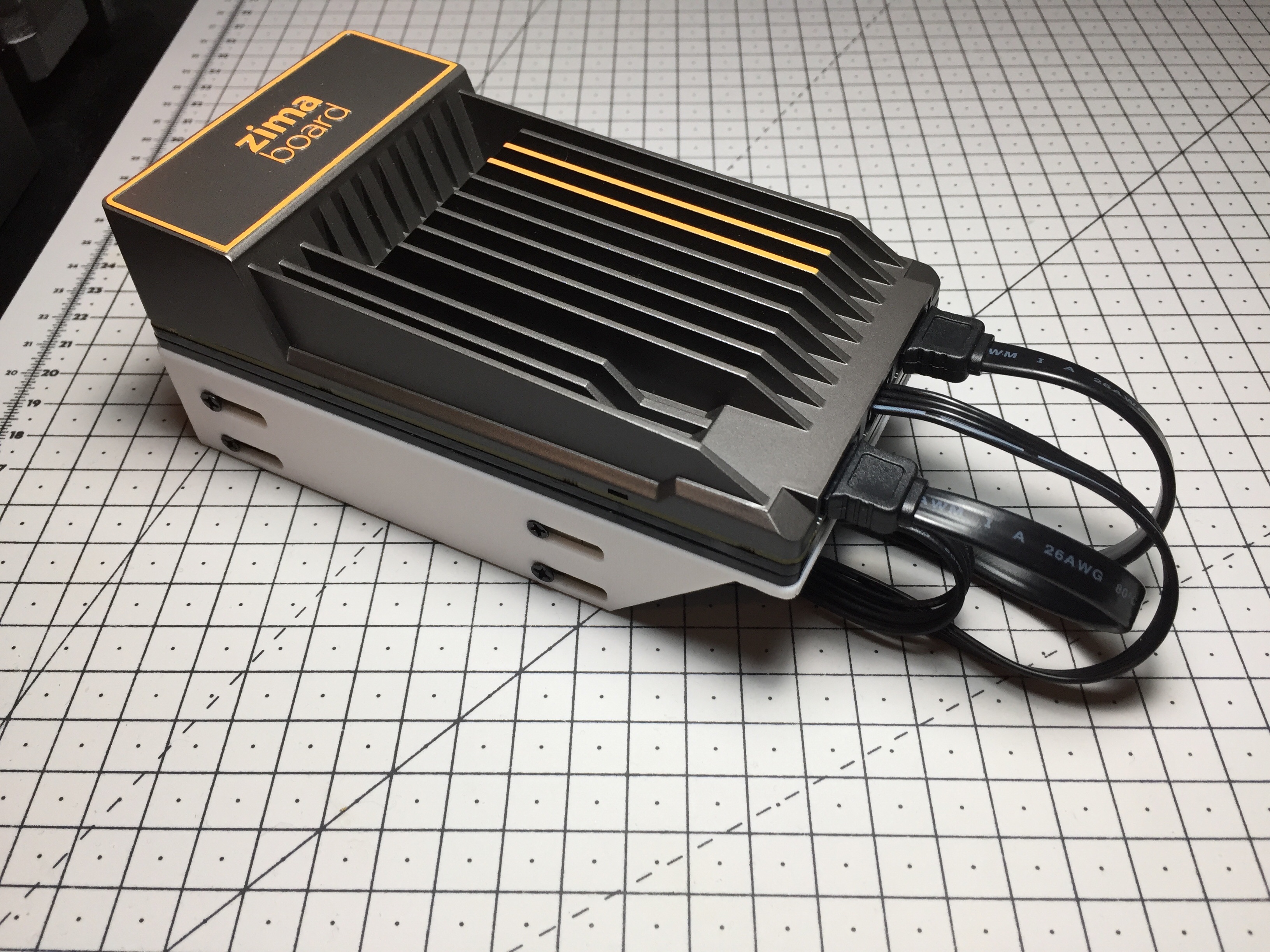

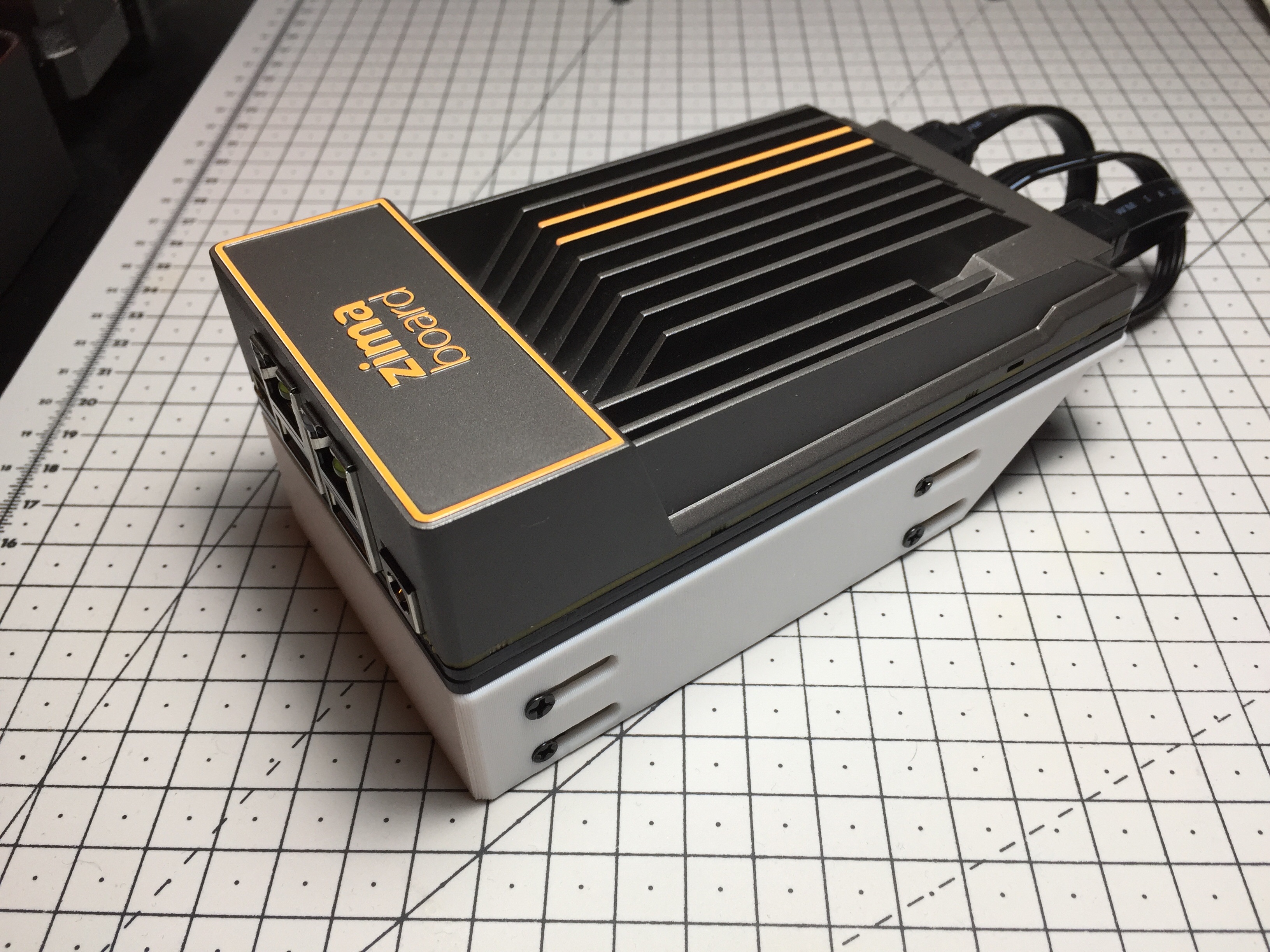

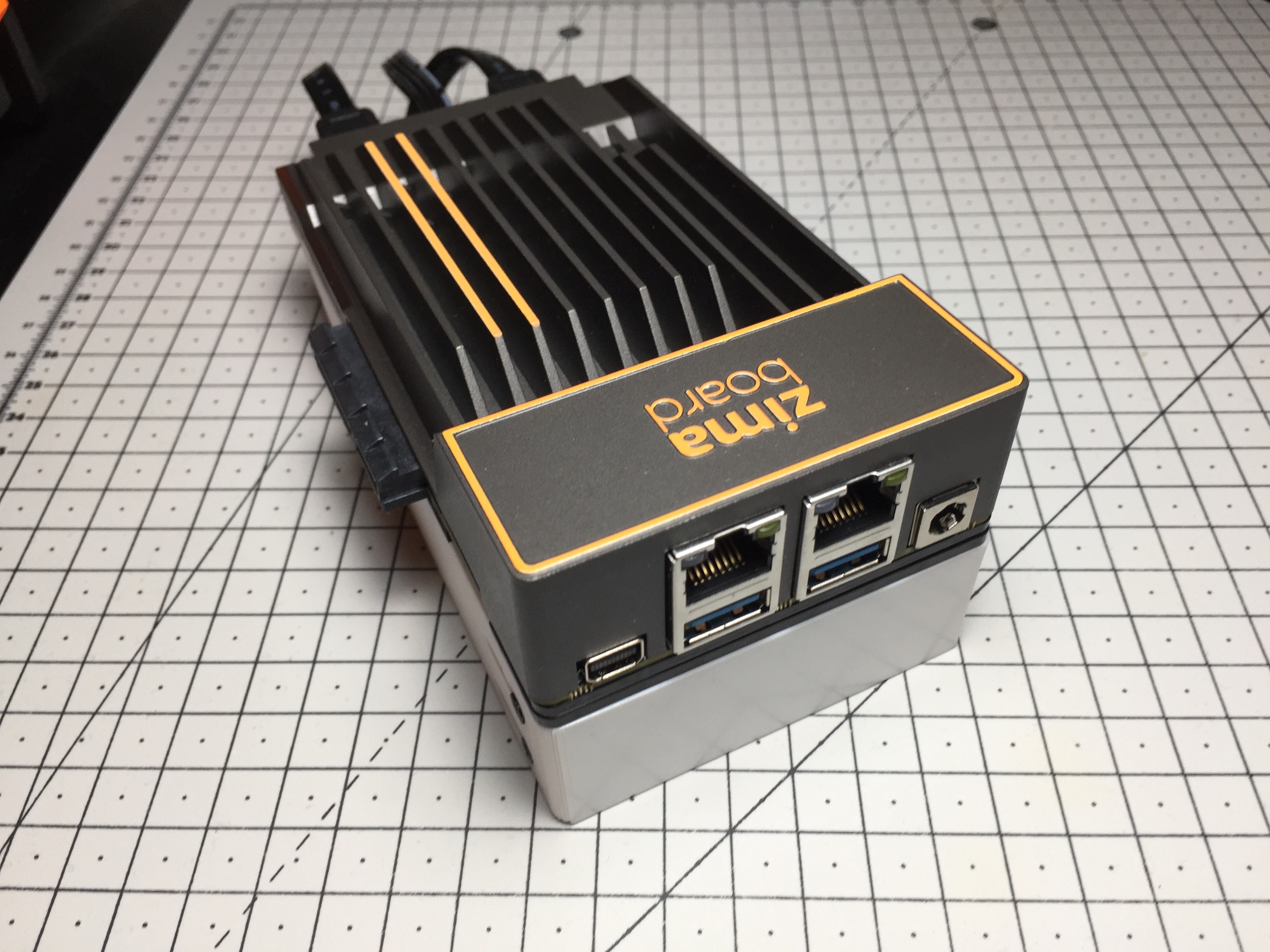

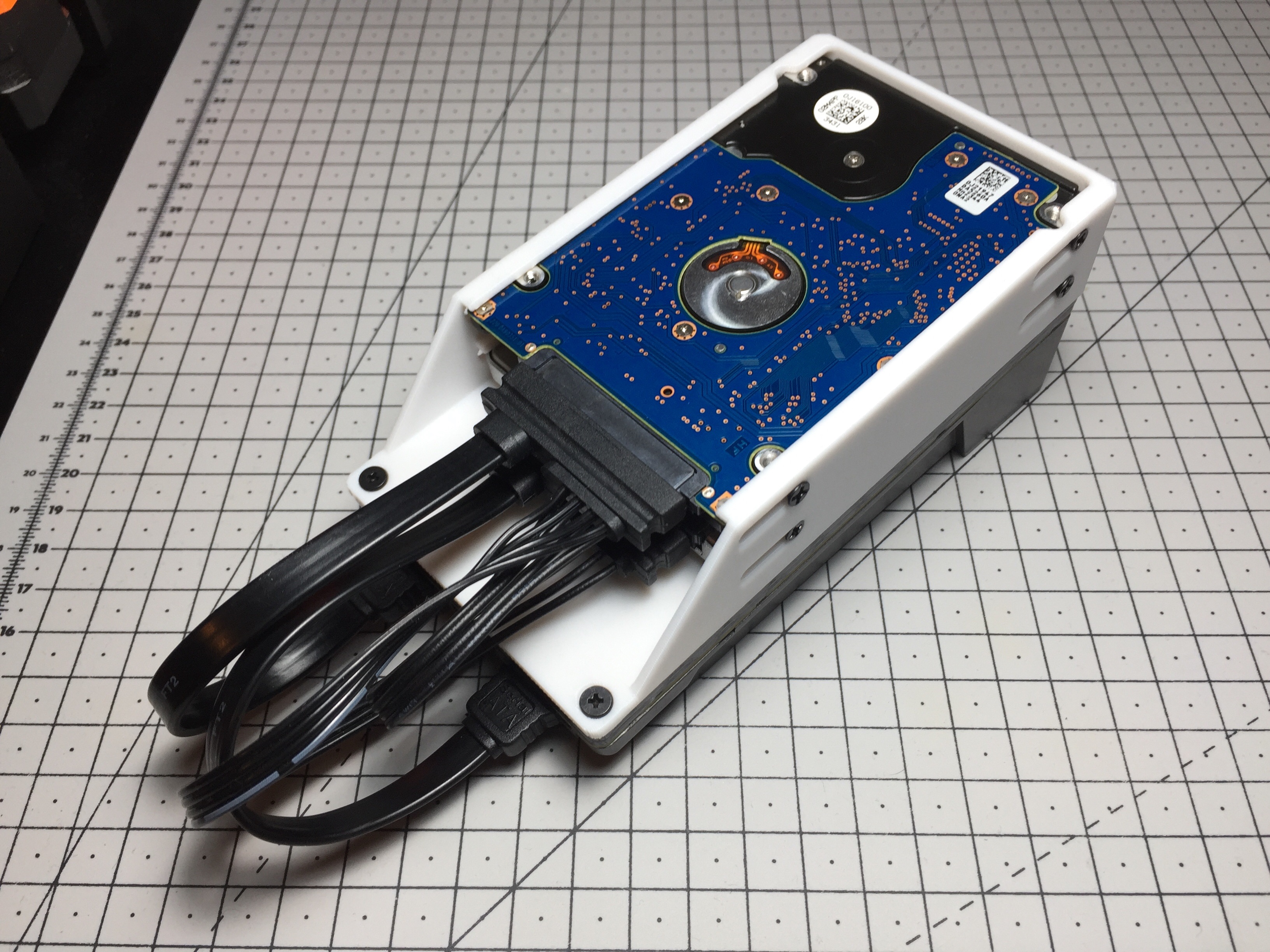

Simple stand for the ZimaBoard that can accommodate two 2.5" drives based on the rack mounted module I have created. It is available in two variant: Original (zimaboard-hdd-stand.stl): which can accommodate up to two 9.5 mm high 2.5" inch drivesXL (zimaboard-hdd-stand-15mm.stl): a modified version which can handle drives up to 15 mm highAssemblyYou need unscrew and remove the lower plastic plate from your ZimaBoard and reuse the screw to mount it to this stand as it has no mounting holes exposed. Standard hard drive mounting screws can be used to attach your HDD / SDD in the drive slots. The ones coming from the official HDD bracket work perfectly here. PrintingThe model should be printed with the front section on the build-plate (see the 3mf file) and can be printed relatively quickly and cleanly using 0.3mm layer height in PETG or PLA (PLA might not be the best in warmer environment). Raft: noSupports: noLayer Height: 0.3mmInfill: 20%ChangelogV1.0 (2022-07-22): Initial releaseV1.1 (2022-09-20): Added a variant for 15mm hard drives as requested by @SuperJC710e
Tags: stand, hdd, hddmount, zimaboard, zimaboardssd, resin print, nz made, made to order
Design credit: Original design by orax - licensed under CC-BY-SA.
View original model + STL files on Printables ↗
View original model + STL files on Printables ↗
Frequently asked
How long does shipping take?
ZimaBoard Dual HDD Stand is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
