180° Bambulab X1C Door Hinge
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~29 g
- Print time
- ~1.6 h
- Express shipping
- $20
More information
Update: There is now a V2: https://www.printables.com/model/855130-180deg-bambulab-x1c-door-hinge-v2

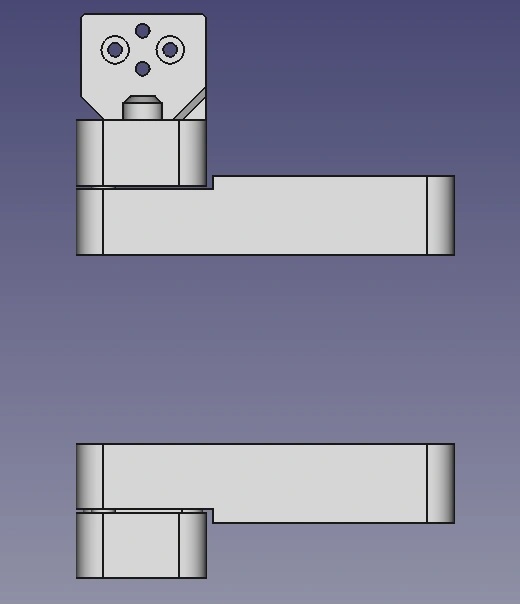

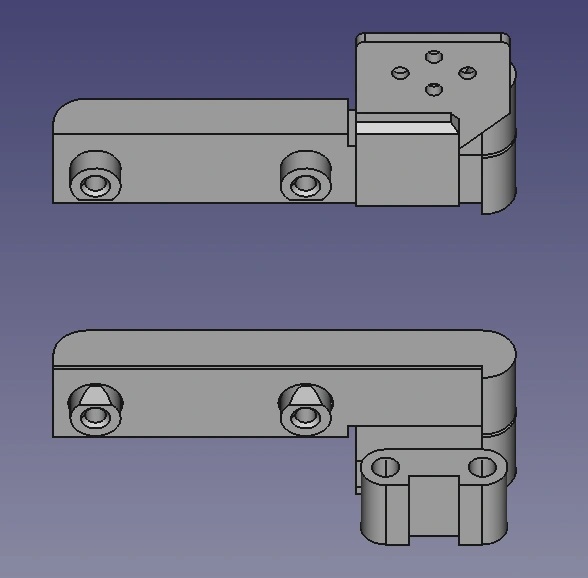

I never liked that the X1C only opened 90 degrees. It makes it difficult to work inside the machine with both hands. This hinge replacement allows the door to open up 180 degrees.
It reuses the screws for the top hinge, and glass door (which is installed on the inside of the door, instead of the outside). You will need longer screws for the bottom hinge. However I designed it so that you can use the medium sized shipping screws that come off the Bambulab X1C during installation.
Edit: There is now a version of the bottom mount that uses the original screws. Just print it with 100% infill.
You can use this guide for how to remove the old hinges and install the new hinges. It will obviously differ once you get to reattaching the door.
https://wiki.bambulab.com/en/x1/maintenance/front-door-mounting-kit
Its not a perfect design and I would love to see someone with more talent redesigning the model to work better.
Design and description by klchidester7 , licensed CC-BY.
