6001 BEARING PULLEY PARACORD

I had some extra 6001 bearings, so I figured I would try designing some medium duty pulleys. I sized the v-roller to fit 550 cord, and mine works flawlessly.

I used 6001 bearings just because I had them on hand, but I also found a 10 pk for $10.40 on Amazon. 6001 bearing size: 12mm ID, 28mm OD, 8mm thick.

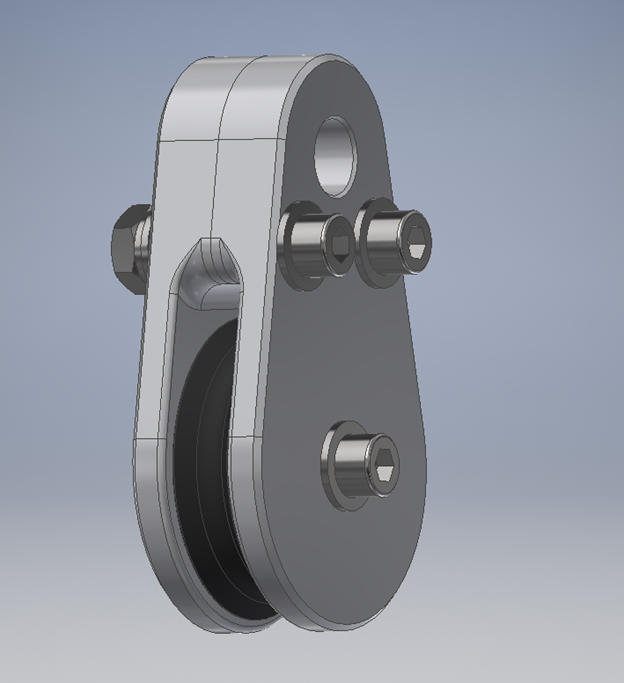

For a single pulley Print 2 matching housings and 1 V-Roller for each pulley.

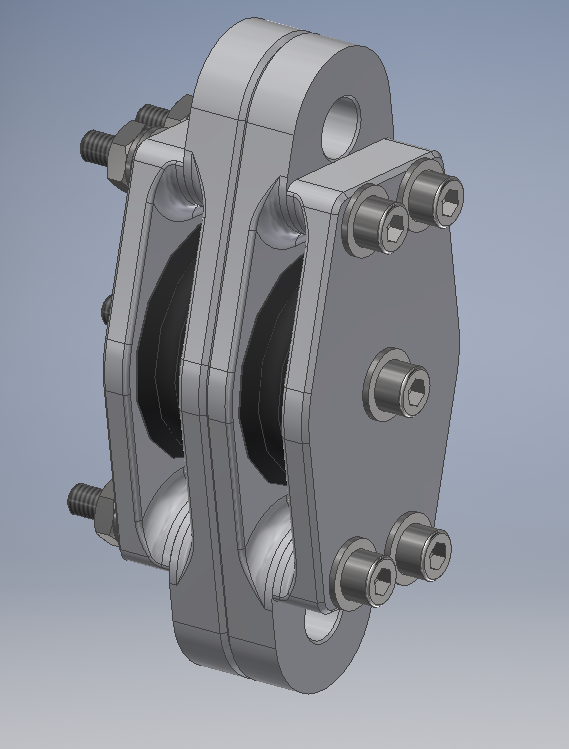

For the Double pulley print 2 of housing 3, 2 of housing 4, and 2 of the V-Rollers

Hardware:

SINGLE PULLEY

(3 or 5) #10-32 x 1" screws

(3 or 5) #10 nuts

(3 or 5) #10 lock washers

(6 or 10) #10 washers

(1) 6001 bearing

DOUBLE PULLEY

(5) #10-32 x 1-3/4" screws (I used 2")

(5) #10 nuts

(5) #10 lock washers

(10) #10 washers

(2) 6001 bearings

If you are looking for any of the hardware I have an amazon shopping list here (all with prime shipping): https://www.amazon.com/hz/wishlist/ls/3STXTU1MNPO5P?ref_=wl_share&_encoding=UTF8&tag=maltvat-20&linkCode=ur2&linkId=cc242fb775a0915e69ac912bfe7ad0c1&camp=1789&creative=9325

Disclaimer:

Use this at your own risk. I cannot and will not offer you a load rating.

Update

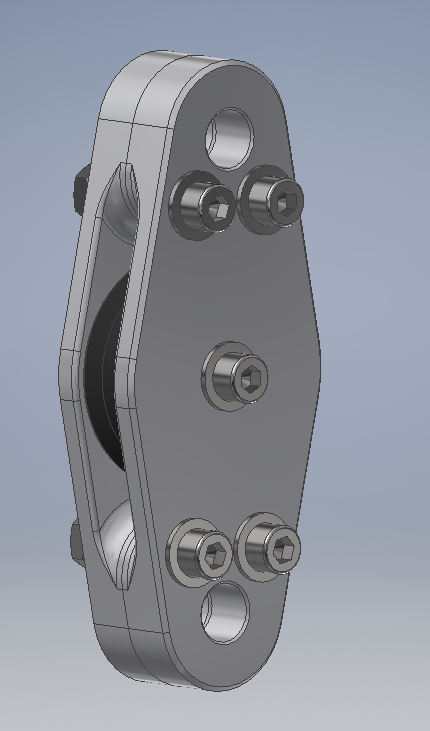

11/24/2020: I uploaded a single pulley housing with 2 anchor points. It uses more hardware though.

Uploaded a pulley housing without any anchor points. This one will be easier to make a double pulley out of. I have updated the hardware listed for both.

Updated the V-Roller to a larger ID.

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: No

Resolution:

0.2

Infill: 50

Filament: PLA+ PLA+ Black

Notes

I'm using this as a functional tool. So I printed it with 10 perimiters and 5mm top and bottom layers. It ended up being 100% solid.
