6mm Push Rivet / Panel Clip
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~37 g
- Print time
- ~2 h
- Express shipping
- $20
More information

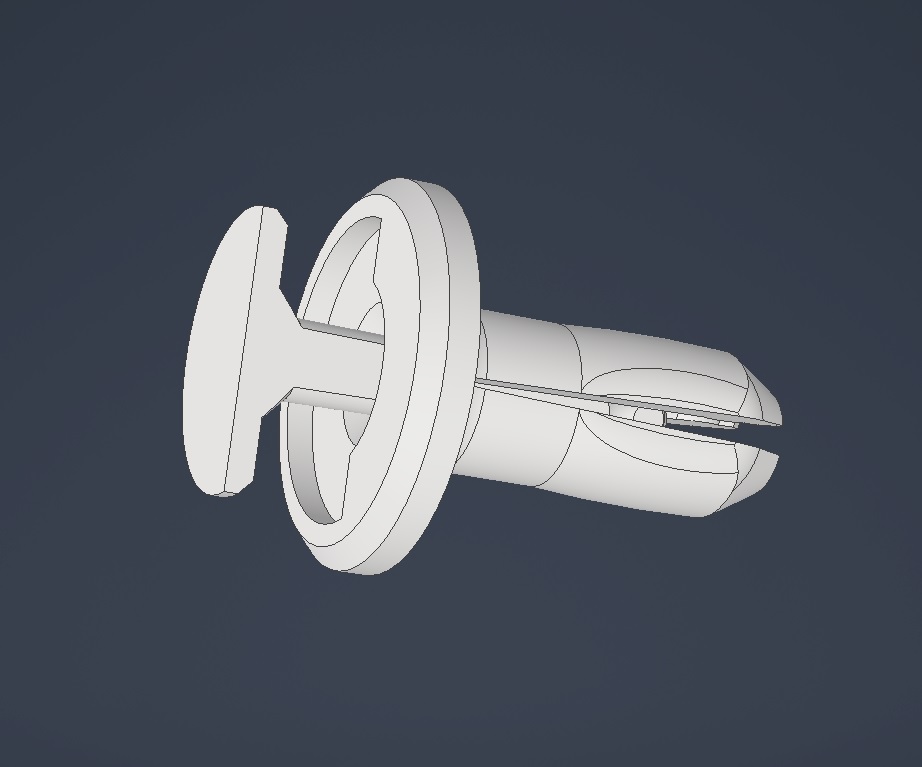

This fastener is sized for a 6mm hole, with a 14.1mm head diameter. It can be scaled as needed.
The model is based on the dimensions of Honda part no. 90683-GR1-003. I used it to attach body panels on a Honda CBR929RR.
Compared to other 3D printable push rivet designs, this design features: - Only one shank split for a stronger shank - A side-printed pin for optimal layer orientation - Positive pin retention - A slightly pre-expanded shank that stays in the hole even without the pin inserted
Recommended Print Settings
Print the rivet body on its head, pointing up. Print the rivet pin laying on its flat side.
Material
Nozzle
Layer Height
Strength
Supports
PETG
0.4mm
0.12mm
100% infill
No
Design and description by avionix , licensed CC-BY.
Frequently asked
How long does shipping take?
6mm Push Rivet / Panel Clip is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
