Air to Gardena Fitting Adapter
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~41 g
- Print time
- ~2.3 h
- Express shipping
- $20
More information
A direct adapter between :
• an Air Hose Fitting used on an Air compressor
• a Gardena Hose Fitting
Purpose:
To winterize your irrigation system by forcing the air from an air compressor into the pipes in order to remove water and avoid having it frozen over the winter (and damaging the system).
You will need a classical Gardena rubber seal.
Although I've modified it by adjusting some dimensions, I need to thank soeselheinin for the F360.f3d model file of Gardena Male from https://www.thingiverse.com/thing:4412905

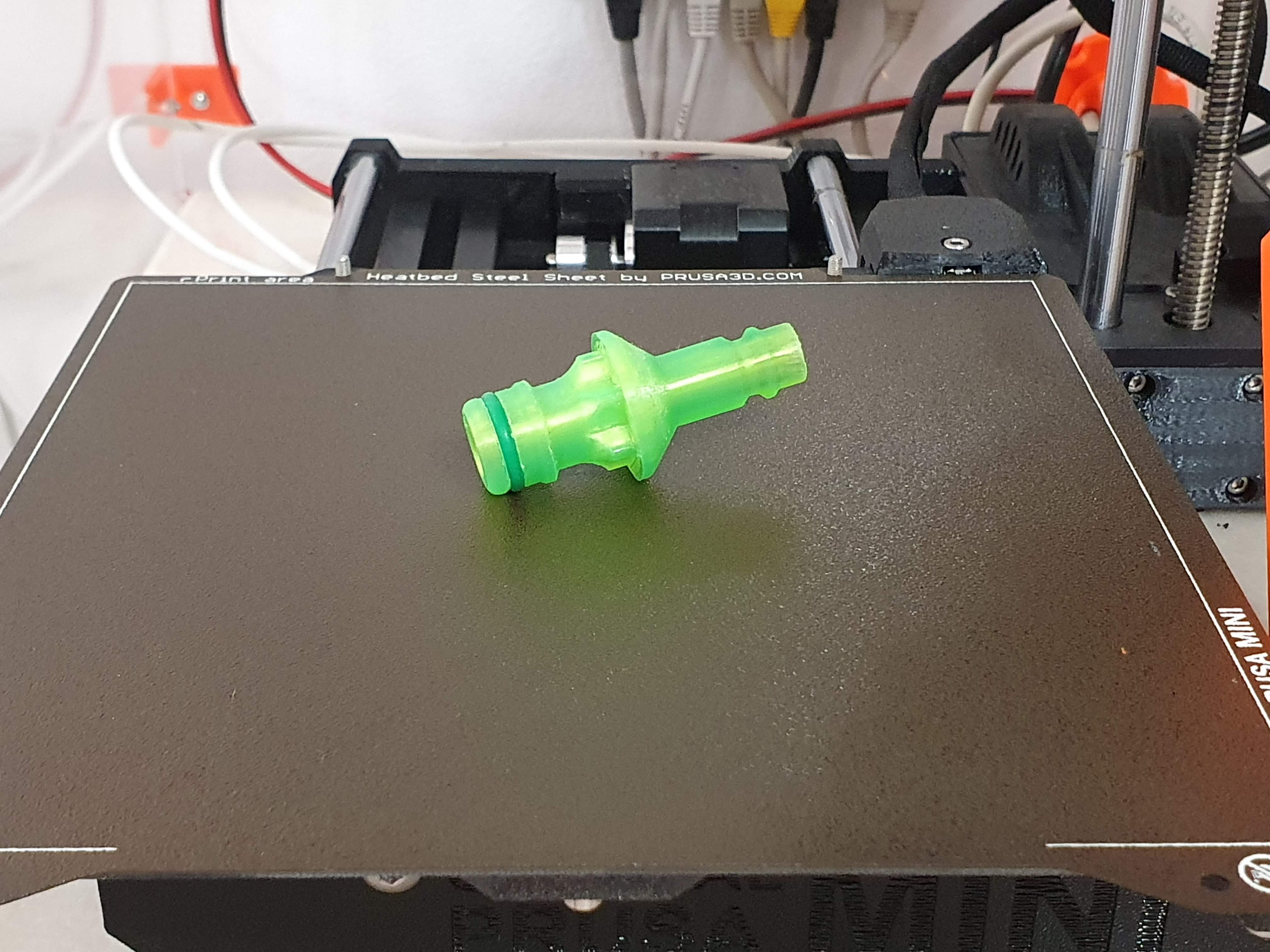

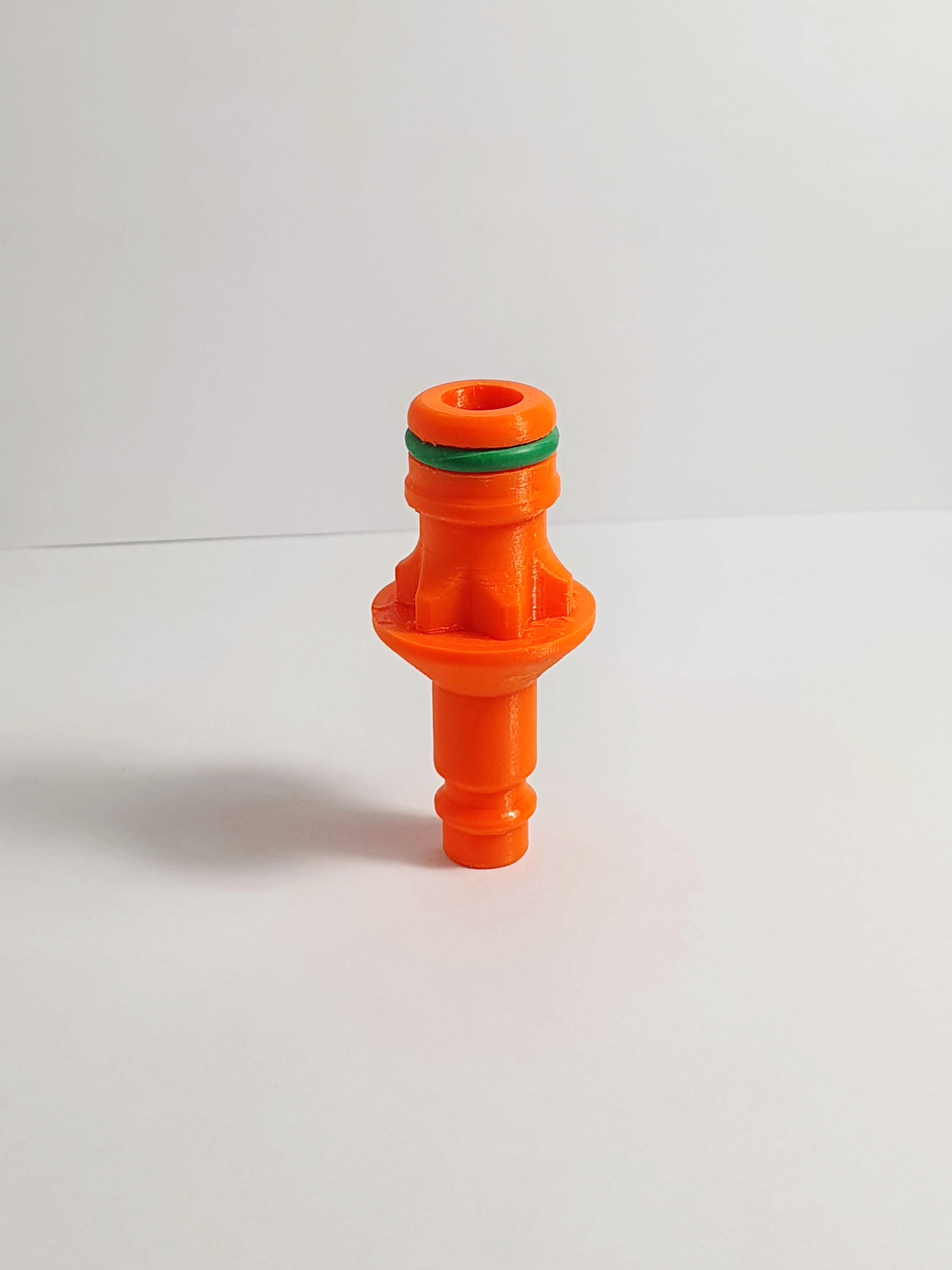

PS1. The pink examples from the pictures are an older version of the adapter
PS2. Please use carefully the compressed air on the irrigation system since some Air Compressors can provide a higher pressure than the one supported by the pipes & pipe-fittings.
Print instructions

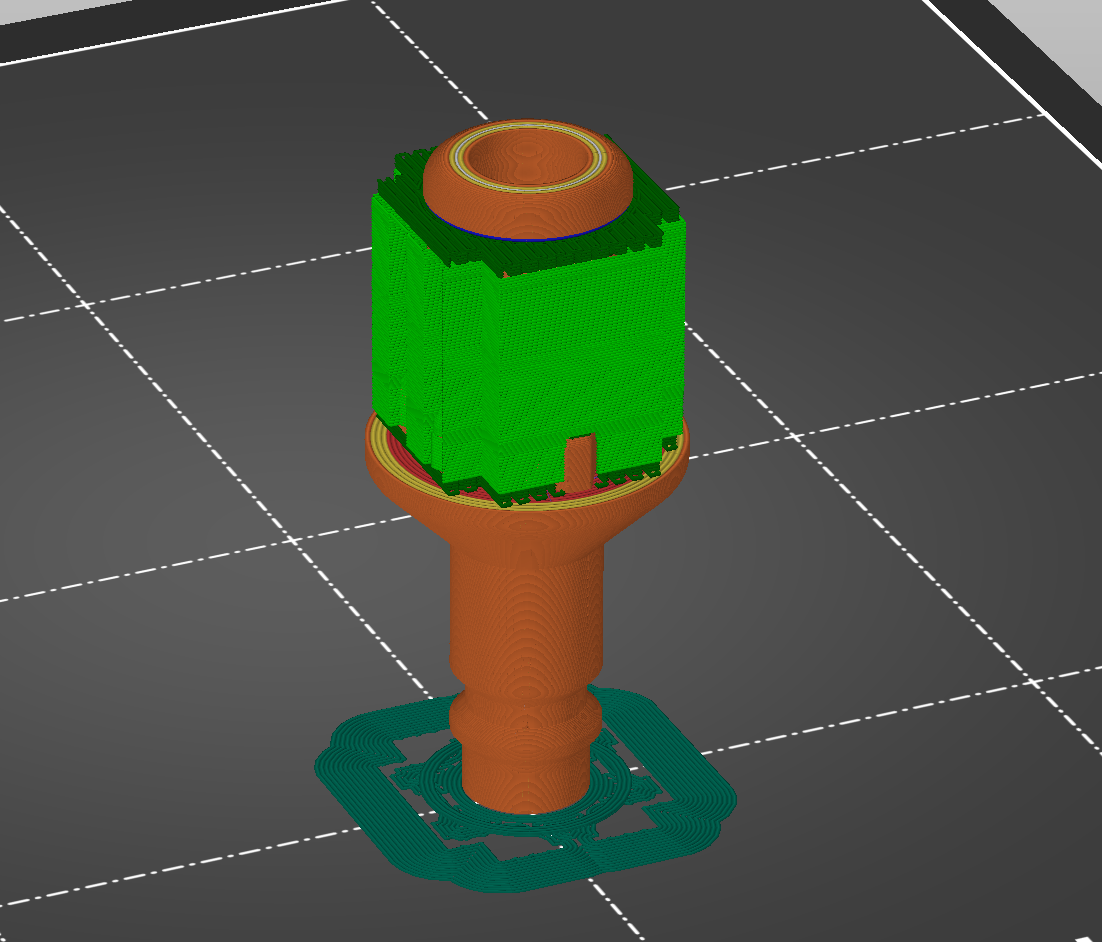

I printed it vertically, with the Air fitting on the bed, and the Gardena fitting on top.
I suggest to use Brim !
I used supports only on the top side (for the Gardena Seal trench) buit, depending on the printer, it might work also without supports.
For myself I printed in PETG (but PLA works also) and I increased the number of perimeters (but this is totally optional). 15% Infill should be fine.
Design and description by adynis , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Air to Gardena Fitting Adapter is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
