Angled heatbed cable cover (REMIX)
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~18 g
- Print time
- ~1 h
- Express shipping
- $20
More information
This is a remix of T1miverse's design https://www.thingiverse.com/thing:2964580
NOTE: Outdated version!! Find the latest version here:
https://www.prusaprinters.org/prints/100314-v2-of-angled-heatbed-cable-cover-remix
ALSO NOTE: Recommended upgrade for LACK enclosure!
After making changes to my extruder assembly I noticed my hotend cables getting pretty close to screws sticking out of heatbed cable cover.

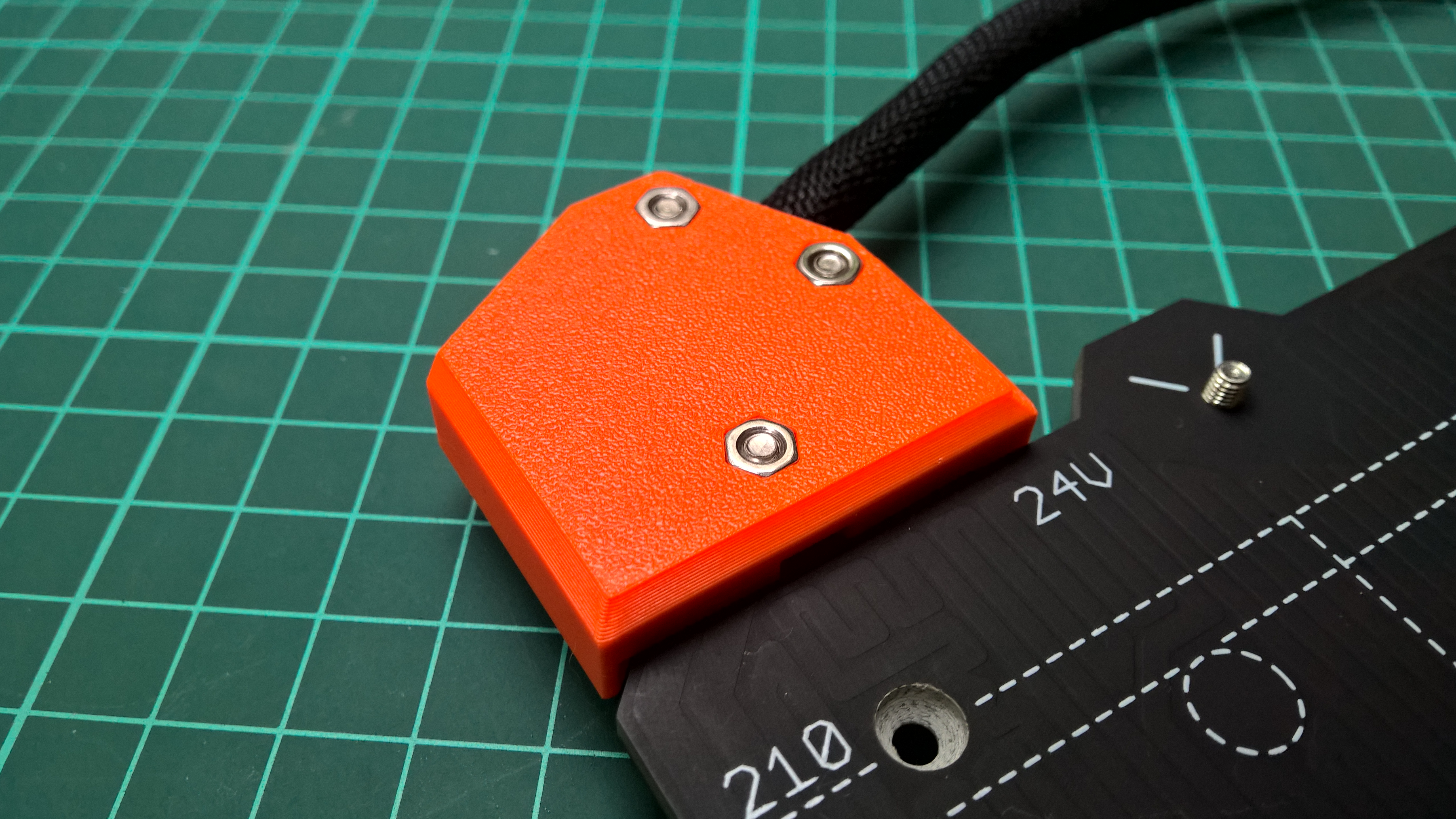

Therefore I remixed original design (increased height slightly) so that top surface is now perfectly smooth and nothing can collide there.
Assembly notes

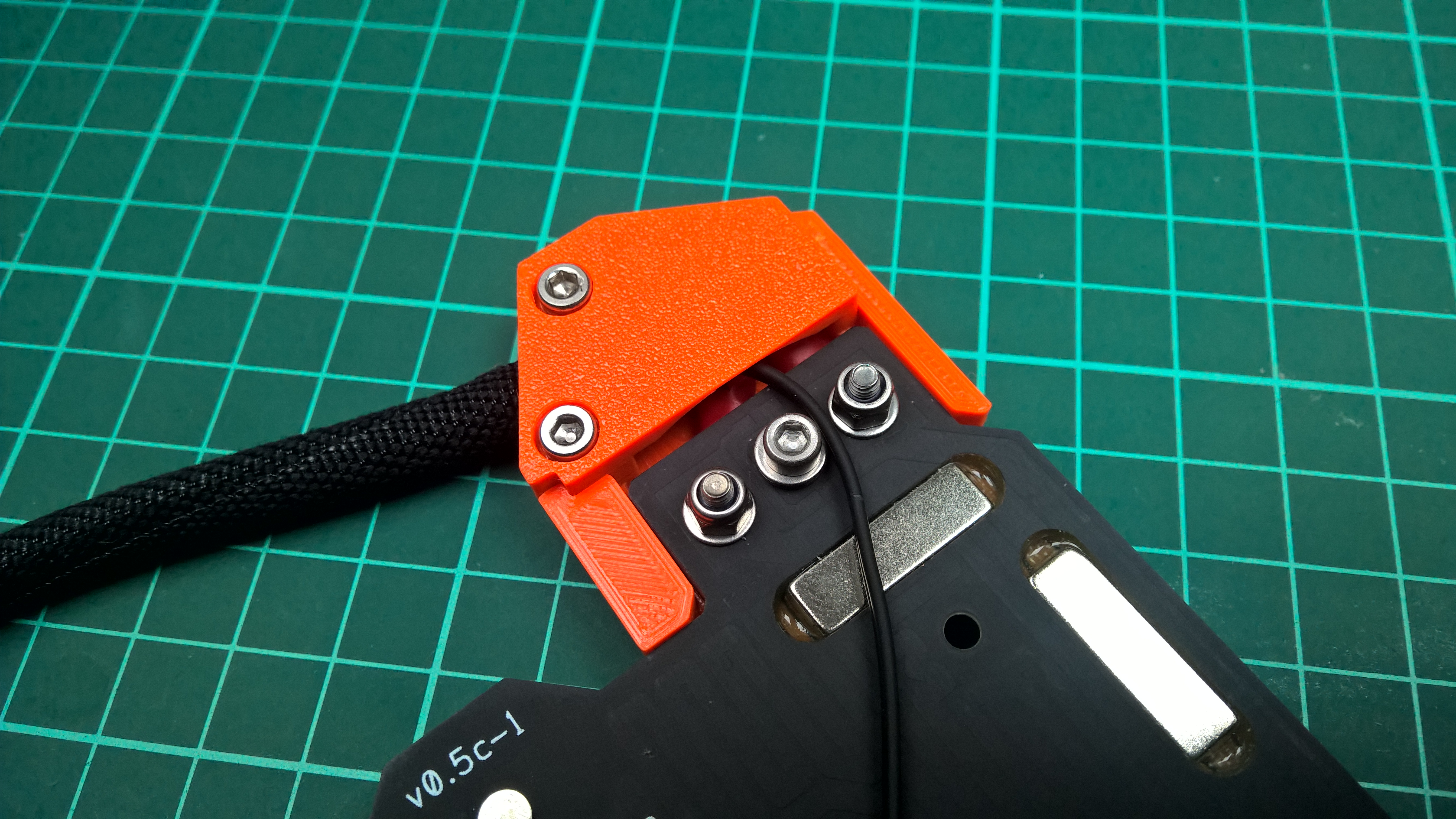

I recommend to remove red plastic protection of heatbed cables and wrap them again with insulating tape. It helps with bending cables into the cover. Bend is still quite sharp but you won't wreck the cables as you normally would without this procedure.

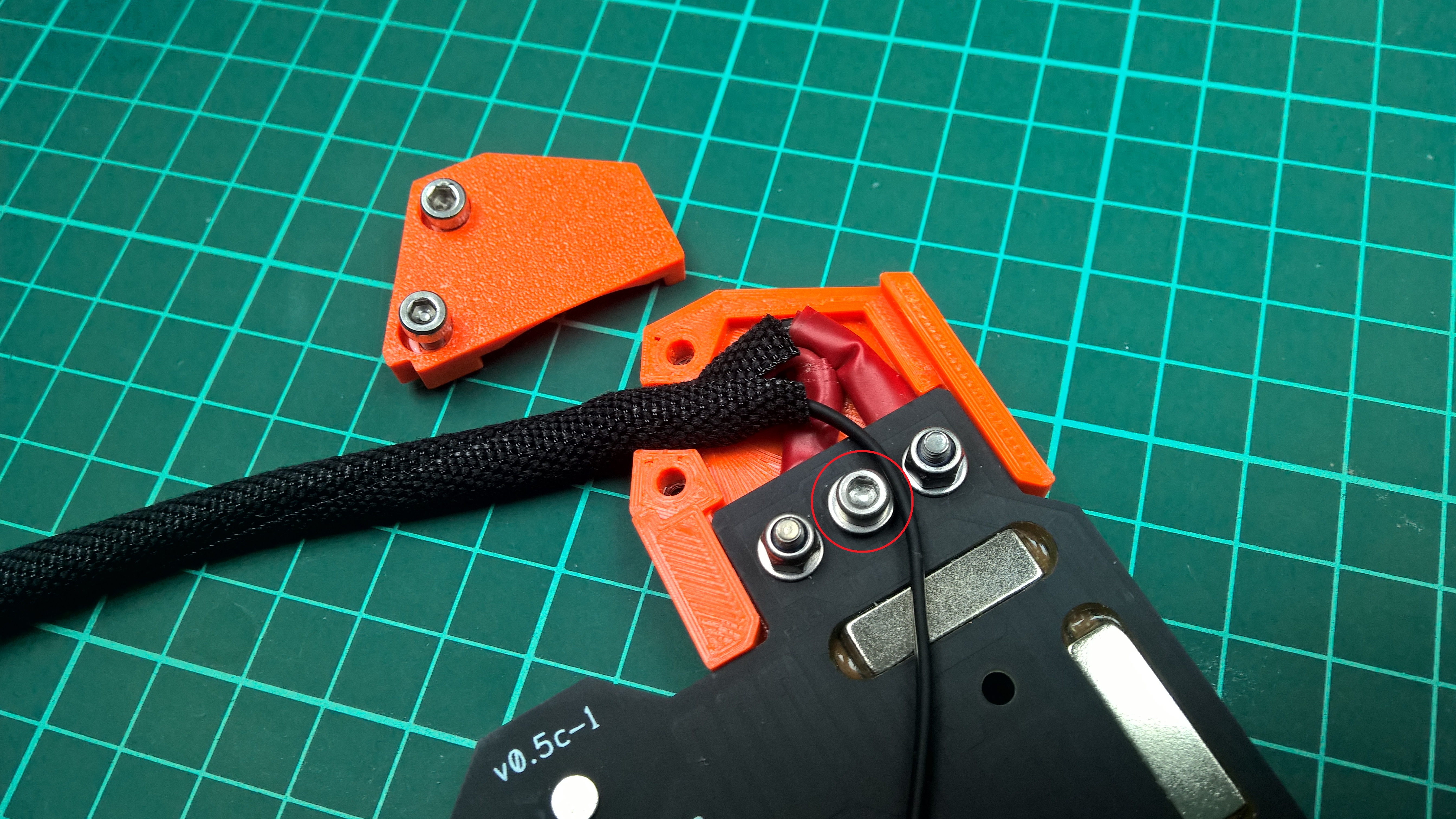

For middle main screw holding onto the heatbed (marked with red circle on 3rd pic), use 3 M3 washers from the bottom side to offset M3x10 screw slightly.
I suspect that M3x8 screw would be too short. However, it might work with original unremixed files.
Design and description by Ukrutony , licensed CC-BY.
