Annoying gift box

Annoying gift box

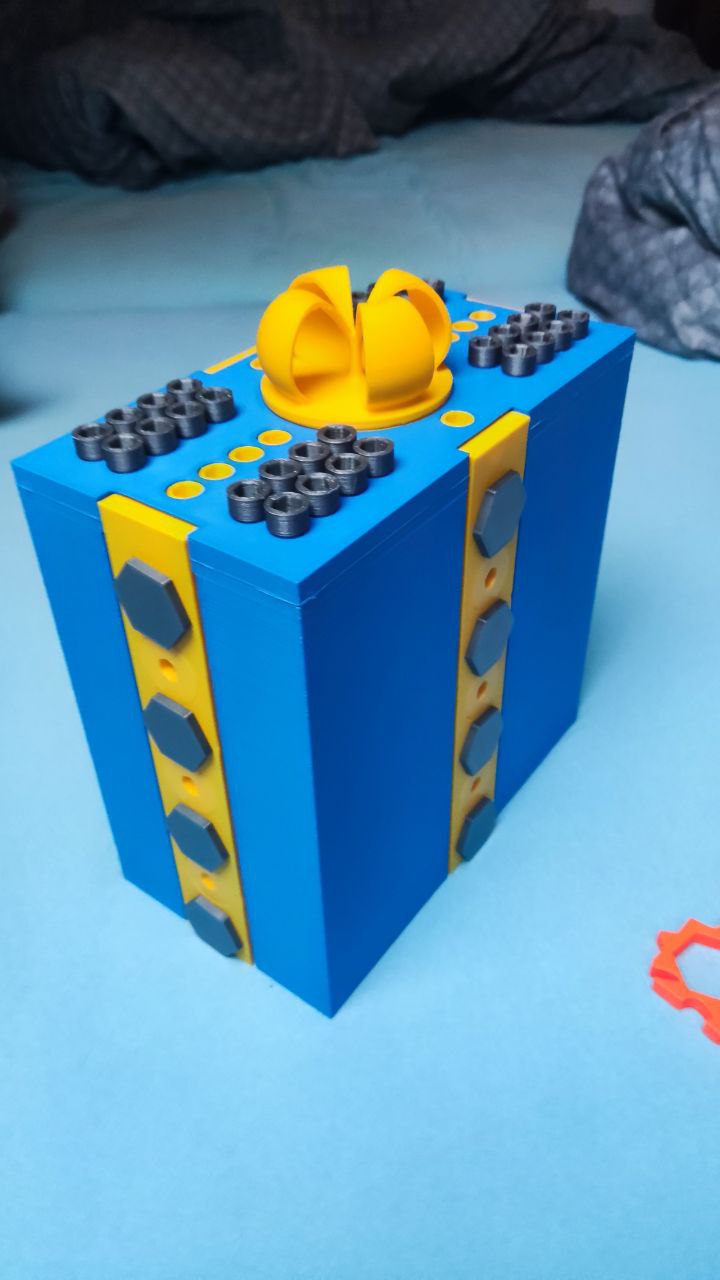

It's annoying gift box with inner size 16x8x16 cm ( I build it for headphones). Also there is 74 screws and driver under the “crown” (yes it's ribbon i know). I printed it on 0.15 layers but it probably fine around 0.2 0.25. Everyting is printed with PLA.

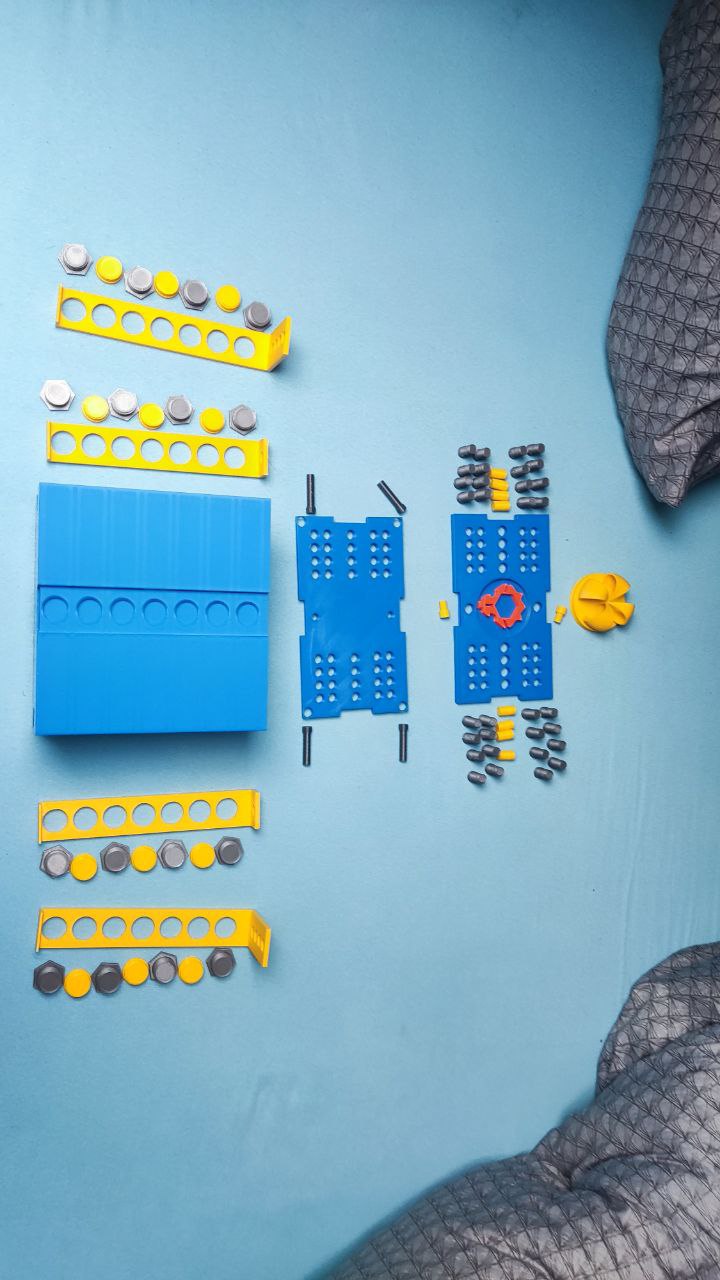

Build instructions

You basicly have 2 options harder and easier, there is 74mm and 148 mm screws that fill secure bottom lid to base box. The 148mm are kinda difficult to screw and i needed to use lube for them.

• put bottom lid on the base box and secure it with 74/148mm on 4 sidex • cover it with top lid until you hear “pop” • secure top lid with side panels • screw everything in this order: • 8mm 1.25 is for smaller side panels • bolts 10mm 1.25 no cap is for larger side panels • side bolts 20mm hex are for every 3rd hole on side panels from sides (4 on each) • side bolts 20mm rounded are for every 2nd hole on side (3 on each) • bolts 10mm 1.25 cap are for securing top and bottom lid together

• lastly place screwdriver under the crown and screw crown in (it has reverse thread)

Design and description by rreit , licensed CC-BY-SA.
