Ball bearing puller / removal tool
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~35 g
- Print time
- ~1.9 h
- Express shipping
- $20
More information

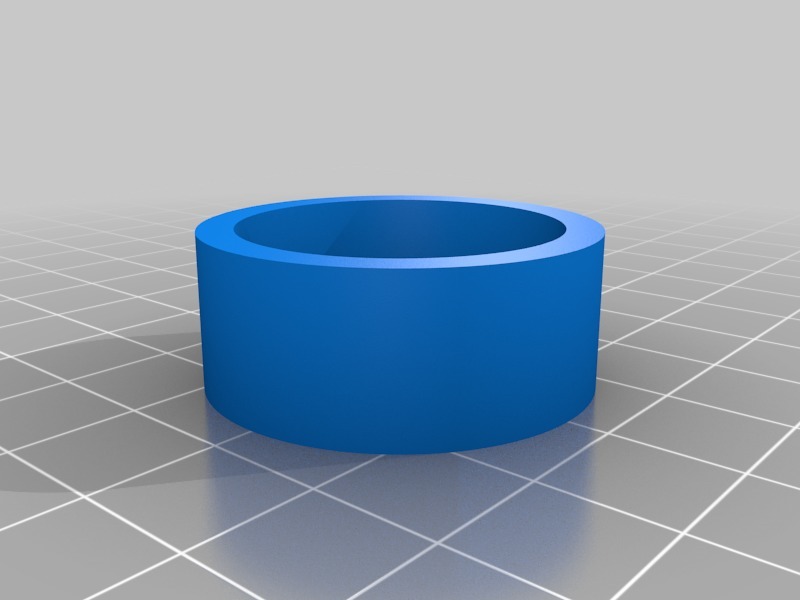

3d printed bearing removal tool
Simple tool to pull ball bearings out of their socket.
github project
Forks and pull requests are welcome! Fork me on github!
Short howto

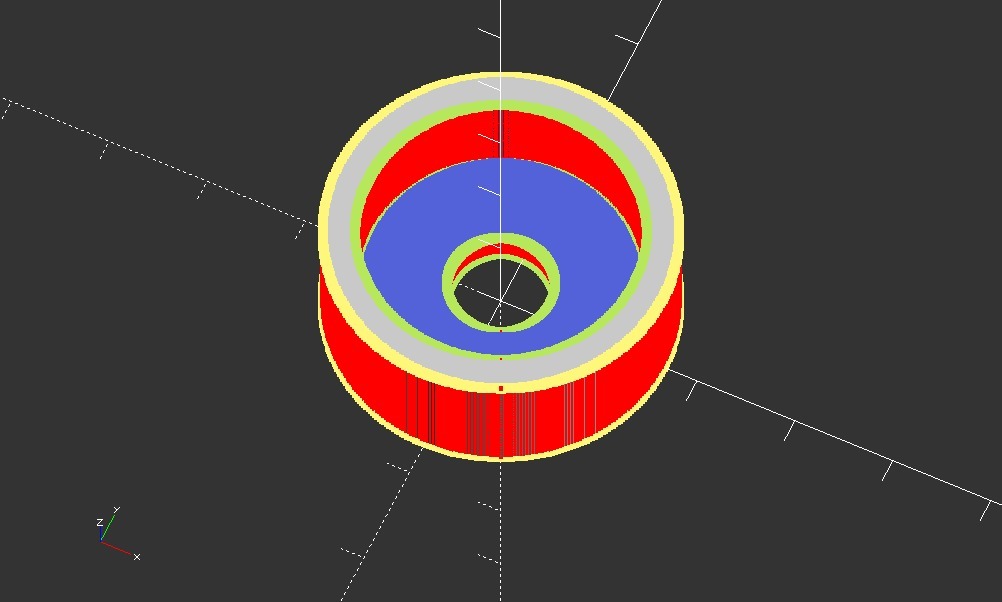

The provided STL files support type 6000 bearings. If you need something else, use OpenSCAD and modify the variables on top of the file.
Also you'll need a bolt, washers and a screw for the bolt. You might want to make sure that the washer on the closed side of the tool is at least as large as the tool.
CUBE Stereo 120 HPA my 2015 mode
The main reason for me to create this project was to be able to remove the pivot bearings of my CUBE Stereo 120 HPA, model year 2015. Unfortunately the frame was built in a way that normal/commercial tools can't be used as the frame is not completely flat around the bearing.

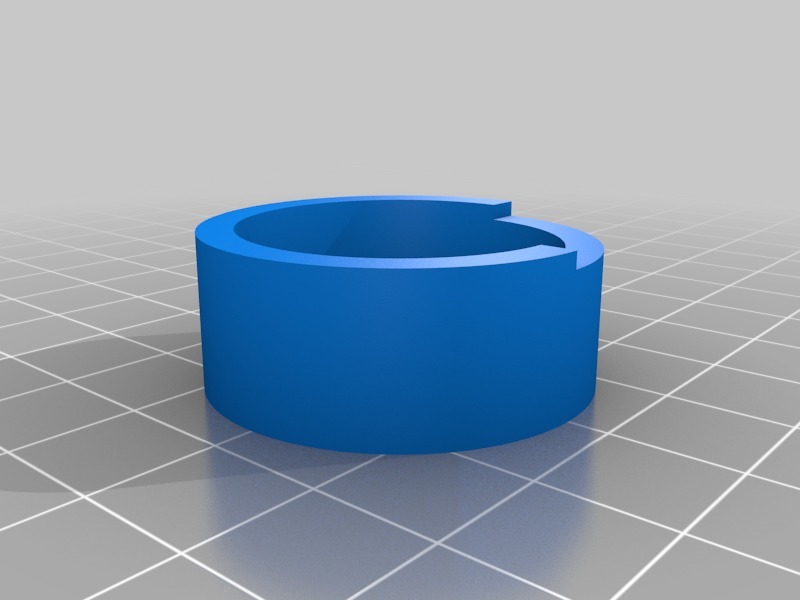

So the OpenSCAD file has an option to enable the "cube bike" mode which basically removes a bit material on 1/4 of the tool. YOu can enable/disable the feature as needed and modify the height of the removed material.
tool in use
copyright & license
Copyright © 2018 Bernd Zeimetz [email protected]
License: Creative Commons Attribution-ShareAlike 4.0 International
Print Settings
Printer Brand:
Creality
Printer: CR-10
Rafts:
No
Supports: No
Resolution:
0.2mm
Infill: 50% Tri-Hexagon
Notes
I've used PETG, 0.2mm layer height, 50% Tri-Hexagon infill, 3mm walls (basically you want the walls that take the load to be solid, the washer you put on top will spread the preasure on them), no fan. Might need a brim if printed in PETG.
Category: Hand Tools
Design and description by bzed , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Ball bearing puller / removal tool is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
