Bambu Build Plate storage - underdesk/shelf

Remix of buildplate caddy by cHaOt166, which is itself a remix of FrostyTheClownMan's model.

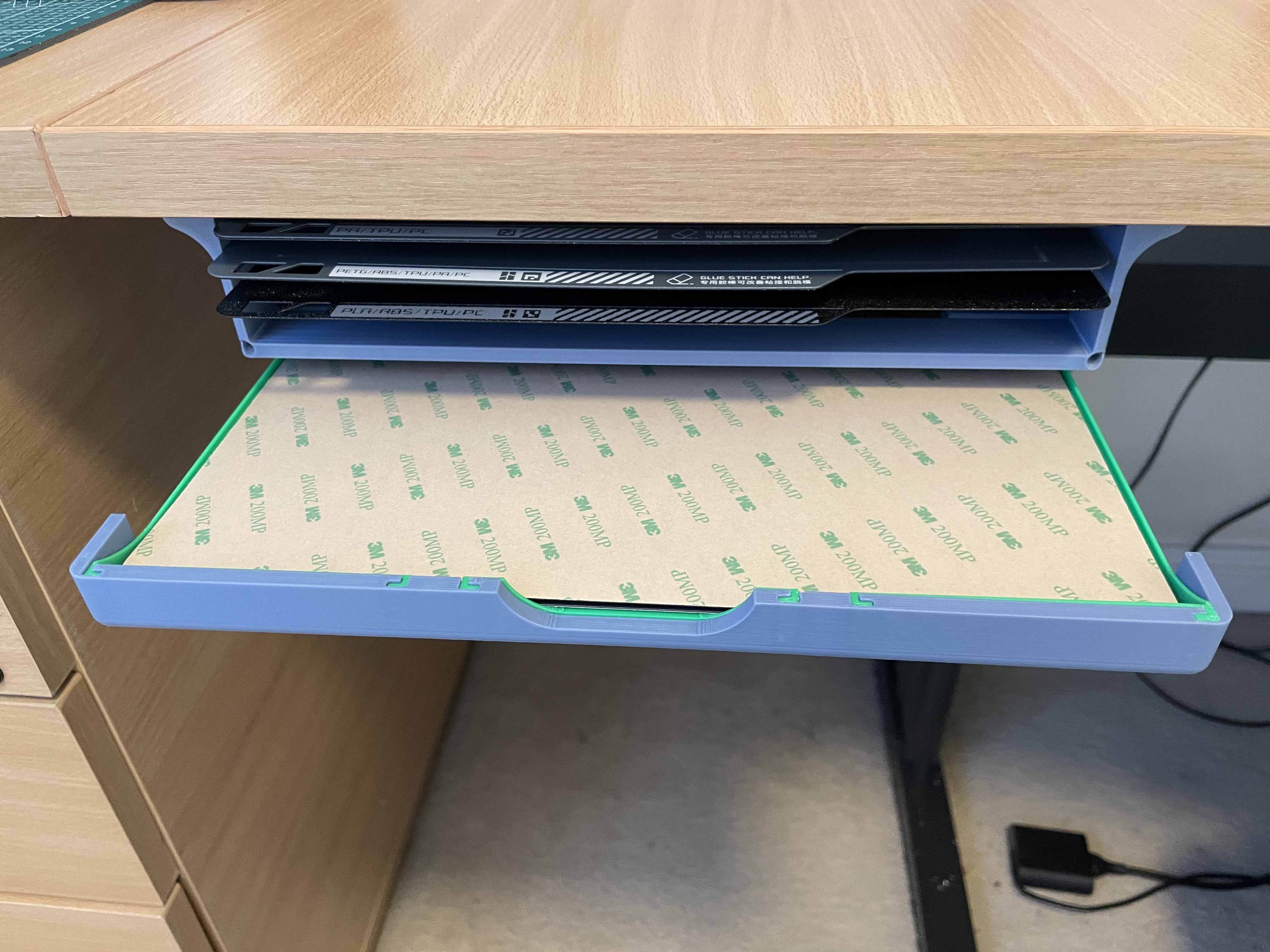

I've added even more central support for the plates, in the form of full-width central cross-members, a drawer for addtional build surface stickers, and finally mounting lugs for underdesk/undershelf mounting. I've also remixed the holes for the front and rear parts to accept heatset inserts.

To build this model you will need:

• 8* M3 5.7mm x 4.6mm heatset inserts • 8* M3 x 16mm bolts • 4* M5 woodscrews or chipboard screws of suitable length for your mounting surface.

You will need to print the contents of each file once, except for the cross-member files where you need to print 4* Full cross-members and 3* half cross members.

All parts were printed with a 0.4mm nozzle and 0.2mm payer height.

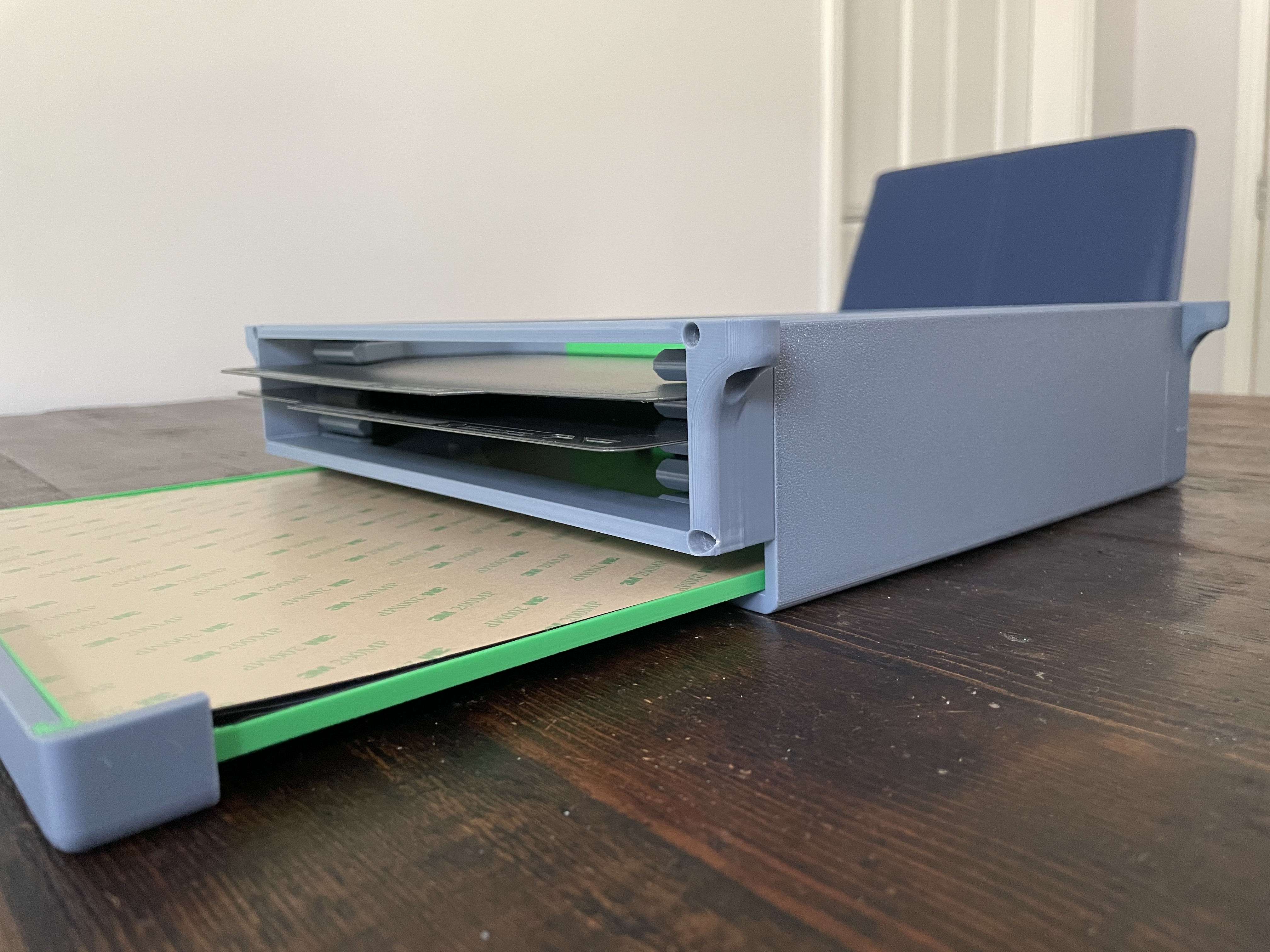

The drawer slots together from 4 parts and doesn't need glue. The parts are a tight fit and may need adjusting according to the tolerances of your printer. There are gaps between each of the drawer “slats”, as they wouldn't fit on the build plate if any larger, and when assembled it is rigid enough that there was no need to design a way to connect them.

When assembling the main body, first connect both sides with the cross-members before attaching the front and rear pieces. assembly is push fit only and again is quite tight.

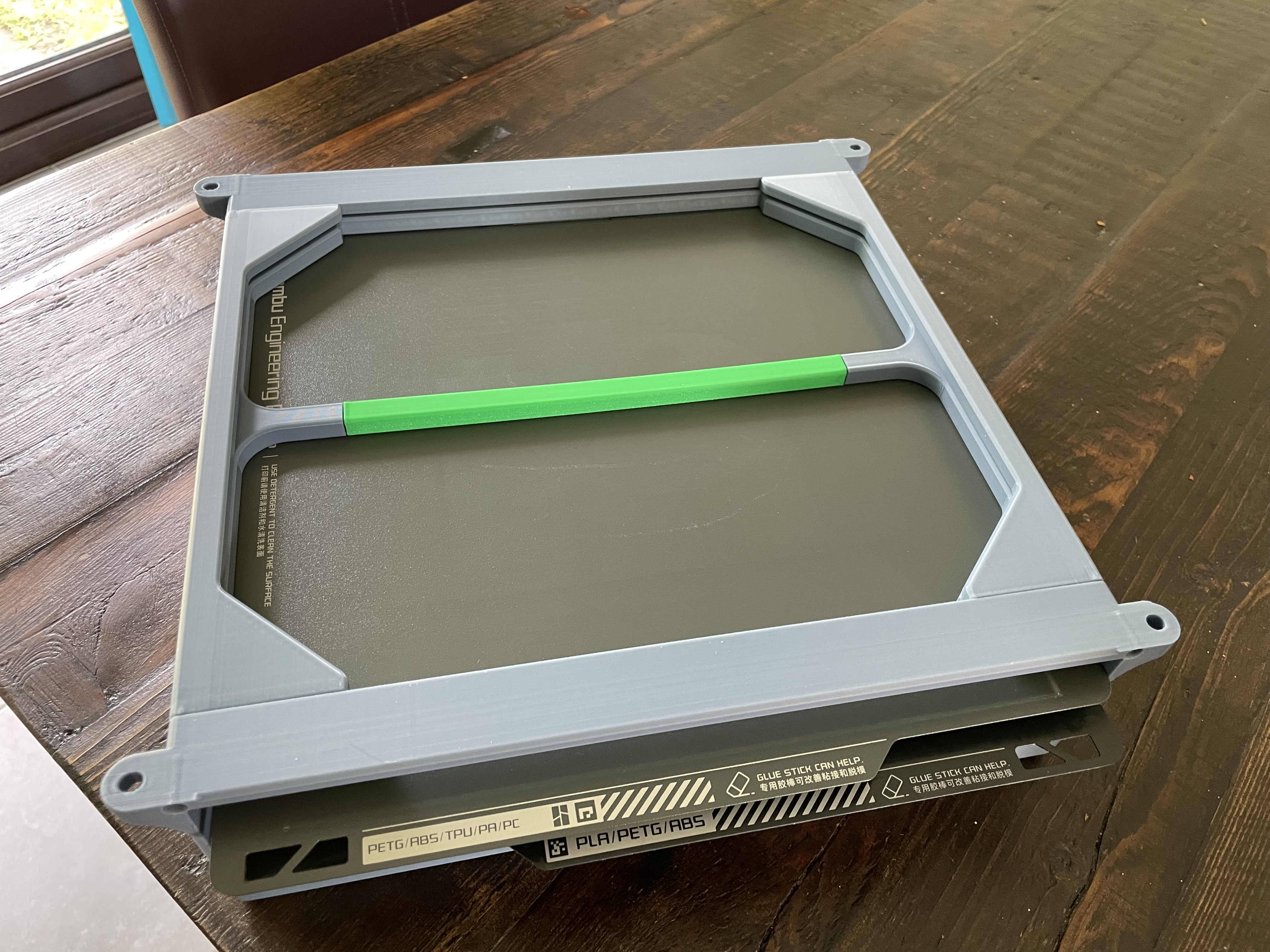

The positions of the full and half cross members should be apparent from the shape of their corresponding receptacle. The cross members are green in my photos, so they are easy to see, and for clarity the upper four slots of the central column of cross-members are full cross members. The lower two are half cross-members, as is the cross-member at the front which supports the front of the drawer. Half cross-members should have their flat side, non-chamfered side, at the bottom.

Ive included STL's and STEP files so that the model can easily be adjusted for tolerances if required.

I hope that some of you find this useful, and I'd love to see your makes.

Design and description by Ov4l8alls , licensed CC-BY-SA.
