Barn Door Hardware

Update 7.14.2022

I took it down to put up a new version, but I never had another failure. New veron can be found here: https://www.thingiverse.com/thing:5445774

Update 2.17.2021

This is still up in my house. I've replaced one arm at this time. This was all made with pla, so I'm shocked it's lasted this long. Might need to revisit and make more universal.

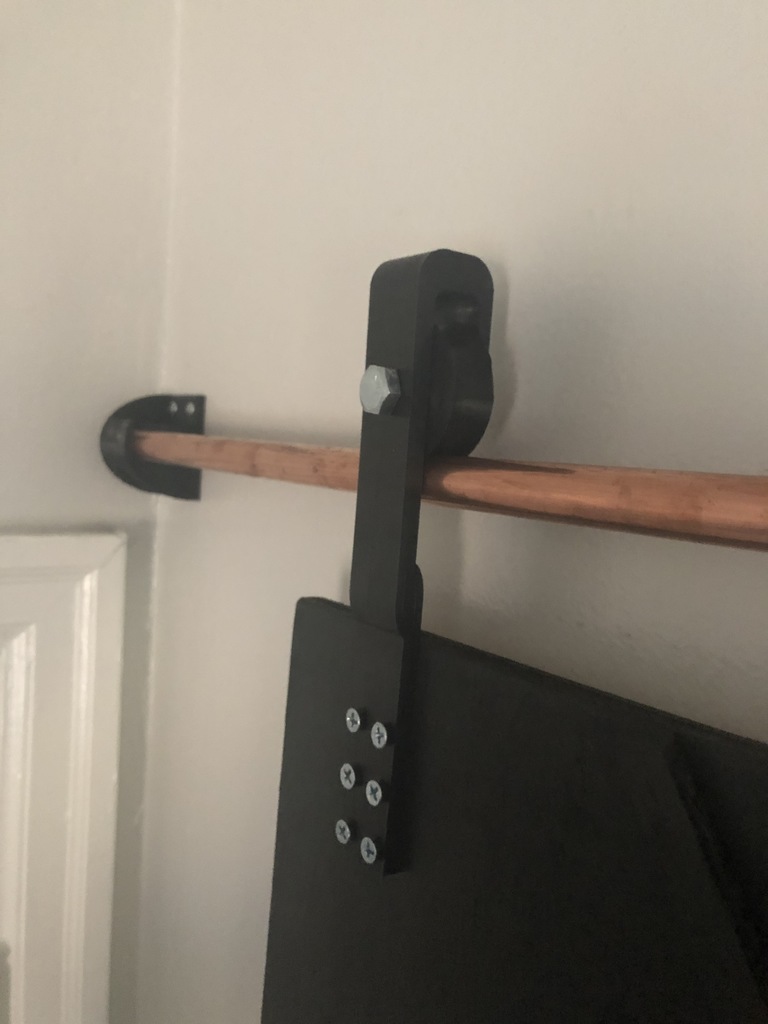

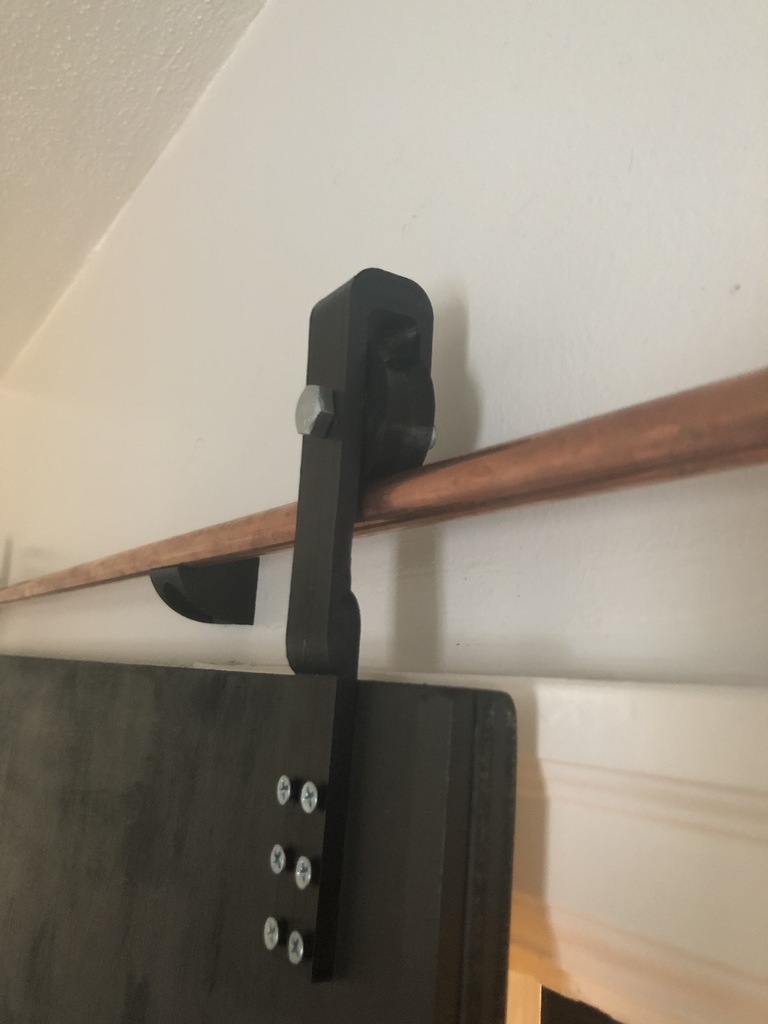

Barn door slider and hardware for your home.

This was built to suit a door in my old house, so I cannot promise it will fit all doors.

The distance before the door is 3/4"

Door is 12mm thick

Copper pipe is 1/2" M (6')

Screws with 45 pound anchors

3/8"x1 1/2" bolt and nut for the brackets and wheels

Hardware is currently supporting 21 pounds

Please remix, or remake, or just run with any new idea you have. These aren't perfect, and are more of a version 1. I cannot guarantee the longevity of the printed parts, or how structurally sound this is, but I've tried to over engineer it.

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: No

Resolution:

.2

Infill: 100%

Filament: Overature PLA black

Notes

Printed in PLA, but I would recommend something stronger,or a desire to replace part frequently. I will update this when mine breaks.

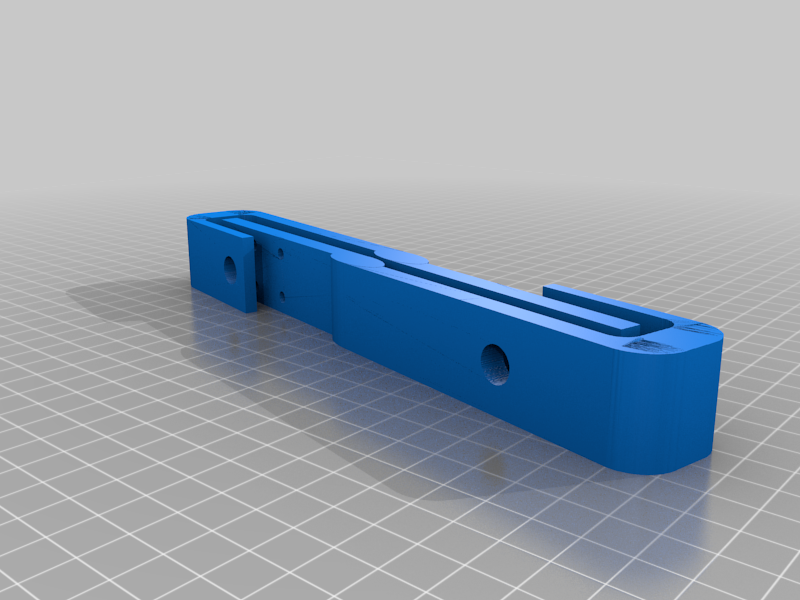

The wall mounts should be printed in their side, mostly because this provides the strongest layers for them. Also I only included one side wall mount, so you'll need to just mirror it in your slicer. The brackets have a little fault on one side. Print them as they are, if you rotate them they'll cause problems.

Print everything with Max perimeters and a hefty infill.

Category: Household

Design and description by TheJollyRedBeard , licensed CC-BY.
