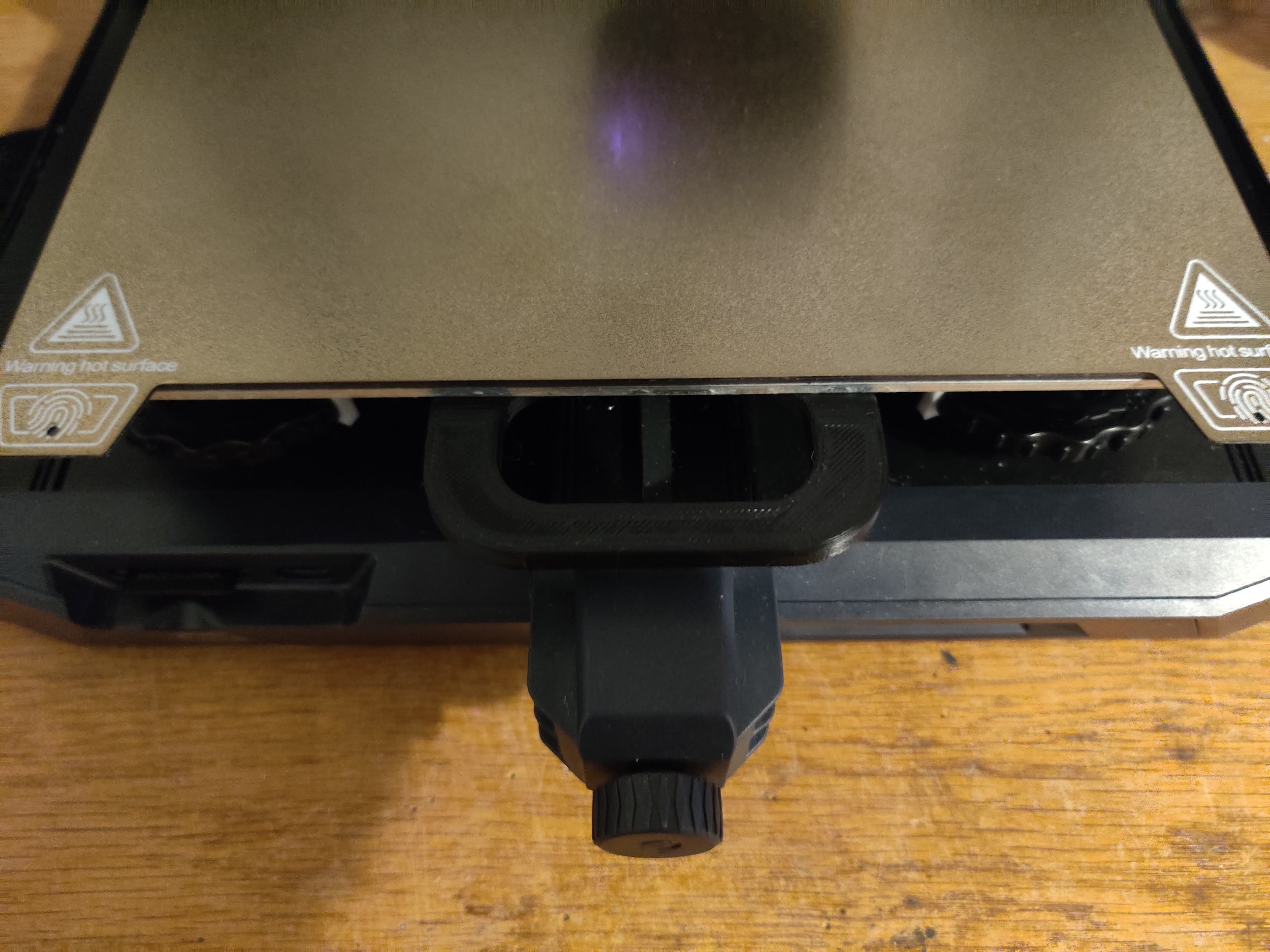

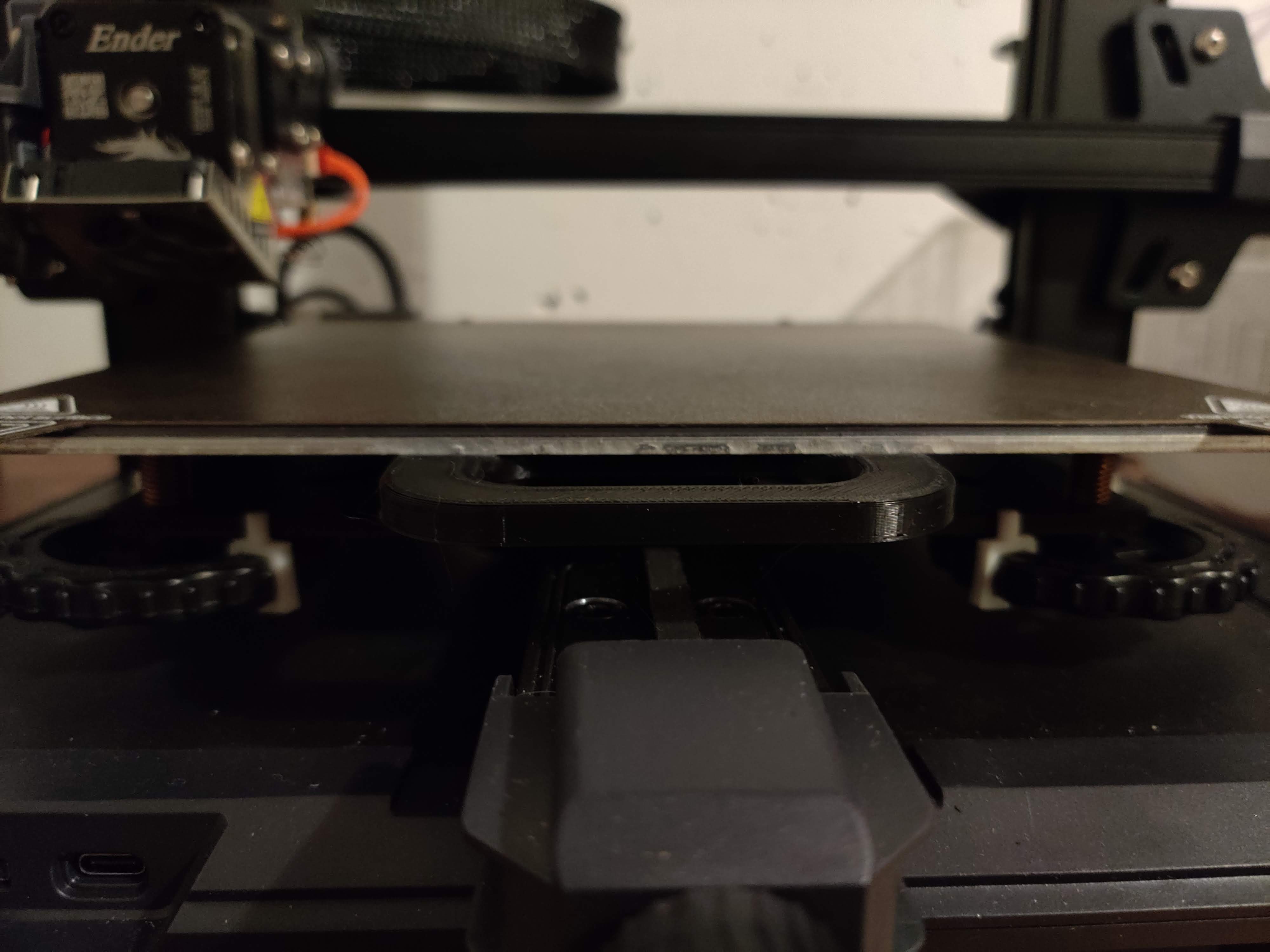

Bed Handle for Ender 3 S1, works with included M3x6mm Screws

This model prints without supports, does not need a lot of infill (I think I used 10-15%) and works with the screws that come with the printer. You can use the extra M3x6mm Socket Head Screws that come with your 3d printer. (It is enough to use 4 screws for mounting the extruder, and you should have 6 of them in total)

If you want to use different screws, you can adjust the model to fit your needs (I included the STEP file for this). I think this works with the Ender 3 S1 Pro as well (seems to have the same bed dimensions).

Here are the dimensions, in case you want to change something or create your own model:

• The handle itself has a height of 4mm, the screw is around 6mm • The bed is ~3mm thick, so 7mm screws could be problematic • Each screw hole of the handle has a diameter of 3.3mm (to account for tolerances) • Distance between the two holes (from their center) is 64mm

Some things to be careful about:

• There is no end for the screws (if you screw them in too far, you will damage your bed) • PLA starts to deform around 52°C, therefore it is recommended to print the model in PETG or ABS

Here is a list of other models for the bed:

• https://www.printables.com/model/390141-ender-3-s1-handle-with-brush-holder • https://www.printables.com/model/359648-ender-3-s1-short-handle • https://www.printables.com/model/515625-ender-3-s1-pro-handle-w-tapo-c100-mount • https://www.printables.com/model/481834-ender-3-v2-s1-s1-pro-handle-for-y-carriage-gulfcoa • https://www.thingiverse.com/thing:5784354 • https://cults3d.com/en/3d-model/gadget/ender-3-s1-pro-bed-handle-t4zdvl

Design and description by Lucas , licensed CC0.
