Bionic Bookshelf Mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~106 g
- Print time
- ~5.8 h
- Express shipping
- $20
More information
I was testing a new topology optimization software, and having issues with a real life part, decided to try the simplest thing I could think of: A shelf mount. This part is optimized for maximum load with minimal material use. The screenshot shows the part under a 50 kg (110 lbs) load (!), with material stress staying under 20 MPa.

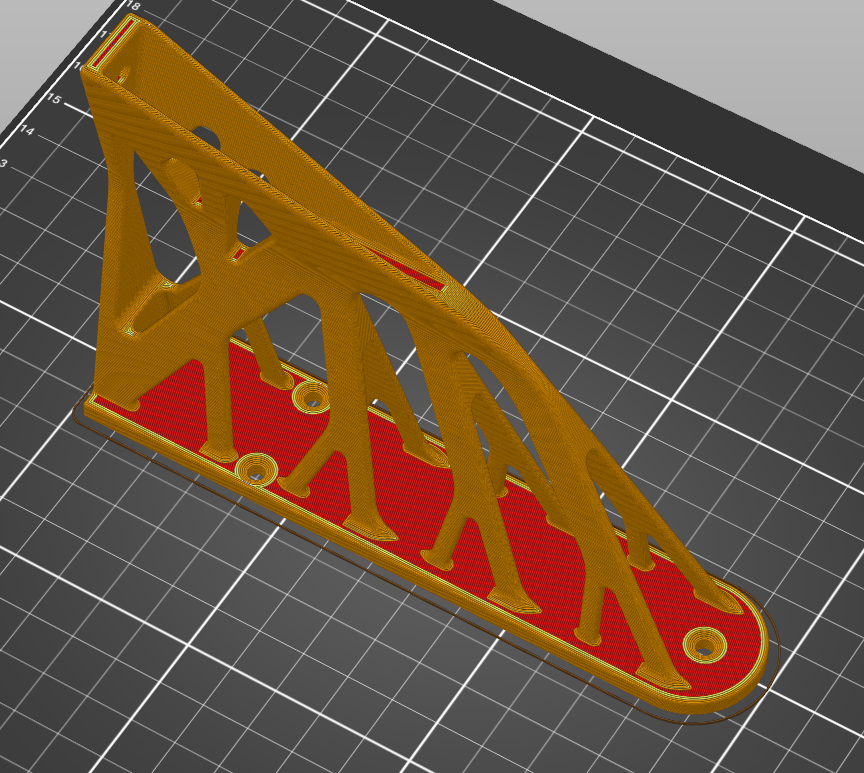

In addition, the part is designed to print completely without supports. Print time around 5 hours on my Prusa i3 MK3s.
Print instructions
Category: Organization Print Settings
Printer Brand: Prusa
Printer: I3 MK3S
Rafts: No
Supports: No
Resolution: 0.2mm
Infill: 100%
Filament: Doesn't matter ABS or PETG
Notes
It will probably also be fine with 30% infill, however in that case the permanent compression under the screw head might cause long term problems. 100% infill doesn't add a lot of material, since most of the part is already very thin. Print with at least 2 shells, 3 is better.
How I Designed This
CAD work with SolidWorks 2017, topology optimization with ANSYS Discovery Live Beta.
Design and description by That Engineering Guy , licensed CC-BY.
Frequently asked
How long does shipping take?
Bionic Bookshelf Mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
