Build Tray XL – Large Bin Remix

Build Tray XL

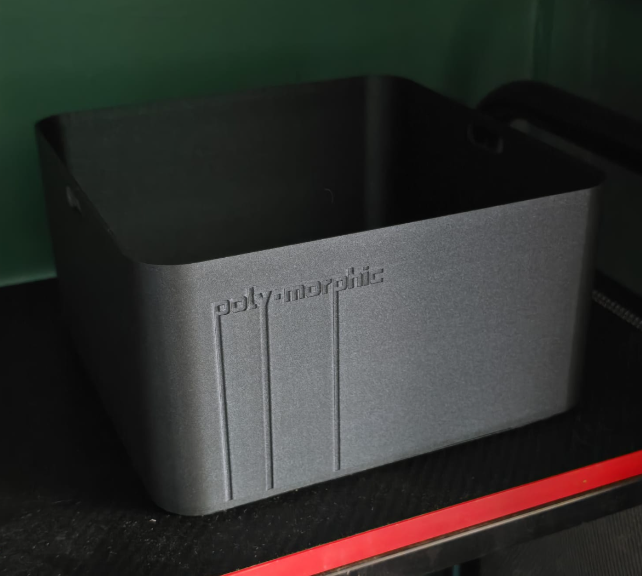

This is an extra-large remix of the original Build Tray, redesigned as a deep, single-piece storage bin for larger parts, tools and workshop components.

The original modular tray concept has been enlarged to approximately 200 × 200 × 107 mm, making it suitable for bigger maintenance jobs where standard parts trays are too small.

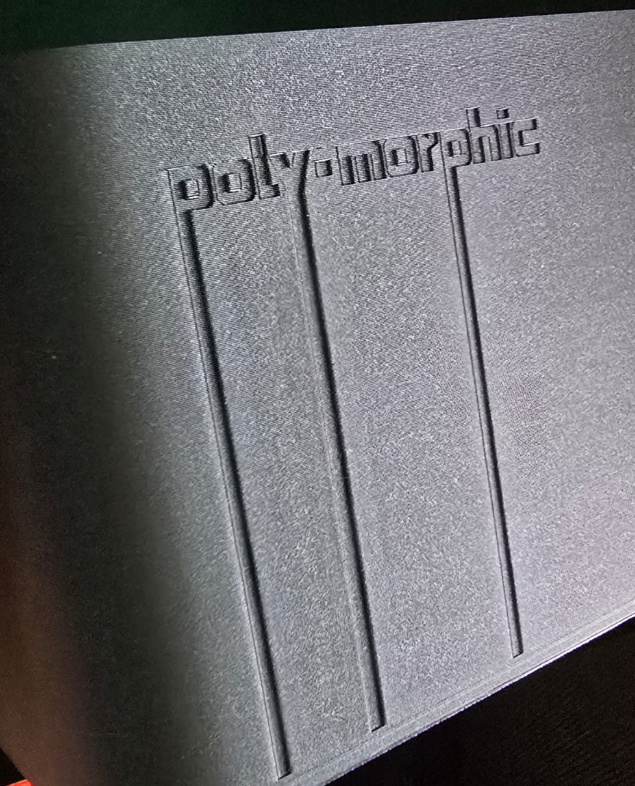

Integrated carry handles have been added to both sides, along with rounded corners, a smooth upper rim and custom Polymorphic branding on the front.

Features

• Large 200 × 200 mm footprint

• Approximately 107 mm tall

• Deep storage area for larger components

• Integrated handles on both sides

• Rounded corners and smooth upper edge

• Single-piece design

• Custom Polymorphic front branding

• Suitable for workshop, desktop and project storage

Recommended uses

• 3D-printer maintenance

• Electronics repair

• Computer building and repair

• Mechanical assembly

• RC and hobby projects

• Tools and spare parts

• Cables and components

• General workshop organisation

• Keeping dismantled parts from one project together

Print recommendations

Print upright with the base flat on the build plate.

Suggested starting settings:

• Layer height: 0.20–0.28 mm

• Walls: 3 or more

• Infill: 10–15%

• Supports: Usually not required

• Material: PLA, PETG, ABS or ASA

• Brim: Optional, depending on material and bed adhesion

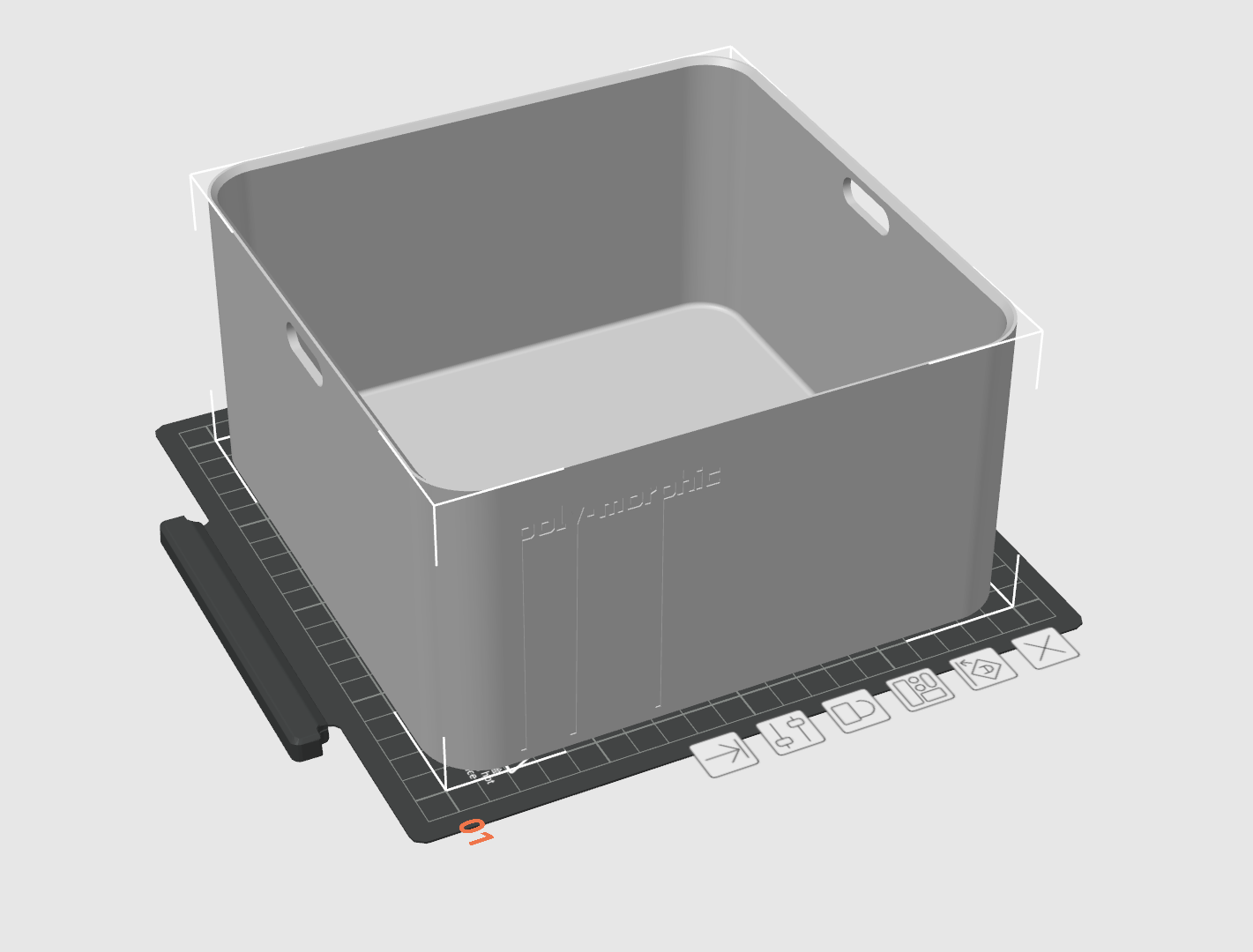

Check the handle openings and overall dimensions in the slicer before printing.

The model uses nearly the full area of a 200 × 200 mm build plate, so confirm that your printer has enough usable space for the model, skirt or brim.

Attribution

This model is a remix of the original Build Tray — Modular Organizer for Assembly, Disassembly and Maintenance by Polymorphic.

The original model has been linked through the Printables remix system.

Design and description by BJStudios , licensed CC-BY.
