C-Clamp (G-Clamp)
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~54 g
- Print time
- ~3 h
- Express shipping
- $20
More information
This C-Clamp is a useful tool for every application when you need to keep something temporarily in place or apply pressure while glue dries out.
Max jaw span: 210 mm Max depth: 95 mm

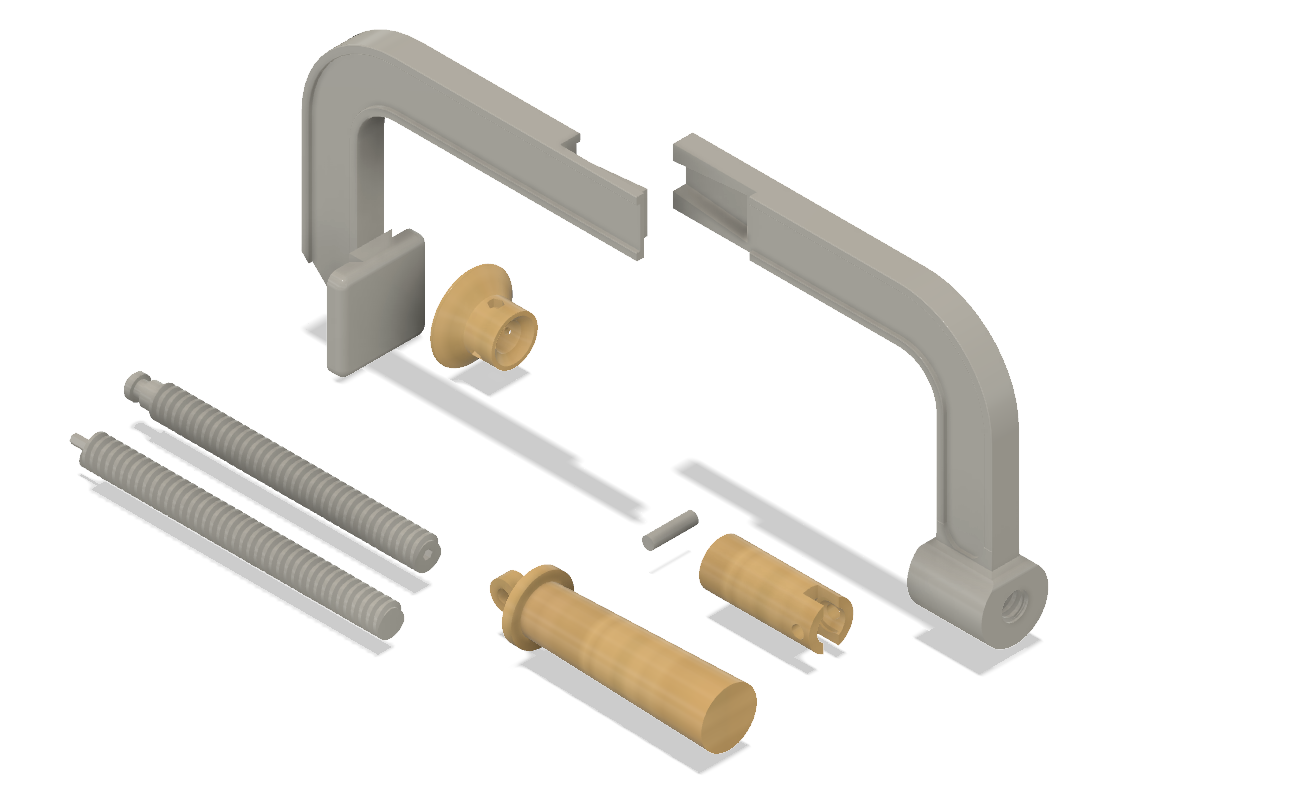

You can print frame and screw in one piece, but they are 310 mm and 320 mm respectively. So I've prepared two-piece versions of both. As for the frame, FEA simulation says it's the point of minimum stress, yet remember to apply a thick layer of adhesive on each surface (up to the root diameter in case of the screw).
Similarly, it may be needed to glue the handle to the screw.

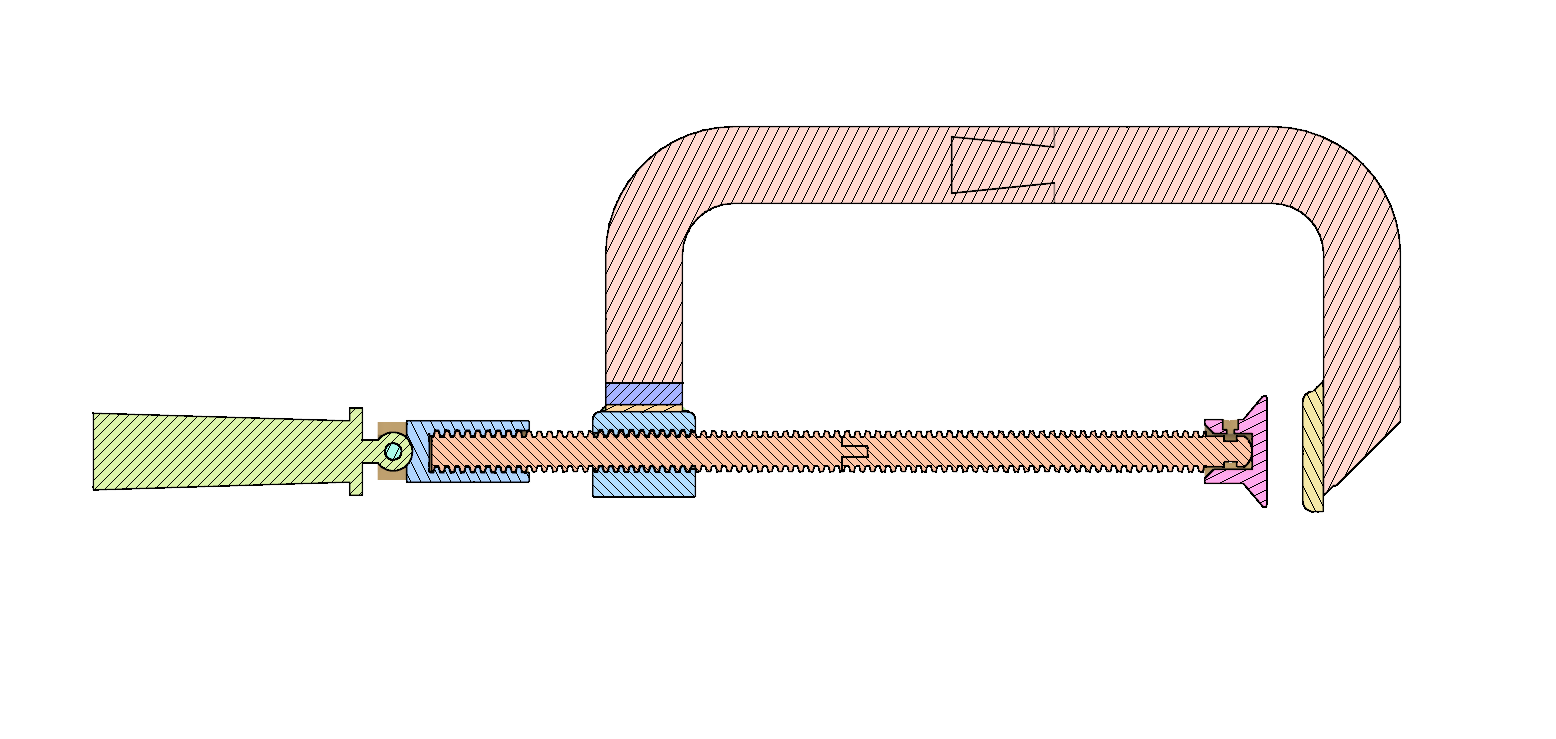

The cap and end of the screw fit in such a way, that there is minimum contact (minimum friction). It allows the screw to rotate freely and to avoid scratching the surface by unwanted rotational movement of the cap. To prevent the cap from falling out there are three slots for M3 nuts in which you can then screw M3 bolts.
For easier tightening handle can rotate 90 degrees to each side.
Design and description by Hubert , licensed CC-BY.
Frequently asked
How long does shipping take?
C-Clamp (G-Clamp) is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
