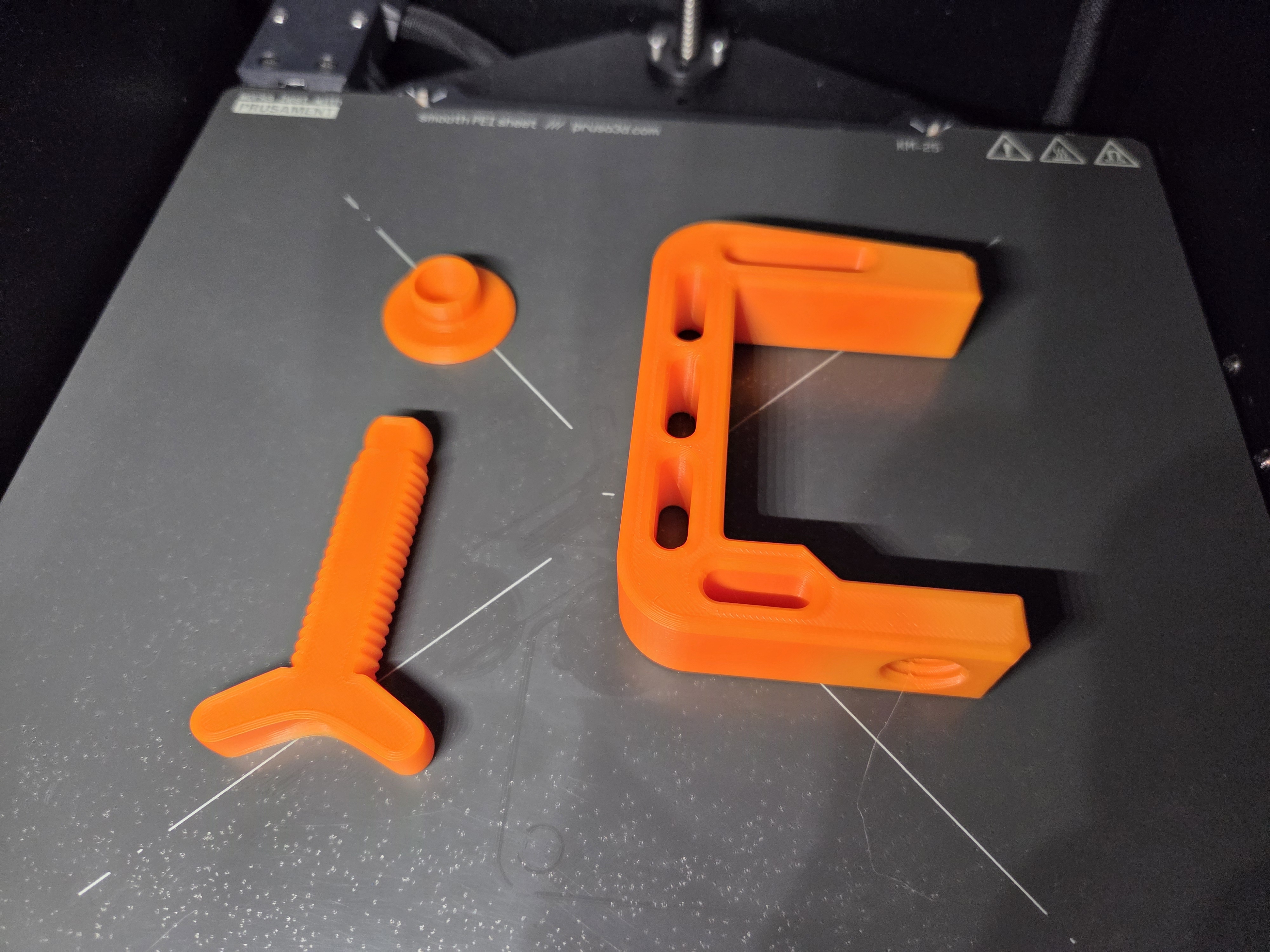

C-Clamp Set – Multiple Sizes for Workshop and Play

Originally I designed these C-clamps because my daughter kept “borrowing” my workshop clamps to build blanket forts and attach blankets to furniture.

So I decided to make a few printable versions specifically for that purpose — and they turned out surprisingly useful in the workshop as well.

The clamps are available in three different sizes, and each size can be combined with different screw lengths depending on your needs.

Personally, I tend to use the shorter screws most of the time, since there is usually a tabletop, board, or similar object between the clamp jaws, meaning the clamp rarely needs to close completely.

The models are named so that the matching screw length is easy to identify.

Please refer to the table for detailed dimensions and compatibility.

Clamp Model

Jaw Width

Jaw Height

S

40 mm

42 mm

M

50 mm

57 mm

L

55

67 mm

Screw Model

Effective Length

XXS

20 mm

XS

35 mm

S

43 mm

M

68 mm

L

78 mm

There is also two different end pices you can chose from: 25 and 30 mm in diameter respectively.

Even though they are very useful, I would still not use them to clamp safety-critical items. In the end, they are 3D-printed parts and their strength is nowhere near that of metal clamps.

Printing recommendation

• PLA or PETG (Sunlu PLA 2.0+ versions turned out quite strong)

• 4 perimeters (this gives a strong clamp)

• 15% infill (if you want more strength, increasing perimeters is more effective than increasing infill)

• 0.2 mm layer height

• 7 top & bottom layers (this gives a strong clamp)

• No supports required

Design and description by jbfish , licensed CC-BY.
