Cable chain R28 10x20mm
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~11 g
- Express shipping
- $20
More information

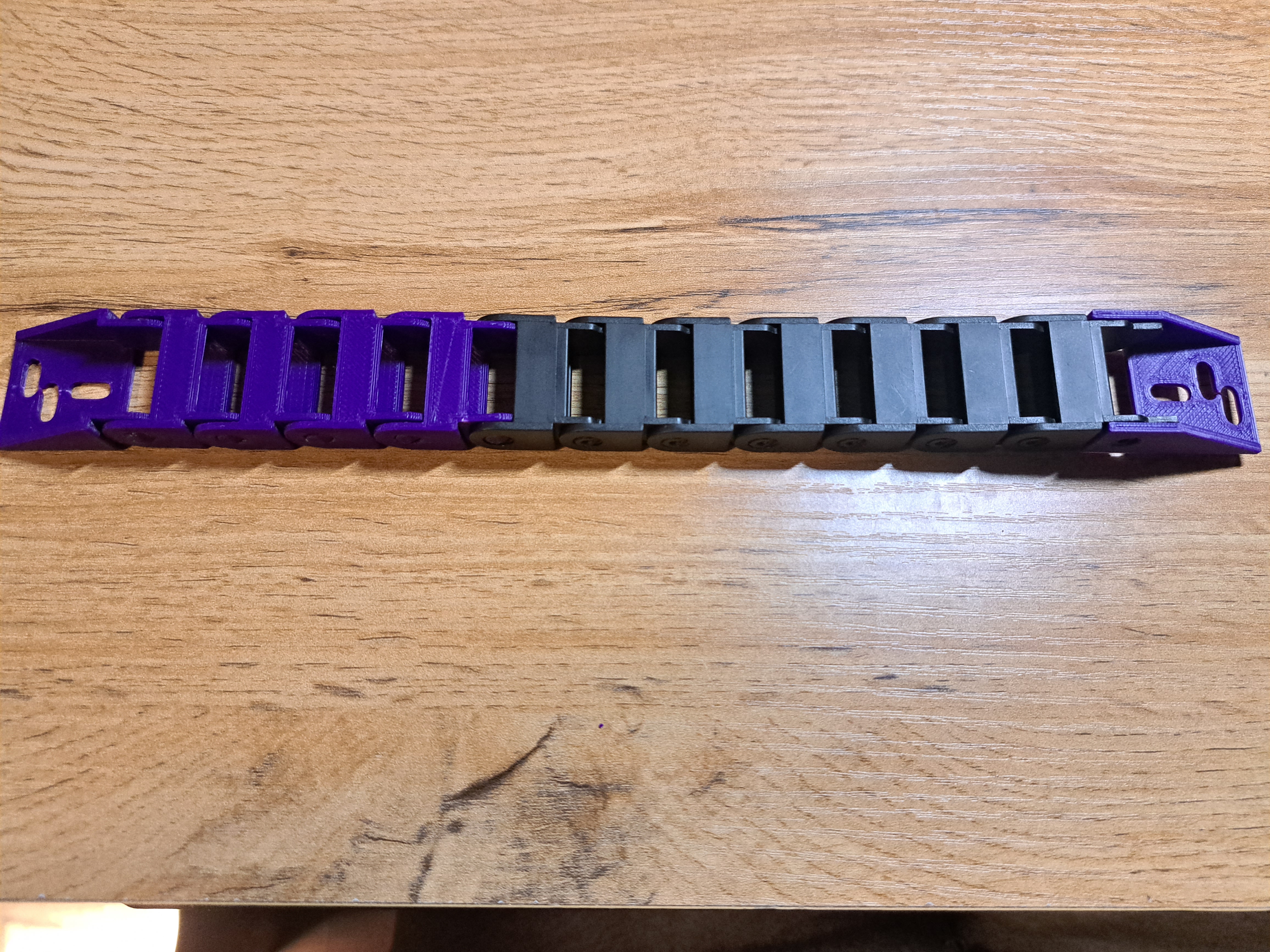

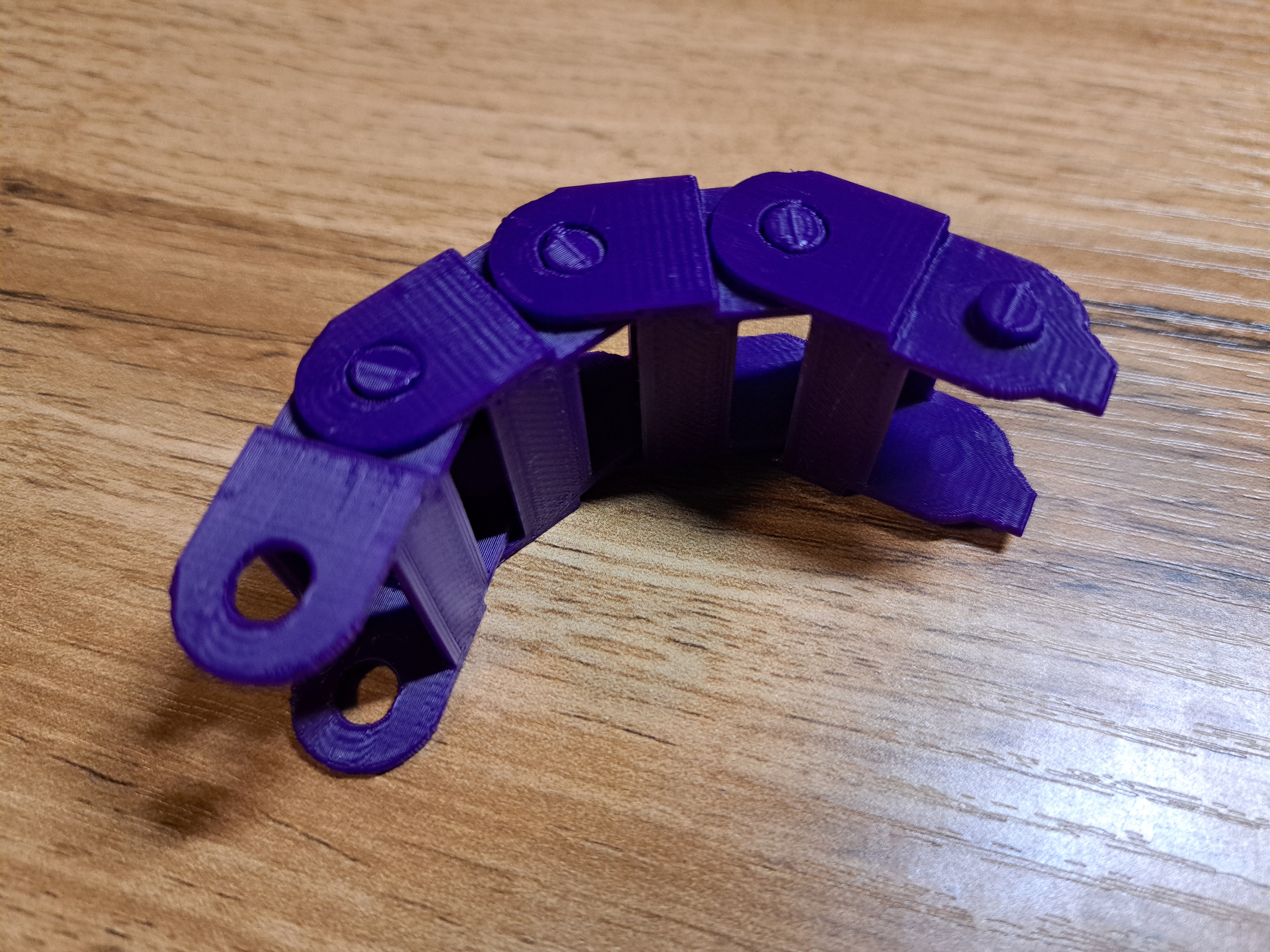

Compatible with the following cable chain as it can be seen in the pictures: https://www.amazon.de/-/en/TXErfolg-Quality-Carrier-Printer-Adjustable/dp/B087R9LCH3
Specifications
Inner hole size: 10 x 20 mm (0.39 inches x 0.79 inches (height x width), outer hole size: 15 mm x 28 mm / 0.59 inches x 1.10 inches (height x width). Bending radius: R28
Filament
I recommend printing it from something durable and more flexible, if you print it from PLA or anything that is too brittle, it might break while being put together.
I used a cheap brand of ABS Pro filament and it works rather well.
I can imagine PETG or Nylon filament would also work fine although I haven't tested yet.
Update
Fixed radius, it should be R28 now. This is tested as of November 4th 2023.

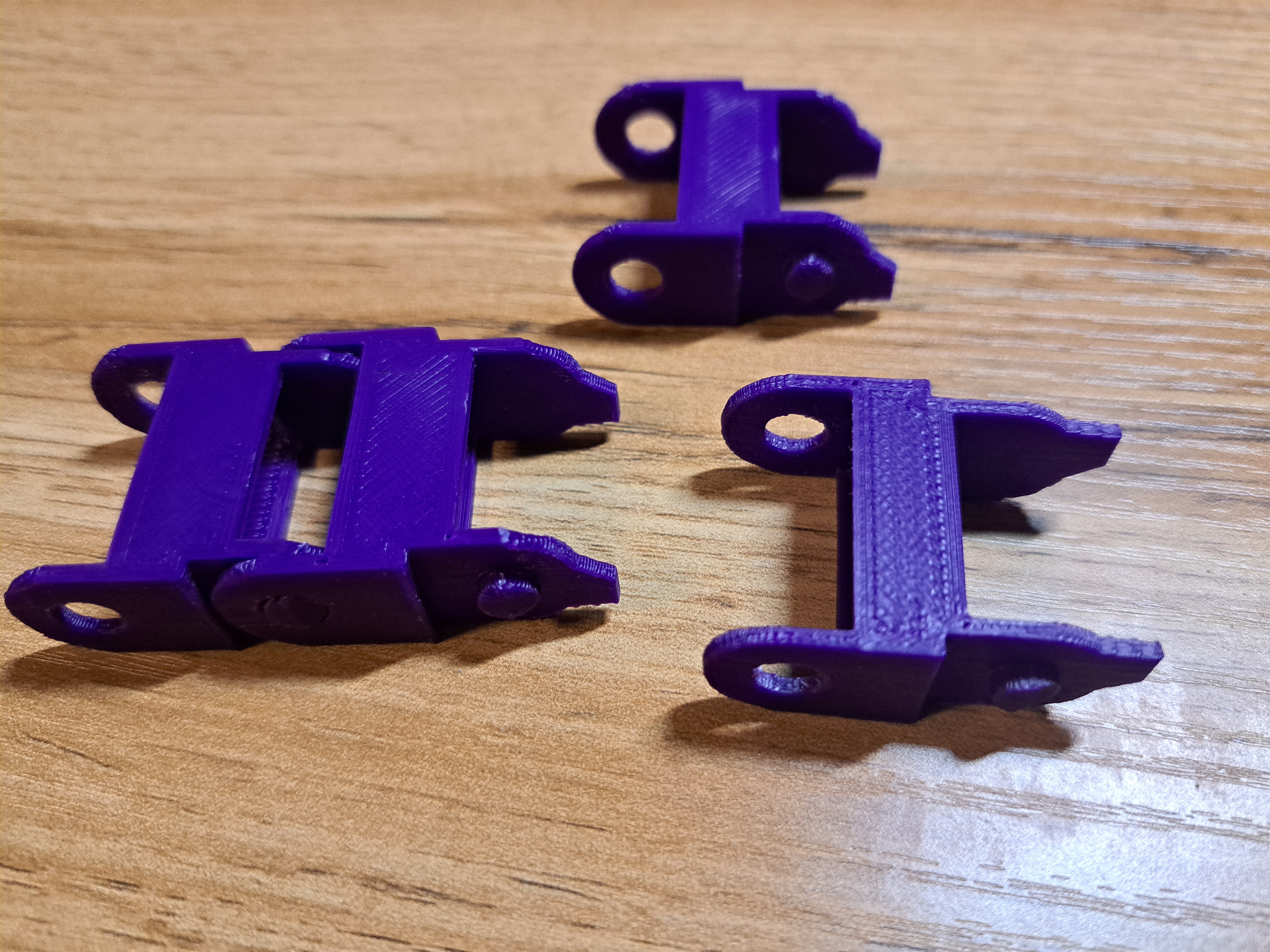

Assembly tips
When assembling the chain links, unfortunately it is possible to snap off the little ‘ears’, the ends with the holes, which are meant to go over the knobs of the next link. It's also possible to just cause cracks on this end, these cracks don't make it useless however, it still stays together, nevertheless it's annoying.
To mitigate this
• It's important to choose a non-brittle filament. • I had more consistent success when I was pushing in one side first in its place, then the other. Kinda sideways, tilted a bit.
Design and description by SALITIBI , licensed CC-BY.
