Cable Clip
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~3 g
- Express shipping
- $20
More information

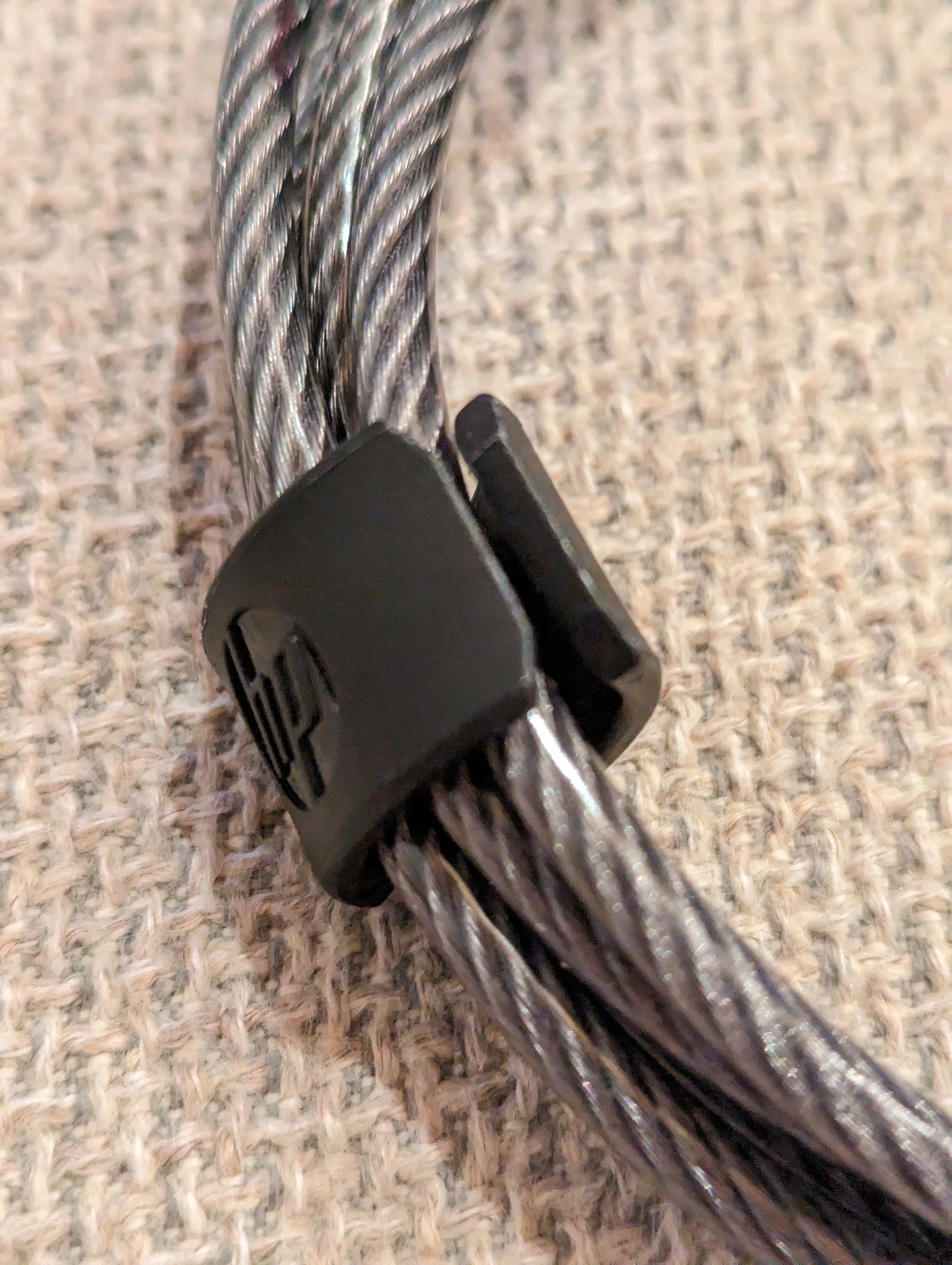

This is a clip you can attach on one side to a cable. On the other side, you can clip in all the windings of the cable when you wind it up such that it stays tidy.
This includes the OpenSCAD model to customize this for different cable sizes. This has two parameters:
• cd: The cable diameter. You should add some tolerance here, to allow the clip to move freely back and forth on the cable. I chose 5mm diameter for a 4.2mm cable and 3.8mm for a 3.2mm cable. • sc: Scaling. Make this larger if you need more windings to be stored in the clip or smaller for less.
I attached two STL files I used for the cable sizes mentioned above.
Alternatively, if you want the clip to scale up with the same factor as the cable diameter you may also just scale the model inside your slicer directly.
For robustness and flexibility, I printed this with PETG and filled everything up by increasing perimeters up until no infill was needed any longer.
The model does not need any support and other parameters like layer height are probably not relevant.
Design and description by Robert Schiele , licensed CC-BY.
Frequently asked
How long does shipping take?
Cable Clip is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
