Cable Clips, Cable and Tubes Management

I decided to design a simple cable clips because I did not like much the comercial ones, and they are very difficult to find in the area I live. And they are even cheaper at least for me.

Characteristics:

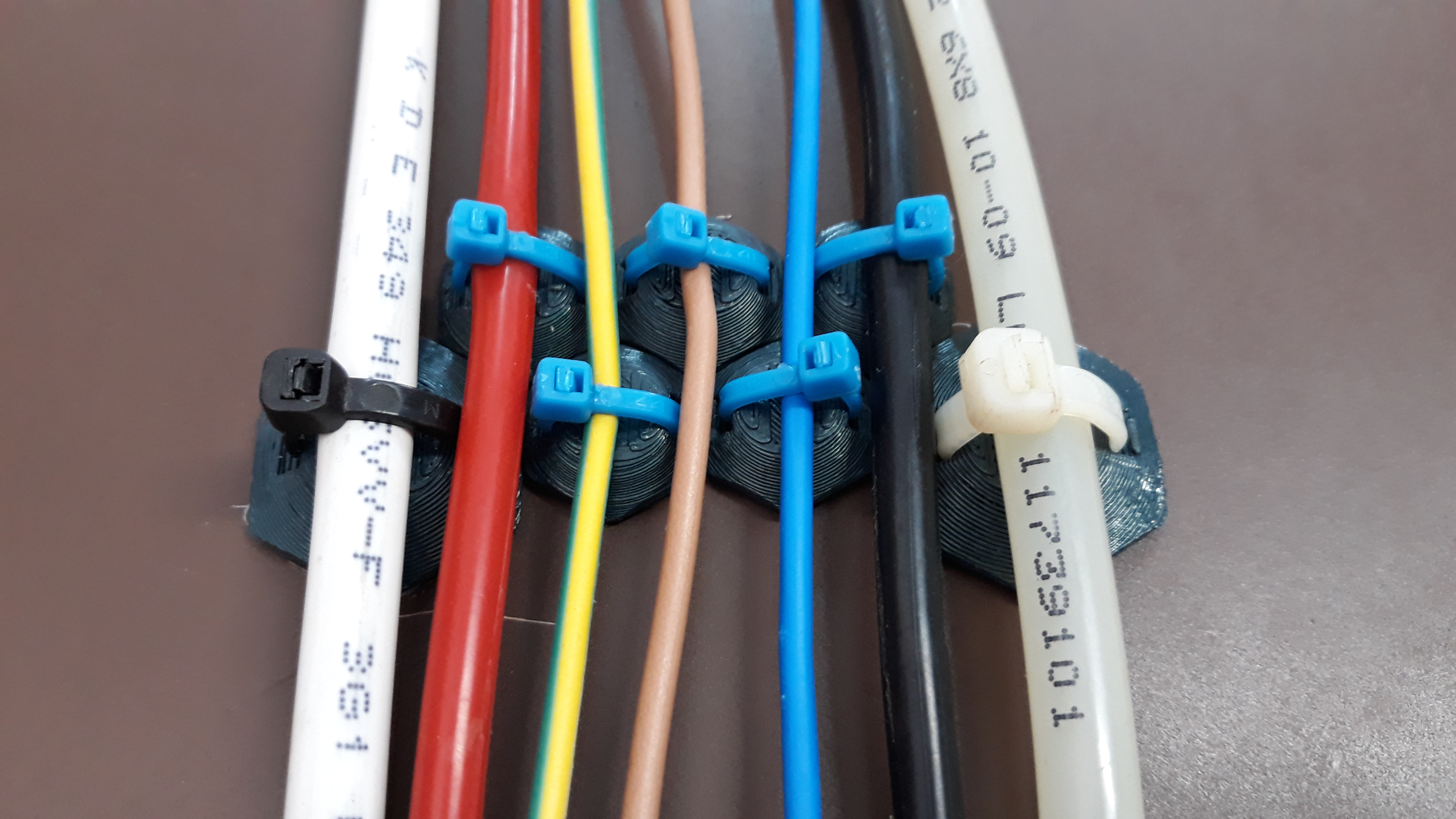

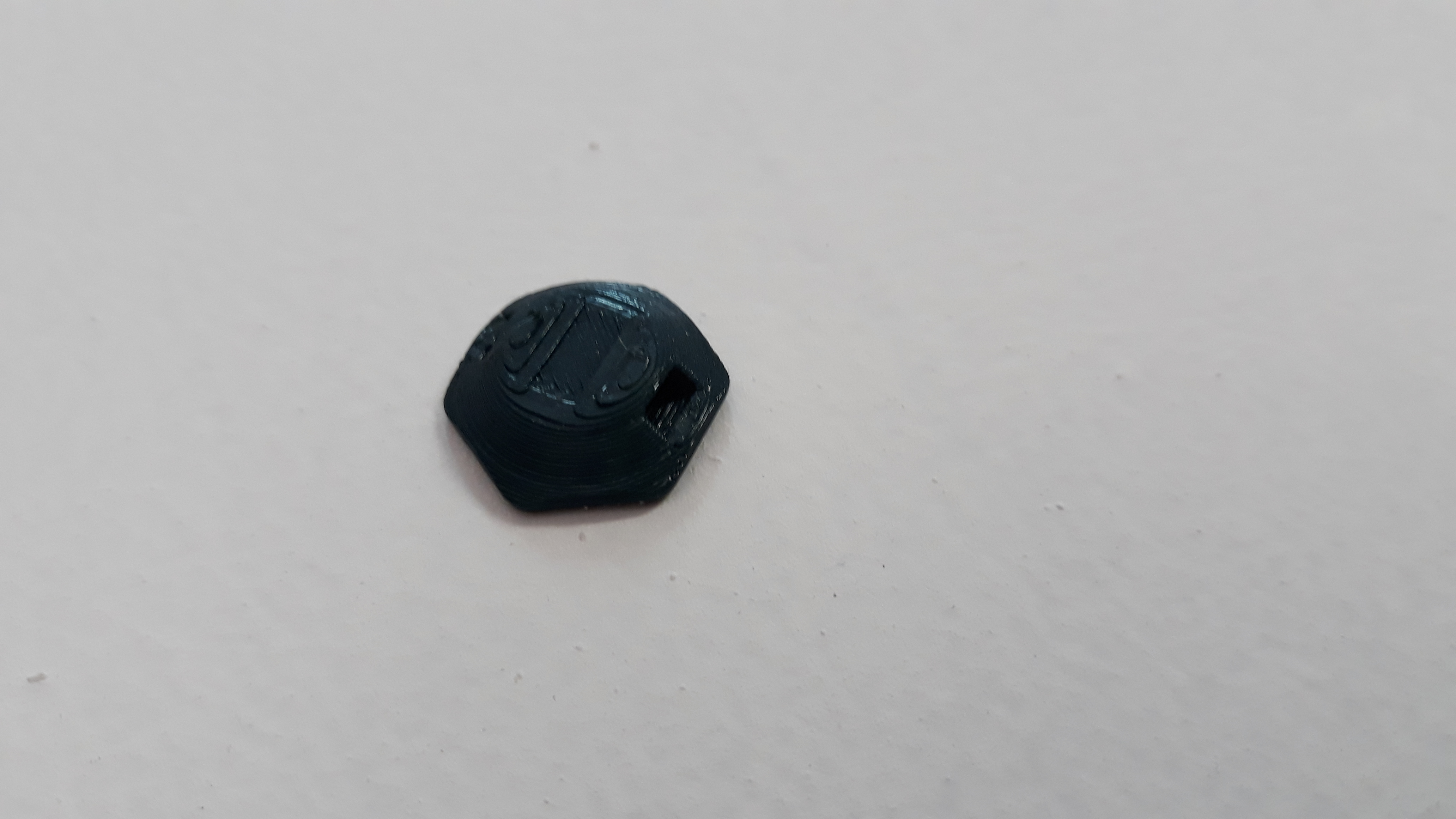

• They have an hexagonal shape so they can be aligned better that the square or round ones.

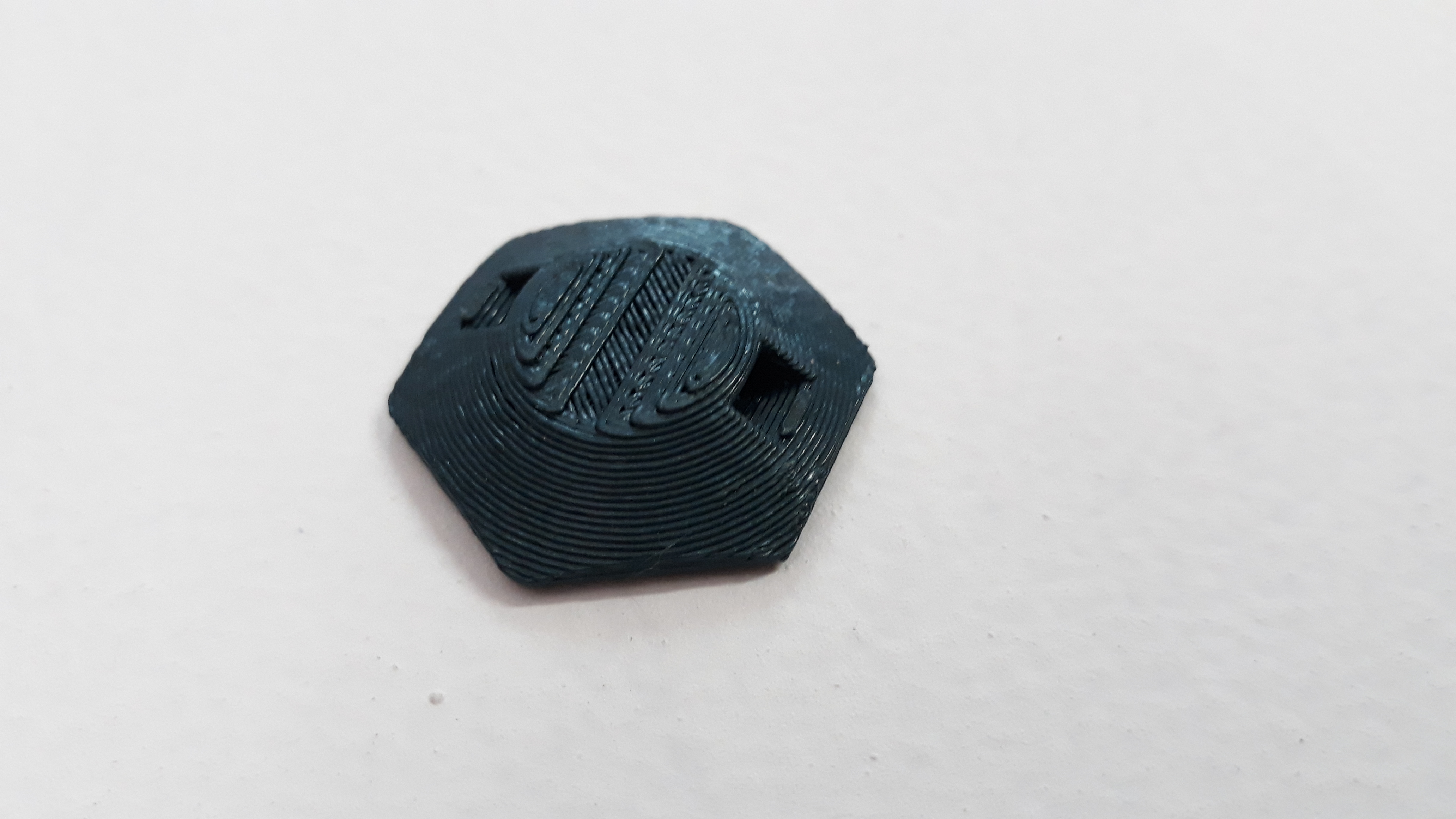

• The cable tie can be inserted from the top or from the side instead of only from the side on comercial version.

• They can be sticked with double side tape, glue, hot glue, etc.

• They can NOT be installed with screw :-(

• Two different sizes (Small, Big).

• Admits different sizes of cable ties.

• Very easy to print, big adhesion surface and no supports needed.

• Can be printed on any material that meet your needs.

• Many units can be printed in one go.

• Price per printed unit: 0.1-0.2€/$ or less depending on material and size.

• Posible to customize at Onshape, here is the link: https://cad.onshape.com/documents/095849beec4caedf25f2f278/w/3aba416b7ede97c91c66ba40/e/83df1d800544f6f76c65881a

Print instructions

Print recommendations:

• 0.4mm Nozzle

• 0.2mm Layer high

• 0.5-0.6mm Extrusion width

• No brim or raft.

• No supports

Design and description by Gonper , licensed CC-BY-SA.
