Cable gland D16 / D20
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~82 g
- Print time
- ~4.5 h
- Express shipping
- $20
More information

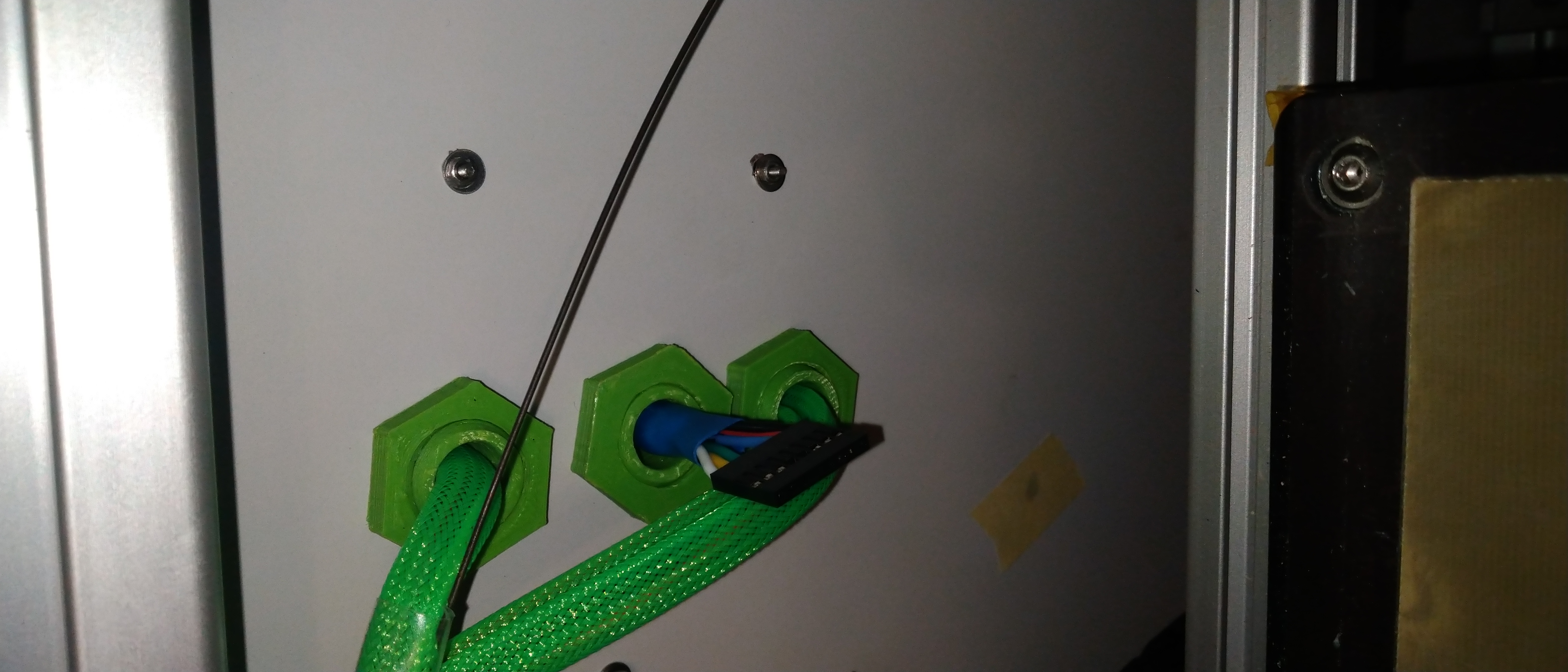

These glands can be printed in standing position. low layer thickness and good cooling is really helping a lot with resolution of the threads. But it is also designed to work with medium print quality. even bad stringing should be ok with some force ;)
ABS, ASA or PA would be the best material since it allows a bit more flex. Didn't try PLA or PETG yet but this should also work with some testing.
The D20 Version is made for 20mm holes (12mm inner diameter)
The D16 Version is made for 16mm holes (9,5mm inner diameter)
Additional comment: The stepped top is there so you could add those rubber rings (same as in the bought parts) for sealing. The _2 Version of the main gland is if you don't have those rubber seals
Design and description by 93djen , licensed CC0.
Frequently asked
How long does shipping take?
Cable gland D16 / D20 is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
